50/100/150 Tonnes Trolley Hydraulic Pullers Bearing Puller Tool

Share on:


Price:$12,366.00
Price in USD:Details

Quantity:


Product Overview

Description



Products Description

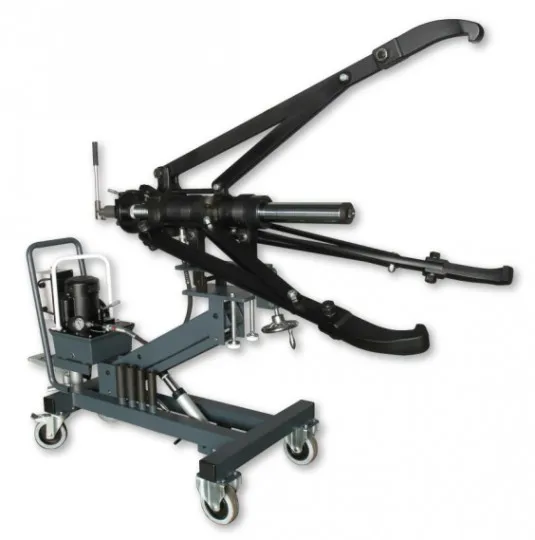

Trolley Hydraulic pullers




* Strippers have two options build 2-and 3-gripping gripper;
* Hydraulic lift system with foot drive for easy and precise fixation of the stripper;
* The self-centering design enables paws fixed object uniformly and automatically;
* Easy control system prevents the feet from sliding off the paws of the subject;
* The puller can be adjusted in five positions of raising and lowering the axis of a stripper for precise positioning;
* Swivel castors provide mobility carts;
* Electric pump station with a 2-position directional valve;

* Two versions of puller assembly: 2-gripper and 3-gripper;
* Hydraulic lifting system with foot drive for easy and exact fixation of puller position;
* Self-centering structure allows to fix object uniformly and automatically by means of legs;
* Easy system of legs control prevents from legs slipping down from object being removed;
* Puller may be adjusted on five positions of puller axis lifting and lowering for precise positioning;
* Curve sheaves of carriage provide mobility;
* Electrical pump station with 2-position control valve.


Model
Capacity, t
Stroke, mm
Number
of
tines
Depth
capture, mm
Diameter
of
the
parts
removed, mm
Height
of
the
carriage, mm
Dimensions
(BxLxH), mm
Voltage
(50Hz), V
Weight, kg

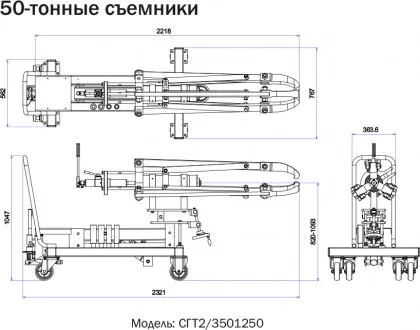

SGT2/3501250
50
330
2/3
720
1250
1093
767 × 2321 × 1047
220
400

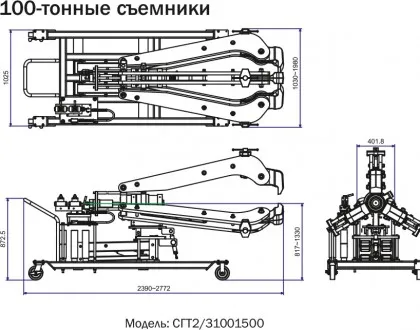

SGT2/31001500
100
270


2/3

1220
1500
1326
1030 × 2915 × 1350
220
1185

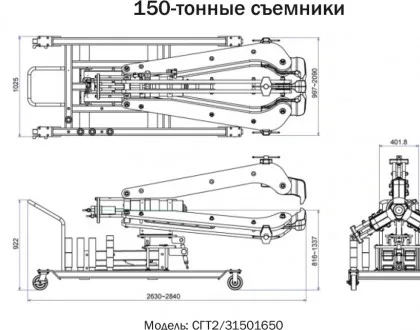

SGТ2/31501650
150
330


2/3

1175
1650
1337
1025 × 2840 × 1373
220
1200
