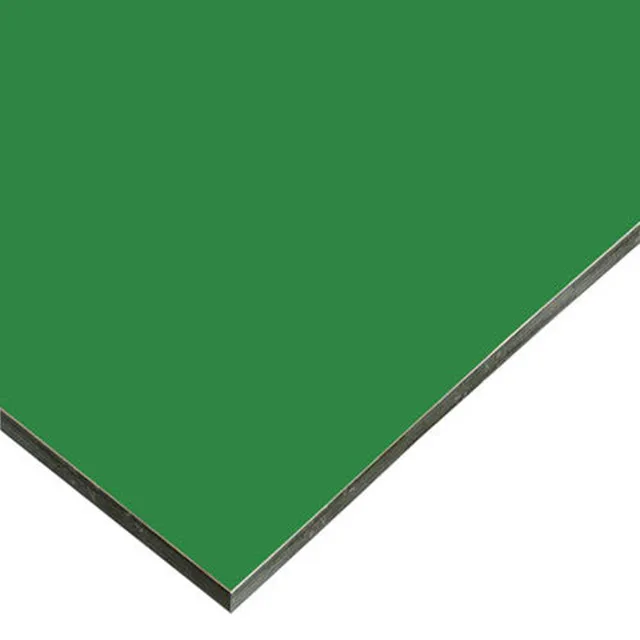

Hot Selling PVDF Aluminum Plastic Composite Panel With Alucobond Price


1) Protective film OEM brand or as requested.
2) Front side: aluminum roll coated with PE/PVDF
3) Macromolecular lamination film.
4) Core: Non-toxic polyethylene.
5) Macromolecular lamination film.
6) Rear side: Aluminum coated with primer or as requested.











aluminium composite panel sheet manufacturers


 Aluminium composite panel consisting of two aluminium cover sheets(AA1100 Series or AA3003 Series) sandwiching a non-toxic low density polyethylene core produced from a continuous extrusion process.Used for cladding,advertising.It’s usually called Aluminium composite panel,shortened as ACP or ACM.












Aluminium Composite Panel Quick Details




1)Material:
A) Front : aluminium alloy sheet coated fluoro-carbon resin (PVDF) with Nano lacquer.
B) Core: nontox low density polyethylene.
C) Back: aluminium alloy sheet coated with polyester resin painting.
D) Surface coating thickness: 32μ±1μ.
E) Aluminium alloy: 3003 H24.
F) Sheet thickness: 0.3mm,0.4mm,0.5mm .





2)Dimensions:
A) Thickness: 3mm,4mm,6mm,8mm,10mm.
B) Width: 1220mm,1250mm,1500mm,1570mm,1800mm,2000mm(max).
C) Length: 2440mm,3050mm,3200mm( max:6000mm).
D) Weight: 5.5kg/sqm baesd on 0.5/4mm thickness.
E) Standard size:1220*2440mm.
F) Qty/20'fcl:4mm/2380sqm; 3mm/2977sqm.
G) Non-stanard size are available according to requirement.





3)Standard:
A) West Europe standard ( Germany DIN Standard).
B) The EAST Europe standard ( Russian standard ).
C) The commonweathlth standard (U.K BS Standard ).
D) The North America ASTM standard.


ACP compared with different products( Lightness / Rigidity ):
The composite structure of Alumtimes® results in an impressive strength-to-weight ratio, even when comparing large panel sizes. Despite its low weight, which makes Trubond easy to transport and handle in the factory and on site, its rigidity and high strength make the panels keep their shape and remain flat, even when exposed to extreme temperature changes. Comparison of thickness and weight of panels with equal rigidity.


Trubond ACP compared with solid aluminium:
Required thickness and actual weights of panels with same rigidity

































Trubond ACPAluminum
Rigidity (E J)Section modulusThicknessWeightThicknessWeight
1250 kN cm2/m1.25 cm3/m3 mm4.5kg/m22.7 mm7.3kg/m2
2400 kN cm2/m1.75 cm3/m4mm5.5kg/m23.3 mm8.9kg/m2

 Trubond ACP Physical Properties for Panel:

























Panel density5.5kg/m2
Aluminium Skin ThicknessAverage 7.0 N/mm
Tensile Strength52.5 Mpa
Flexural Strength100.0 Mpa
Shear Strength28.1 Mpa

456


202023


450_


0120_


501.png502.png503.pngApplication Scope












1)Building exterior curtain walls
2)Decoration reformation storey-addition for old buildings
3)Decoration of interior walls,ceilings,bathrooms,kitchens and balconies
4)Shop’s door decoration
5)Advertisement boards,display platforms and signboards
6)Wallboards and ceilings for tunnel
7)Industrial material , vehicle and boat materials
