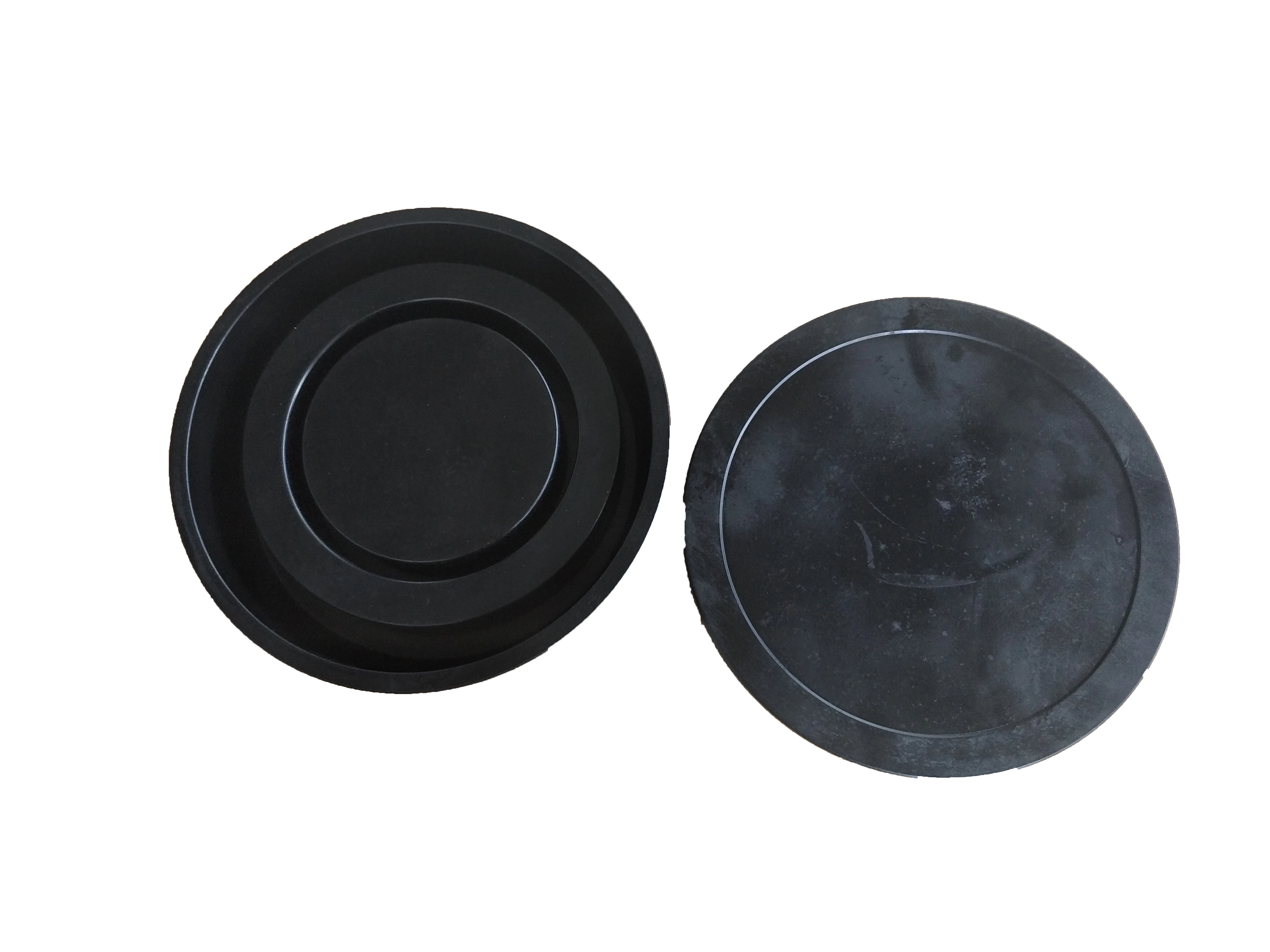

High-capacity Grinding bowls with Good Sealing

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description



Product Description


Product Description

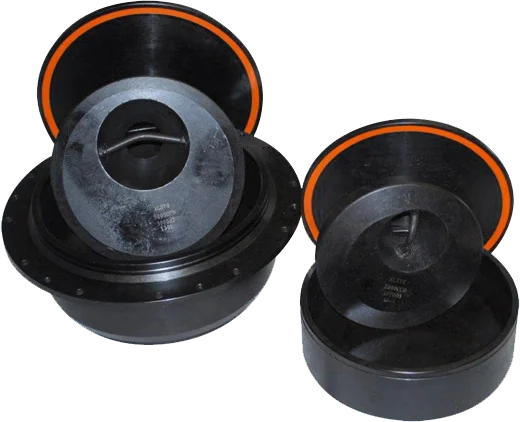

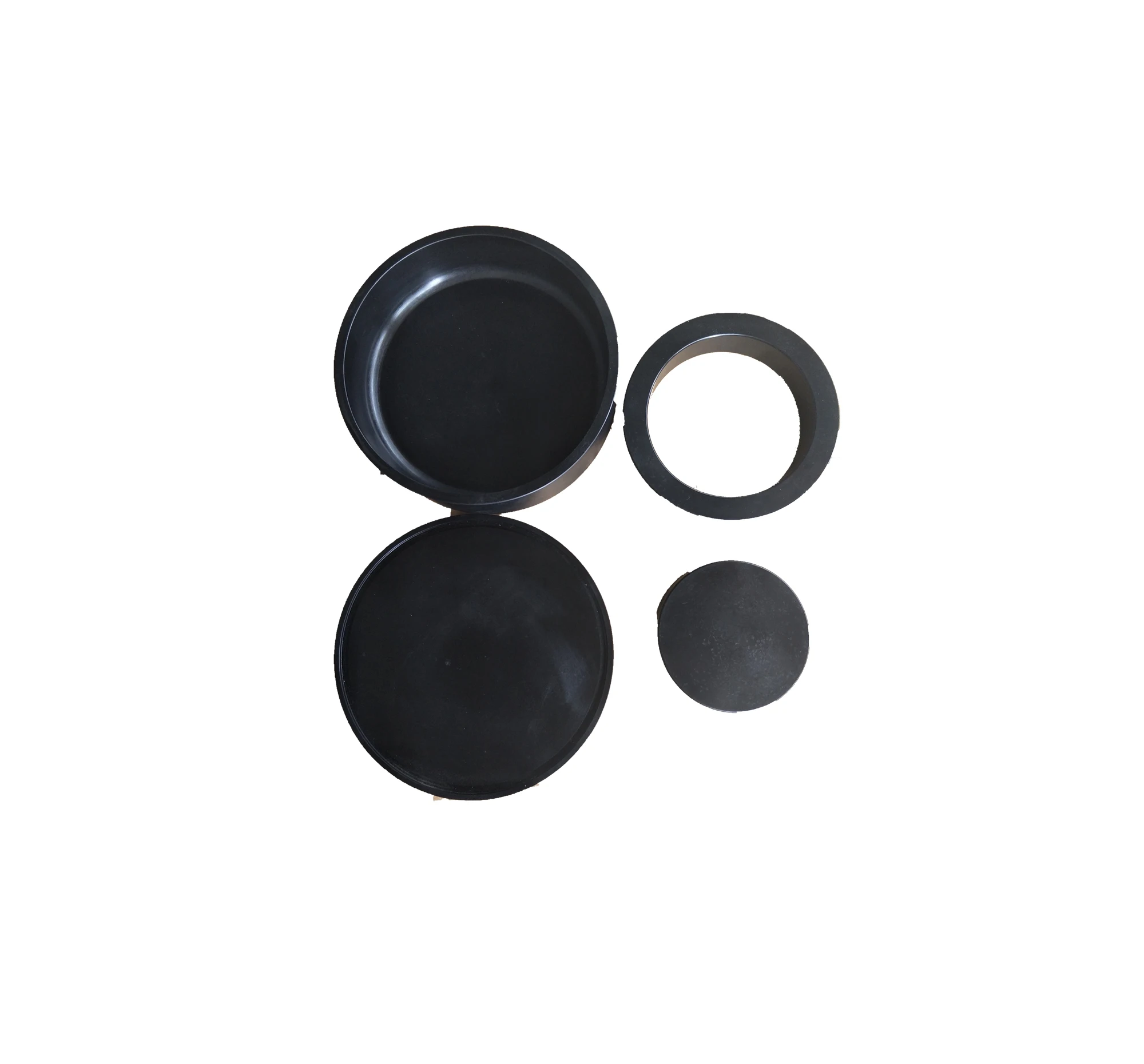

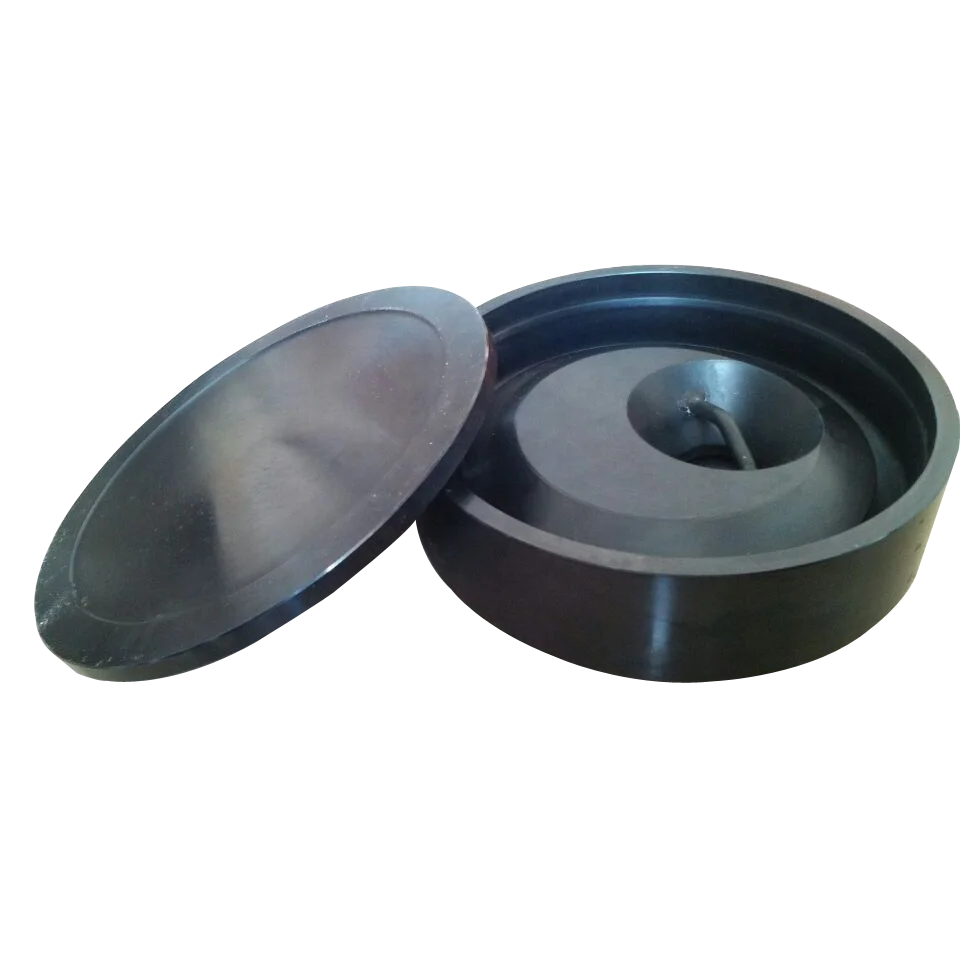

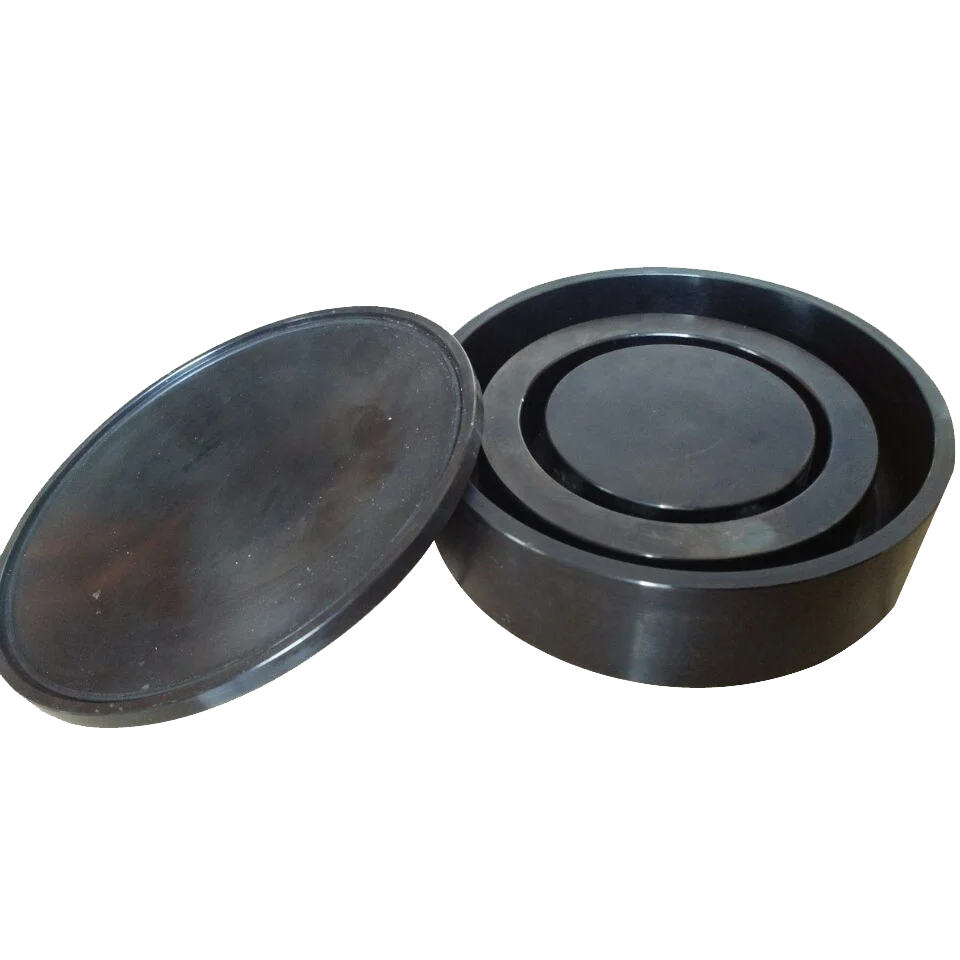

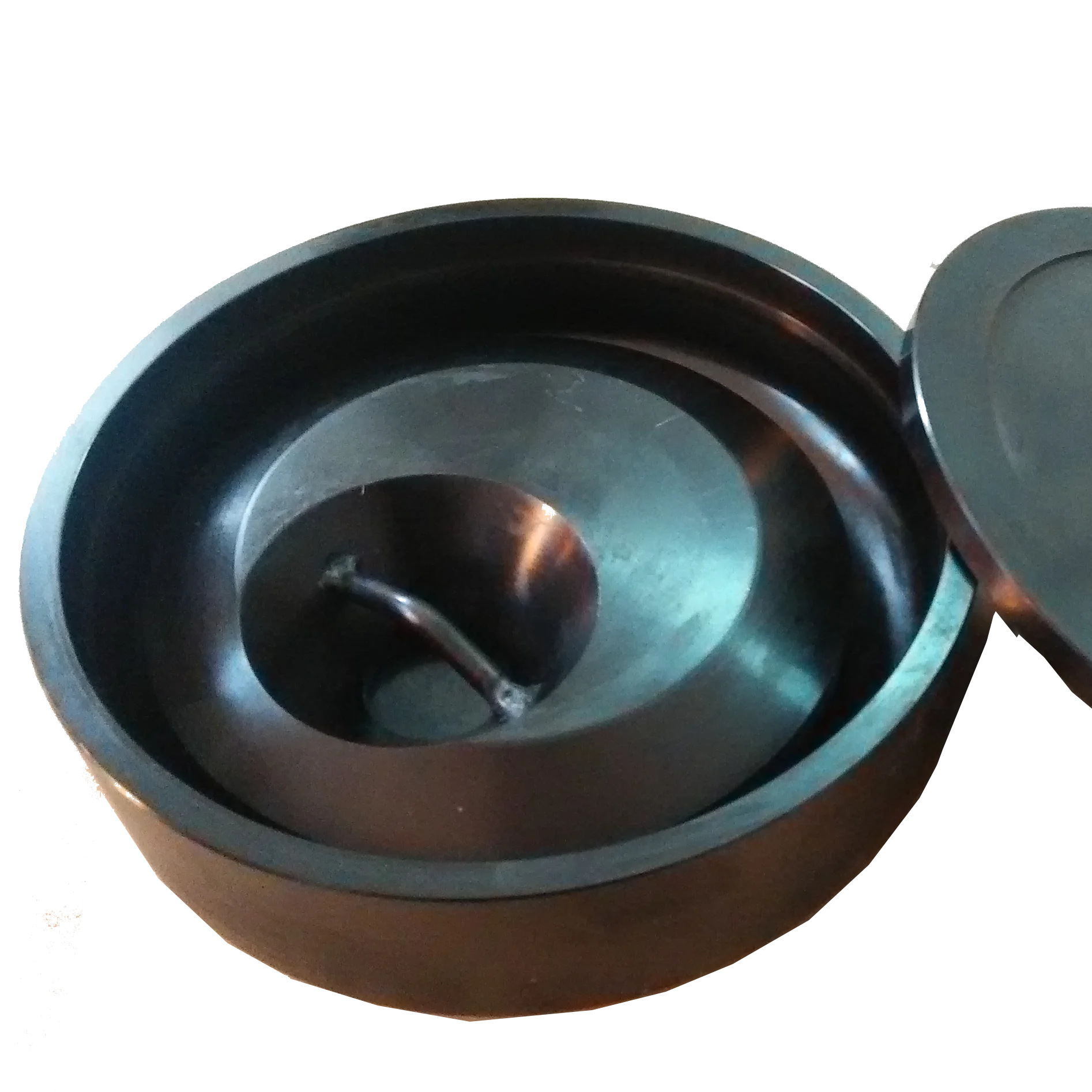

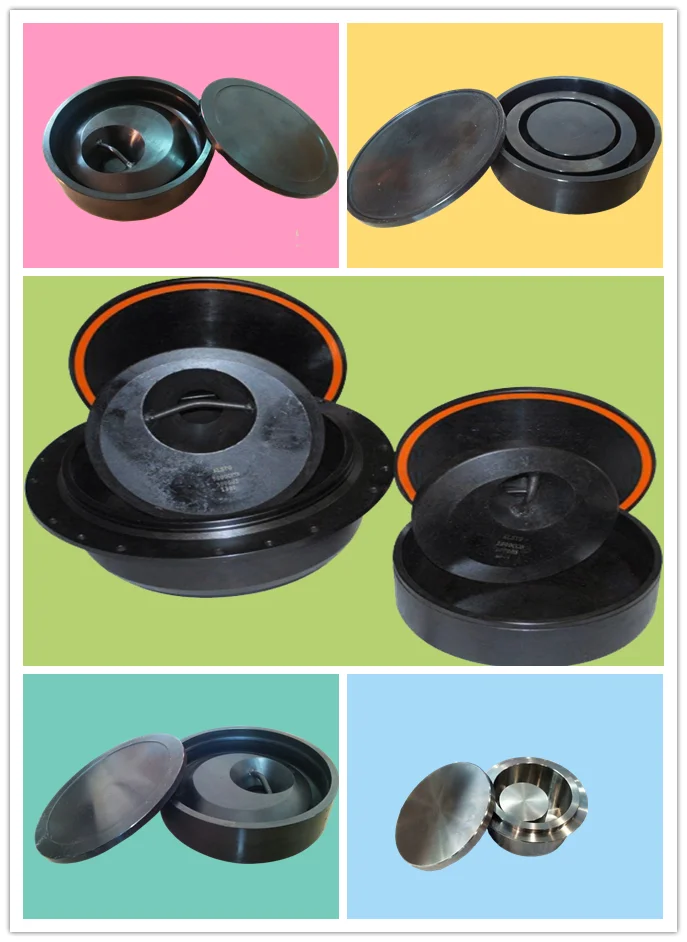

A complete pulveriser grinding bowl set includes bowl ,disc & lid or bowl ,rings ,roller & lid.
Available material : standard steel ,chrome steel.A unique range of bowls are available in B300cc, B400cc, B800cc, B1000cc,B2000cc and B5000cc nominal capacities.These bowls are of through hardened steel construction for optimum life. They are high-capacity, high-production bowl.

The grinding bowl is an important part of sample pulveriser. The samples it grinds directly affect the accuracy of analysis. When grinding materials with different hardness, different material bowls should be selected. The material of the bowl is high manganese steel or chrome steel, which has the advantages of impact resistance and wear resistance, so it has become the first choice of the major prototype plants.
Note: the size of the bowl can be adjusted according to the actual size of the prototype.


Features
* Good wear resistance and impact resistance.

* Under the strong impact and extrusion, the hardness of the stressed surface is obviously improved, and its hardness and service life are strengthened.

* The sample with uniform particle size and 80-200 mesh (0.175-0.075mm) micro powder sample can be directly used for test.

* Good sealing, no dust spillage.


Application
It is suitable for grinding metal and nonmetal (coal, rock, coke, ore, granular material) with certain hardness.Commonly used in most vibration pulverisers,such as Pulverising Mill PV2,PV5,LM2 ,LM5 ,etc.


Specification


Model
Weight
Bowl Diameter
Disc Diameter
Bowl Height
Total Height
Available Steel Type
2000cc
27.5kg
27.5cm
28.8cm
11.5cm
12.5cm
Manganese& Chrome
1000cc
20kg
25.5cm
26.3cm
8.5cm
9.5cm
Manganese& Chrome
800cc
13.9kg
22.7cm
23.6cm
8.3cm
9.0cm
Manganese& Chrome
400cc
12.8kg
21.8cm
23.0cm
6.5cm
7.2cm
Manganese& Chrome
300cc
14kg
21.5cm
22.5cm
7cm
7.8cm
Manganese& Chrome

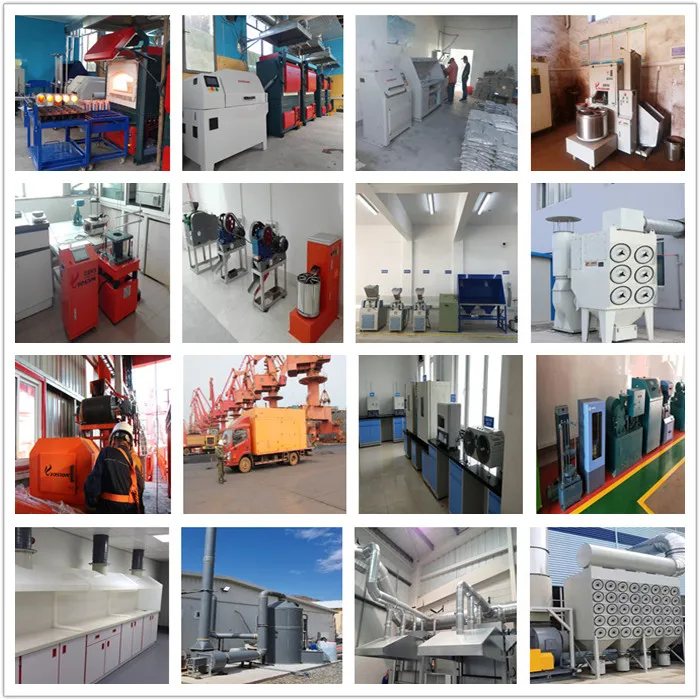

Project References
