NAEC---- Minimize the outdoor work, Maxmize customer's profit!


Suitable for industries of: OIL AND GAS, REFINERY FACILITIES, OFFSHORE &SHIPBUILDING, POWER PLANT, ETC


Reference: CCC, L&T, PEC, Rotary Engineering, Petrol Steel, JSL, ETC.





Fabrication Lifecycle Management Platform





2.2

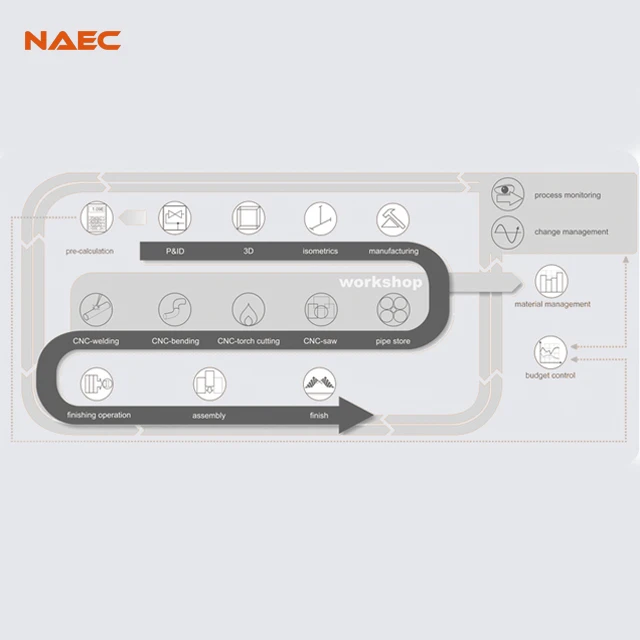

Fabrication Lifecycle Management Platform is designed for easy manage oil & gas pipe spool /modular fabrication project. It has interface with project engineering software, quality data control system, material managemen system, and human resource system.





It cover from whole production process, from raw material to finished products finished. By input engineering software, it can

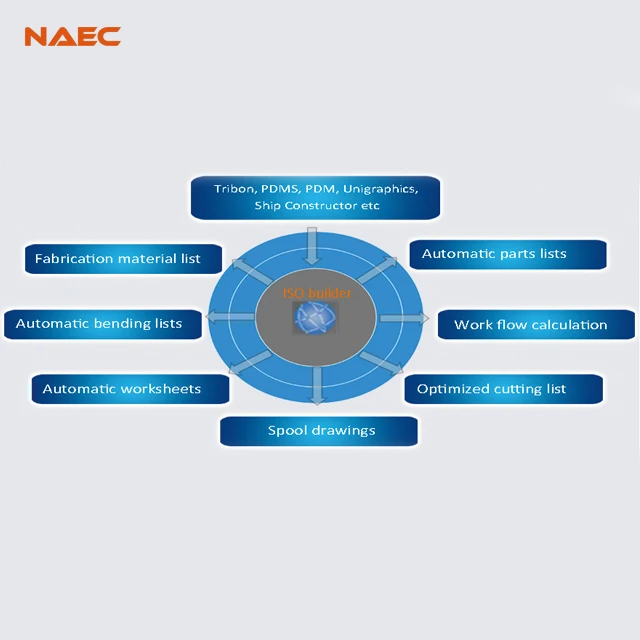

1

automatically generate fabrication material list


2automatically generate Automatic parts lists
3automatically generate Isometric drawings
4Work flow calculation
5automatically generate automatic worksheets
6automatically generate optimized cutting list
7automatically generate welding documentation







 By guarantee fabrication quality reduce project labor input and improve project automation rate, it minimize outdoor work, guarantee quality and efficient, and help customer realize Maximize project profit, so as to improve customer's value!





Our company view


Nanjing Auto Electric Co., Ltd (NAEC) was established in 2001, taking promoting "Lean Fabrication to Global Energy Engineering Industry" as its mission, NAEC's core business is to provide Lean-fabrication One-stop Solution to energy engineering contractors and fabricators. With advanced innovation ability and continuous integration of new technology & processes, NAEC's solution ensure its users high quality and efficient fabrication, and make itself become worldwide clients' most preferred partner.

Our Strategic Clients are
L EPC companies, Contractors or Fabricators in Onshore Oil & Gas Exploration, Transportation, Storage, Refinery & Chemical
L EPC companies, Contractors, Fabricators or Equipment Manufacturers in Offshore Oil & Gas Exploration, Treatment, Transportation & Storage
L EPC companies, Contractors or Fabricators in Nuclear Power, Wind Power, or Thermal Power
L Various Energy Engineering Equipment Manufacturers

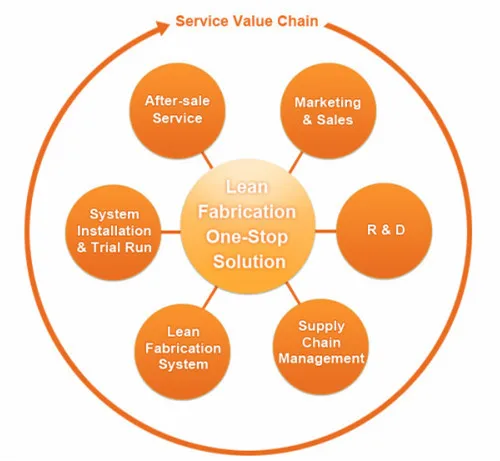

We provide Lean-fabrication One-stop Solution for Energy Engineering EPC Companies/ Contractors/ Fabricators, Based on Following Systems:

L NAEC Lean-fabrication Mode
L NAEC Lean-fabrication Management System
L NAEC Lean-fabrication Production System
NAEC Lean-fabrication One-stop Solution can help engineering fabrication operators to solve project problems. It can organize fabrication production and ensure the final delivery in good quality and on time
.





Pipe Spool Fabrication Machines








































1

Pipe Cutting& Beveling All-in-one Machine


>Suitable for pipes not larger than 8”,max.thickness:20mm


>Cutting efficiency:100times/8hrs


>PLC control with automatic measuring to guarantee the same processing cycle


>Widely used for small bore C.S/S.S production lines


2HG9A0512

High Speed Band-saw Cutting Machine


>Three models available(16”type,24”type”,48”type)


>PLC system control;self-measuring function with precision:±0.5mm


>Using hydraulic self-centering chuck


>It only takes 6 minutes to cut a 24” pipe of 25mm thickness


>Widely used for C.S/S.S production lines.


3Tweling machine (1)

High Speed CNC Pipe End Beveling Machine


>Automatic self-centering chuck


>Single V,double V,U type bevel


>Can be matched with pipe end turning devic


>High speed beveling:for example,it only takes 2.5minutes to get a 37.5 degree bevel for a S.S pipe end(diameter :610mm,thickness:25mm)


>Several models available:16”,24”,32”,48”


4IMG_0953

Two / Multi- Axis CNC Flame/Plasma Cutting Machine
>High efficient pipe cutting with automatic self-measuring function, pipe end beveling, intersection line profiling for both main and branch pipe.


>Five/multi-axis cutting machine can profile more complicated outlines with various bevel type


>Standard machine suitable for pipes nor larger than 24''


5

Multi-function Pipe Fitting-up Station


>Suitable for flange,elbow,tee,reducer to pipe and special T-joint fitting-up.


>Light-duty type(manual) and heavy-duty type(motorized) are available.


>Different types available, 8" type, 24" type, 32" type, 48" type, 60" type


6HG9A0466

Automatic Pipe Welding Station


>With two welding heads


>TIG/MIG/SAW are optional


>PLC system control & WPS programmed


>Max. efficiency fo reach welding head can be 400D.I/8hrs even use TIG/MIG technology.


>Different types available, 8" type, 24" type, 32" type, 48" type, 60" type


7Pipe moving machine

Conveyor Handling System


>used for pipe convenient transporation during in pipe spool fabrication.


>Its speed is adjustable between 2M to 20M/min.









For more information, pls contact us, thank you!
