PRODUCT DESCRIPTION

Elegant series new popular disinfection channel chamber tunnel

Operation instructions

1,Open the disinfectant srorage cabinet,put the disinfectant with good ptoportion into the storage cabinet and connect the pipe diameter

2,Connect the power supply

3,Start in turn 1.Ultrasonic spray disinfection 2.Ozone disinfection 3.Start button  and equipment of biue light can operate normally

4,Turn off:turn off in turn 1.Ultrasonic spray disinfection 2.Ozone disinfection 3.Start button   of

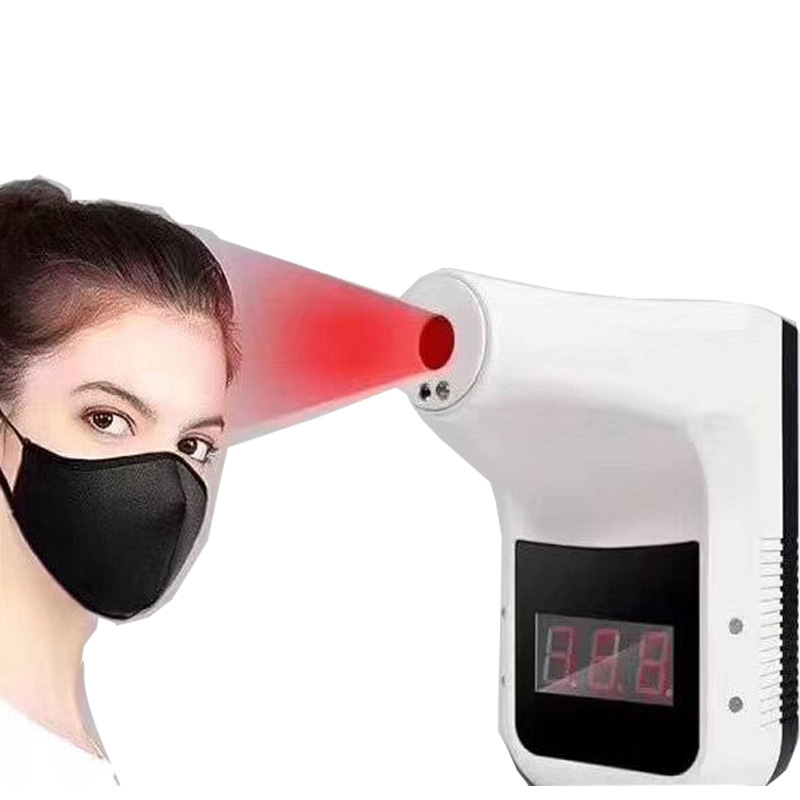

blue light lamp,equipment can be closed, and temperature mea-surement system can be started automatically

5,Make   up   water:add   disinfectant   mixture   according   to   consumption   to   ensure certai

atomization water level

Explanation principle

Triple disinfection with ultraviolet,plasma and light wave atomization,matrix type dead angle free whole body disinfection,non-contact disinfection and more thorough disinfection the control cabinet has three keys,1  in  turn,2  for  ultrasonic  spray  disinfection,3  for  UV sterilization ,and2 for blue light start button. Ready for normal operation

After the disinfection lamp button is turned on, the ultraviolet disinfection on both sides and the plasma disinfection on the top are turnde on

After the disinfection key is turned on, the light wave atomization is turned on, which is divided into low gear and high gear.

Elegant series new popular disinfection channel chamber tunnelElegant series new popular disinfection channel chamber tunnel





Fault phenomenon

Reason

Elimination method

Power switch does not work

A:Power without electricity B:Power switch not on

A:Check the power supply circuit to ensure normal power supply B:Turn on the power switch

No spray after starting

A:No water in water supply pipe

B:Water inlet valve damaged C:Fuse bum out

A:Check the water supply pipeline to ensure normal power supply B:Replace the water inlet valve C:Replace the fuse of the same specification

Less or no fog

A:Excessive scale in water tank B:Aging of atomizing sheet C:Ioss of voltage

A:Clean water tank and atomizing sheet

B:Replace the atomizing sheet C:Maintain normal voltage

Use environment

Ambient temperature

Water volume

Mixed water temperature

Feed water quality

Surrounding environment

1~40

1~12KG/c M2

1~40

Purified water

A:No  high  pressure radiation







Tap water

source









B:No   strong   magnetic   field









interference source









C:Not much dust
