Высокое качество 2U Стойка Хранения 24 SFF привод катушки IBM Storwize V5000 для Lenovo

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description



Product Description

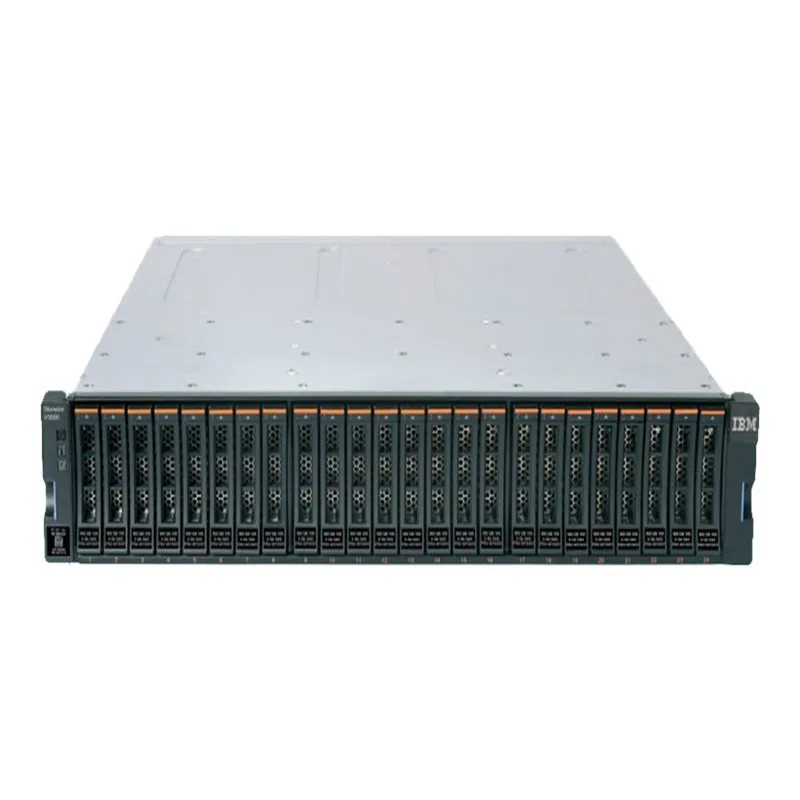

  • IBM Storwize V5000 for Lenovo

IBM Storwize V5000 for Lenovo (Machine Type 6194) is a highly flexible, easy to use virtualized storage system that enables midsize organizations to meet the challenges of rapid data growth and limited IT budgets. As an intermediate Storwize family offering, Storwize V5000 enables organizations to consolidate and provide new capabilities to their infrastructures.Storwize V5000 control enclosure models include two node canisters, each with 8 GB cache for a system total of 16 GB cache. Standard is 6 Gb SAS and 1 Gb iSCSI connectivity, with an option for 8 Gb Fibre
Channel (FC) or 10 iSCSI or Fibre Channel over Ethernet (FCoE) connectivity.



Made
IBM Storwize V5000 for Lenovo
Form factor
Storwize V5000 control enclosure: 2U rack mount
Storwize V5000 expansion enclosure: 2U rack mount
Controller configuration
Dual controller
RAID levels
RAID 0, 1, 5, 6, and 10; Distributed RAID 5 and 6 (internal storage only)
Controller cache
16 GB per single system (8 GB per node canister); 32 GB per cluster. Battery-backed cache
protection.
Drive bays
Up to 480 SFF drive bays per single system (up to 960 SFF drive bays per cluster):
24 SFF drive bays in the control enclosure
24 SFF drive bays in the expansion enclosure; up to 19x expansion enclosures
Up to 240 LFF drive bays per single system (up to 480 LFF drive bays per cluster):
12 LFF drive bays in the control enclosure
12 LFF drive bays in the expansion enclosure; up to 19x expansion enclosures
Intermix of SFF and LFF enclosures is supported.
Drive technology
SAS and NL SAS HDDs and SAS SSDs. Intermix of HDDs and SSDs is supported.
Drives
SFF drives:
200 GB, 400 GB, 800 GB, 1.6 TB, and 3.2 TB SAS SSDs
300 GB and 600 GB 15K rpm SAS HDDs
600 GB, 900 GB, 1.2 TB, and 1.8 TB 10K rpm SAS HDDs
2 TB 7.2K rpm NL SAS HDDs
LFF drives:
300 GB and 600 GB 15K rpm SAS HDDs
900 GB, 1.2 TB, and 1.8 GB 10K rpm SAS HDDs
4 TB, 6 TB, and 8 TB 7.2K rpm NL SAS HDDs
Drive connectivity
Dual-ported 6 Gb SAS drive attachment infrastructure.
Control enclosure with two node canisters (ports per one node canister):
24x 6 Gb SAS internal drive ports (SFF chassis)
12x 6 Gb SAS internal drive ports (LFF chassis)
2x 6 Gb SAS x4 (Mini-SAS SFF-8644) expansion port for the attachment of the
Host connectivity
Standard ports (per control enclosure with two node canisters):
4x 6 Gb SAS host ports (Mini-SAS HD, SFF-8644) (2 ports per node canister)
4x 1 Gb iSCSI host ports (UTP, RJ-45) (2 ports per node canister)
4x 10 Gb iSCSI or FCoE SFP+ host ports (SW fiber optics, LC) (2 ports per node canister)
8x 8 Gb FC SFP host ports (SW or LW fiber optics, LC) (4 ports per node canister)
Cooling
Redundant cooling with the fan modules that are built into power supplies.
Power supply
Two redundant hot-swap 800 W AC power supplies.
Hot-swap parts
Node canisters, expansion canisters, SFP/SFP+ transceivers, drives, power supplies with fans.
Software
maintenance
Three-year or five-year (model dependent) base software maintenance is included.
Height x Width x Depth
Height: 87 mm (3.4 in); width: 483 mm (19.0 in); depth: 556 mm (21.9 in)


Details Images

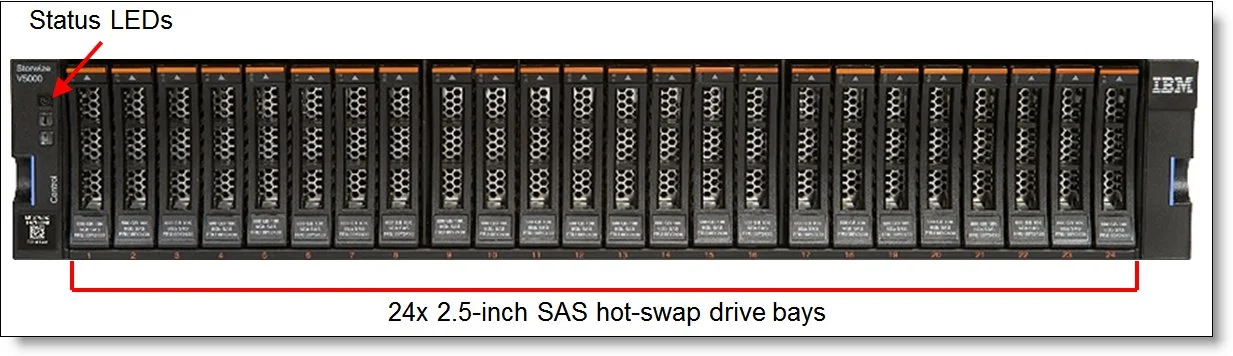

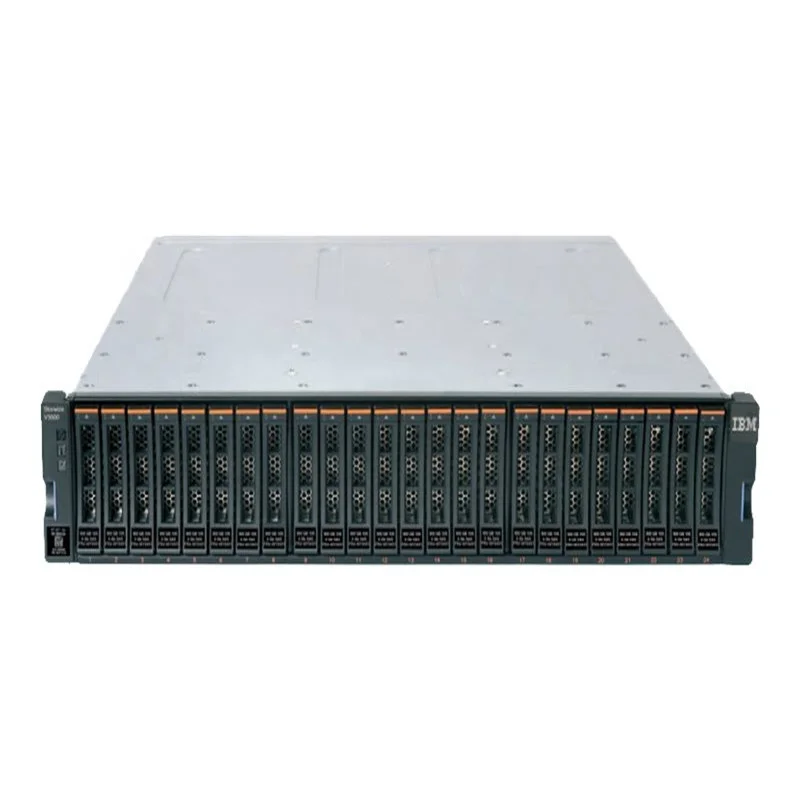

1.Front view of the Storwize V5000 SFF enclosure




2. Front view of the Storwize V5000 LFF enclosure

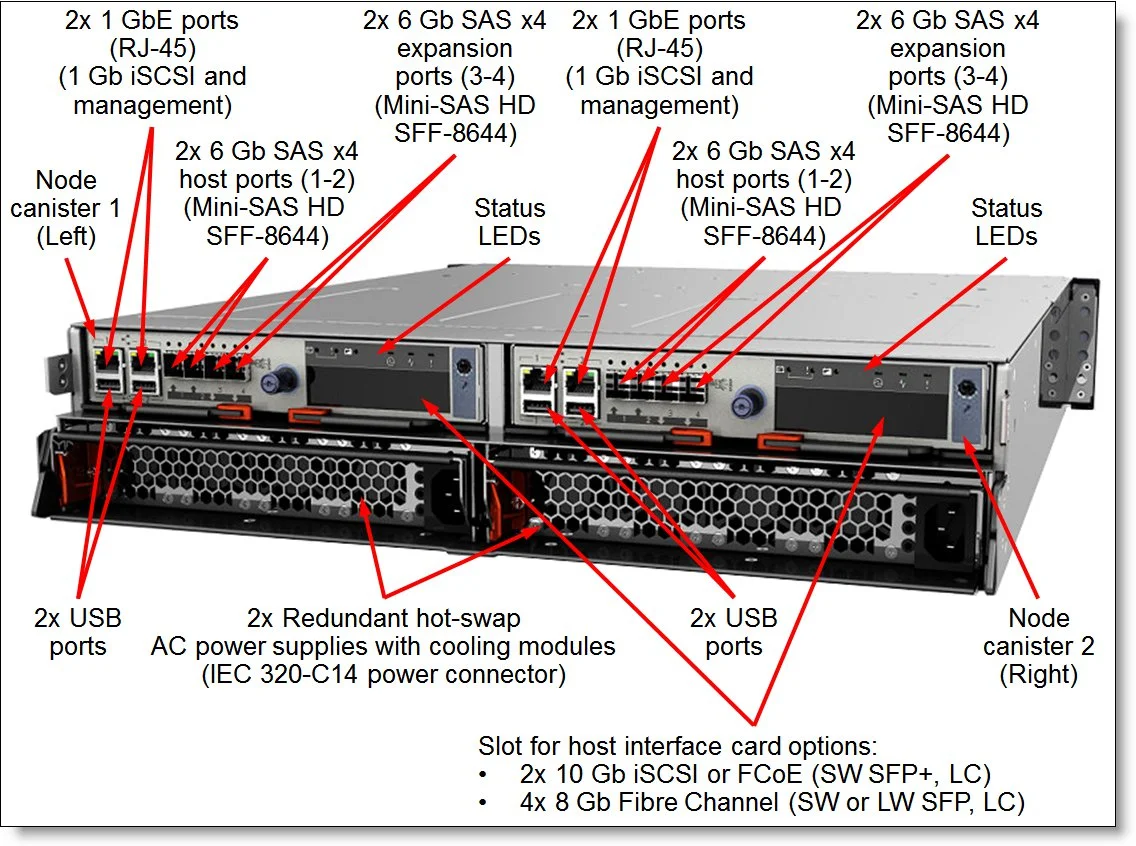

3.Rear view of the Storwize V5000 Control Enclosure

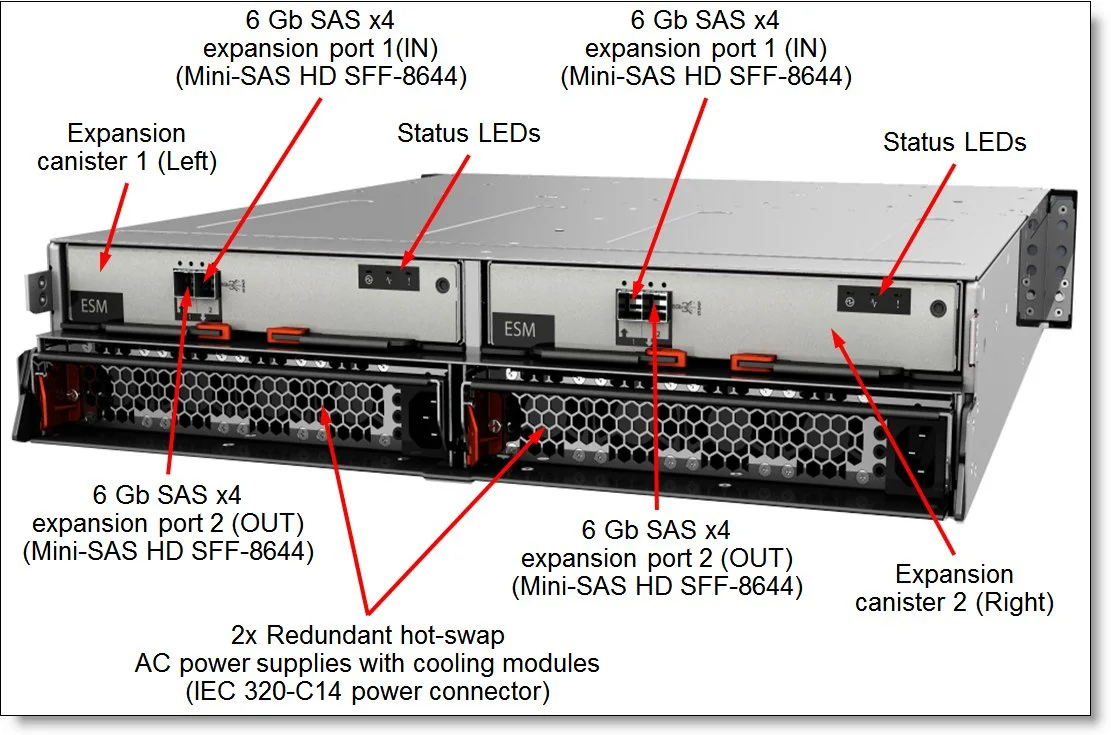

4.Rear view of the Storwize V5000 Expansion Enclosure
