MR-X8 6-20mm end mill sharpener ball mill machine drilling tool grinder for grinding bit

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description

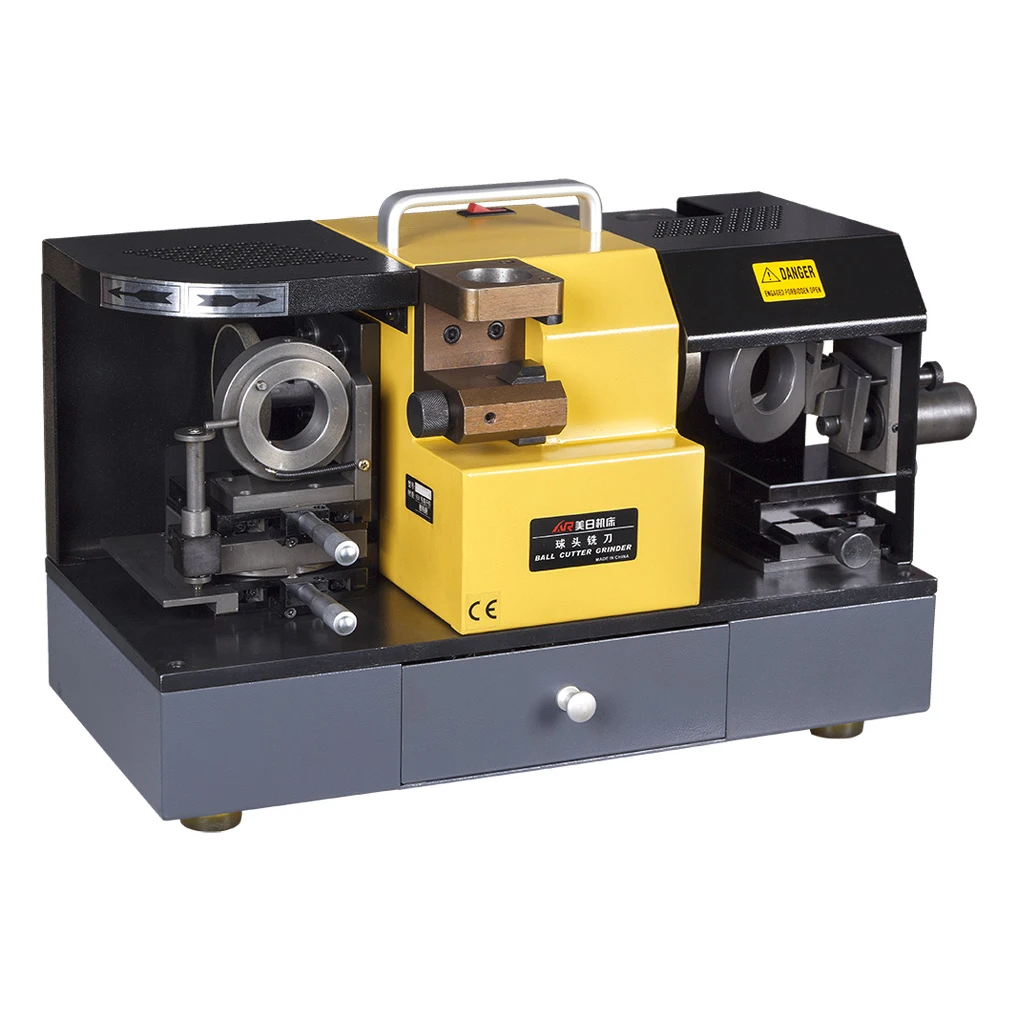

MR-X8 6-20mm Ball nose end mill sharpener machine tool grinder



Product Description


It is the special grinder for ball end mill .


Grinding is accurate and rapid ,easy operation ,with no skill requirement to grind.


With TaiWan diamond Grinding wheel ,onlyone piece can complete all procedure.


It can be equipped directly with an accurate angle and long service life.


Standard with SDC grinding wheel for the Carbide material, Optional CBN grinding wheel for the Hss material.

















































Model:MR-X8
Diameter:Φ6-Φ20mm
Power:220V/250W
Speed:4400rpm
Dimension:60*29*37cm
Weight:40KG
Standard Equipment:Ball grinding wheelSDC (for carbide)×1
Front  grinding wheel: SDC (for carbide)×1
Eight collets:  Φ6,Φ8,Φ10,Φ12,Φ14,Φ16,Φ18,Φ20
Collet chucks: 1 PCS
Optional Equipment:Ball grinding wheelCBN (for HSS)
Front grinding wheel: SDC (for carbide)×1




Details:





MR-X8


        BALL END MILL SHARPENER


        Still use a simple type of operation design, need grinding experience can also quickly work, whether you are small and medium enterprises, family workshops, personal repair, all can achieve satisfy grinding results!




INSISTING ON ORIGINAL DESIGN FROM CHINA









SMALL SIZE, SUITABLE FOR ANY PLACE TO DO END MILL GRINDING.




EASY TO DO THE MILL SETTING


According the diameter of the mill to adjust the scale, the operation steps are clear.


High precision and high efficiency.




EASY FOR END MILL GRINDING


 According the the grinding hole, insert the chuck.

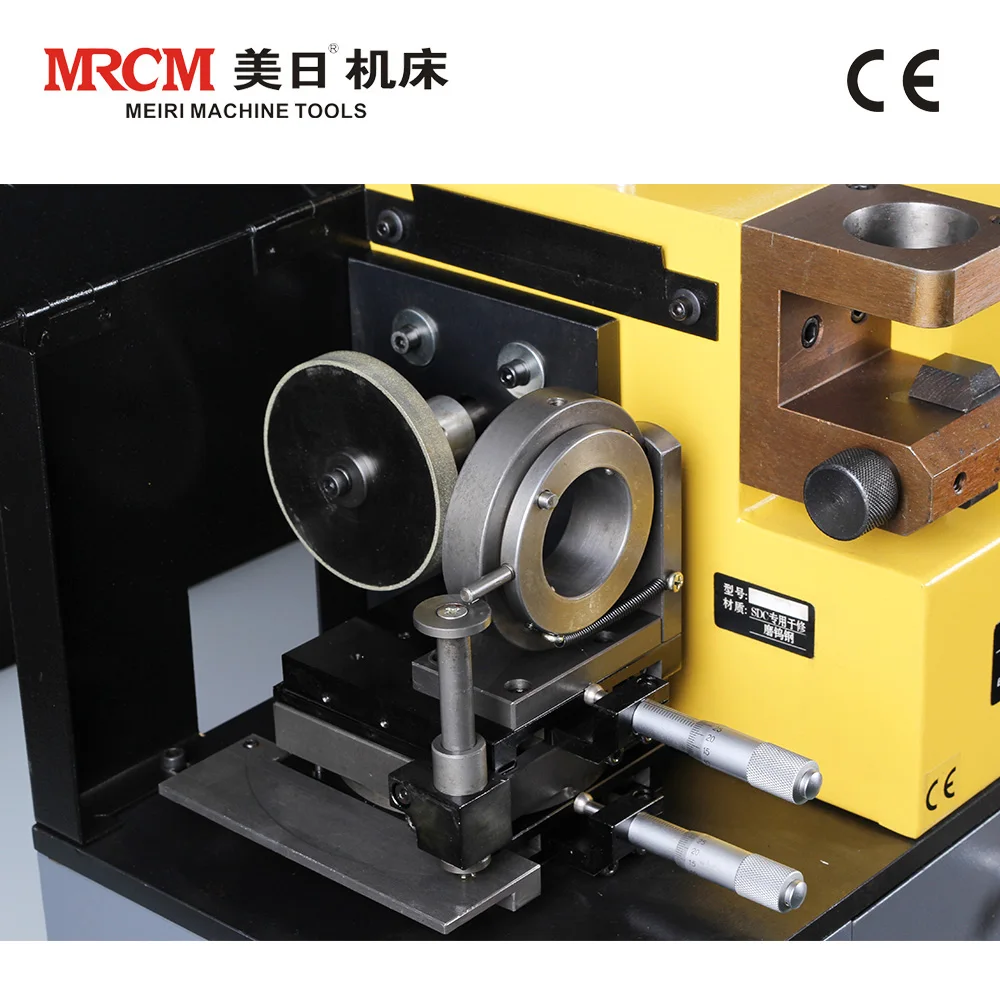

It is very clear to see the grinding position when open the cover of grinding wheel.




Standard accessories:


















Grinding wheel ×1 set


Standard is SDC for carbide material


Collets ×8 pcs  (Φ6-Φ20mm)Collet chuck ×1 piece
1111111111














Packaging & Shipping


EXPORTING PACKAGE, SAFE AND STABLE


delivery





Company Information

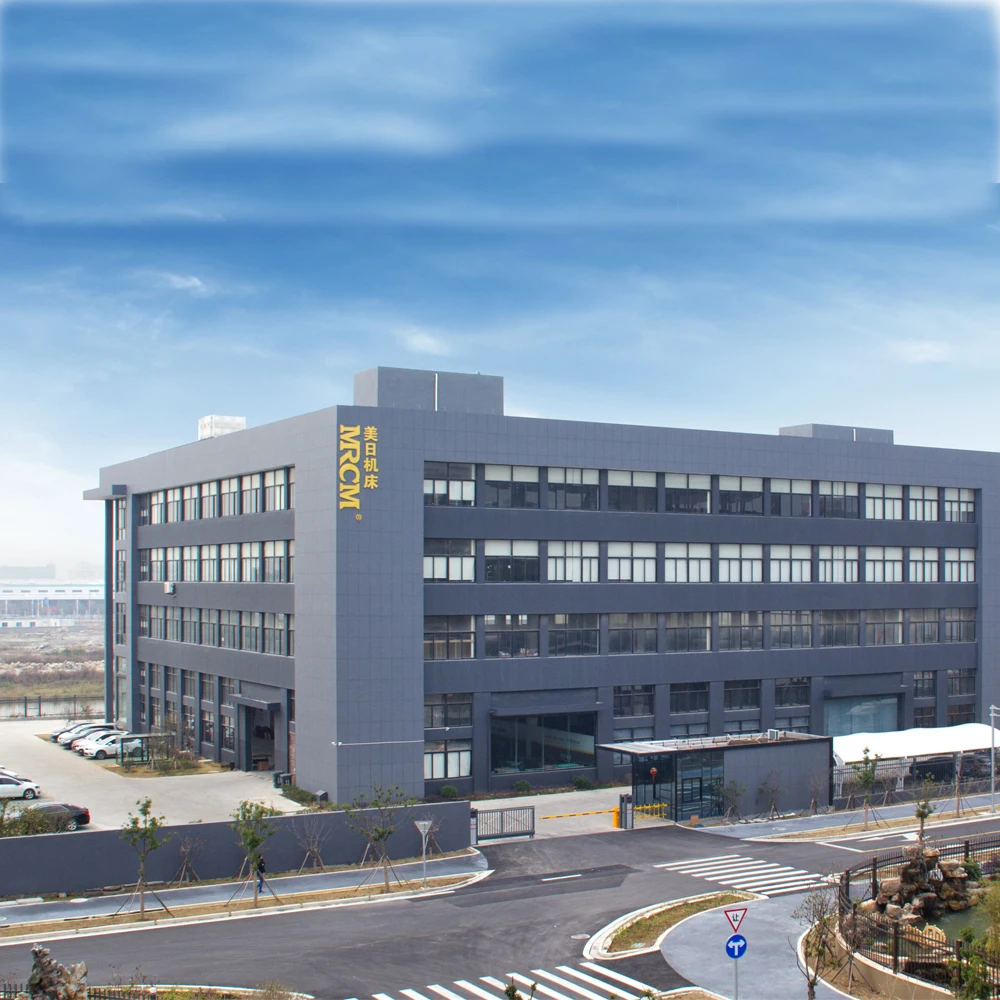

MRCM is a manufacturer specialized in developing and producing small special-purpose tool grinders, precision machinery tools. It is a high-tech enterprise which includes research and development; design; production; sale; and after-sale service. In the past many years, we’ve been committed to research, develop and produce the grinding tools. We’ve been started from the portable drill bit sharpener and continuously developed to the current four-axis and six-axis CNC tool grinding machine. The CNC machine with different functions to meet the market requirements, effectively improve the working life of tools and reduce production costs.


 (1)


Main products include: CNC tool grinder, drill bit sharpener, end mill sharpener, screw tap sharpener, lathe tool grinder, saw blade sharpener, universal cutter grinder, universal tool grinder, chamfer, tapping machine, vise, sucker, zero positioning, and so on.


Engaged in international marketing, participated in international exhibitions, such as EMO Hannover, cooperated with the domestic and foreign companies. We’ve passed the CE, ISO 9001 certification, have been applied for over 70 national patents, sold product to 60 countries and regions, 80% of exporting products are sold to developed countries such as Japan, Europe countries and so on.



HTB13aFImS_I8





FAQ


1.What is your advance?                                                                                                                                             A:(1)We have ourselves factory. We accept the order if you want to customize products or design the product.


(2)Professional website platform and one-to-one online service.
(3)Various products in low MOQ and competitive prices.
(4)We have a strong R&D team and now we have 52 patents products.
(5)80% exporting products have been sold to Europe,America and Japan, high quality.
2. What's the minimum order quantity?
A: One set is acceptable
3. How about the payment Term?
A: We accept T/T,Western Union,LC
4. What's your port?
A: Ningbo/Shanghai.
5. Can we use our own shipping agent?
A: Yes,you can. we had cooperated with many forwarders.If you need,We can recommend some forwarders to you and you can compare the price and the service.
6. Can we use our own LOGO or design for sticker?
A: Yes,you can contact with the salesman. And sent us more details about the LOGO or sticker.
7. How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
8. Do you provide samples? Is it free or extra ?
A: Yes, we could offer the sample for cheaper price but do not pay the cost of freight.
