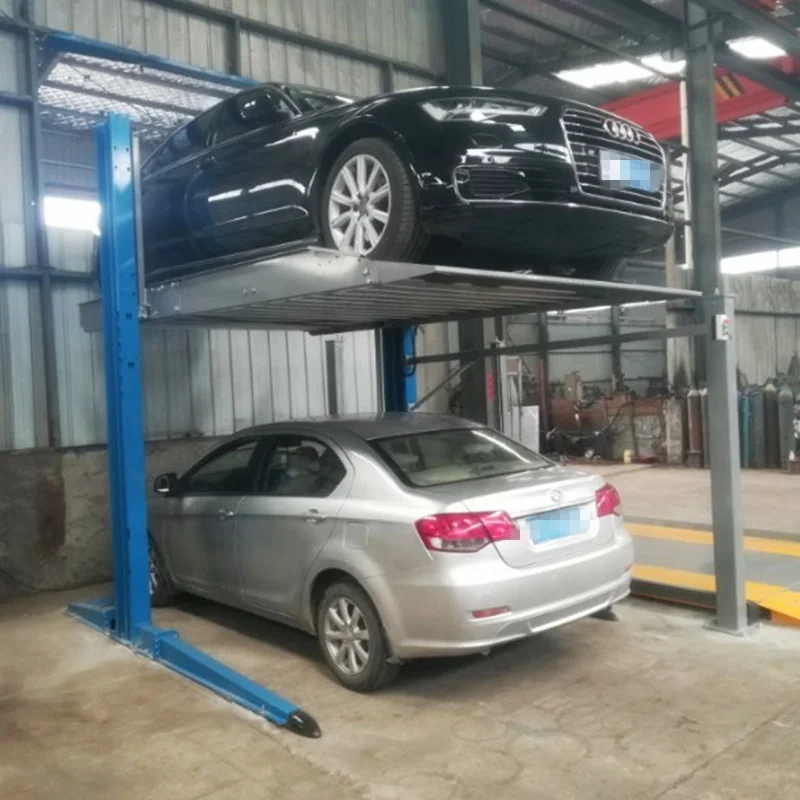

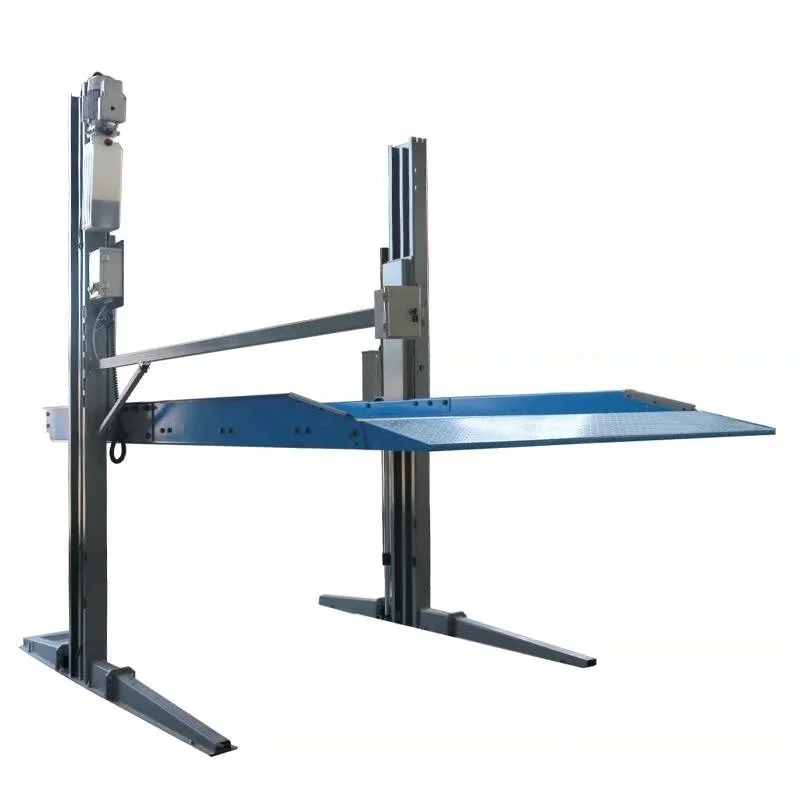

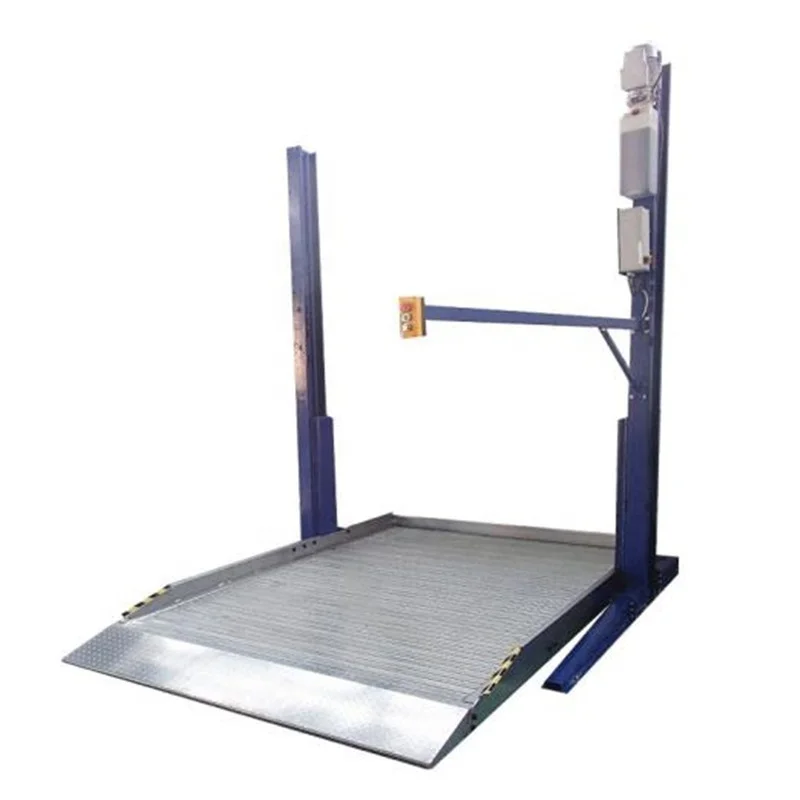

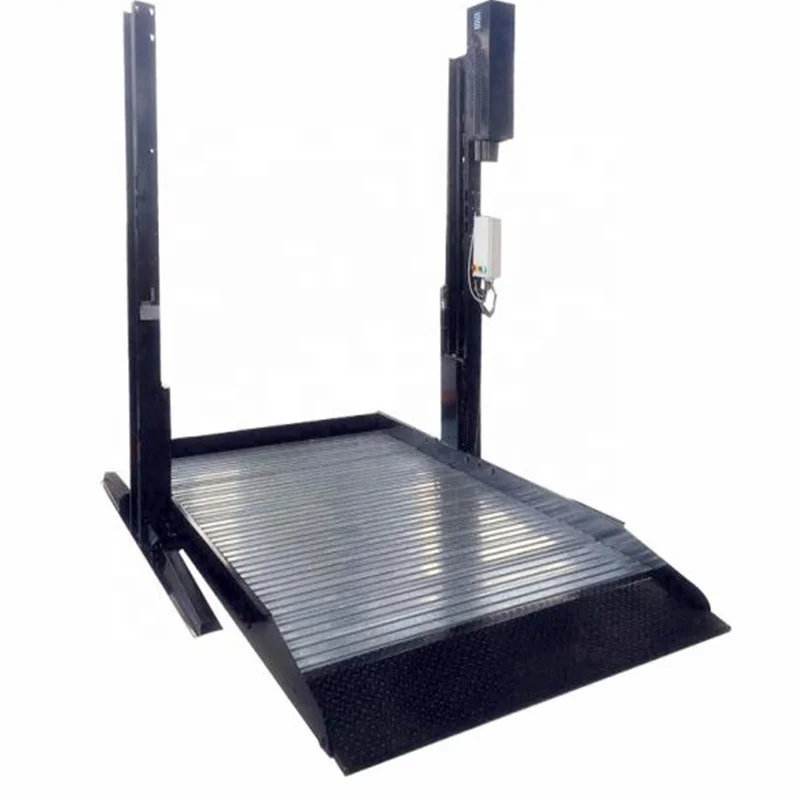

Hydraulic Two Post Car Parking Lift Equipment 2.3Ton 2.7Ton

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description



Product Description


2 Post parking lift-Electric lock release




Introduction:

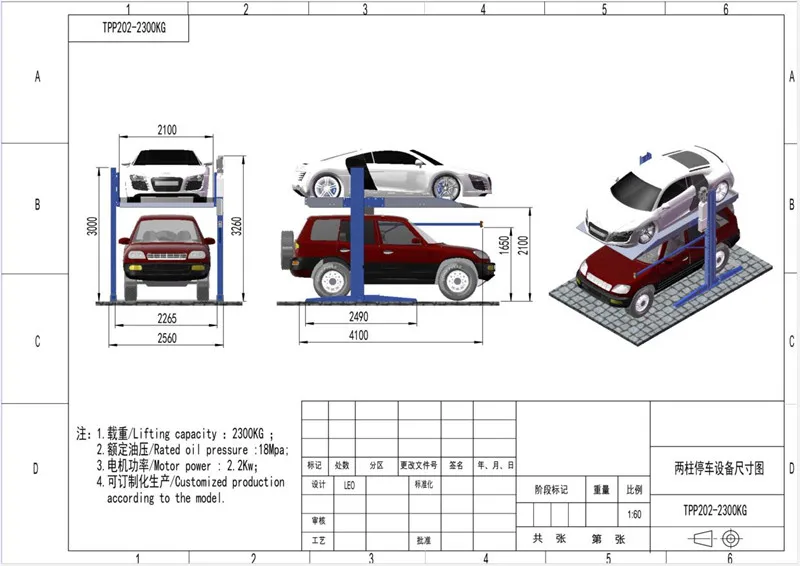

Drawing size




If you need other size,please let us know.


Model: TPP202-2300KG with two cylinders
Load capacity: 2300kg
Lift height:1800/2000/2100mm
Weight: 1000kg
Dimension:3943*2565*3010mm
Packing size:3800*800*800mm
Weight: 1000kg
(2)Device parameters
1. The height of the column is 3 meters, and the load is 2.3 tons;
2. The maximum lifting height is 2.1 meters, the width of the car board is 2.1 meters, the parking height is 6 levels, and the fall protection is 6 levels;
3. Equipment dimensions: 4100 * 2560 * 3260mm;
4. Fashionable appearance, laser cutting processing, exquisite and beautiful;
5. Comply with CE standard, voltage 24V output transformation, voltage: 220V / 380V optional;
6. Motor power 2.2KW, aluminum shell brand motor;
7. Rise time is about 50S, fall time is about 40S;
8. Process: shot blasting / spraying;
9. Space height requirement: ≥3.6 meters;
10. Can be used in conjunction, saving space and more stable.
(3) Equipment packing size
Length * Width * Height: 3550mm * 950mm * 550mm

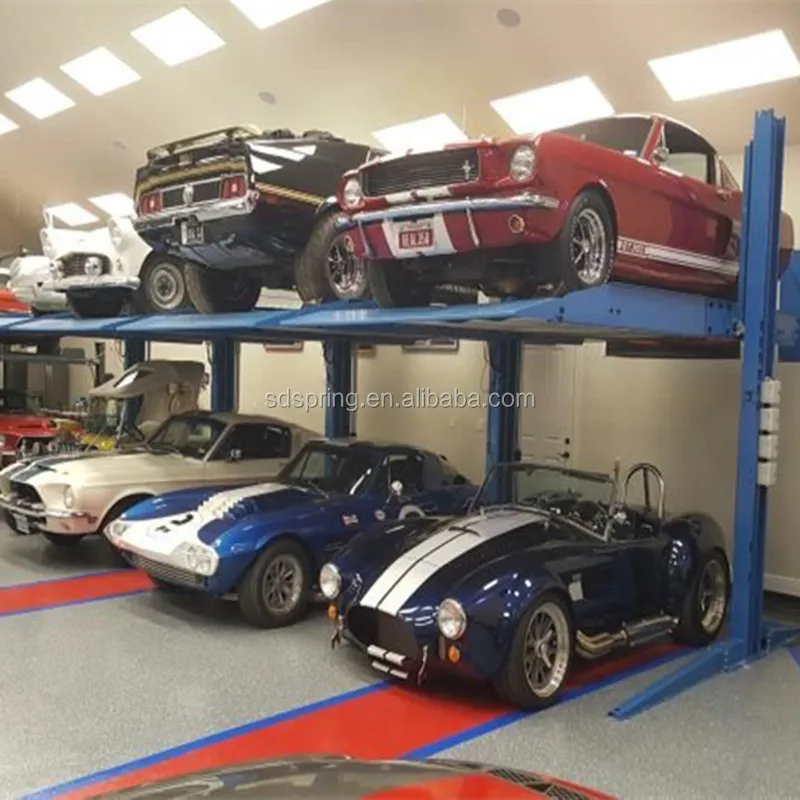

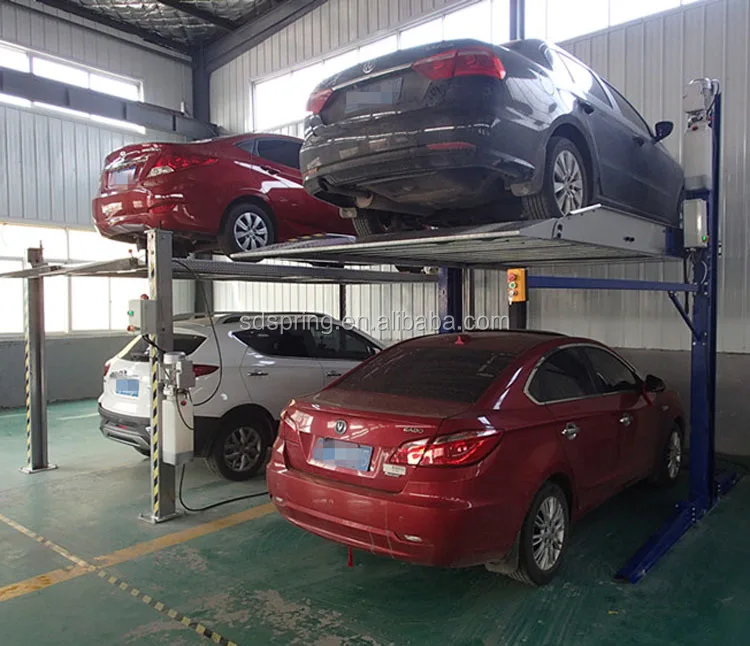

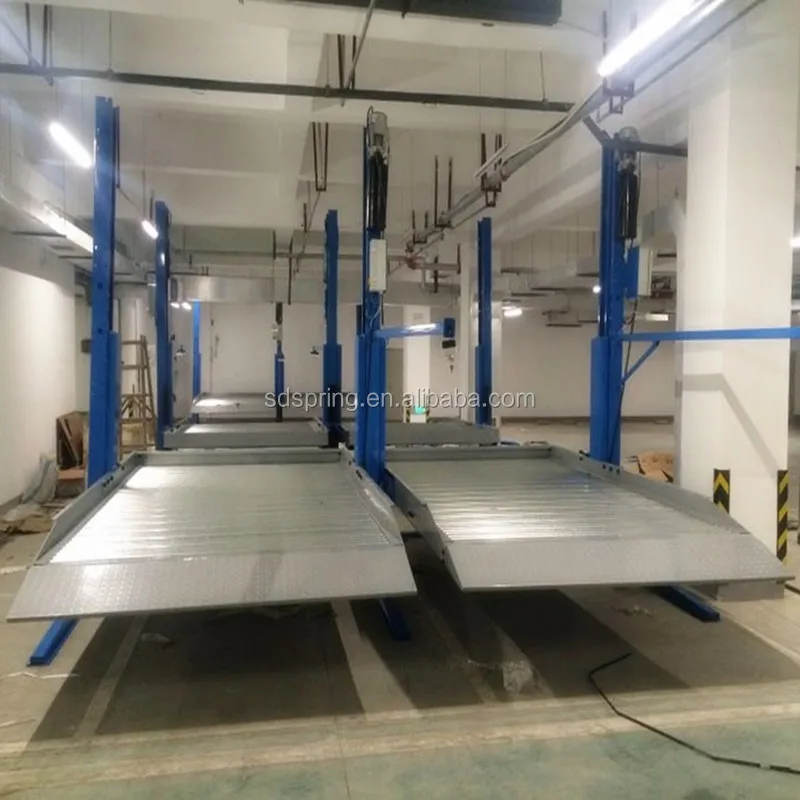

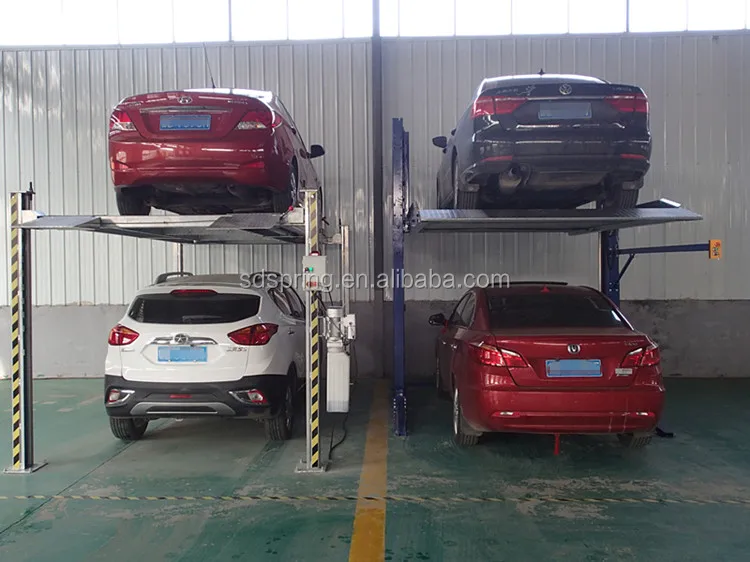

Application cases


Hydraulic Two Post Car Parking Lift Equipment 2.3Ton 2.7Ton

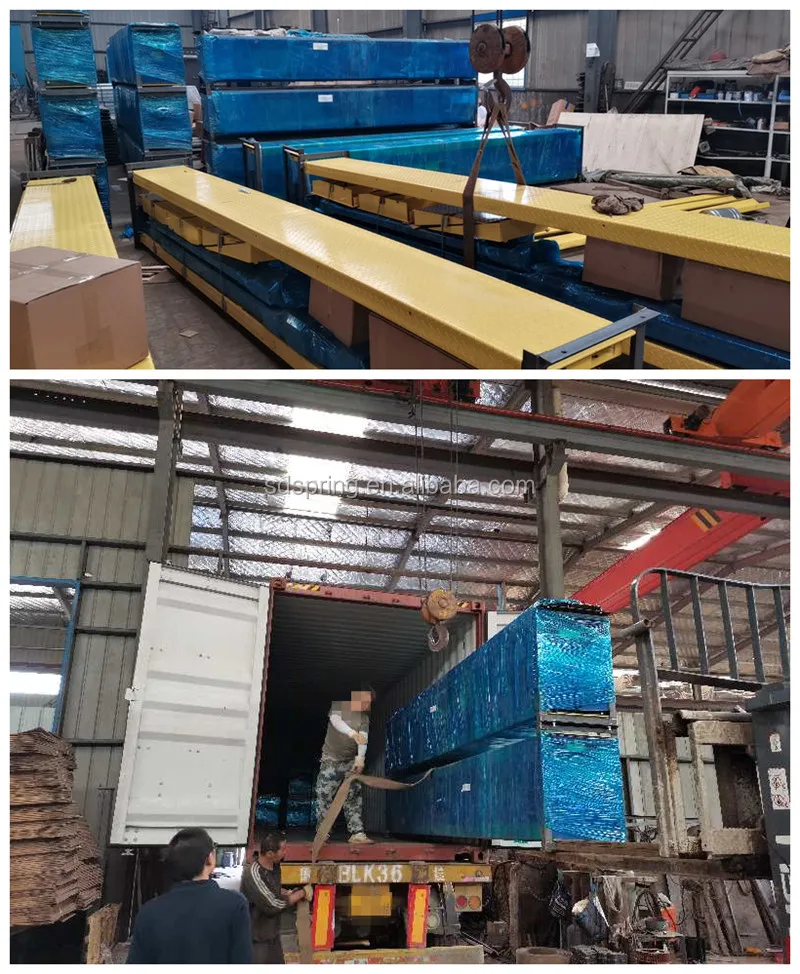

Packaging & Shipping







Company Information




Jinan Spring Technology Co., Ltd. a member of China Association of Warehouses and Storage and China Auto Care Association, which has more than 10 years history in producing and sales, also have good reputation in the world.


After more than ten years development, we developed to a large enterprise of R&D, manufacture,sales service. We have more than 200 staffs and 13 top engineers. We also imported the high precision CNC equipment and large sheet metal processing equipment to guarantee our quality and make sure quick delivery period. From the raw material to the final product, we have a perfect manufacture management system and quality control system to make sure every step is under control.


In order to satisfy the various need of the market, Spring Technoloy people is keeping bringing the new technology to develop different serious of products. Now we have three series (hydraulic handling equipments, hydraulic parking lift and auto care equipments) and more than 100 different kinds products, such as Hydraulic home elevator, Stationary and mobile scissor lift, other kind of hydraulic lift, different kinds of car lift, auto frame bench, dent puller, etc. All products can made as customer's requirements.


Our products widely use in home, school people and cargo lifting, the car parking and car repair shop.


Our company has got the Quality System Certification of ISO9001 and passed the testament of CE Quality Community. We have very good reputation in China and around the world. Welcome to China and visit us. We will use our hundredfold enthusiasm to create a brilliant future!
