Luyang four edges smooth Polished calcium silicate board price

Share on:


Price:RUB 1,651.03
Price in USD:Details

Quantity:

Add to Cart
  • add to wishlist

Product Overview

Description

LUYANG CALCIUM SILICATE BOARDCalcium silicate board products are made of SIO2 and CAO through high temperature and high pressure reaction, adding environmental protection fiber, new energy-saving insulation material without asbestos, the product can be long-term use in 650° high temperature environment, extend the service life of equipment.
It is a kind of high efficient energy-saving material with temperature limited 650 cent-degree. Characterised by low bulk density, high specific strength, superior heat resistance, outstanding thermal insulation, excellent durability, chemical corrosion resistance, easy to be cut by saw and easy installation, calcium silicate can be widely used for the insulation of industrial kiln.
1.Small board: 595*595mm /600*600mm /603*603mm /595*1195mm /600*1200mm
2. Big board: 1200*2400mm /1220*2440mm /1220*3050mm
3.Thickness: 4.5, 5, 6, 8, 10, 12, 15, 18, 20, 25mm (3.5-30mm)
Specification

Description

LY-M CALCIUM SILICATE INSULATION BOARD
Maximum Use Temperature (℃ )
650
Chemical Composition (%)
SiO2
37-42
CaO
29-34
Al2O3
10-12
MgO
1.8-2.1
Color
White
Density (kg/m³)
230±10%
Modules of Rupture (MPa)
≥0.30
Compressive Strength (MPa)
≥0.50
Permanent Linear Shrinkage (%)
650℃ x16h≤2.0
Thermal Conductivity (W/m·K)
100℃
≤0.057
200℃
≤0.069
400℃
≤0.098
Characteristics:
1.Good durability, can bear high temperature within the limit of continuous heat load.
2.Non-deformation within the temperature range.
3.Low thermal conductivity, in the whole range are used with unmatched adiabatic performance.
4.Light weight, high strength. It is the highest in these hard thermal insulation products.
5.Better durability, use for a long time without powder.
6.Construction with ordinary carpenter applicability, tools can be optional cut products.
7.Used safety, hygiene. Excluding asbestos, sulfur, chlorine such poisonous substances.
8.Fear water, but after drying also can be used.


Application:
It is widely used in power plants, petrochemical plants, pipeline systems equipment, as well as heating pipe network system and non-corrosive to stainless steel.
Packing & Delivery

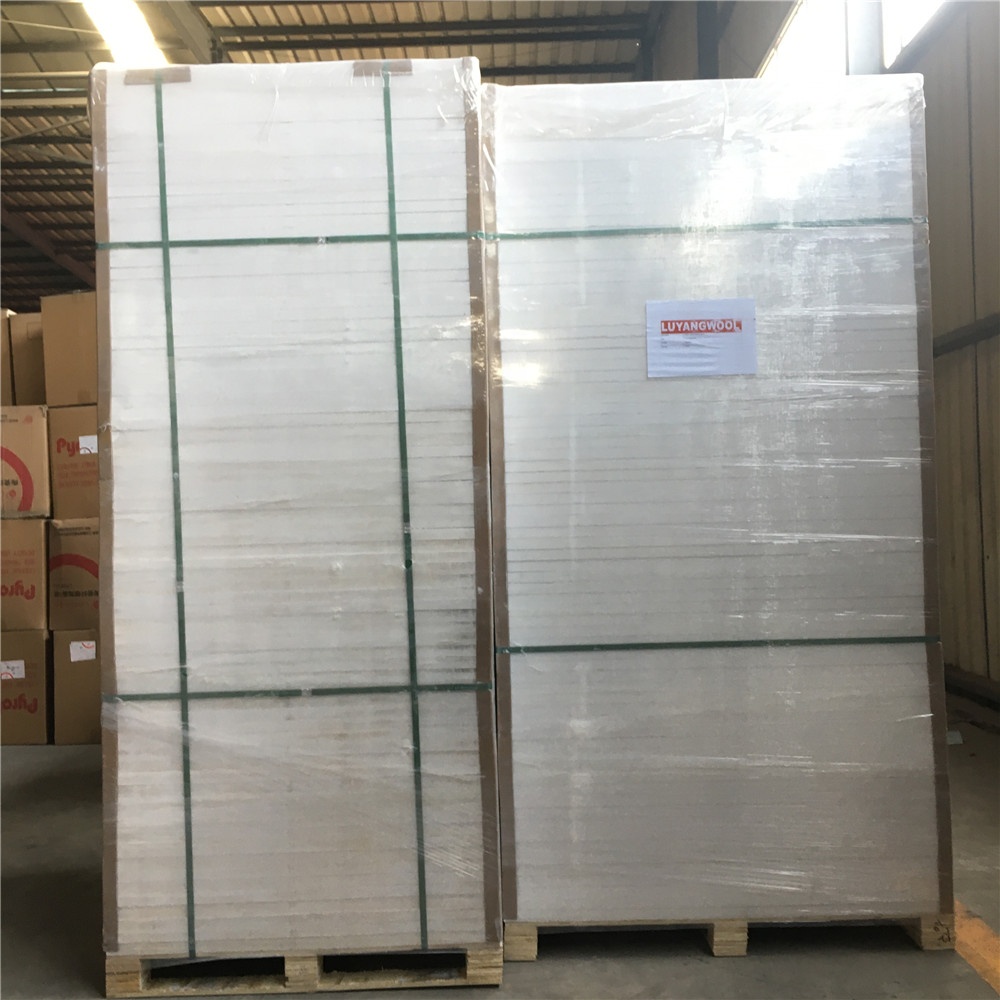

Package: inner plastic bags,outer cartons and pallet with heat shrinkable film.
We also supply OEM service, the package can be designed according to your requirements.
Shipping: By vessel or by train from any Chinese port, Samples can be delivered by International express.
Company Profile
Luyang Energy-saving Materials Co., Ltd. was established in 1984. Going through more than 35 years development, Luyang has become a world famous enterprise for new energy-saving materials researching, manufacturing and selling in the field of ceramic fibers, soluble fibers, alumina fibers, rock wool fibers and insulating firebricks.
Luyang has an annual output of 400,000 tons of various ceramic fiber products and 200,000 tons of rock wool products. Luyang has five production bases in Shandong, Inner Mongolia, Xinjiang, Guiyang and Suzhou.
Exhibition
We participate in more than 20 exhibitions at home and abroad every year. Through the exhibitions, we introduce our company's culture, our products and services we can provide, such as technical support, on-site construction support, etc.
Luyang technology center has more than 60 professional researchers, identified as provincial technology center in 2007 and became national-recognized enterprise technology center in 2012. Luyang has 126 patents and 54 scientific and technological achievements.
Certifications
LUYANG has Official certifications including ISO, SGS, AEO, REACH, CE ASTM, ect,.
Our service
FAQ
1. Timely response
Timely response to your inquiry, multiple choice recommendations based on your demand, quickly respond mails and provide solutions.

2. Free sample
Sample and trial order are accepted for the quality evaluation.

3. Strict quality control
Arrange production on time and control quality strictly.

4. Shorter delivery time
Book the earliest vessel or plane to guarantee the delivery time.

5. Professional Services
Provide all the detailed news and pictures from order to delivery;
Offer relative export documents and original certificate if needed;
Warm and considerable after-sale service
