5-16mm wire rod coil to bar peeling machine line with low price

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description



Product Description


Description:
Quality: Our company regards quality as life. We have already passed ISO9001 certification, and strictly implement the ISO9001 international quality management system. We keep improving quality in order to let customers buy with comfort and use with satisfaction.
Our company can also make specified equipment according to customers’ requirement.

Our service:
1. Free quality guarantee period for 12 months, except for wearing parts.
 2. Free provide long-term technical support
 3. Free train buyer’s operator in seller’s factory
 4. Fast response service within 24 hours
 5.Our engineers can offer overseas service, including guiding installation, commissioning, training, etc, if our customer needs.

Packaging and shipping
we have much experience in exporting transportation packaging.
Taking multi protection measures:
The first layer
wrapping with foam film and stretch film for the special components, in order to avoid moisture.
Second layer
inside of plywood box, adopting small square plywood block and strapping belt to fix.
Third layer
the machine itself has screw fixing holes, so it can be tightly fixed on the bottom of the plywood box through screw and nut.
Fourth layer
in a container, by compact layout, reducing the gap between boxes to avoid shaking. At the same time, reinforcing between the bottom of the container and plywood boxes once again, furthermore using hanging steel wire protection.



Specification


coil to coil
model
coil to coil PB8/20P
diameter range
Φ8~Φ20mm
external diameter of coil
Φ1100mm
coil height
500mm
maximum coil weight
2.5T(2-4 parameter can be tailored suit customer requirements.)
internal diameter of coil
Φ700mm
material yield strength
≦900N/nm²
finished product diameter tolerance
after peeling h11;after polishing h9;after rolling h9
after peeling surface roughness
Ra≦3.2µm
after polishing surface roughness
Ra≦1.6µm
after rolling surface roughness
Ra≦0.8µm
bar length
1m~4m
cutting head rotational speed
2200r/min
feeding speed
20m/min
total installed capacity
type P40kw; type B 42kw
air flow rate
0.5m³/min

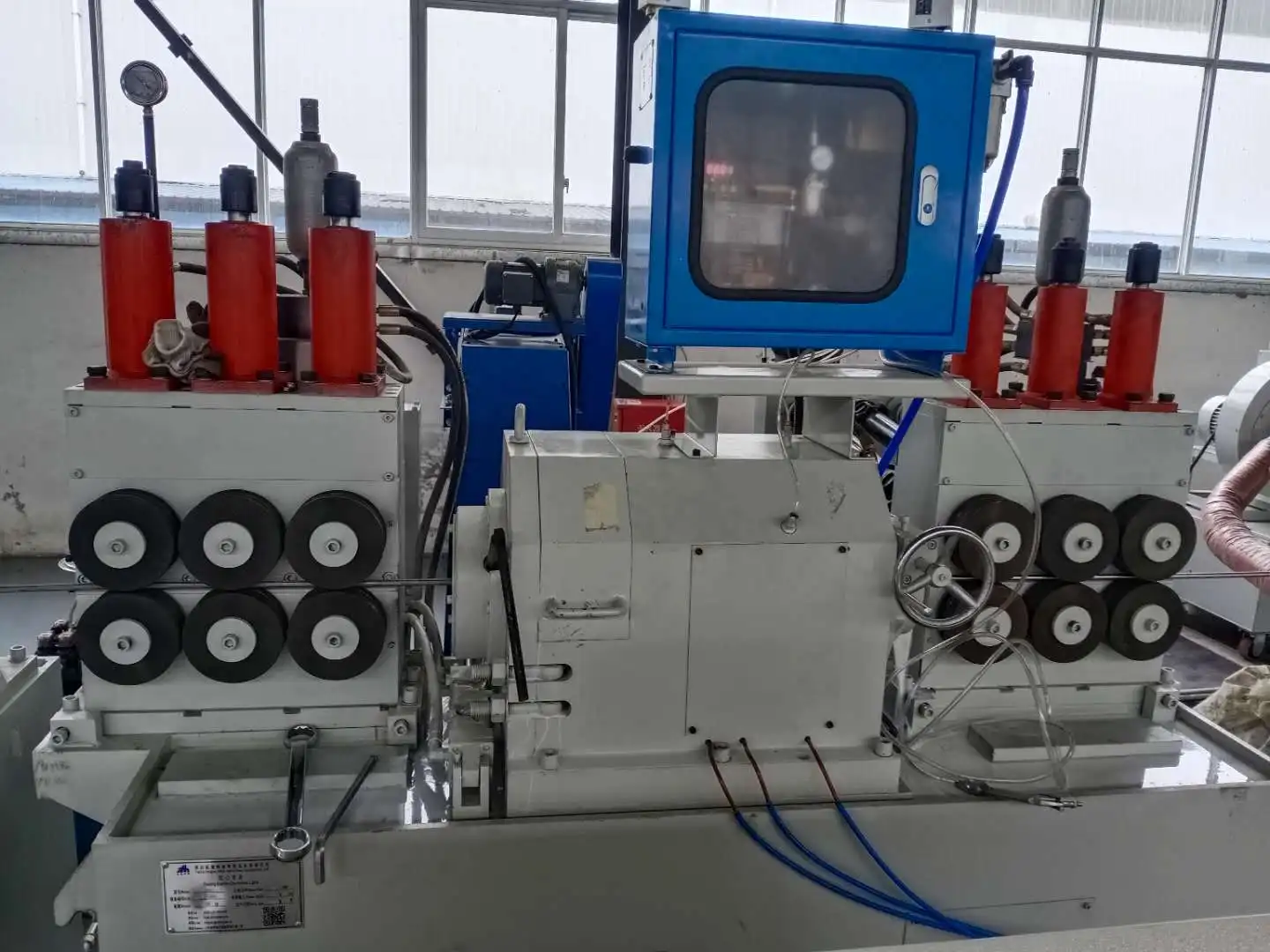

Product Display






Packing & Delivery




we have much experience in exporting transportation packaging.
Taking multi protection measures:

The first layer
wrapping with foam film and stretch film for the special components, in order to avoid moisture.

Second layer
inside of plywood box, adopting small square plywood block and strapping belt to fix.

Third layer
the machine itself has screw fixing holes, so it can be tightly fixed on the bottom of the plywood box through screw and nut.

Fourth layer
in a container, by compact layout, reducing the gap between boxes to avoid shaking. At the same time, reinforcing between the bottom of the container and plywood boxes once again, furthermore using hanging steel wire protection.


Company Profile






Yantai Haige International Trading Co.,Ltd.,is a joint-stock enterprise engaged in exporting products such as machines,pumps and parts etc. produced in China to the markets abroad,which is located in Laishan district,Yantai City,Shandong Province,China.

Our company is based on the manufacturing plant-Yantai Haige machine tools Co.,Ltd and Yantai Hangjian Refined Special Steel Equipment Co.,Ltd. which focus on manufacturing many kinds of metal finishing equipment. Area of the factory is about 10000 square meter. There are one hundred and sixty staffs working in the factory,includes 14 staffs focusing on R&D.






We have exported various products which mostly are machines and machine parts to many countries.We can provide timely oversea service.

We are the exclusive agent of Yantai Volm Vacuum Technology Co.,Ltd.,which focus on manufacturing various of vacuum pumps,we represent their business in international markets.Also we are appointed to be the sole sales agent of Shandong Gexin machinery manufacturing Co.,Ltd. for their Rotational Moulding products and machine.

We focus on the the quality of the products we sell,We welcome you to our plant and hope to have the pleasure of providing you the perfect products and best services.

Customer visit




Exhibition




Certifications




Our service


1. Free quality guarantee period for 12 months, except for wearing parts.

2. Free provide long-term technical support

3. Free train buyer’s operator in seller’s factory

4. Fast response service within 24 hours

5.Our engineers can offer overseas service, including guiding installation, commissioning, training, etc, if our customer needs.


FAQ


1. When is the delivery time?
Delivery will occur between 15 and 20 days from order date. Faster delivery time can be arranged if needed.

2. Do you have any MOQ limit?
Yes it depends on the products’ size and production process.

3. What’s your payment method?
Paypal, T/T, L/C, Western Unions, are available.
