Wholesale 4K Screen Wax 3D Printer 405nm Curved Resin 3D Printing Machine LCD Printer Jewelry Dental

Share on:


Price:RUB 42,004.10
Price in USD:Details

Quantity:


Product Overview

Description

Cheap Large Format 4K Screen Castable Wax LCD 3D Printer
405nm Curved Resin 3D Printer Machine LCD Printer Jewelry Dental
Industrial Resin LCD 3D Printer
Newest 4K black and white screen
Fastest 3D PrinterHuge Build Volume
High Accuracy Components
Universal Materials Supported
Dreambot 3D ME-192 LCD Resin wax 3D Printer

Large Format:192*120*270mm

8.9 Inches 4K LCD ,black and white screen

Fastest resin 3d printer ,max reach to 40mm height /hour

405nm UV Lamps

405nm Resin Supported

No need for Levelling Design

Support Wireless Transmission Printing

ME-192 Resin LCD 3D Printer Parameters









Printing Parameters
Printing style
RESIN LCD 3D Printer
Max printing volume
192*120*270mm
527*295*550mm
LCD size
8.9 inch
24 inch
LCD panel
4K LCD screen panel,black and white screen
Printing accuracy
X Y axis 0.075mm, Z axis 0.02mm
Printing speed
max 40nm/h (Z axis)
Resin support
405nm resin
LED array
Parallel UV LED light source
Z axis
Dual Linear Rail, Ball Screw, 100% Aluminum CNC Structure
Touch screen
3.5 inch  High Resolution Touch Panel



Software Parameters
Operating systems
Windows Linux Mac OS OSX
3D Modeling software
CAD Solidworks 3Dmax UG Maya Rhino Proe 3Done Skatchup ect
3D Slicing software
Chitu
Input format
STL OBJ AMF ect
Connect mode
USB,Network Connect


Physical Parameters
Printer dimensions
310*280*490mm
1000*600*1390mm
Package size
450*420*610mm
1100*700*1405mm
Gross weight
18kg
75kg
Wholesale Large Format 4K Screen Wax 3D Printer 405nm Curved Resin 3D Printing Machine LCD Printer Jewelry Dental
We have full family size for Industrial Resin LCD 3D Printer ,welcome to contact us for your suitable lcd resin 3d printer.

ME-192 Format size:192*120*270mm

LG-293 Format size:293*165*400mm

DB-345 Format size:345*195*400mm

DB-550 Format size:527*296*550mm
LG-293

UV RESIN LCD 3D PRINTER
13.3 inch 4K screen
Format size:
293*165*400mm

DB-345

LCD UV Curving Resin 3D Printer
15.6 inch 4K Screen
Forming Size:
345*195*400mm

LG-550

LCD UV Curving Resin 3D Printer
24 inch 4K Screen
Format size:
527*296*550mm
Application and Model Show
3D Printer Application
With Resin 3D Printer,you can used in jewelry,medical,dental,Educational,Research,accessories,biomedical,animation,
arts and art house ,building,creative DIY,prototype manufacturing and so on.
Industrial Structure Accessories
With Dreambot 3d resin 3d printer ME-192,shorten the production cycle of accessories. Printing with rigid resin material has high forming precision,and it is difficult to process the parts with complex structure. Dreambot 3D resin LCD 3D printing can be formed at one time, and the [arts have high forming strength,which can be directly applied to products.
High accuracy and fast speed dental mold
With Dreambot 3d resin 3d printer ME-192,such a fine dental mold printing takes only a few hours.By using dental mold resin and printing with 0.05mm precision,we can print multiple sets of dental molds in full format at one time. The high precision 3d printing has a closer fit and can effectively solve the pain of patients.
Complex Structure Parts
Such a complicated wind blade,direct use of one-time printing molding. The wind blade with complex structure and great processing difficulty is printed by 3d printing machine before mold opening,which is installed on the products to verify the rationality of the design. The UV curing printer has high precision,and the printing effect is close to the finished product,which can help the new product development in a short time and low cost.
Details and Advantages

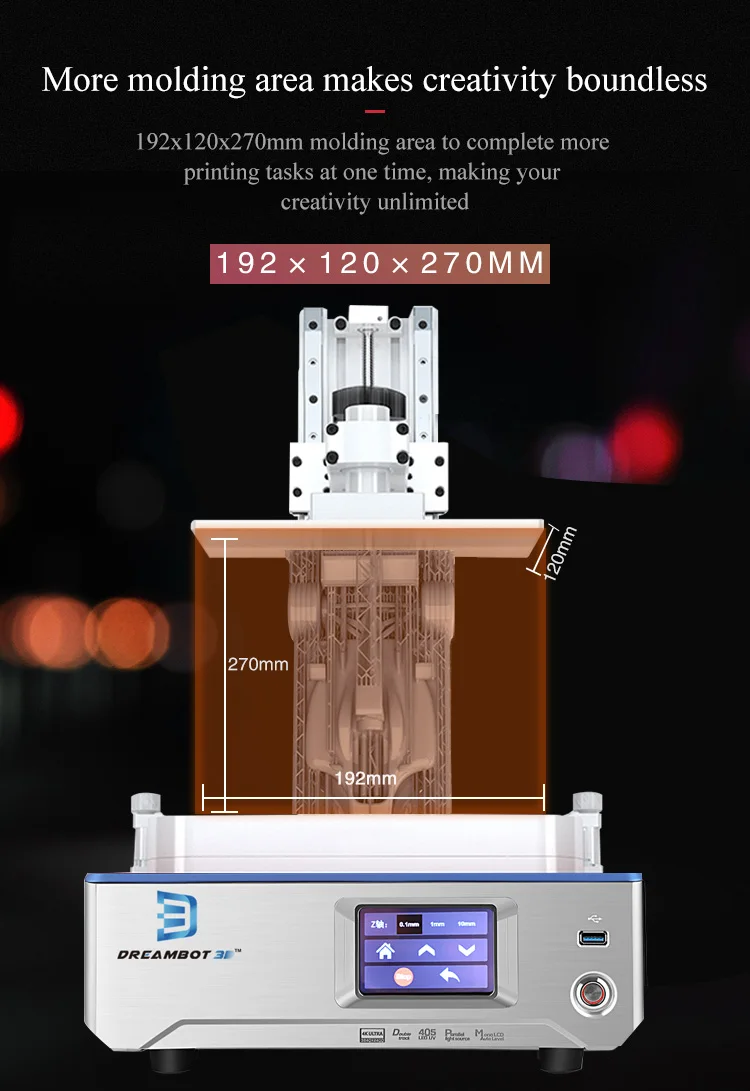

Large modeling volume with high accuracy
Dreambot 3d resin 3d printer ME-192 with large printing space max to be 192*120*270mm, compare the small printer machine, it with more creative space to meet your creative needs, complete more printing tasks at one time.

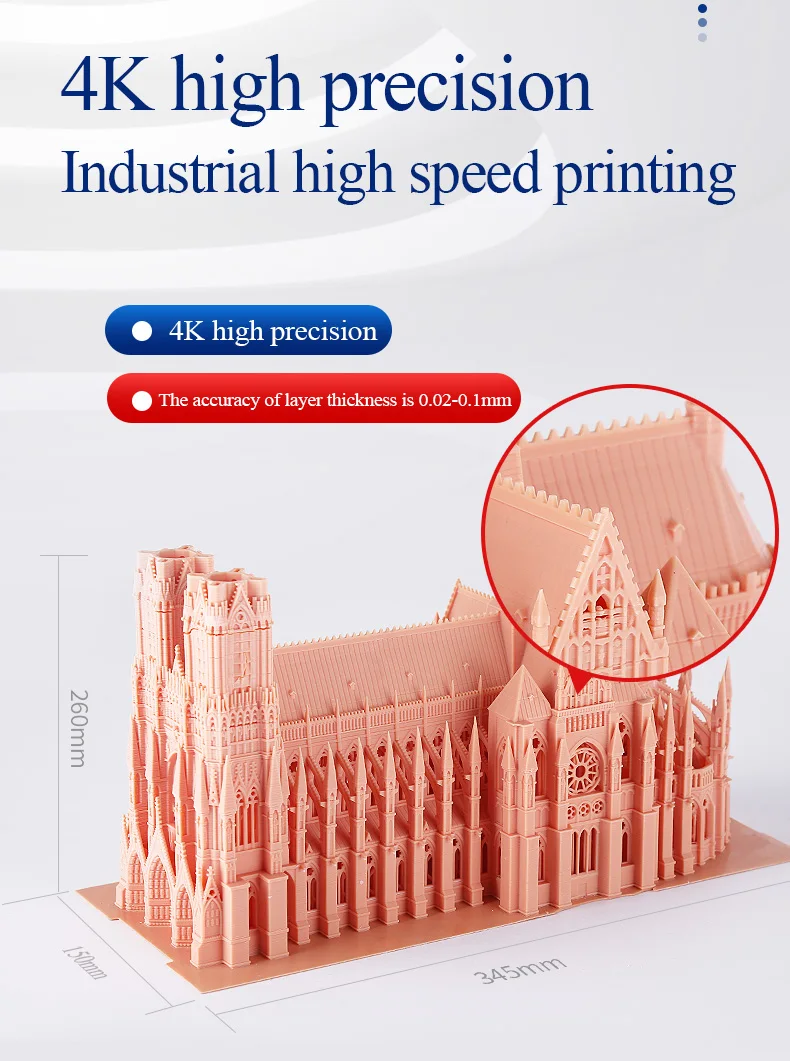

4K black with white screen to ensure the high accuracy and faster printing speed
Compare with the noramal LCD printer,Dreambot 3d resin LCD 3D printer ME-192 with 4k black and white screen to print models, it can make all model to be higher accuracy and faster printing speed. The LCD printer in the market most is with colorful screen which need 6~10 seconds time of exposure, but dreambot 3d printer ME-192 use 4K black and white screen which only need 1~2 seconds time of exposure, printing models with much faster printing speed.ME-192 is very suitable for high accuracy requirement jewelry wax model and design.

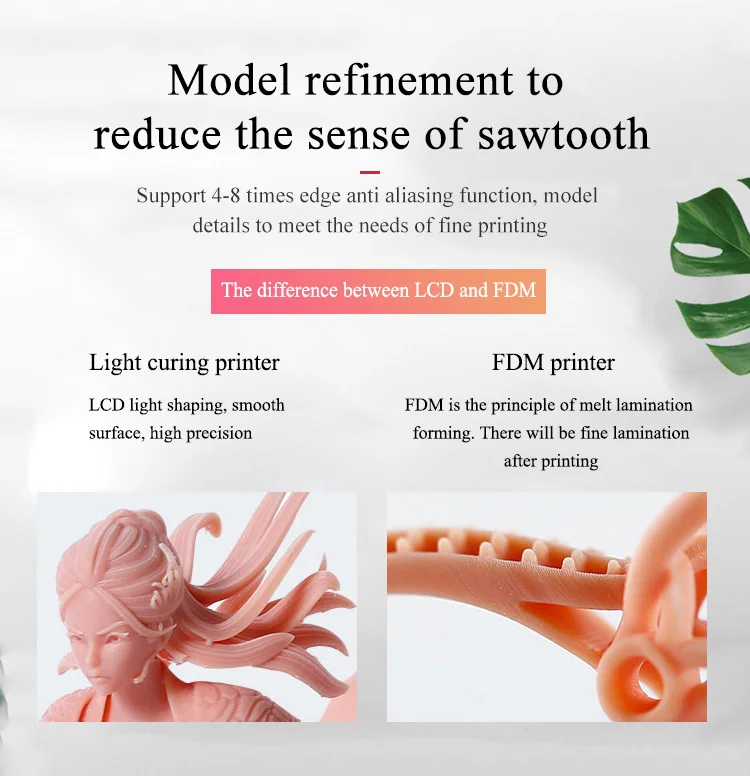

Higher precision and faster printing speed than FDM
Dreambot 3d ME-192 LCD 3D printer can with model refinement to reduce the sense of sawtooth, support 4-8 times edge anti aliasing function, model details to meet the needs of fine printing.

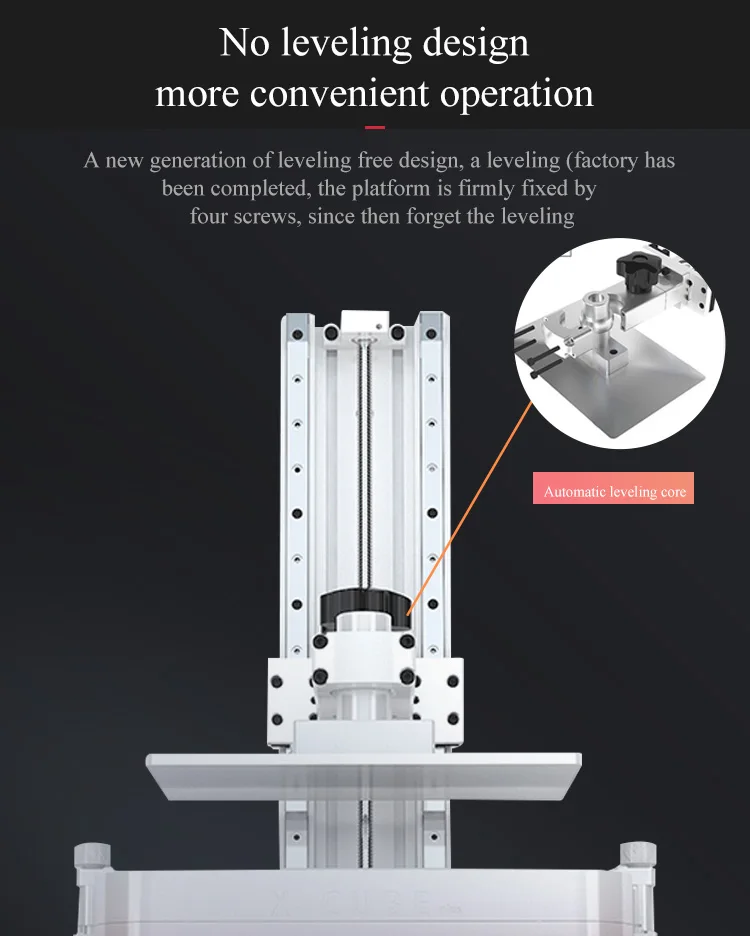

Automatic leveling design,more convenient operation
Dreambot 3d resin 3d printer ME-192 with automatic leveling design, more easy to operation. A new generation of leveling free design, a leveling(factory has been completed,the platform is firmly fixed by four screws) since then no need to set leveling.

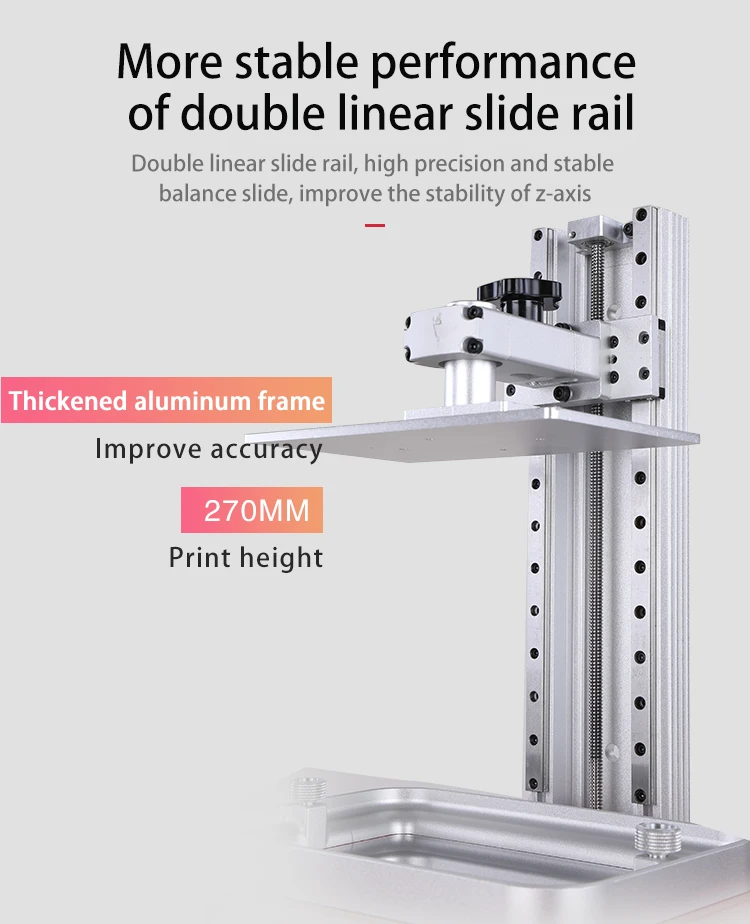

More stable performance of double liner slide rail
Dreambot 3d resin LCD 3D printer Z axis with double liner slide rail, make with thickened aluminum CNC structure with ball screw, high precision and stable balance slide, improve the stability of z axis.This Z axis design to ensure more high accuracy and stable printing height max to be 270mm.
Strong cooling system,long time working.
Dreambot 3d resin LCD 3D printer ME-192, the built-in screen has a large area of multi fan heat dissipation,which ensures that the heat generated by long time continuous printing can be effectively dissipated.
Screen module design, convenience to improve efficiency
Dreambot 3d resin LCD 3D printer ME-192,screen module design, make your operation more convenient.
Support wireless transmission printing
Dreambot 3d resin LCD 3D printer can be directly printed by wireless transmission from computer to printer,also can make offline printing with USB flash disk.
Why chose dreambot 3d printer
1.Large print size,multi-design with full family sizes:We have over 3 industrial LCD resin 3d printer designs with full family size:8.9 inch , 10.1 inch ,13.3 inch ,15.6 inch and even 24 inch.

2.Fast dispatch:Most of 3d printer size above in stock,we cam ship it within 3days after you order .

3.Professional R&D:We focus on 3d printing over 12 years,all the 3D printer Machines are independently developed by our company and have own copyrights,and have received ROHS and CE certifications.We are the direct factory and can supply OEM/ODM service with most competitive price.

4.Professional Industrial Experience: We believes that over 12 years experience of 3d printing and close partnerships with so many industries(already cover aerospace, automotive,industrial design, manufacturing, medical, architecture, education, dental,electronics manufacturing industries ,mannequins, crafts & sculpture products etc) will help us to serve you with professional solutions and develop more innovative solutions.
