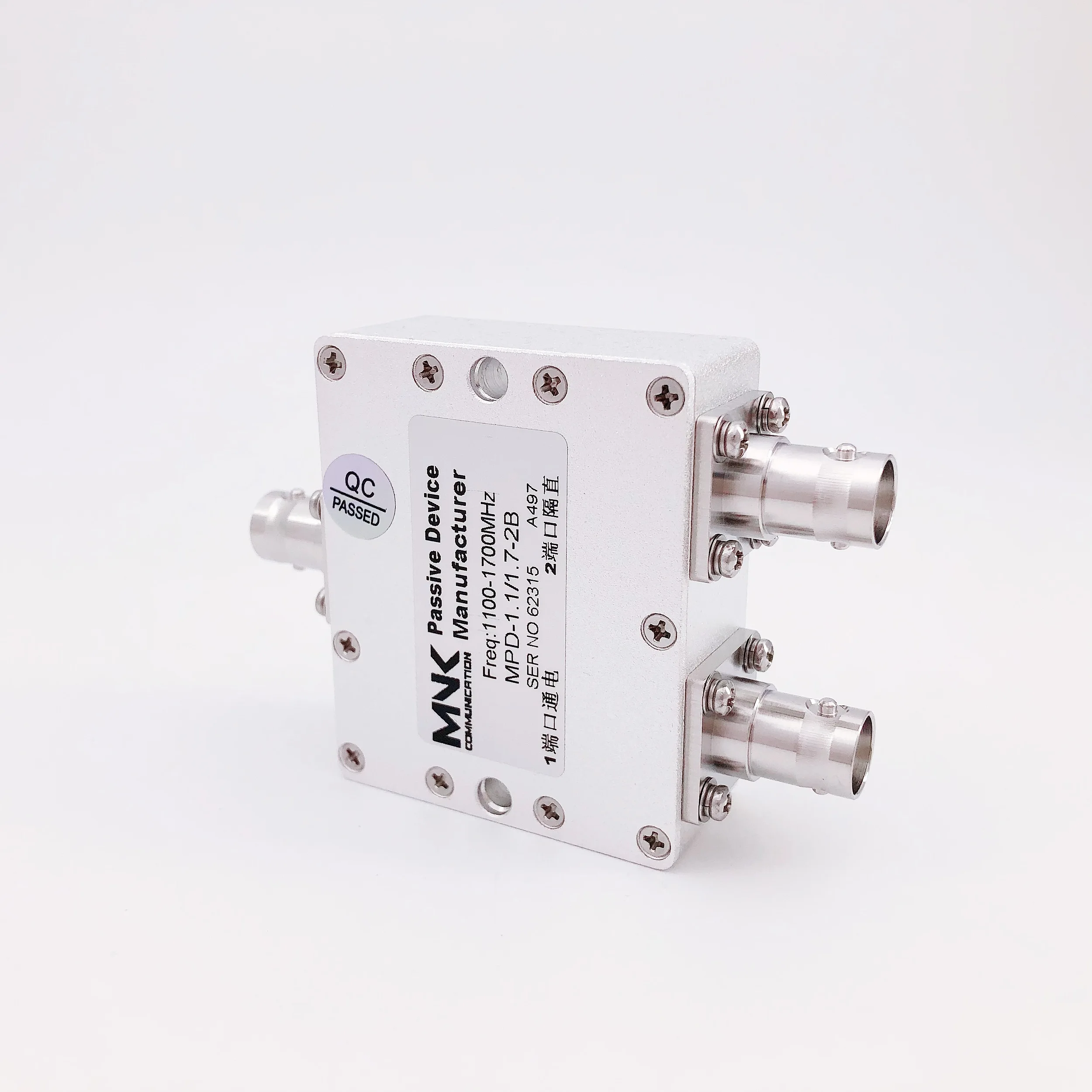

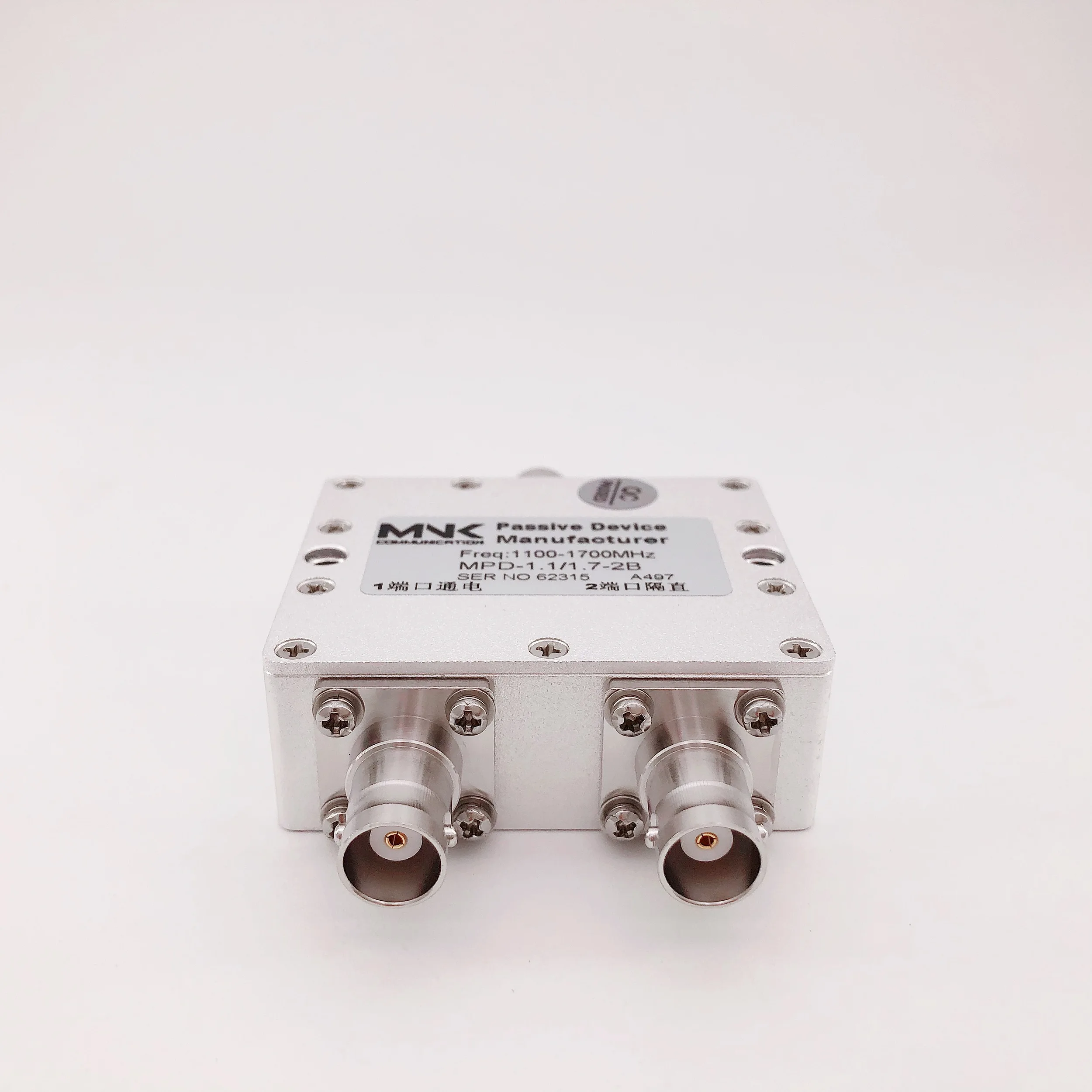

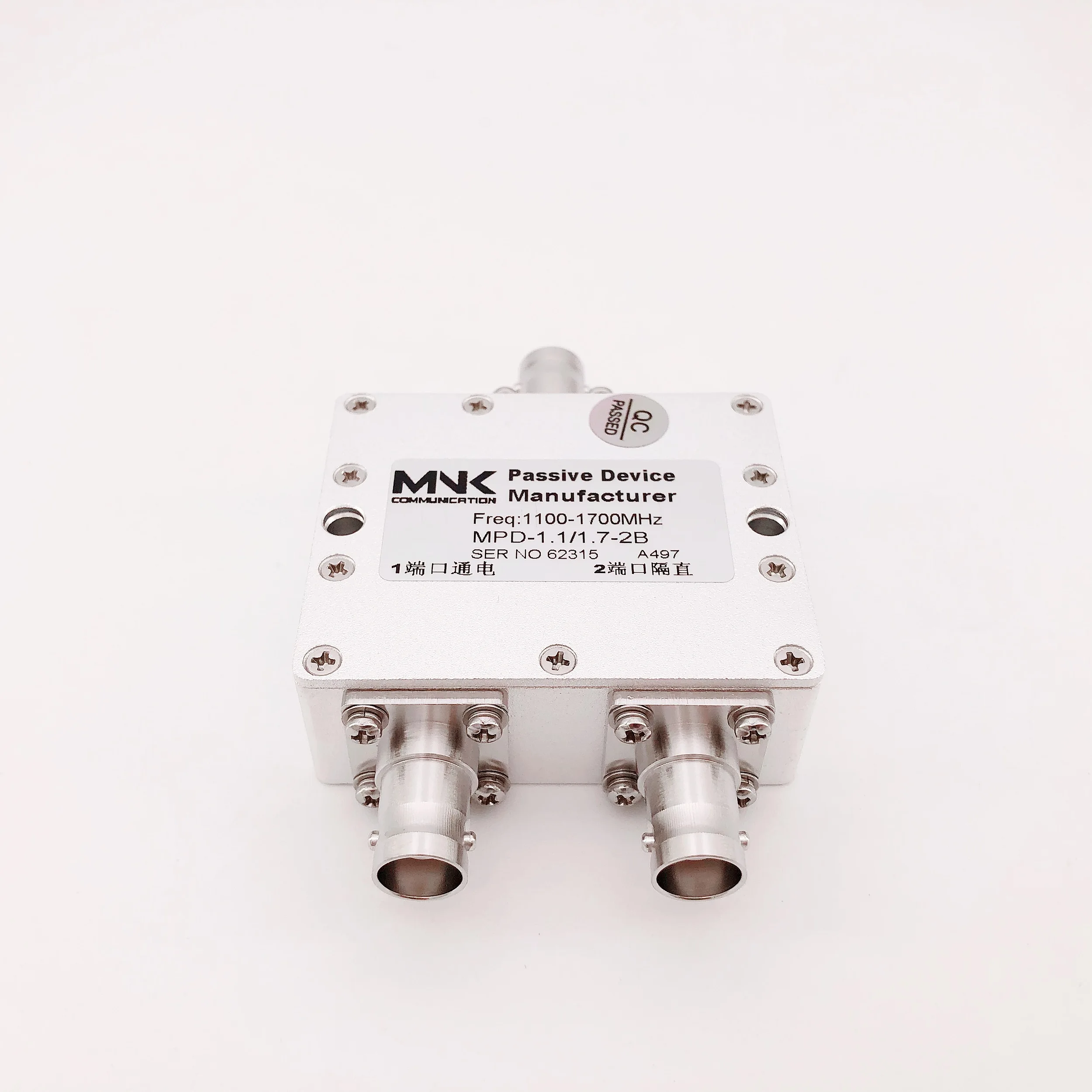

Hot BNC-F 1100-1700MHz 2 Way power divider 1.1-1.7G 2-Way power Splitter Passive combiner Factory direct sale
- Category: >>>
- Supplier: Sichuan,MNK,Communication,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Two-Way Power Divider
Microstrip Power divider, full name of microstrip Power divider, English name Power divider, is a kind of device that divides one input signal energy into two or more outputs equal or unequal energy; Alternatively, the energy of multiple signals can be synthesized into one circuit output, also known as a combiner. A certain degree of isolation shall be ensured between the output ports of a power splitter. It has the advantages of wide working frequency, small insertion loss, high gain and isolation, stable performance and so on.
Product Use:
Widely used in: CDMA, LTE, WIFI2.4, WIFI5.8; L band (1.0~2.0GHz), S band (2.0~4.0GHz) and C band (4.0~8.0GHz); And can be extended to use: GPS, BD, GLONASS civil frequency band and other production and testing industry use!
1. Product model: MPD-1.1/1.7-2B
2. Product name: microstrip Two-Way Power Divider
3.Technical parameters
1. Product model: MPD-1.1/1.7-2B
2. Product name: microstrip Two-Way Power Divider
3.Technical parameters

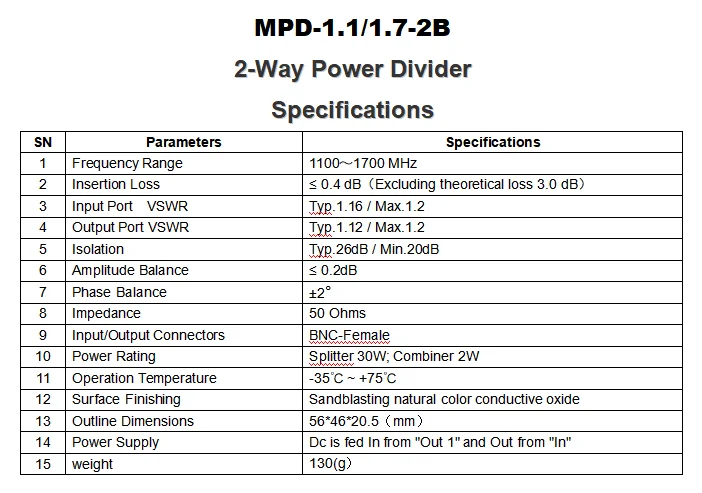

Specification
SN | Parameters | Specifications |
1 | Frequency Range | 1100～1700 MHz |
2 | Insertion Loss | ≤ 0.4 dB（Excluding theoretical loss 3.0 dB） |
3 | Input Port VSWR | Typ.1.16 / Max.1.2 |
4 | Output Port VSWR | Typ.1.12 / Max.1.2 |
5 | Isolation | Typ.26dB / Min.20dB |
6 | Amplitude Balance | ≤ 0.2dB |
7 | Phase Balance | ±2° |
8 | Impedance | 50 Ohms |
9 | Input / Output Connectors | BNC-Female |
10 | Power Rating | Forward ≤ 30W（CW）;Reversed ≤ 2W（CW） |
11 | Operation Temperature | -35℃ ~ +75℃ |
12 | Surface Finishing | Sandblasting natural color conductive oxide |

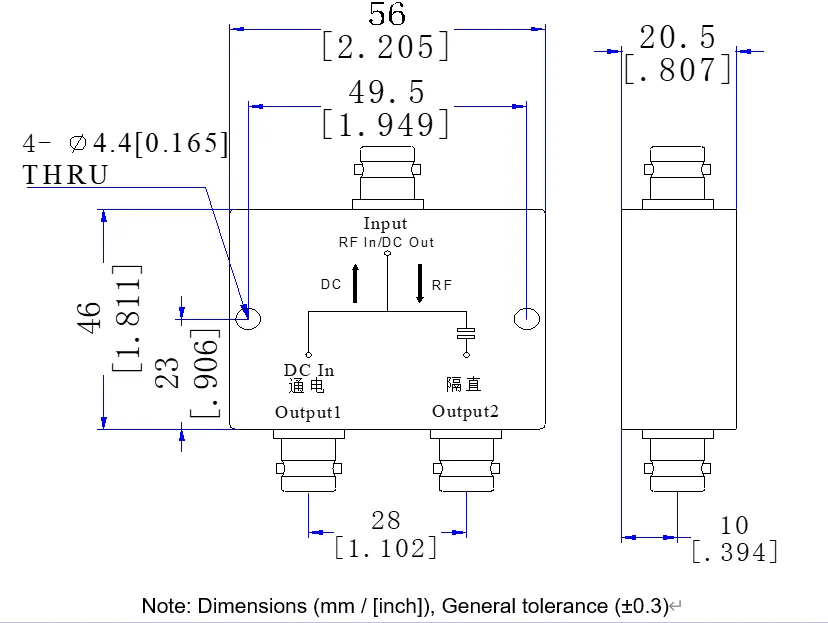

13 | Outline Dimensions | 56*46*20.5（mm） |
14 | Power Supply | Dc is fed In from "Out 1" and Out from "In" |
15 | Weight | 130（g） |
