carbonated beverage soda pure mineral water bottle filling capping sealing machine / filling production line automatic











filling machine.jpg


juice/carbonated beverages/pure mineral water bottle filling capping machine


 3-in-1 water bottle filling machine/co2 beverages filling machine / automatic water filling and capping machine








Product Description


 3-in-1 filling monoblock, combined with rinsing, filling and capping. It is innovated and designed in the requirement of still
pure water and mineral water, on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy.


The water filling machine is mainly used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic. The machine is used in filling juices, mineral water and purified water in bottles made of polyester and plastics. The machine can also be used in hot filling if being installed with temperature controlling device. The handle of the machine can be freely and conveniently turned to adjust the machine tofill various types of bottles. The filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted.

/Beverage Machinery can finish all the process such as press bottle, filling and sealing, it can reduce the materials and outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.


Main Features




1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this nable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.

Technical Parameter:



























































Model


14-12-4


18-18-6


24-24-8


32-32-10


40-40-12


50-50-12


Capacity (BPH)


3000-5000


6000-8000


8000-12000


13000-15000


16000-18000


20000-24000


Applicable bottle



φ=50-115  H=160-330 (200ML TO 2000ML) round or square



Air press(Mpa)



0.3-0.7



Power supply


4.4 KW


4.4 KW


5.2 KW


6.2 KW


7.8 KW


10 KW


Overall dimension


2500×1880×2300


2800×2150×2300


3100×2450×2300


3880×2800×2500


4100×3000×2500


4500×3300×2250


Weight (KG)


3200


4500


6500


7500


8500


9000







Washing heads


1.Using unique design,avoid the traditional bottle on rubber clip to block the bottle threaded parts may be caused by the
pollution.
2.Washing pump is made of stainless steel.
3. By high spray nozzle, blunt bottle of water jet angles, flush to the bottle of any part of the inner wall, rinse with water thoroughly and save flush bottle.
4. Bottle clamp and flip agencies sliding sleeve adopts Germany igus corrosion resistant bearing without maintenance.



Filling heads

1.Filling method for gravity filling.
2.Filling valve manufactured SUS 304/316L.
3.High precision, high speed liquid filling.
4.Filling move by the rack drive system through gear transmission.
5.Hydraulic cylinder controlled by a float liquid level.
6.Using the latest double guide pillar type bottle of lifting mechanism, avoid the bottle of elevating the old products must be through the mesa caused by leakage on the edge, at the same time, easy installation and maintenance.

water filling machine.png






Capping heads

1.Automatic check,no bottle no capping.
2.Capping heads in stainless steel 304/316L.
3.Capping heads stop working when lack of bottle.
4.Fall guy guide sets out to prevent the cover through and cover on the body, at the same time equipped with a set of photoelectric switch, automatic stop when lighted cover rail without cover machine, can effectively avoid the occurrence of open bottle.
5.High efficiency centrifugal principle.

water filling machine.png







Laser Coding Machine

laser coding machine.png



Heat shrink packaging machine











Final Production












Related Products


Maybe you are also interested in following production(for more details,please clip the pictures):

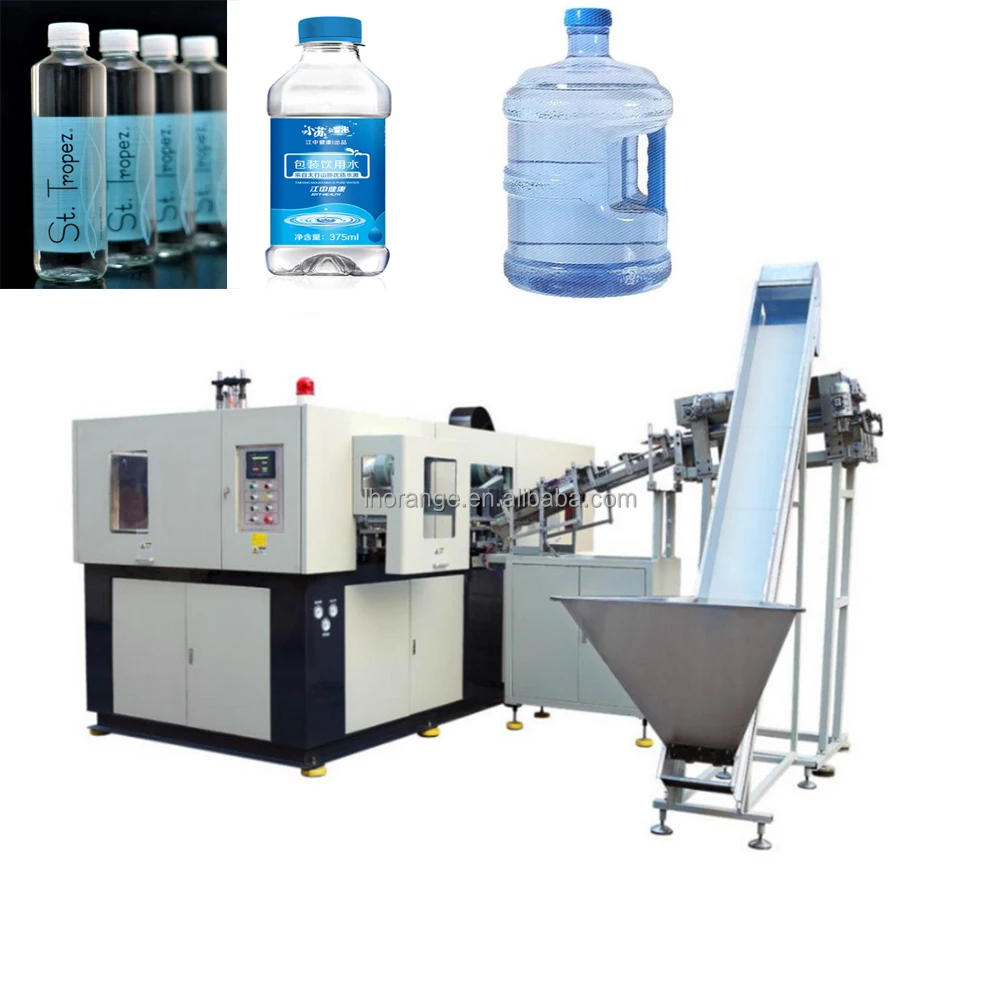

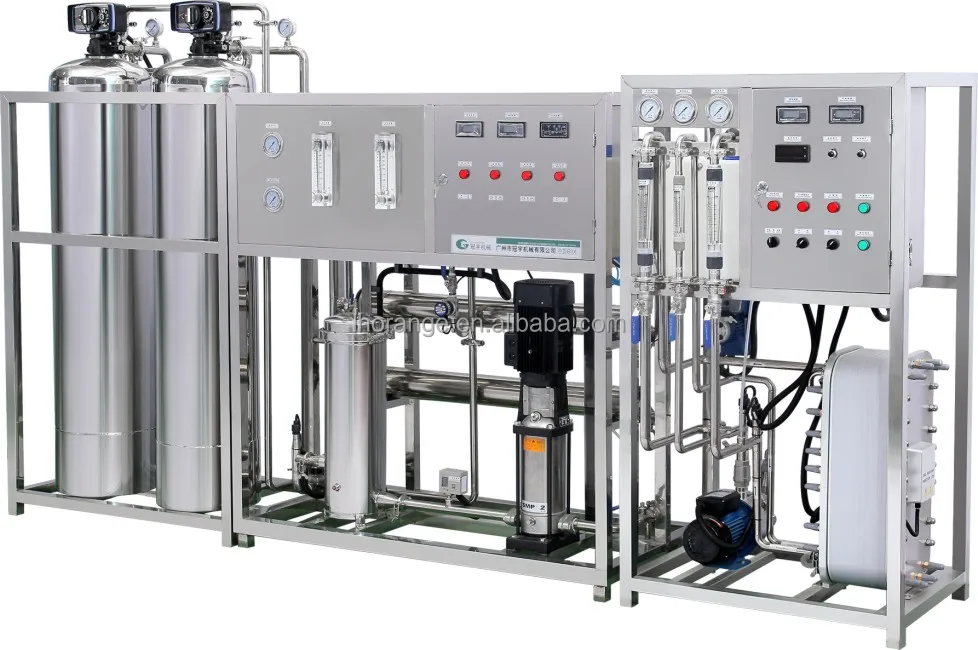

 water treatment machine PET bottle blowing machine
