New design for sale Color doppler cheap price ultrasound scan machine sun 906b

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description



Product Description


full digital Ecograph portable doppler vascular echographe echograph portabl prix doppler ultrasound portable ultrasound medical instrument

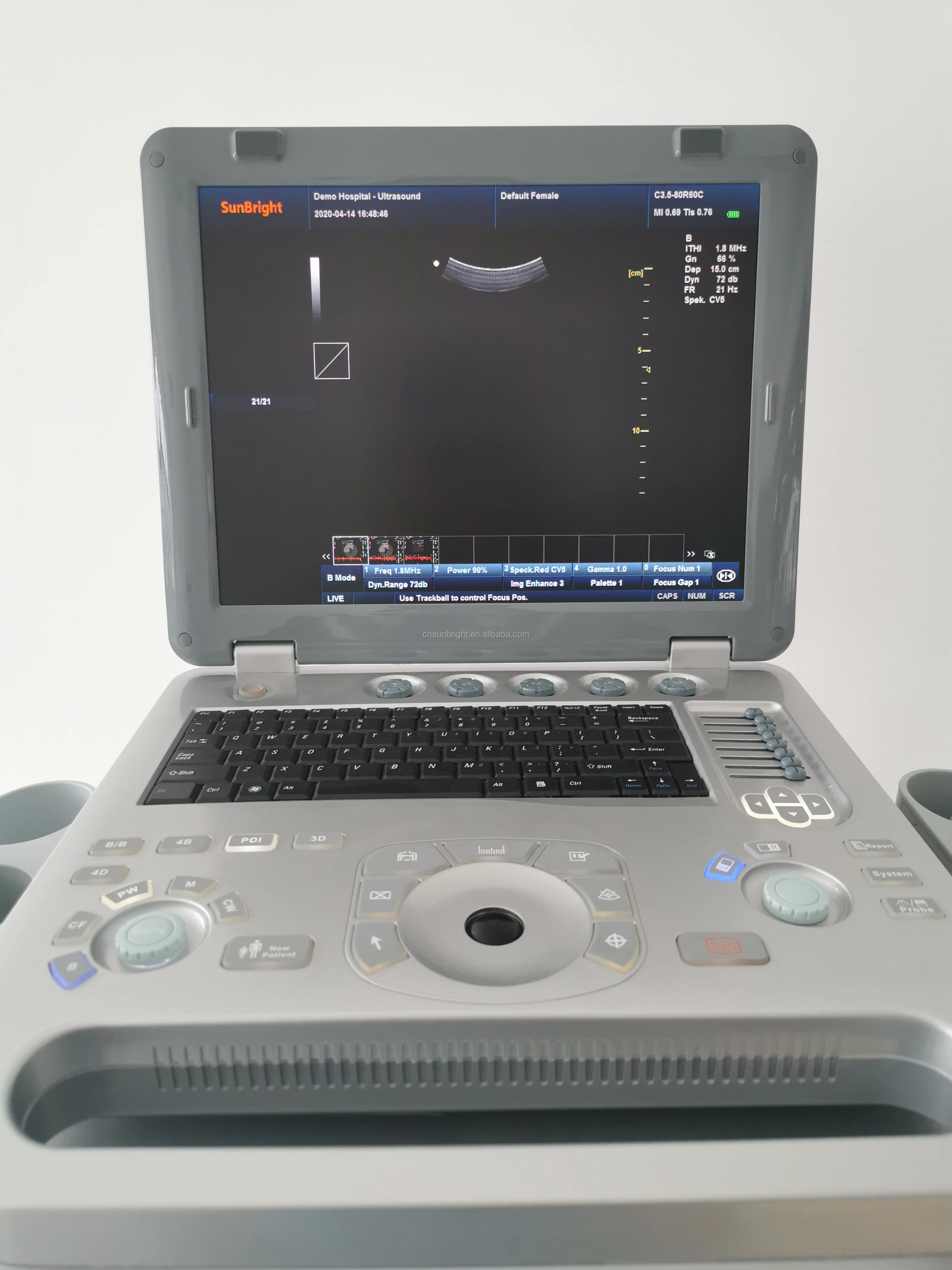

SUN-906B





Customers real good feedbacks:






Application

Abdomen / Cardiac / Obstetrics / Gynecology / Urology / Andrology / Small Parts / Vascular / Pediatrics / Musculoskeletal

Sales point: 128 elements + PW + CW + phased array probe + 4D volume probe + 3D + 4D


Physical Specifications




Equipment size
365mm×300mm×75mm
Equipment weight
5.5kg
Packing size
490mm×270mm×490mm
Packing weight
10kg


Connectivity/Media/Peripherals

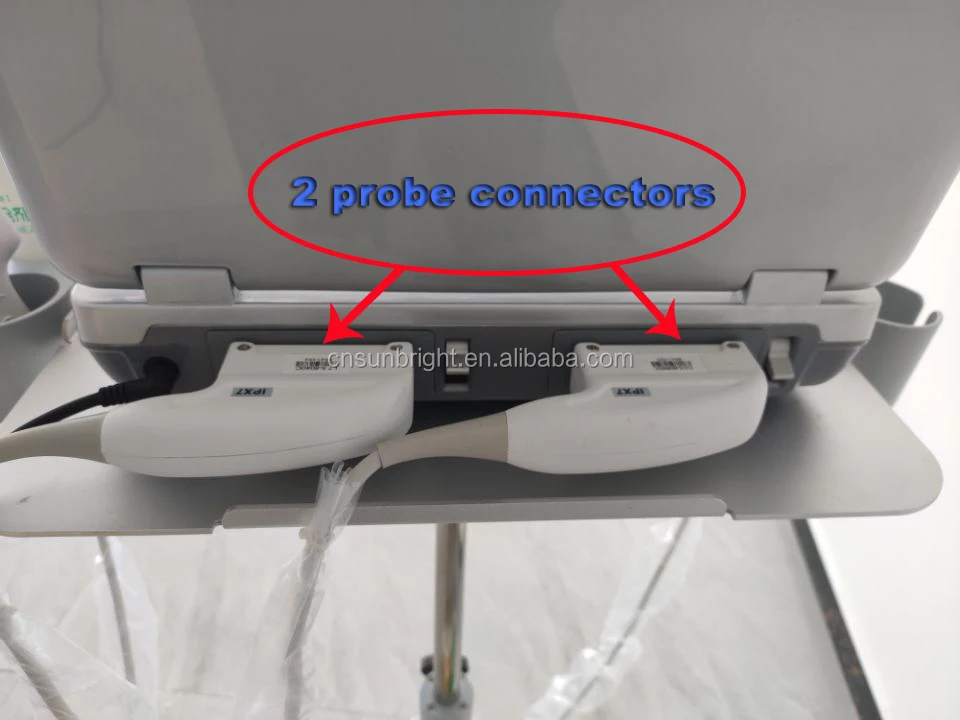

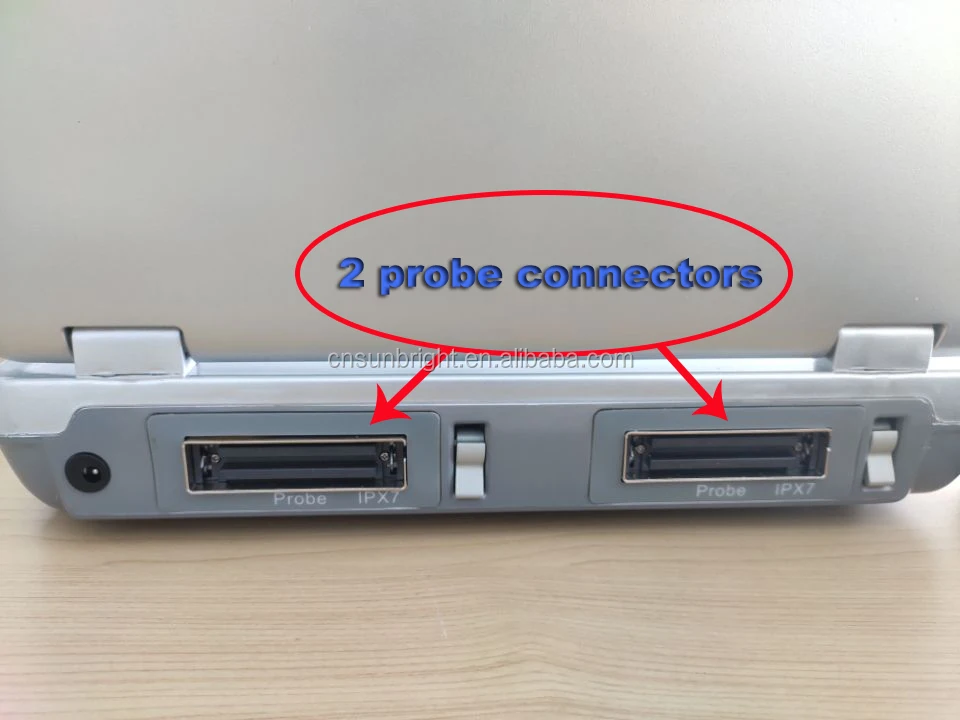

Transducer Ports
2
USB Ports
2
Hard Disc
64GB (SSD), 120G/200GB SSD (Optional)
Footswitch
USB
Ethernet Port
2(100Mb/1000Mb)
External Display
VGA, HDMI,
Printer(Optional)
USB Printer, Digital Laser Printer, Digital B/W Thermal Printer
Printing Area
Image, report, Image+report




Cine/Image Memory




Cine Memory
1200 frame (max)
Cine Review Speed
1, 2, 4, 8
Cine Review Loop
YES
Cine Capture Function
YES


DICOM Connectivity

DICOM3.0 Compliant


3D Software

Built-in 3D software


Image Storage

Storage Format: PNG, AVI, BMP, JPEG, DICOM
Export Video Format: AVI
Export Image Format: PNG, JPEG, BMP, DICOM
USB Flash Drive


Technology



Panoramic Imaging Tech
All-digital signal processing Tech
Multi-beam formation Tech
Speckle Reduction Tech
Tissue Harmonic Imaging Tech
Dynamic Tissue Optimization Tech
Duplex & Triplex Synchronous Display
Directional Power Doppler
Imaging Parameters Preset
Tissue Special Image

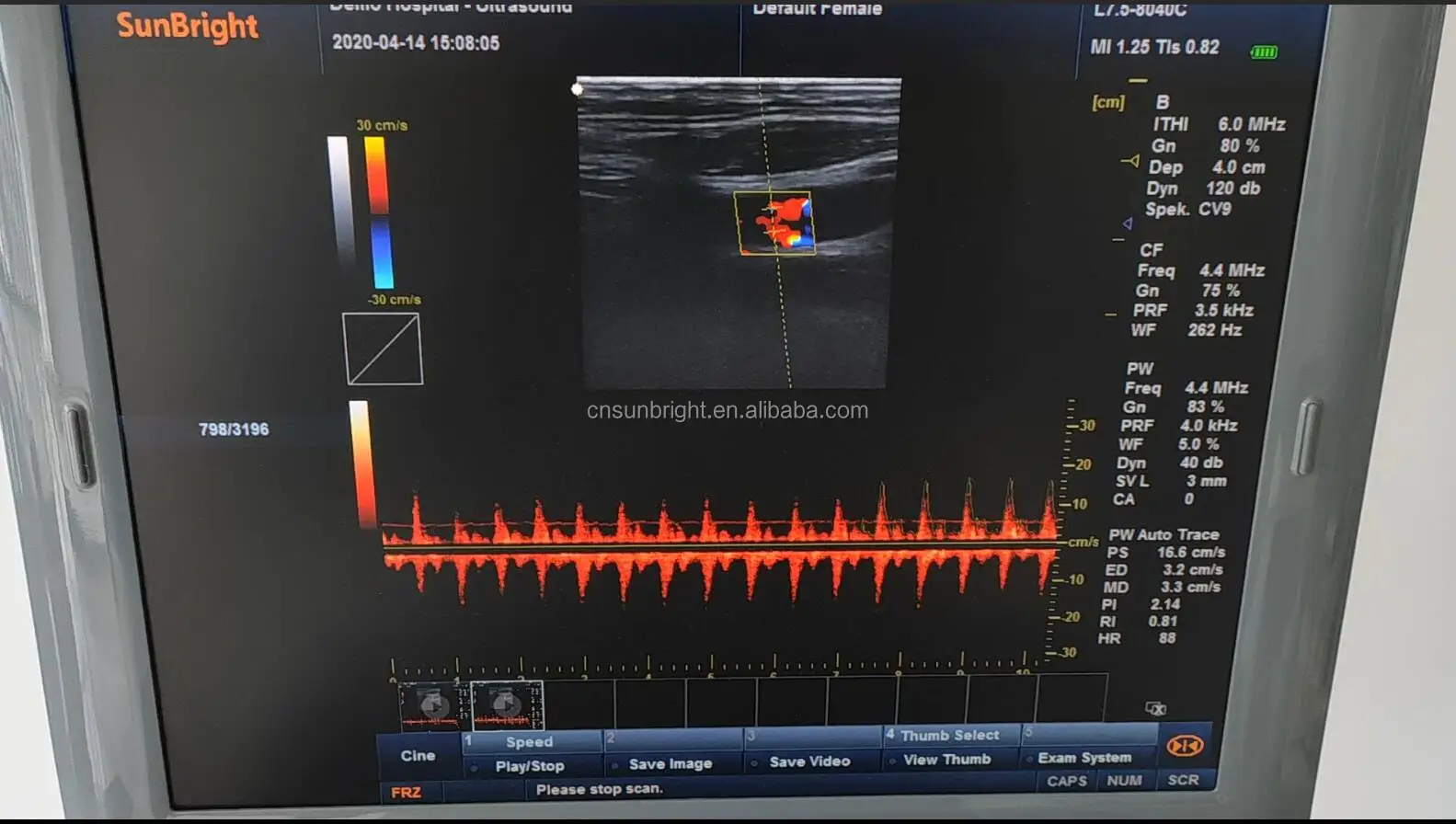

PW Auto Trace
Update in line
CF+B mode in one screen
Complex Model Imaging
IMT auto measurements
Virtual convex array
Trapezoidal imaging


General Performance




Digital Broadband
12288 channels
Beam-former
Re-programmable
Transmit Voltage
Adjustable (15 steps)
Beam-former Frequency Range
1~40 MHz


Pan/Zoom

Real-Time Image Zoom, Zoom Range: 100%~400%, Up/Down/Left/Right Inversion


Hardware Specification

LED Monitor



Size (Diagonal)
15"
Contrast Ratio
800:1
Resolution
1024×768 pixels
Brightness
230 cd/m2
Color Depth
24bit
Rotate Angle
± 90°
Grey Levels
256



UPS (Optional)
Embedded Speakers

Impedance: 4Ω
Power: 5 W


Imaging Performance




Startup Time (Max)
Avg. < 90 seconds
Preset Switching Time
Avg. < 1 second
Storage Time (Image to Disk)
Avg. < 0.5 second

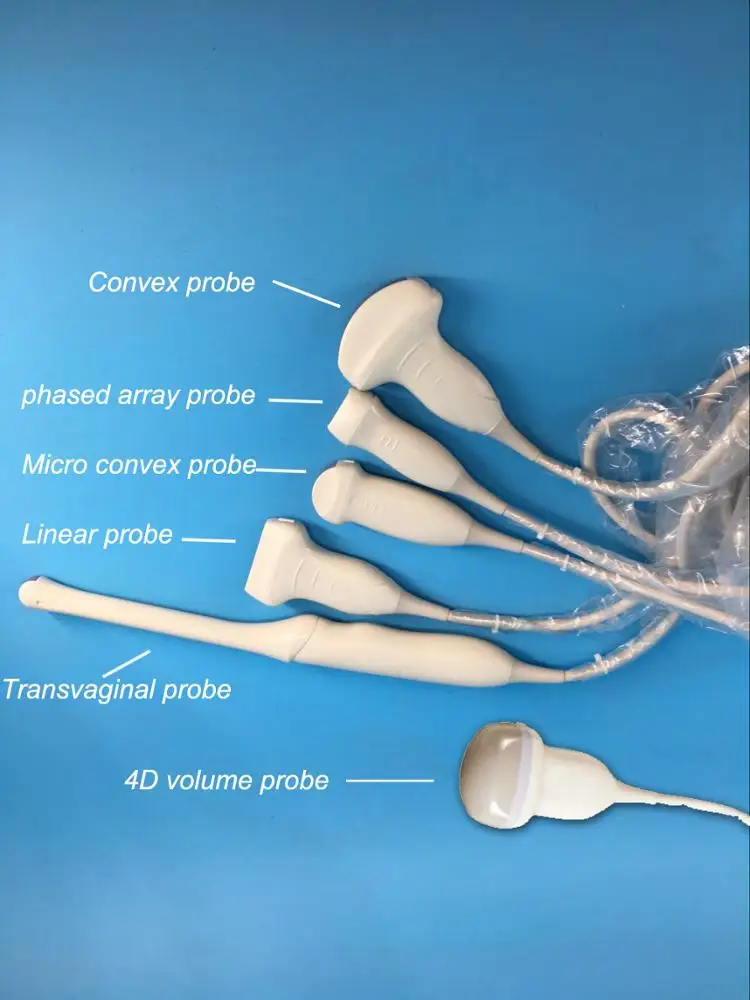

Probe
Convex Array Probe
Linear Array Probe
Intra-Cavity Probe
Micro-convex probe
Frequency
Central 3.5 MHz

(2.0MHZ to 10.0MHZ)
Central 7.5 MHz

(6.0MHZ to 10.0MHZ)
Central 6.5 MHz

(5.0MHZ to 9.0MHZ)
Central 4.0 MHz

(2.0MHZ to 5.5MHZ)
Pitch
0.516mm
0.352mm
0.216mm
Radius
60mm
N/A
10 mm
Elements
80
80
80
80


User Interface
User Permission setting
Intuitive Windows-based operating principles
User-centric control panel with Home Base layout and control customization
On/Off task light and back-lit illumination of control panel
Variable brightness indicates active state of function keys
Easily accessible, full size QWERTY keyboard for text entry, function keys and system programming
Cine Playback, Multiple Arrows, Configurable Worksheets, Exam Review, Pictograms (Body Marks),System Setup Menu


Imaging Modes

B, 2B, 4B, M, B/M, B/C, B/D, B/C/D, B/CFM/D, PDI Color, Dual Color, Simultaneous 2D/Color Compound, PW, Duplex/Triplex, CFM, CDE, PD, Directional PD, CD

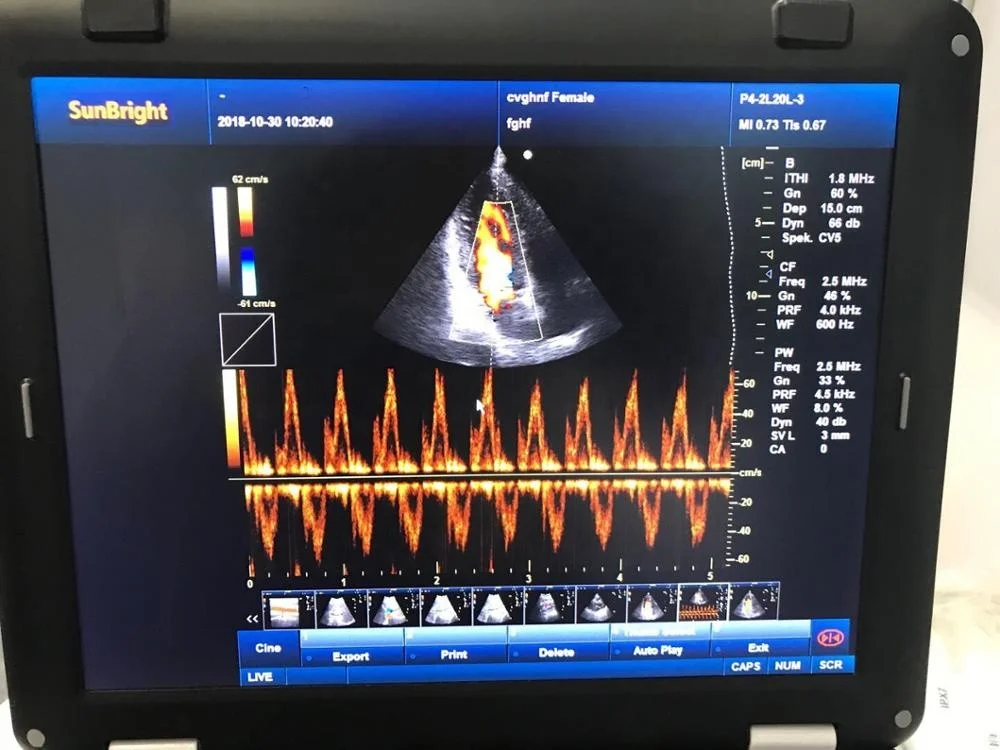

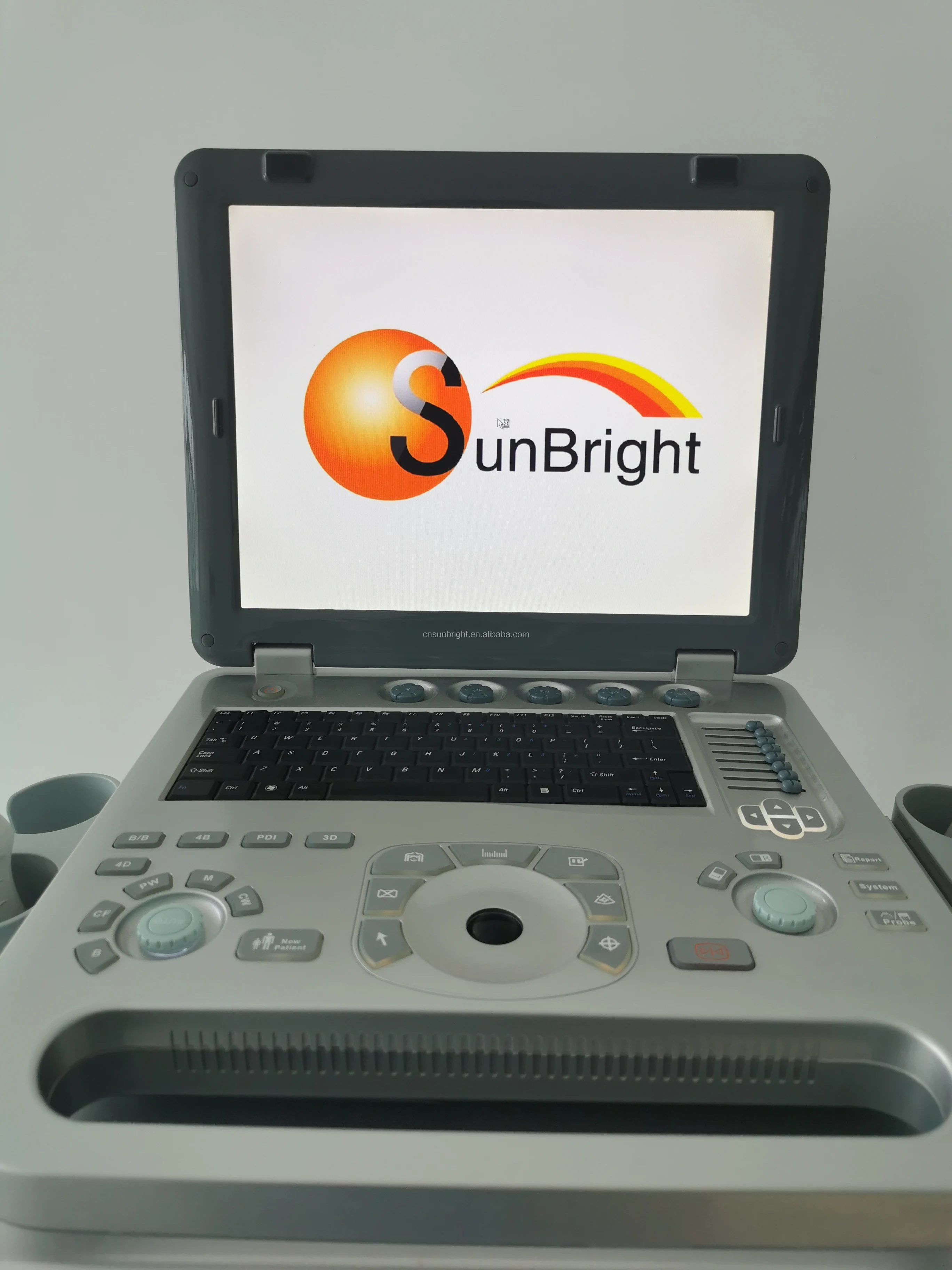

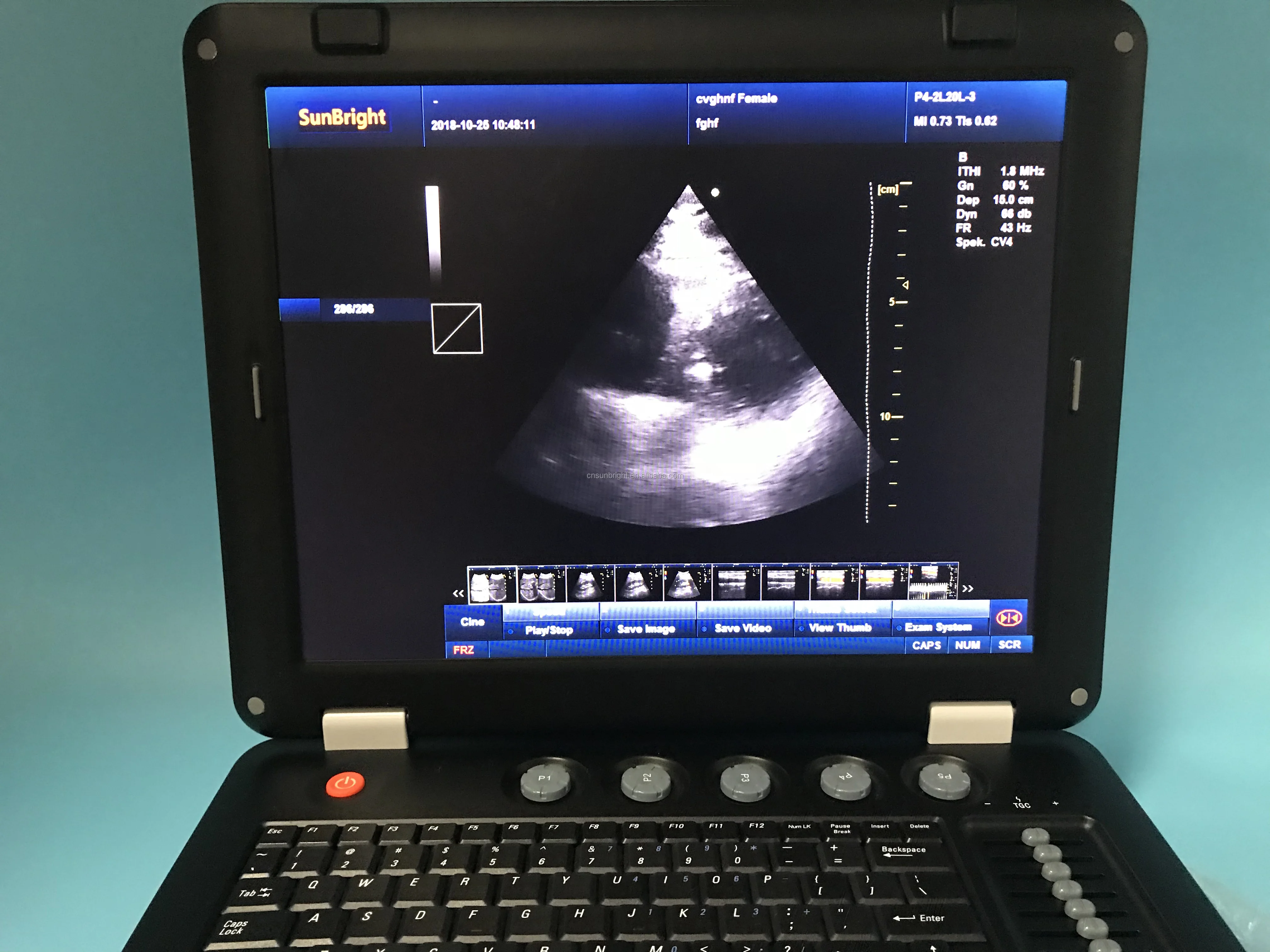

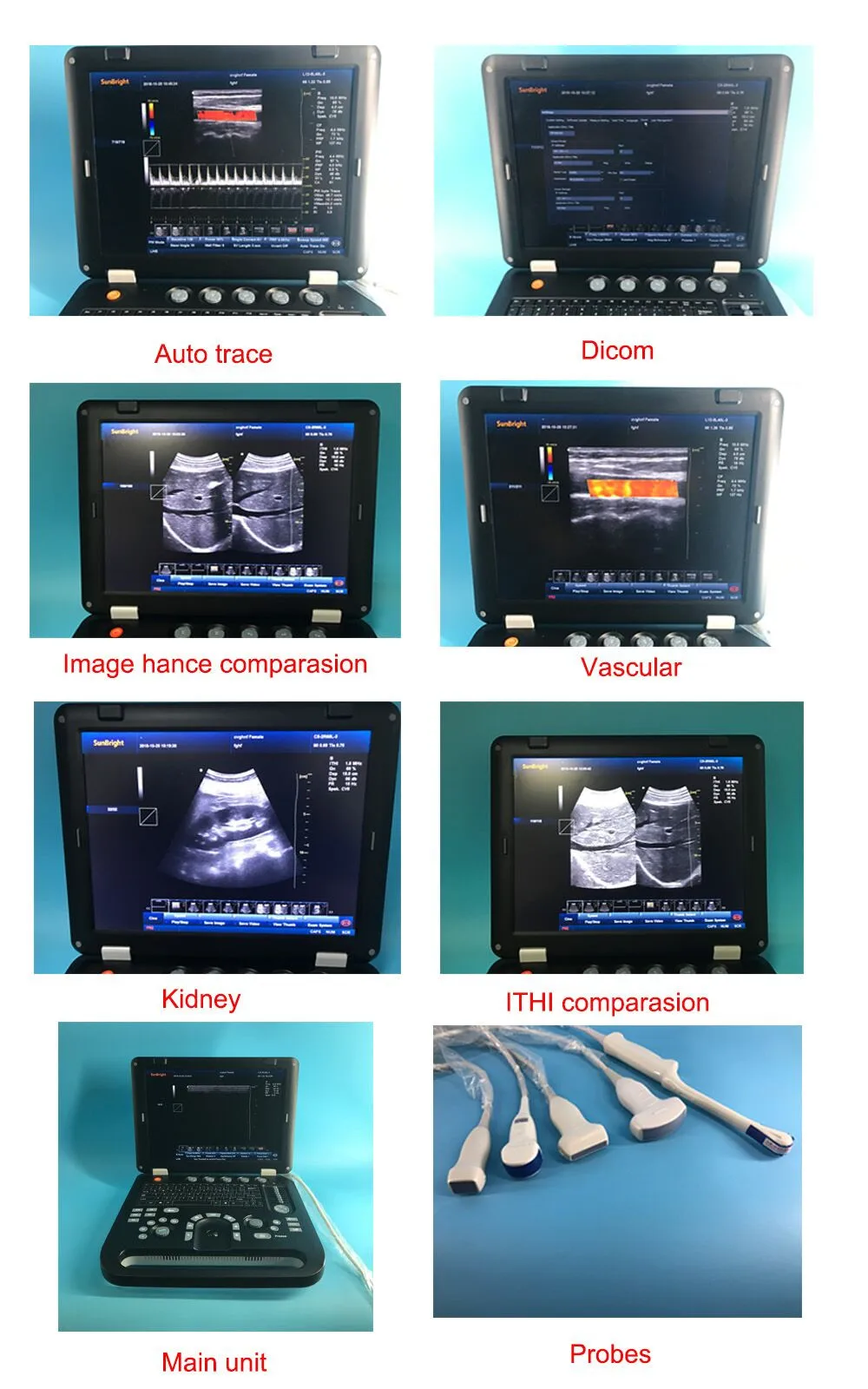

Detailed images









Related Products






Packing & Delivery




1. Package: double carton boxes
2. Port: Shenzhen China, Shanghai China
3. Delivery time: 3-5 working days after receipt of payment
4. Payment term:
T/T in advance, MoneyGram, Trade Assurance, Western Union, Escrow, Paypal, Credit Card!
