52 cells 18650/40 cells 21700 battery case DP-2170-4C Polly Ebike batter box

Share on:


Price:$21.00
Price in USD:Details

Quantity:


Product Overview

Description






52 cells 18650/40 cells 21700  battery case DP-2170-4C Polly Ebike batter box

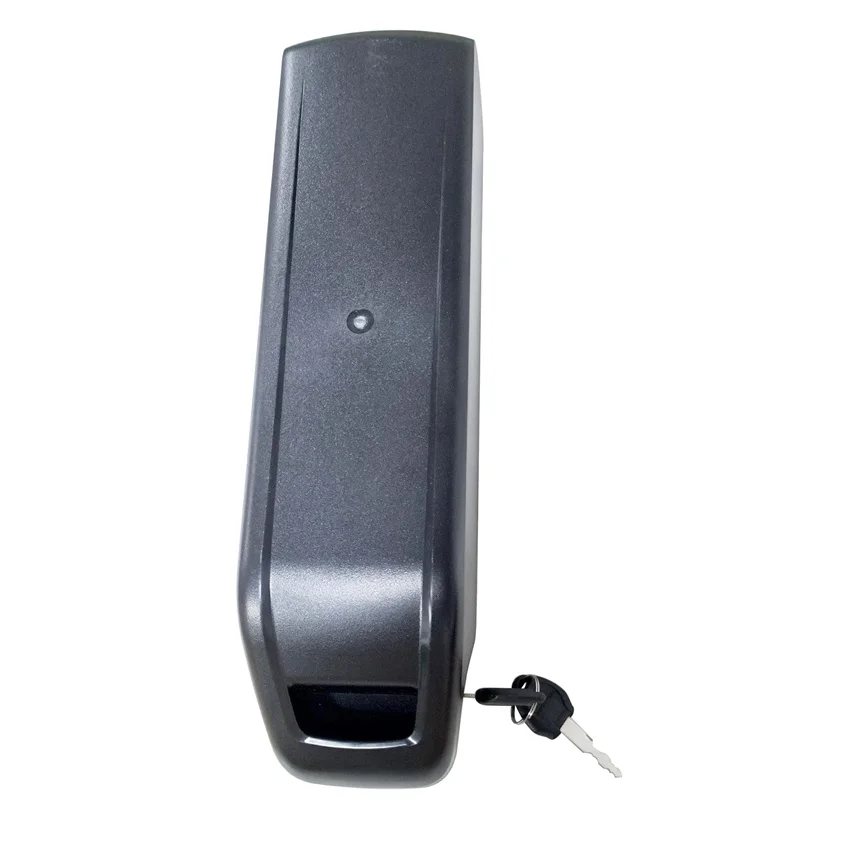

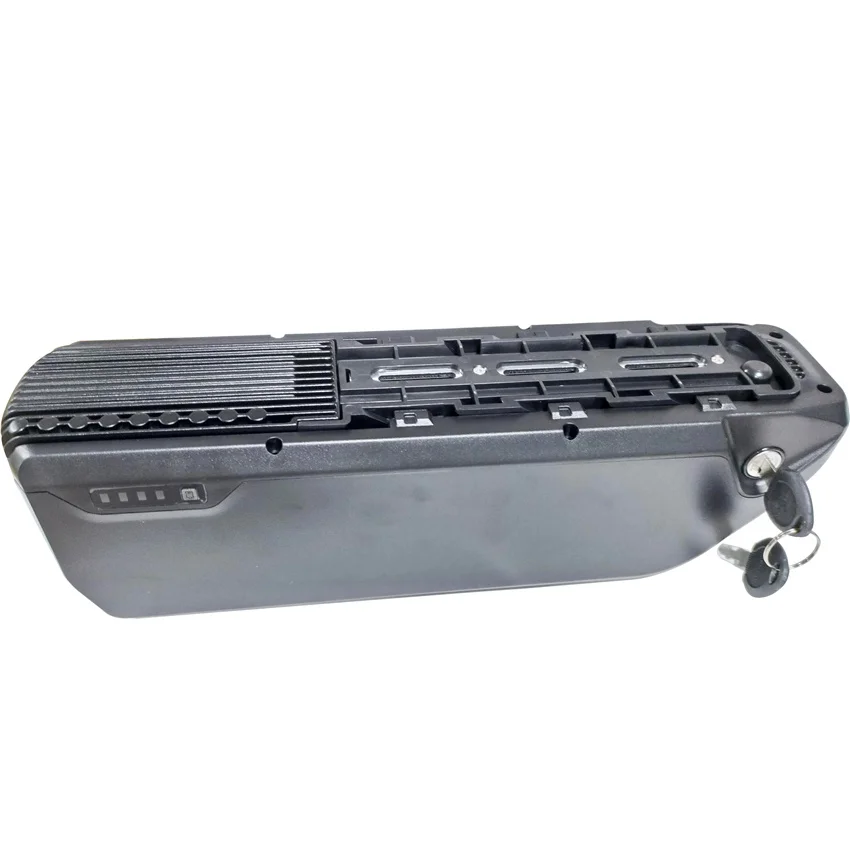

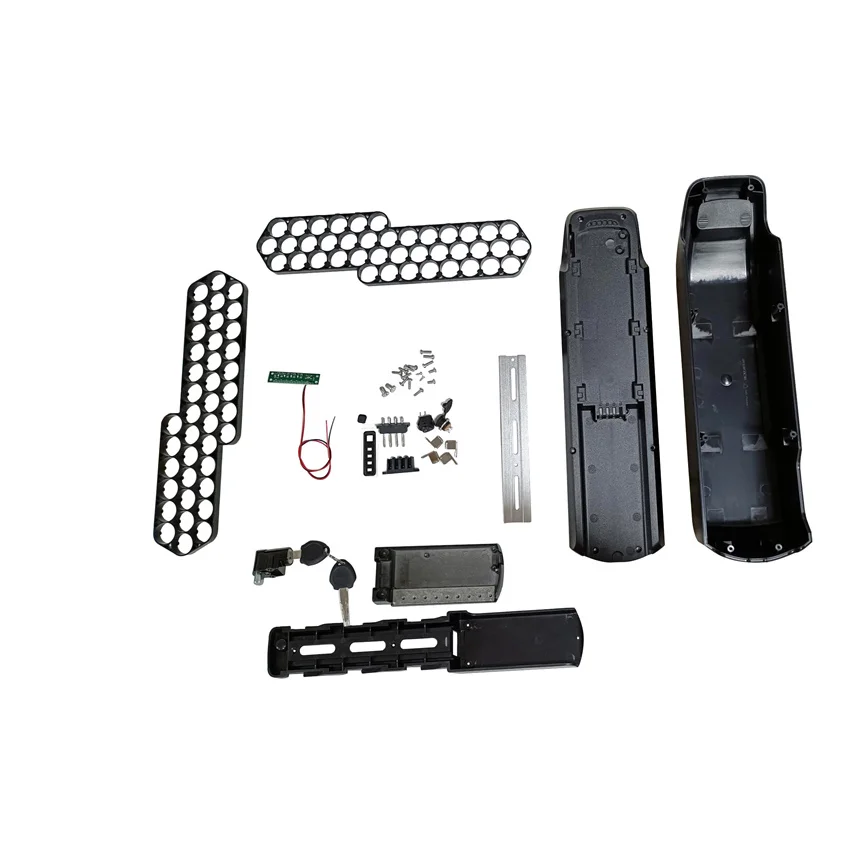

Full set electric bike battery case
DP-2170-4C
Black plastic upper and lower case
Black plastic battery base, with controller box(Can fit 9 mosfets controller PCB)
Mechanical Structure: Push ahead and upper-taken style, Mechnical Lock
Maximum cells: 40 cells-21700, 52 cells-18650
Discharging port: 4Pin
Discharge maximum current:20A
Charging port:DC2.1, Opt.3Pin high current
Charging maximum current:2~5A
Power Switch:With
USB:Without
LED indicator:4 LED lights
Optional parts:Base block PLA0288, Switch hole cover PLA0187, Spring lock SDP0017


















































Model




DP-2170-4C




Max cell space




52 cells 18650/40 cells 21700




Configration




10S4P 13S4P




Material:




PC+ABS




Charging Port




DC2.1 port




Discharging Port




self-made 4pin




Lock




Mechanical lock




Capacity Indicator




4 level LED capacity indicator




Weight




1.1KG











DP-2170-4CDP-2170-4CDP-2170-4CDP-2170-4CDP-2170-4Cwe also have below options to select if you need :DP-2170-5C
