hot sale brewery system beer brewery equipment for sale

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description


paste-pic-dp_uuid_zznkqhot sale brewery system beer brewery equipment for sale



Product Description


Product Description:





paste-pic-dp_uuid_qv24rSystem composition:


1. With strict water / air pressure test,air pressure test for 48 hours before delivery
2. Cooling jacket with strict water / air pressure test
3. Dished head, thickness is 3mm, Cone angle can be custom-design
4. Sanitary top pressure manhole on top
5. 360 ° full coverage CIP cleaning arm
6. Carbon dioxide exhaust arm with butterfly valve
7. Mechanical pressure regulating valve
8. Liquid level gauge with soft pipe


paste-pic-dp_uuid_qv24rDescription:


1. Warranty: 5 years for the main equipment(tank);1 year for electronic components


2. Installation/Operation/ Service/ Maintenance Manual: Provided In English


paste-pic-dp_uuid_qv24rConfiguration:
































































Mashing System



Main equipment



Mashing tun, lauter tun, kettle and whirlpool tank



Optional



Cold liquid tank (CLT), hot liquid tank (HLT), Boiler



Capacity



30L--30000L per batch



Heating way



Steam heating, electric heating, direct fire heating



Material



SUS304, thickness: 2.0-4.0mm



Insulation



Polyurethane/Rock wool, thickness: 80mm



Polishing precision



Ra0.4um



Accessories



Pump, pipeline, heat exchanger, valve, raker, platform, and all other accessaries



Function



Separate all sugar from grains and solve sugar in water.  Also solve hops in water. Then separate grains and impurities from water. Finally get pure wort

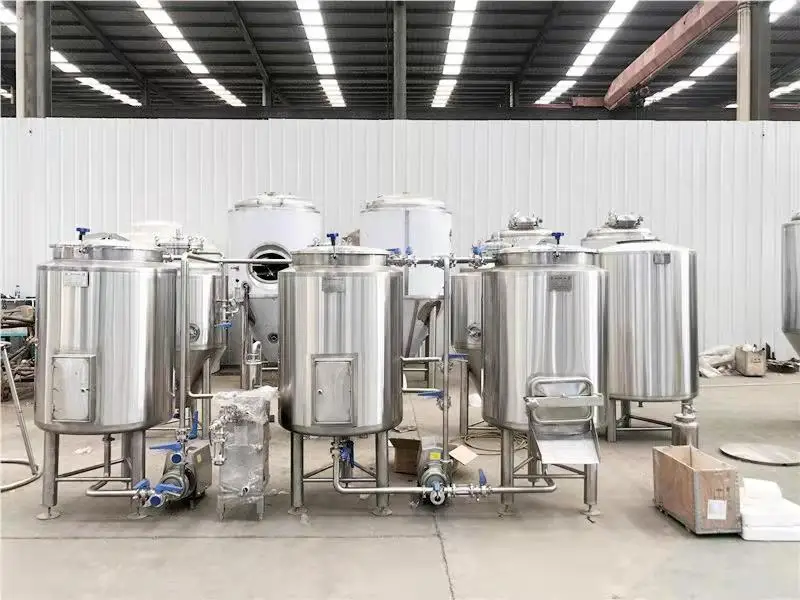

 Brewhouse system


-Two-Four vessles or combined system.


-Capacity 100L-5000L, 1bbl-40bbl.


- Steam heated, electrical heated or natural gas


-Mash tun with mixer, steam jacket, VFD motor, insulated 80mm. Stainelsss steel 304.


-Lauter tun with rake system, milled false bottom, sparging spray ring, VFD motor, insulated 80mm.


-Boiling kettle with steam jacket, inner heated option, insulated 80mm. Stainelsss steel 304.


-Whirlpool with Tangential whirlpool inlet. insulated 80mm. Stainelsss steel 304.


-Insulated HLT and CLT with the pipelines and pumps


-External wort balance tank, hops filter, heat exchanger. Wort oxygenation system, working platform.


-All the necessary pipelines and pumps.


brewerybfvfermenter2





Qihui Standard:


paste-pic-dp_uuid_jw0eiSparging spray ring


This device is very import for cleaning the lauter tank, it will be clean more good than normal only CIP ball, because Lauter tank is not same with other brewhouse tank, it must be do strong cleaning.


paste-pic-dp_uuid_jw0eiThe Rack


We use the new-style rake; the structure is varied so that it can agitate the wort lengthways and transversely. Also we equip with VFD to adjust speed. It can help to make the wort flow smoothly.





product details:


1. Polishing:


Polishing is vital for tanks. Tanks should be polished wholly inside and outside.


Therefore it can ensure there is no place for the bacteria to hide in tanks.


Our polishing system consists of auto and semi-auto polishing machine and manual polishing.


Each tank is polished three times and more polish for the key place.


2. Welding:


Our argon central system for welding provides 100% pure argon to protect tanks from distorting during welding


3.Accessories


 Assembly


Related Products:


products







Packaging & Shipping





Packaging:


1.With export standard film packaging, then for wooden case packaging for


alone beer tanks and less brewery equipment -LCL shipping.
2.If more tanks or complete set of brewery, with film packaging- FCL shipping.
3.By bulk carrier or independent containers, the size and quantity rely on the configurations and capacity.
4.Buyers requirement on packaging and shipping, please tell us in advance.


 package





Company Information





Our company:


Jinan Qihui Beer Equipment Co., Ltd. is a professional company developed on the basis of existing large, medium, and small-sized beer equipment in Germany, Canada, the United States, Australia, the United Kingdom, and China. The company designs and manufactures beer equipment suitable for the needs of domestic and foreign customers. We adhere to the business philosophy of “Best Quality, Lowest Price, Best Service”. With the spirit of “integrity, pragmatism, enterprising, and innovation”, we gather professionals and constantly develop high quality beer equipment, brewed beer equipment and small beer.


1_5








Our Services


 Our Services


Pre-sale service


1.Free technical guidence.


2.Inquires will be replied with 0~8 hours.


3. Any questions  about the products will be replied without any reservation.


4. Recommendation products according to your requirements.


After-sale service


1.Five year warranty period.


2. Lifelong  technical support service.


3. Any technical advisory from you will be much appreciated.
