Product Overview

Description

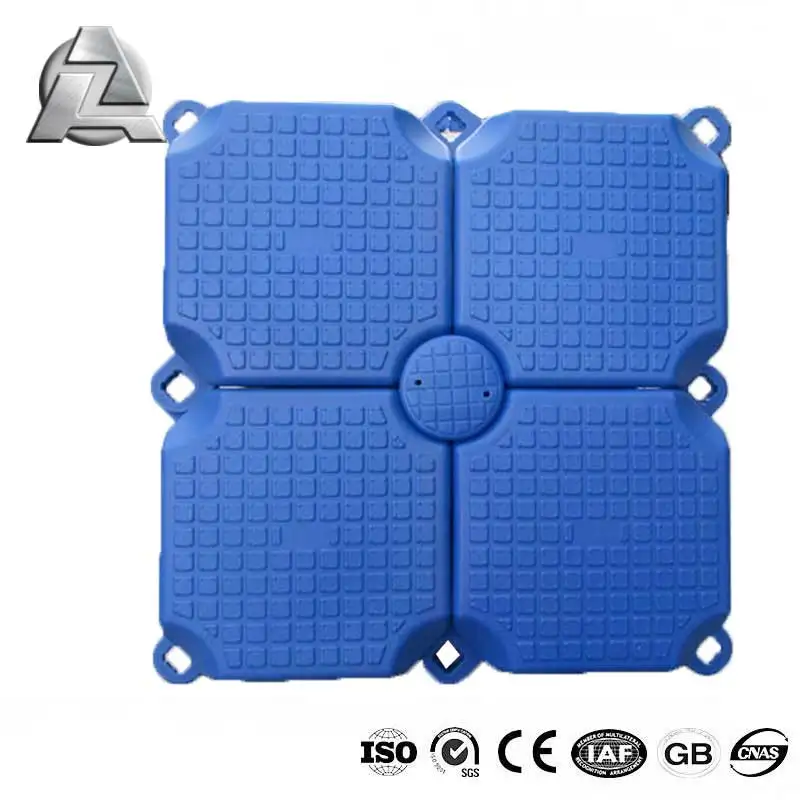

Plastic floating pontoon dock platforms and accessories for sale



Floating Pontoon System







Product Description

























































 Material of Pontoon Buoy



 100% high molecular weight and high density synthetic material HDPE



 Pontoon buoy Size


 1000x500x400 mm
 Color of Pontoon Buoy

 Blue, orange, yellow,red and so on


 Pontoon buoyancy > 360 kg/m2 Detection method

 QB 1557-1992



 Diagonal tensile strength


 > 27 kN Detection method

 GB/T 1040.1-2006



 Compressive strength


 > 40 kN Detection method

 GB/T 8813-2008



 Tensile strength


 > 30 Mpa Detection method

 ASTM D638-2014



 Impact strength


 > 65kJ/m2 Detection method

 ASTM D256-2010



 ROHS tests



 The raw materials do not contain six chemicals including lead,


 mercury, cadmium, hexavalent chromium, polybrominated biphenyl


 and polybrominated diphenyl ether, making it more conducive to


 human health and environmental protection.































 Pontoon Steel Frame



 The main steel frame structure of the pontoon bridge adopts galvanized steel


 structure, and the material conforms to the national standard (GB700-88)


 Technical Conditions for Ordinary Carbon Steel.



 Pontoon Decking



 Float Pontoon Decking Panels are made of high-resistance bamboo and


 wood panels with high density, good toughness, high strength, strong and


 durable, not easy to deform, smooth texture, soft color, elegant and


 generous, and are environmentally friendly and green products.


 Fixing Parts

 As the average water depth at the site is 2-3 meters, the water level is stable


 all the year round and there are no waves, so the steel pipe pile is used


 for positioning and will not move due to external force.


 Pontoon Gangway

 The approach bridge shall be made of aluminum alloy or galvanized steel


 structure and laid with bamboo and wood panels with a load of 200 kg/m2


 or more. The shore is connected with a concrete base (bank protection)


 by a hinged seat. Nylon roller sets are welded at the bottom of one end of


 the floating bridge.






Installation & Application

























 First, connect the individual buoys through earrings.



 A single buoy forms a plane.



 Place the short connecting bolt into the concave hole in the plane at an angle of 45 degrees.



 Use a special tool torque wrench to install the buoy.



 Turn the torque wrench counterclockwise for 45 degrees to connect the individual buoys.



 Complete the installation.







About Us







Packaging & Shipping







FAQ




































 Q1. What is life expectancy for the product?



 A: Life expectancy: 15-20 years.



 Q2. Price per square meter including all required accessories or not?



 A: We will quoted the price by SQM including all required accessories. They are easy to be


 assemble or disassemble.



 Q3. Do they need to be dismembered and stored in winter time?



 A: The material do not need to be dismembered and stored in winter time, they are anti-freezing.



 Q4. Do the products have Gangway?



 A: Yes, we can supply all the parts for pontoon according to your request.



 Q5. Are you able to tie wooden board on the surface?



 A: Yes, we do. We will send wooden board and related accessories. They are easy to be assemble


 or disassemble.
