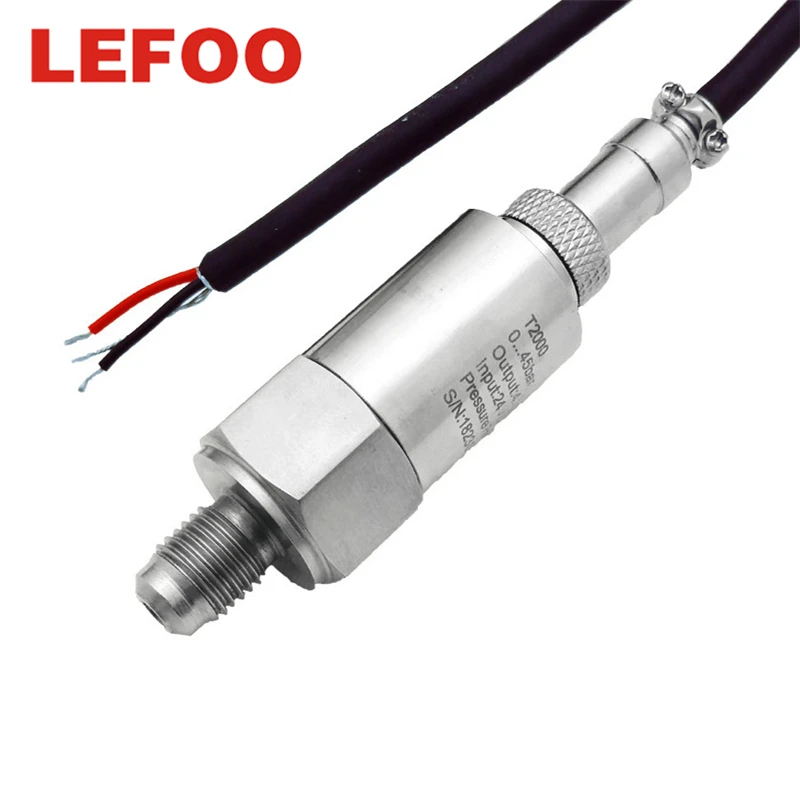

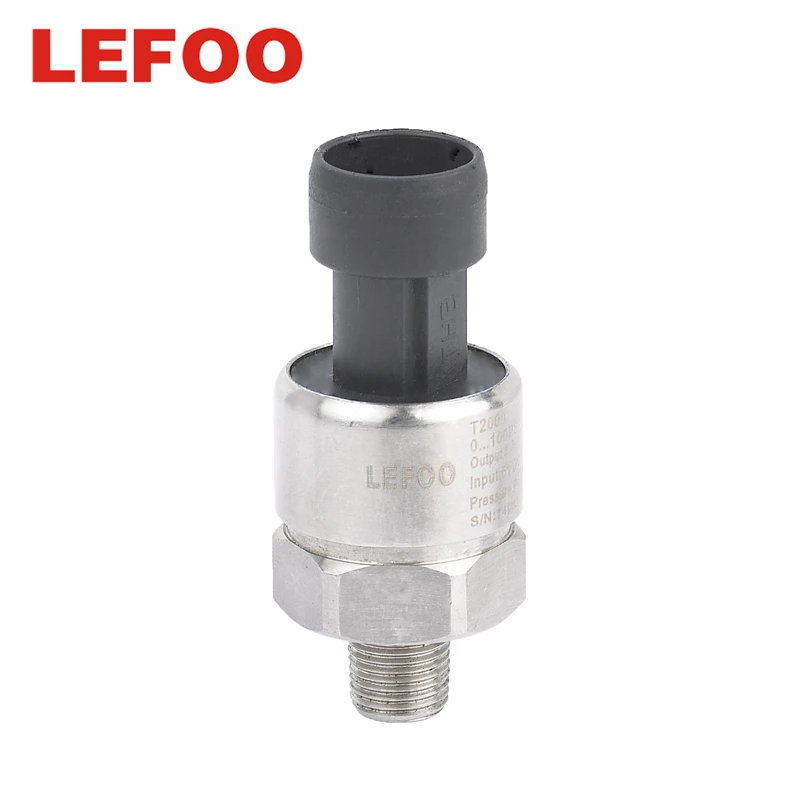

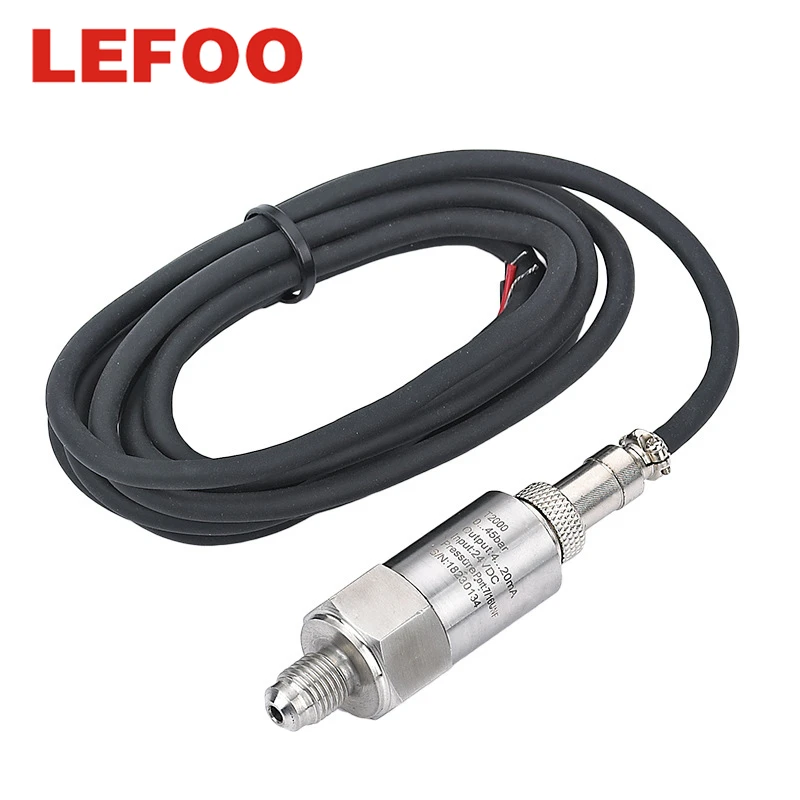

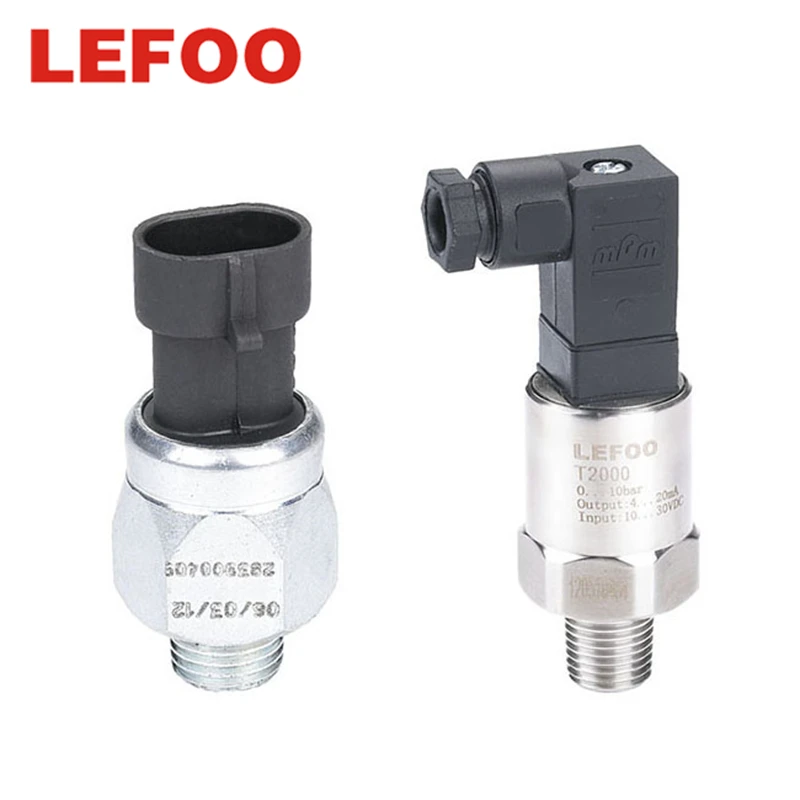

Two-wired Automotive Air Pressure Sensor

Share on:


Price:$16.90 - $20.30
Price in USD:Details

Quantity:


Product Overview

Description



Product Description




Automotive pressure sensor


Automotive pressure sensorAutomotive pressure sensorAutomotive pressure sensorAutomotive pressure sensorAutomotive pressure sensorAutomotive pressure sensorAutomotive pressure sensor


The heart of T2000 pressure transmitter is a ceramic pressure sensor that is temperature compensated and laser trimmed for accurate span and offset calibration. The typical advantage is the compact size, which make it
convenient to be installed in small room.





Output: A4=4~20mA; V05=0.5~4.5V; V0=0~5V; V1=1~5V; V10=0~10V
Measurement range
Unit of measure: K=kPa; M=MPa; P=psi; B=bar
Accuracy: 0.5=0.5%F.S; 1=1.0%F.S
Electrical connector: P=Packard; D=Din43650C; M=M12; C=Cable
Pressure connection: G=G1/4; N=NPT1/4; R=R1/4; U=7/16-20UNF; M=M20×1.5; N2=NPT1/2; G2=G1/2; R2=R1/2
Cable length(m)





Specification

































































































GeneralValue
Measurement Range-1~0......100bar,0~2......3bar,0~4......60bar(normal range),0~61......600bar
Overload Pressure1.5 times of full scales
Burst Pressure3 times of full scales
Accuracy±0.5%F.S,±1.0%F.S
Long Term StabilityTypical value: 0.5%F.S Maximum: 1%F.S
Working Temperature-40℃~100℃
Compensated Temperature-10℃~80℃
Storage Temperature-50℃~125℃
Medium CompatibilityAll corrosive medium compatible with 1Cr18Ni9Ti stainless steel and ceramic
Output ModeTwo-wiredThree-wired
Output4~20mA0.5~4.5V0/1~5V0~10V
Power Supply10~30VDC5VDC10~30VDC/AC12~30VDC/AC
Load Resistance(U-10)/0.02(Ω)>100K(Ω)
Insulation>100M(Ω)@50V
Electrical ConnectionPackard, DIN43650C, DIN72585, M12, Cable
Protection GradeIP67
Pressure ConnectionMale G1/4,NPT1/4,7/16-20UNF,M20×1.5,G1/
(Female and other connection is available on request)
Response Time10ms
Pressure FormGauge pressure
Electromagnetic CompatibilityElectromagnetic transmit: EN50081-1/-2; Electromagnetic sensitivity: EN50082-2

 Conversion: 1kgf/cm²=14.2psi 1bar=14.5psi
