Cheap plastic flooring adjustable paving support

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description





For paving

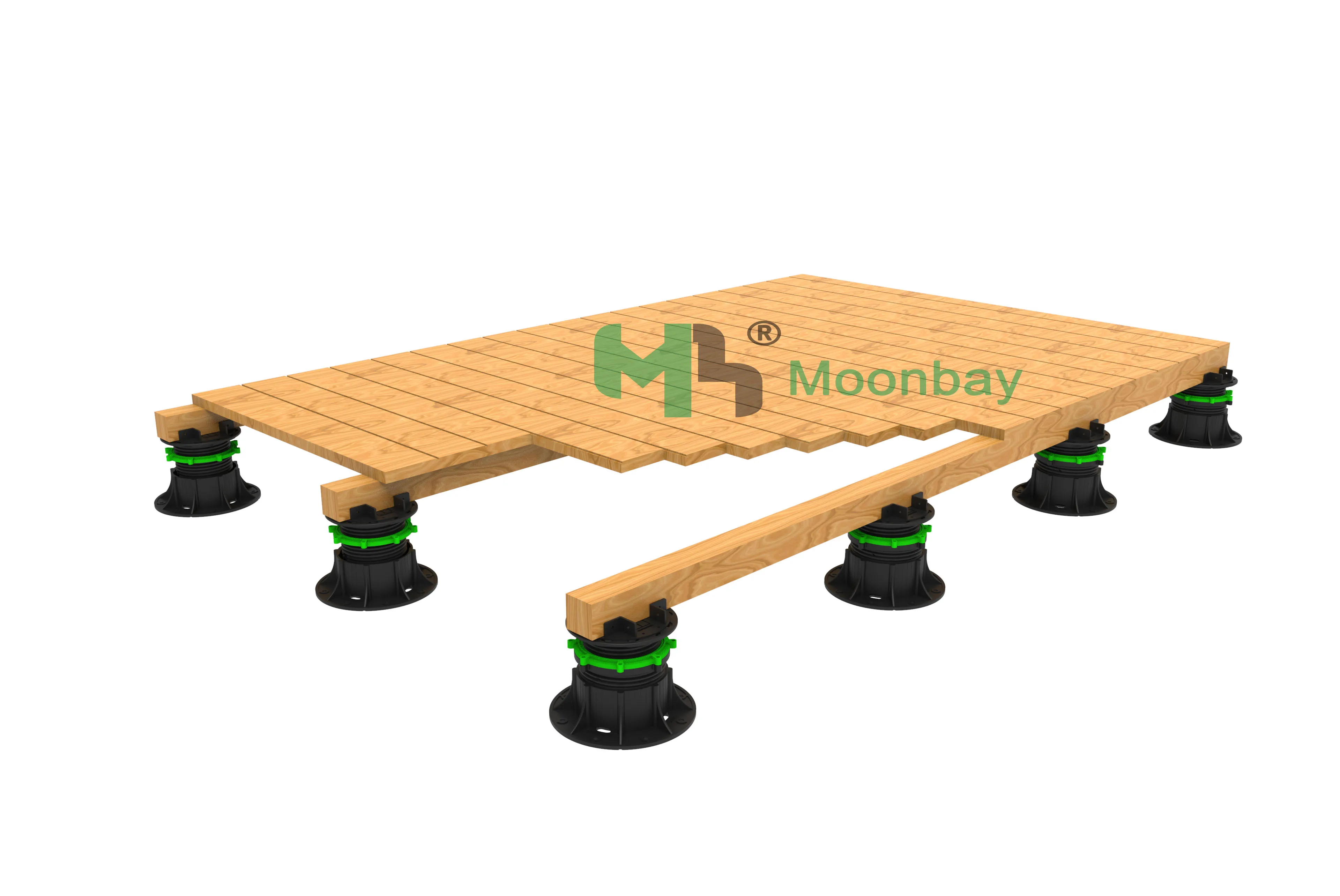

For decking




Pedestal assemble photo










Spacer Tab
To give the desired opening between tiles (for water drainage and vertilation)Thickness option: 2mm / 3.5mm / 5mm / 8mm / 10mm
Shim
Anti-Slip, reduce impact, absorb shock, compensate floor thickness differenceThickness option: 1mm / 2mm
Multi-function Spacer Tab
For polygonal tile useThickness Option: 2mm / 5mm / 8mm / 10mm


Stackable Rubber Pad
Stackable Rubber Pad , 14 mm rubber pad with shim, made of soft rubber, noise reduction and absorb movement.

Wall Side Steel Clips/perimeter spacer
wallside buffer steel clip used for against the wall.
Side Closure Steel Clip
Use for vertical tile to close step side
Type option: steel clip 02 on pedestal top / steel clip 03 under pedestal base
Clip suitable for 2cm thickness tile


Wind-proof Clips with Screw
Use for fixing the plane materiel to prevent the wind move away by insert clip into pre-cut paver tile
Wind-proof Washer with Screw
Use for fixing the plane materiel to prevent the wind move away by screw the washer on top of paver tile corner
Self-leveling top slope adjuster
To self-level 0~5% slope to make a perfect leveling on the floor surface


Aluminum Rail System
Aluminum joist size: 50*25 mm, made of aluminum.
Click cradle: click fit the aluminum joist, no need screws.
Spacer tabs: fit with tiles laying on aluminum joist.
Fix collar
Fix and lock the thread after adjustment, increase stability.Standard green color, color can also be customized.
15mm Top Pad
To add 15mm higher by stack onto pedestal top.Stackable (4 max)on pedestal top


Single-side Joist cradle
To hold timber batten, composite battens, aluminum or steel support sections joist, wooden beam.Singe side joist cradle
(suitablefor beam size 20-90mm)

40mm Joist cradle
To hold timber batten, composite battens, aluminum or steel support sections joist, wooden beam.40mm gap with cross way (suitable
for beam size 20-40mm);
50mm Joist cradle
To hold timber batten, composite battens, aluminum or steel support sections joist, wooden beam.50mm gap with cross way (suitable
for beam size 20-50mm);




60mm Joist cradle
To hold timber batten, composite battens, aluminum or steel support sections joist, wooden beam.60mm gap with cross way (suitable
for beam size 20-60mm);

80mm Joist cradle
To hold timber batten, composite battens, aluminum or steel support sections joist, wooden beam.80mm gap with cross way (suitable
for beam size 20-40mm);
Self-leveling top slope adjuster
To self-level 0~5% slope to make a perfect leveling on the floor surface



Aluminum Joist Beam with Clik Cradle
Aluminum joist size: 50*25 mm, made of aluminum.
Click cradle: click fit the aluminum joist, no need screws.
Spacer tabs: fit with tiles laying on aluminum joist.
IPE Deck Connector
To hold timber batten, composite battens, aluminum or steel support sections joist, wooden beam.40mm gap with cross way (suitable
for beam size 20-40mm);
Connect Rod
To connect pedestals for excess height installations (from 800mm to 1600mm in height) or for installations requiring additional stability.
Size option: short connect rod 340mm-500mm) length;
long connect rod:500mm-750mm )length



Big Fix Collar
Installed with connecting rod to connect with MB-T pedestal
No Smell base pad
No smell,heathy,eco-friendly
Anti-slip,reduce noise,protect water membrane.
Assemble under the base of pedestal
(suitable for pedestal base dia 200mm)
Flat base rubber pad
Anti-slip,reduce noise,protect water
membrane.
Assemble under the base of pedestal
(suitable for pedestal base dia
200mm and 220mm)


Base Slope Corrector
Rotating the upper disc to compensate 0~5% slope.Assembled under the base of the pedestals
Size option:
200mm base slope corrector
(suitable for pedestal base dia 200mm);
220mm base slope corrector
(suitable for pedestal base dia 220mm)






For paving




For decking
