QS 273 v3 72v 12000w electric bike wheel hub motor kit for motorcycle

Share on:


Price:$850.00 - $890.00
Price in USD:Details

Quantity:


Product Overview

Description





72v 12000w electric bike wheel hub motor for bicycle



Product Description





Detail show :72v 8000w electric bike wheel hub motor for bicycle  kit witH TFT display


8000w

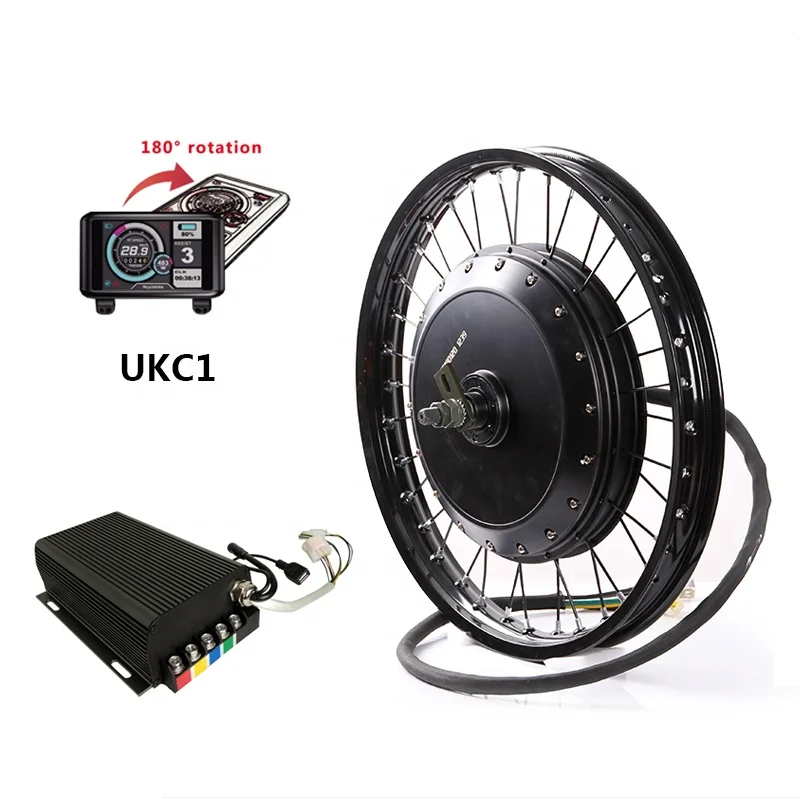

72v 12000w electric bike conversion kit with TFT display





















































Motor type brand

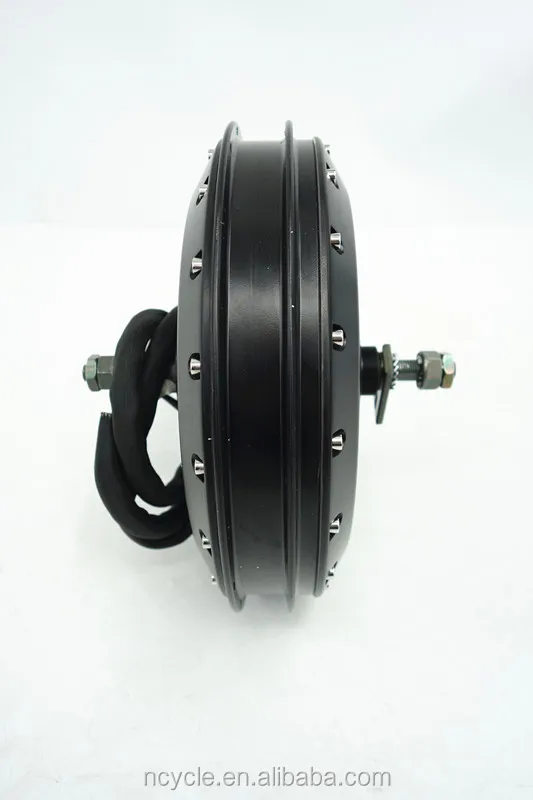

 High quality electric wheel brushless Hub Motor 12000W V3 for bicycle and scooter



Matching Rim size



 18inch, 19inch,21 inch  motor wheel.



Magnet Height



45mm, 16 pole pairs



Rated Power



14600W



Controller

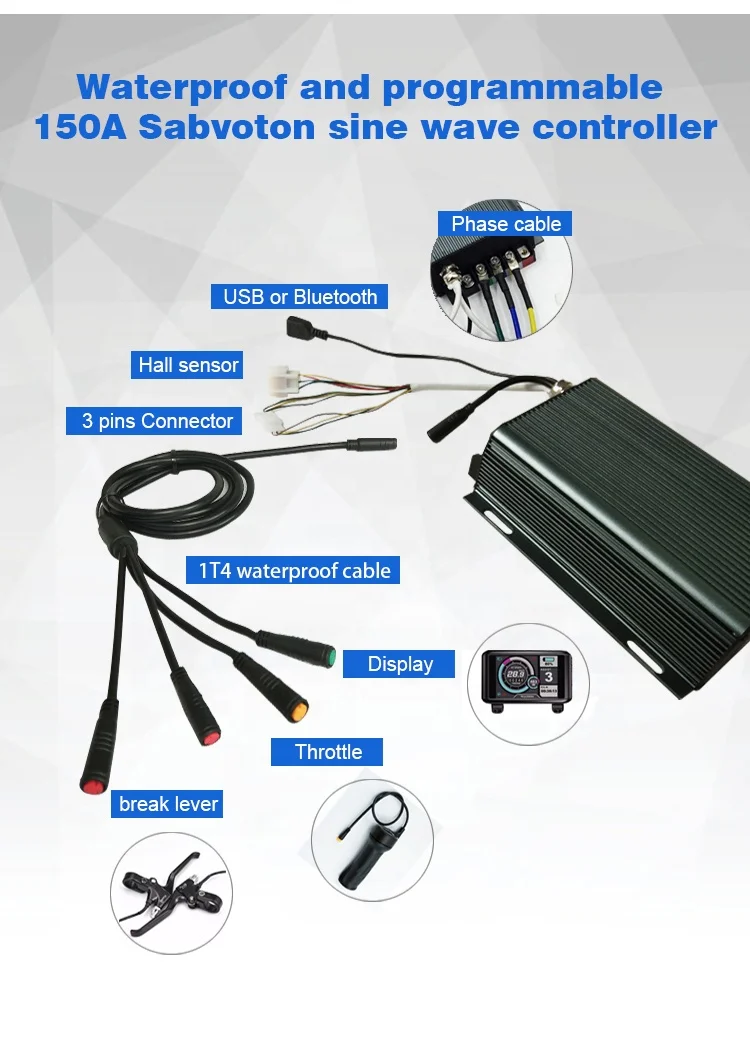

36v-72v Sabvoton Sine Wave controller,18/24mosfet ,can programable by PC and bluetooth



Display



48v-72v TFT colorful display



Throttle



Thumb/Twist



Brake



Electric brake levers or brake sensor



Line



1T4 waterproof system



Drop out



150mm for rear motor only



Optional



1.Blue  tooth adapter(IOS & Android)


2.disc brake


3.Single speed /7 speed freewheel


4.Matching front wheel with 20mm hub


5.72V 32Ah lithium battery






motor kit


Detail specificationf or 12000w hub motor electric bike bicycle kit


































































Motor Type



BLDC Permanent Magnet Outer Rotor In-Wheel Hub Motor With Hall Sensor



Brand



QS Motor,QSMOTOR



Motor Design



Double axle without rim (not integrated), 36 spoke holes, OD 4.2mm



Matching Rim size



18inch, 19inch,20 inch motor wheel.



Magnet Height



40mm, 16 pole pairs



Stator



Aluminmum Core



Rated Power



12000W



Rated Voltage·80KPH as default (24-120KPH, optional)



72V as default (48V-72V, optional)



Speed



100-120KPH as default (24-120KPH, optional)



KV



11.46/12.46/13.54/15.69/17.71etc.



Max Torque



approx 182N.m



Max Efficiency



86-91%



Working Temperature



70-120 , peak 150



Drop-outs/Rear Fork Width for installation



155mm



N.W /G.W



18.2KGS/20KGS






273 V3

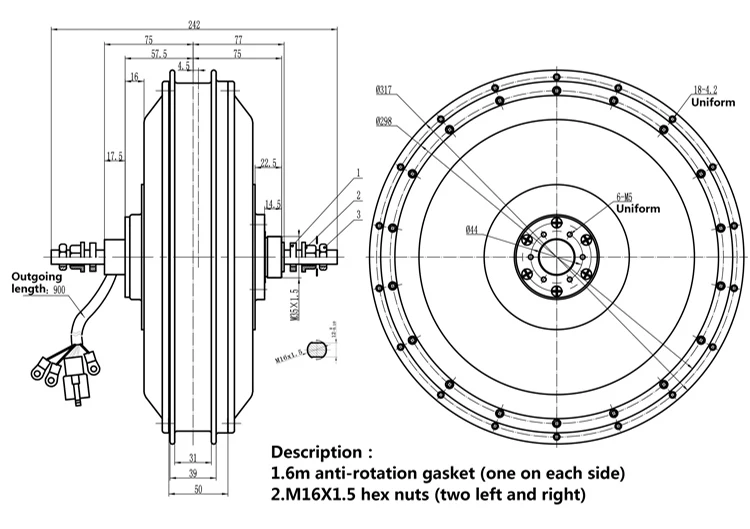

Alex length for 72v 12000w electric bike wheel hub motor for bicycle

























UKC1





 Packing size for 72v 12000w electric bike wheel hub motor for bicycle












Application for 72v 12000w electric bike wheel hub motor for bicycle _773_o_.jpg











 electric bike kit for 72v 12000w electric bike wheel hub motor for bicycle kit
