MIG/MIG Pulse/MIG Double Pulse/TIG /MMA/SPOT welding multifunction IGBT inverter 200amp welder

Share on:


Price:$318.00 - $390.00
Price in USD:Details

Quantity:


Product Overview

Description





Product Description


Dancy Synergic 200amp mig double pulse aluminium welding machine




Popular sales Double Pulse MDP2000 , excellent for aluminum welding
Dancy MIG200 pulse welder combines MIG/ MIG PULSE/MIG DOUBLE PLUSE/TIG LIFT/MMA/SPOT WELDING 6 in one device. And it's main for aluminum welding, also for stainless steel, carbon steel and flux-cored wire. Its characteristics include no-spatter, uniform weld pool, etc.

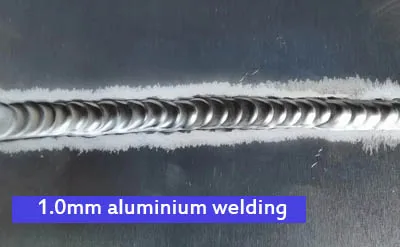

Welding performance on aluminium alloy 2.0mm/1.0mm/4.0mm








 MDP2000-MIG200 Double Pulse Alumininum Alloy Mig Welder specification (General specification)

Material / Metal Processed
Aluminium Alloy and all kinds of metal
Rated Output Current (MIG)
200A
Rated Input Voltage
220V

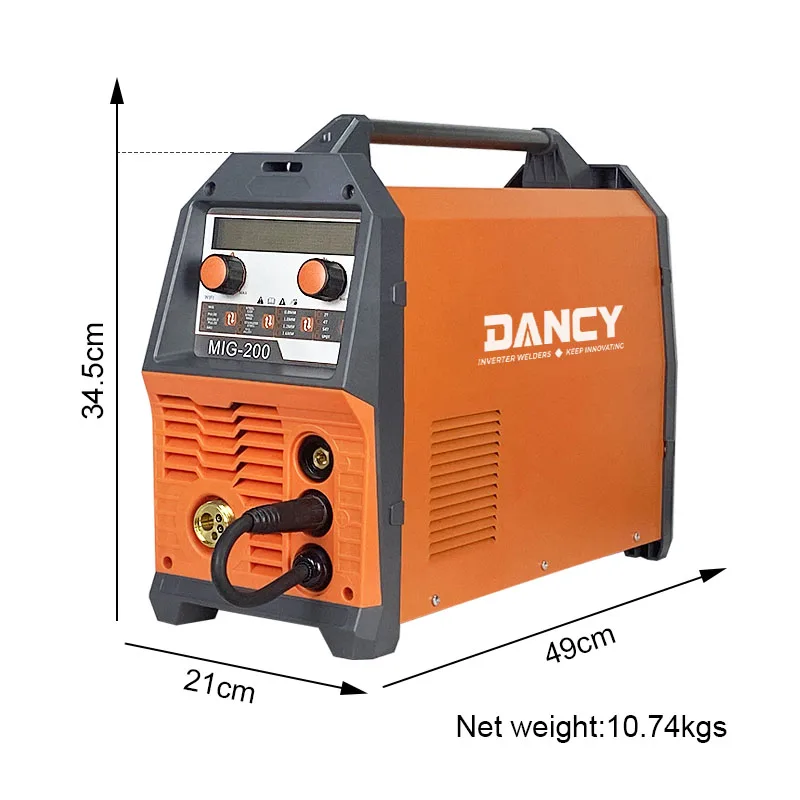

Machine net size
49*21*34.5 cm
Max. Load Power Capacity
7.7KVA
Usage
Welding all kinds of ferrous metals
Rated Output Voltage (MIG)
28V
Net Weight (KG)
10.7KG
Welding Current/Voltage Range
20-200A
Certification
CE
Rated Duty Cycle @40°C (MIG)
40%
Warranty
1 year
Wire Feeding Speed
12m/min
Wire diameter
0.8/1.0/1.2 mm
Condition
New

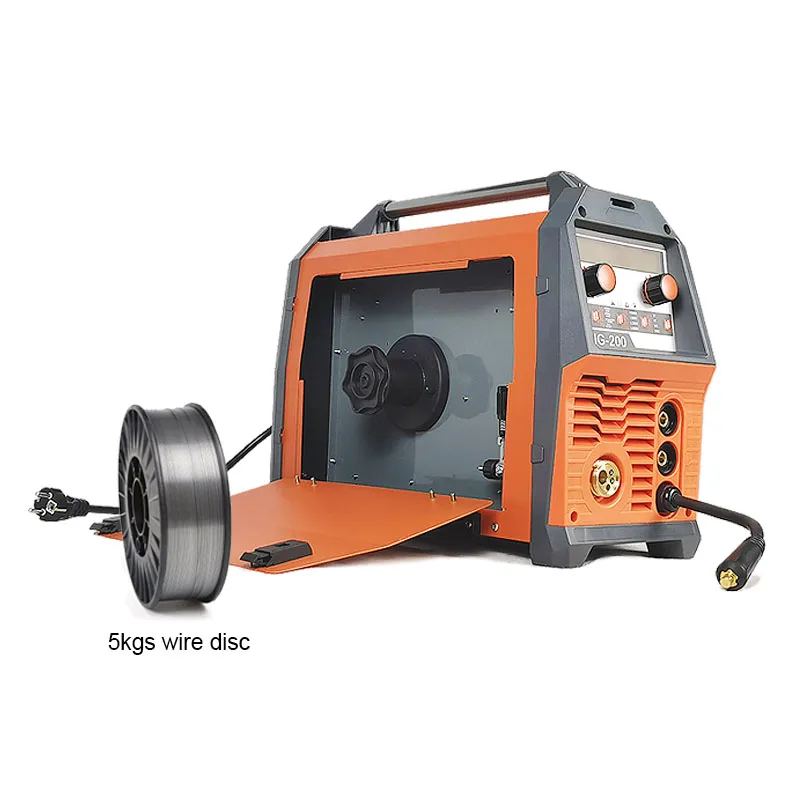

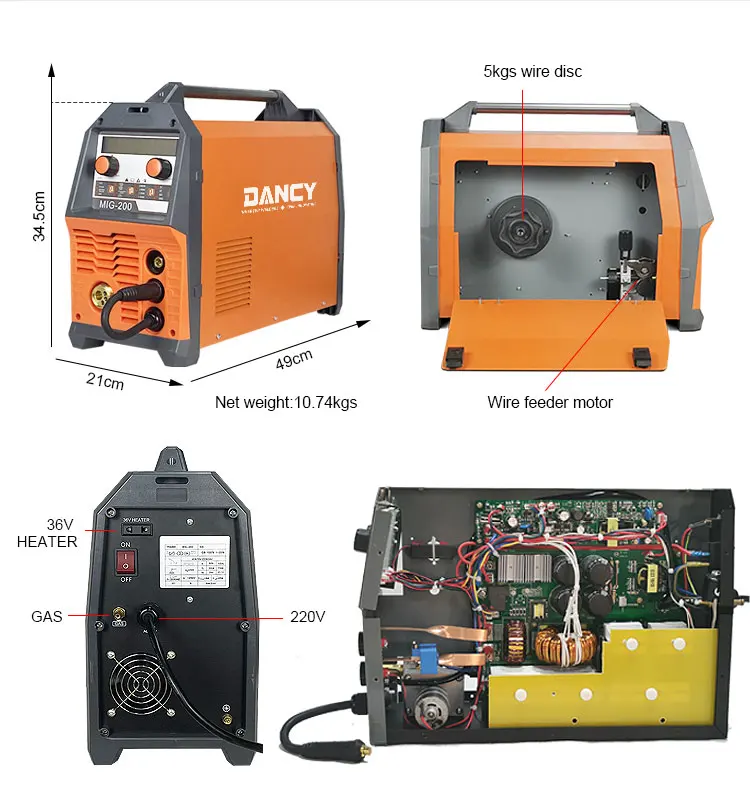

Wire spool
5.0KGS


Features


Dancy MIG200 pulse aluminium welding machine performance features are as follows:
1.Use full-digital control system to realize precise control and stable arc length during welding.
2.Use full-digital wire feeding control system to realize precise and stable wire feeding.
3.With built-in welding expert database, the system can be used to realize automatic intelligent
4.parameter combination.
5.Friendly operation interface, unified regulating mode, easy to master.
6.Perfect single pulse and double pulse functions, minimum welding spatter and good-looking appearance of weld.
7.The special four-step function is suitable for welding metals with good thermal conductivity, and the welding quality is perfect during the arc initiating and extinguishing.


Our Advantages




Advantaged technolgoy ensure reliable quality and perfecet welding performance on aluminium alloy,and else metal.

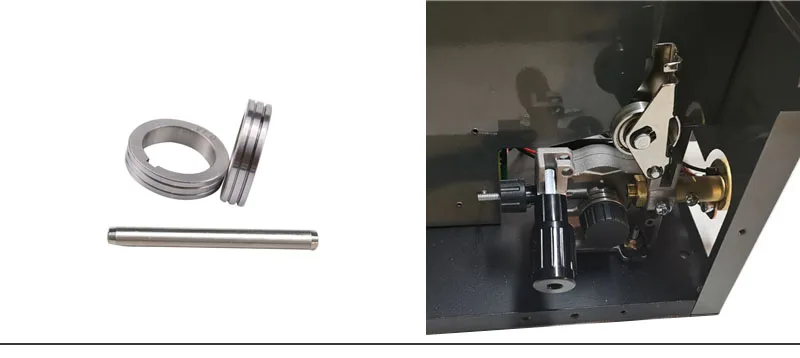

Quality wire feeder,both for aluminium wire and carbon steel wire,stainless steel wire
2 wire roller are equiped with machine.
One is for U type 1.0/1.2mm, special for aluminium mig wire.
Another one is V type 0.8/1.0mm,special for stainless steel and carbon steel mig wire.
Also there are 2 cables for different type wire.

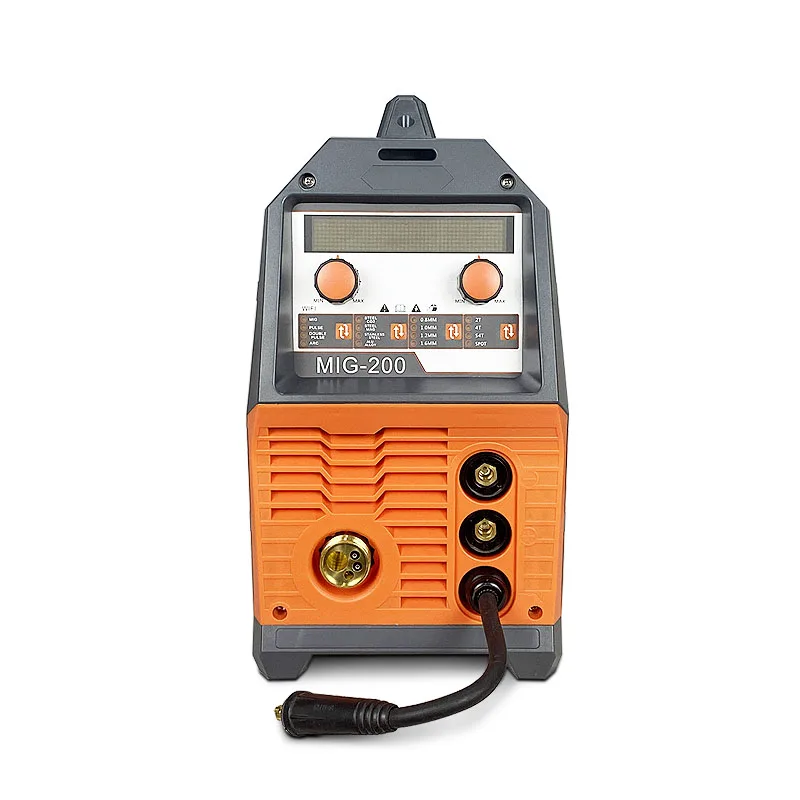

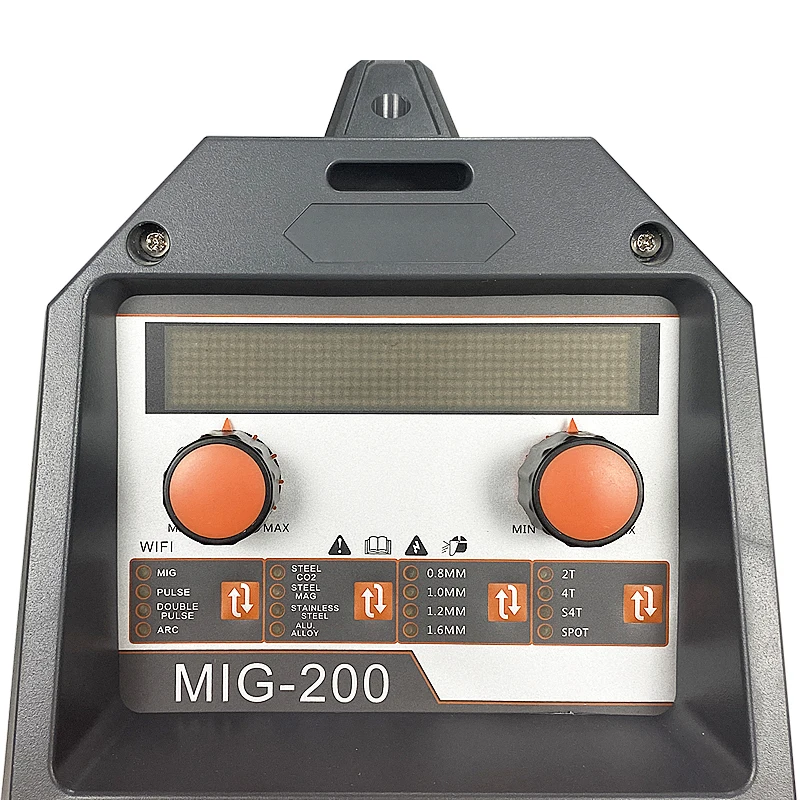

Digital Control Panel




Left button
adjust current
Right button
adjust voltage
Welding mode
MIG/ Single pulse MIG/ Double pulse MIG/ MMA
Welding material
Steel CO2/ Steel MAG/ Stainless steel/Alu alloy
Wire diameter
0.8/1.0/1.2 mm
Torch switch mode
2T/4T/S4T/SPOT

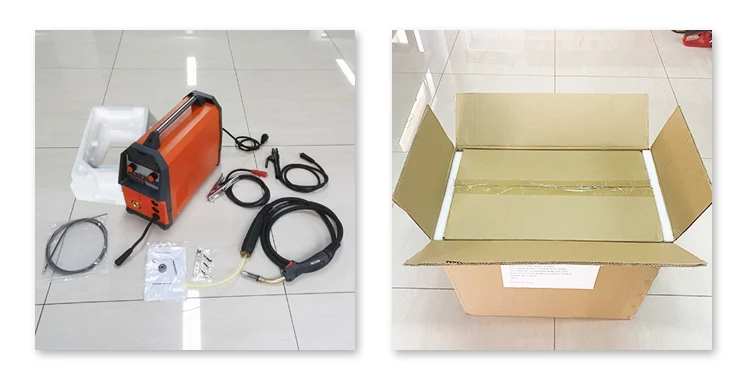

Product packaging

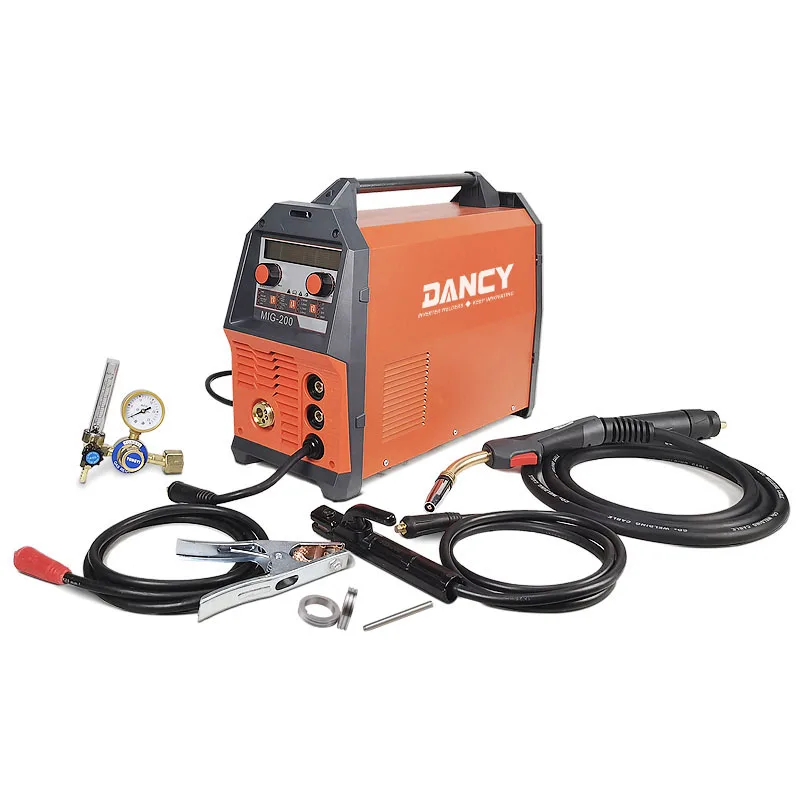

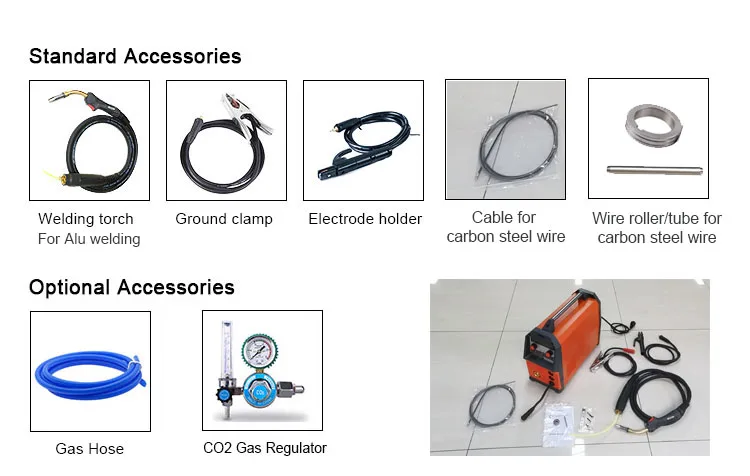

What package include in
1.One piece of MIG 200 Double Pulse aluminium mig wire welder
2. Quality welding mig torch specially for aluminium wire (teflon cable inside) , total length 4m
3. Repacment of welding cable to fit carbon steel wire
4. Replacement V type wire roller for carbon steel and stainless steel
3.Electrode holder with cable
5.Earth clamp with cable
SAFETY and FAST SHIPMENT
Each of your machine is packed with protection foam and completed accessories into a inner box,then be packed into a strong master carton,it is professional and looks attractive.Meanwhile,we work very good relationship with our regular logistic,your goods are shipped safety and fast by sea/air/combined transit..


Company Profile


Golden supplier for welding machines, MMA,TIG,MIG,Air Plasma Cutter Click to contact us for request!
WE,Dancy Machine company are a professional manufacturer engaged in the research, development, production, sale and service of welding machine incldue of MMA,MIG,TIG,PLASMA CUTER and its related machines.
In recent years, our company have introduced a series of advanced equipment to marketing,like MIG pulse,AC DC TIG,LGK-80,MMA pulse,MIG350,MIG500,etc.
We also welcome OEM and ODM orders. Whether selecting a current product from our catalog or seeking engineering assistance , you can talk to our customer service center about your requirements.Hope you join us,we trust our products and services will take you good benefit.















FAQ


1.Are you a trader or manufacturer?
We are professional manufacturer and trading office together, supply inverter welding machines and its related
supplies.Meanwhile,we source welding consumables and replacement parts upon customer inquire it.
2.Are you happy to work with small size customers?
Whenever you run a big business or own a small shop,you are welcome to contact us.Nearly 40% of our customers are new or run a small size business while first contact,they become better year after year.Now,we cooperate with together smoothly,win-win together! Any effort has its reward.
3.what can you buy from us?
Inverter welding machine,MMA welders,,Mig welders,Plasma cutter consumables,Air Plasma cutter and its related consumables.
4.How do you take care when your clients received defective products?
A: Replacement. If there are some defective items, we usually credit to our customer or replace in next shipment.

5.Why choose DANCY as our partner ?
Our message is "quality is all for business".With us, your business is in safety,your money is safety.
We offer 24 hours pre-sales and after-sales service.
SERVICE -R&D-HIGH QUALTITY-MANAGEMENT.You will know more about our factory by click "OUR ADVANGTAGE" to check
6.Are you competitive suppliers? How to distinguish supplier competitive or not? Can I have qualified products on affordable pric
• We are your golden supplier certified by ALIBABA company,trusted competitive supplier,offer excellent products with perfect service.
• We have our own excellent sales staff ,Senior engineers,skilled worker and advanced equipment,big warehouse and clean building.Big sales quantity and updated technical spread our administration cost,that help to reduce our cost.
7. What is Warranty?
Usually,we offer 12-24 months warranty for each shipment since the shipping date.
8.What is delivery time?
For first order of new customer, it is35-45 workdays.
For repeated order,it is 25-35workdays.It is negotiable
