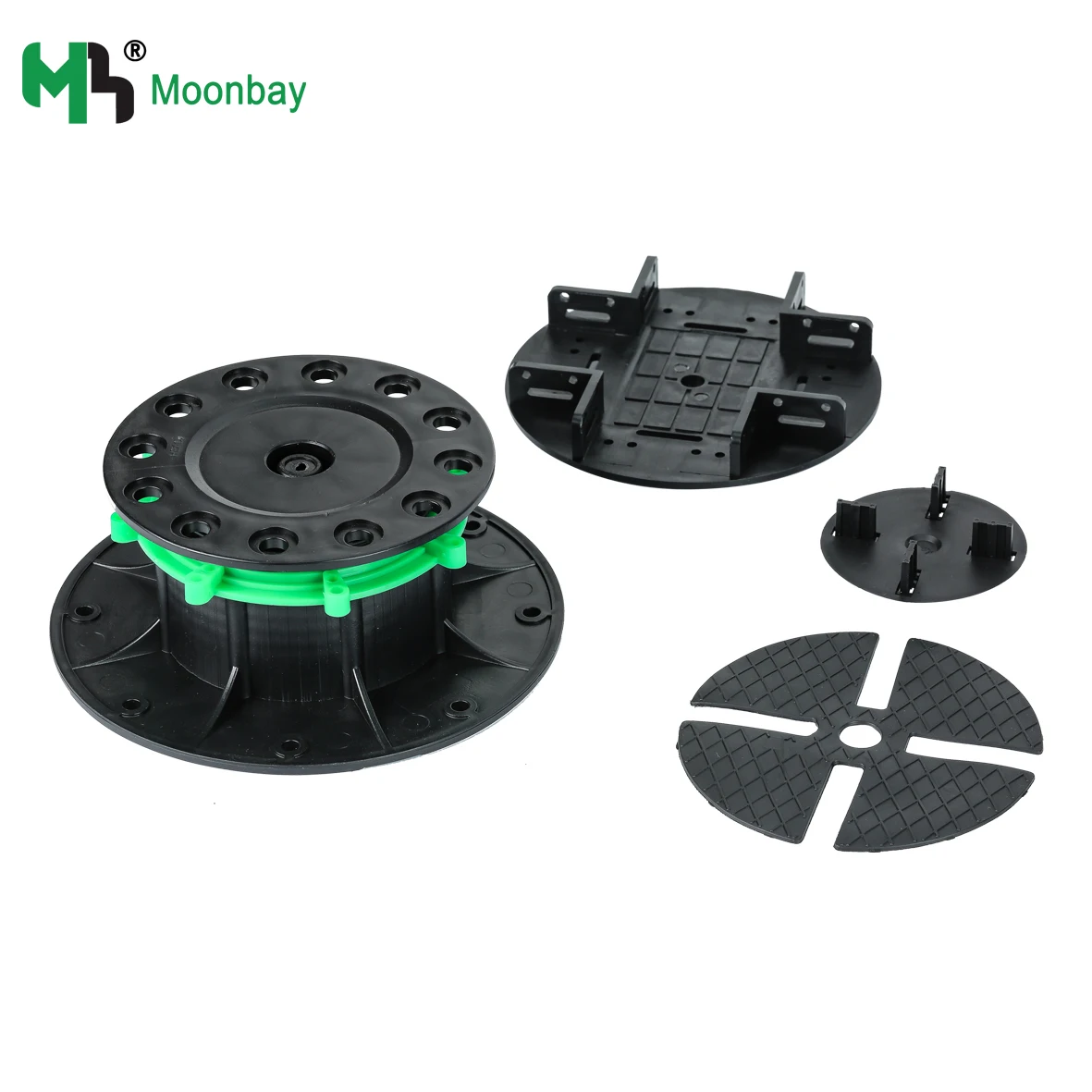

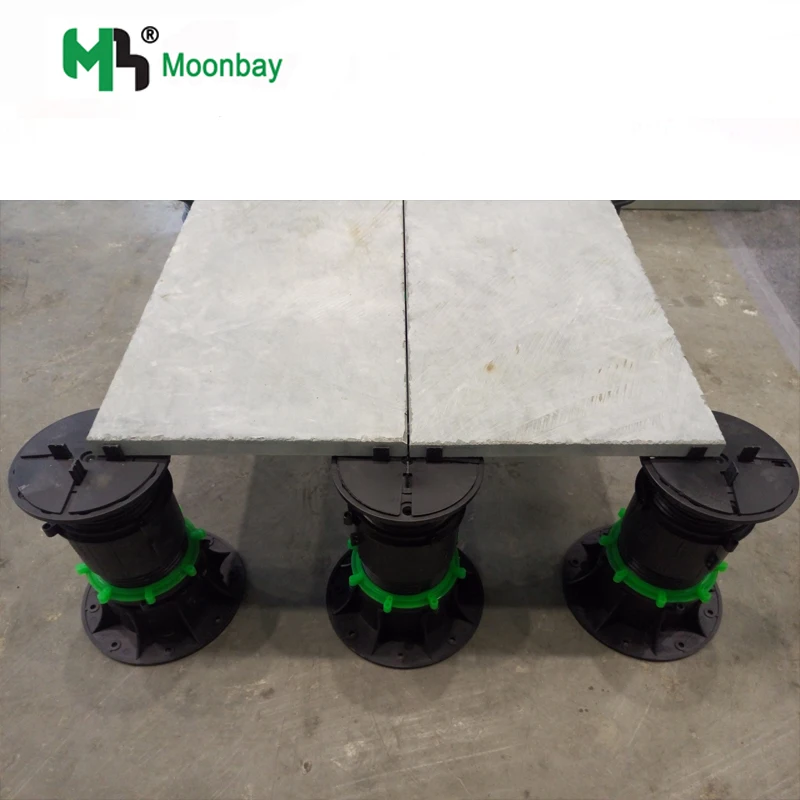

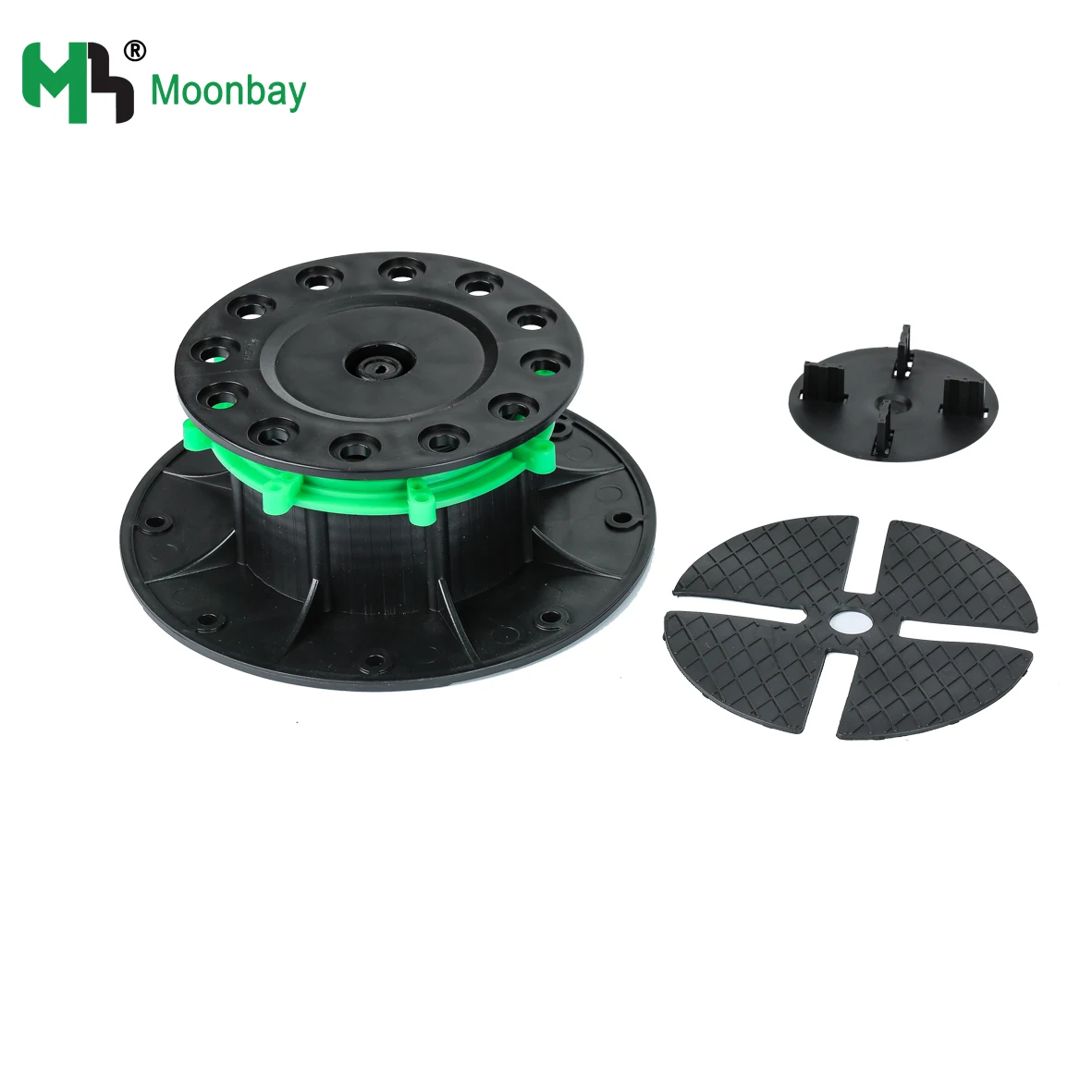

Adjustable Floor Decking Plastic Floor Pedestal Support System

Share on:


Price:$1.28 - $1.45
Price in USD:Details

Quantity:


Product Overview

Description



Product Description


Product Specification









































Nameadjustable raised  floor decking pedestal support system

Material


98% PP and 2% additives, such as anti-UV etc
Loading ability2,000 kgs/pedestal
SizeHead diameter 150mm, extender diameter 120mm, base diameter 200mm
Color Black or customized color
Height Range12.5mm-1280mm height adjustable
Slope correctcompensate 0%-5% slope
BrandMoonbay







Application



paving slabs and timber or timber composite decking on roof terraces, balconies, garden terraces, podiums around swimming pools, temporary floors in marquees and raised floors in the chemical, mechanical offshore oil rig,metallurgy industries and many other applications.






1. Professional raised floor adjustable plastic pedestals system for supporting and leveling all kinds of pavers without any damage of waterproof surface.





2. Moonbay adjustable raised floor tile support pedestals are designed to make leveling floor surface as simple and fast as possible-just turning screw ring.





3. Contractors, designers and installers can take all advantages of pedestals to adapts leveled spaces freely, fast and accurate.





4. Moonbay adjustable plastic pedestals are designed with highest degree of professional care and conduct.





5. Minimum number of essential product elements to make all work with leveling easy and fast.





6. Adjustable plastic pedestals base with wide base plate for perfect stabilization, pedestals screw ring to easy adjust height, pedestals top head with full top plate for stability of paver tile and wood joists.





7. Wide height range of adjustable pedestals from 12.5 up to 1280mm.





8. Maximum weight bearing capacity is 2,000kg/pedestal.








Product Details


adjustable plastic pedestal (9).jpg


Moobay is a height adjustable and slope correctable pedestal manufacturer.


Adjustable plastic pedestals are mainly used for paver tiles and decking boards joist support.

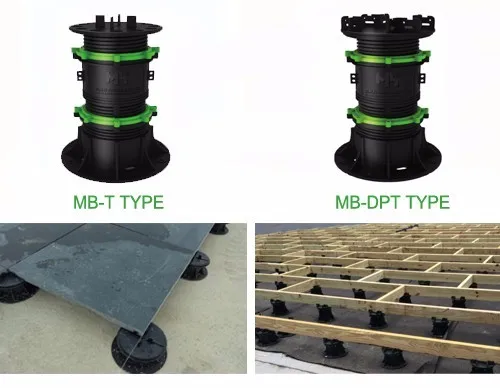

The pedestals are available in 2 separate series, MB-T series for paver tiles and MB-DPT series for decking boards joist.


And these have high strength loading ability, with comprehensive height range from 12.5mm to over 1280mm.

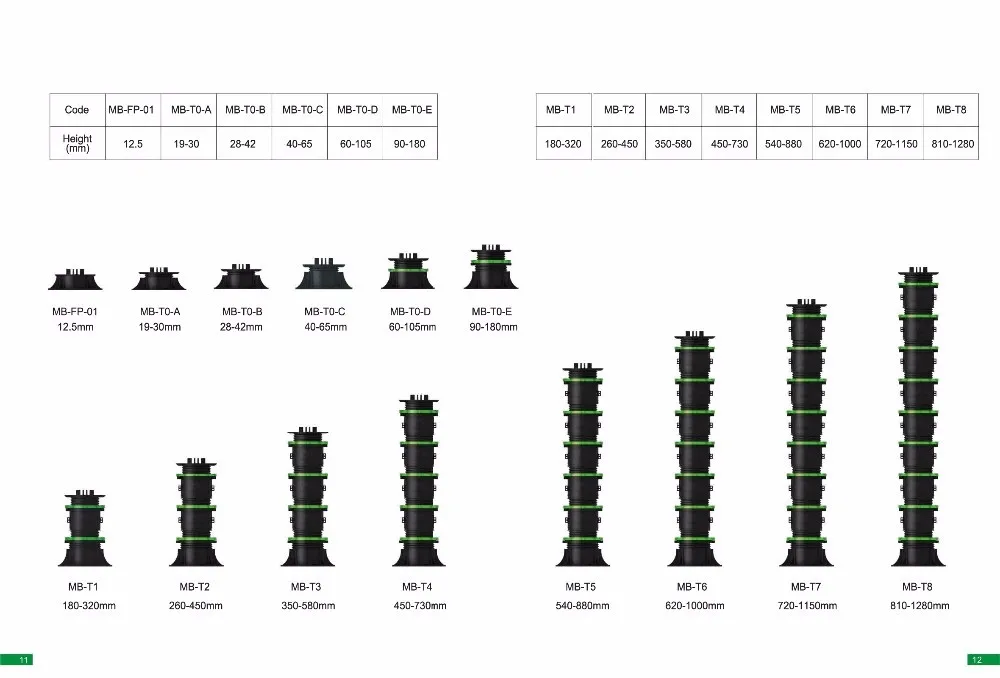

adjustable plastic pedestal (5).jpg


Moonaby height adjustable pedetals main advantages as below:


a). height range adjustable from 12.5mm to 1280mm


b). 2/5/3.5/8/10mm thickness spacer tabs, 1mm/2mm rubber shim


c). decking joist cradle fit and joist width 20mm-80mm


d). hight loading 2000 kgs/pedestal


e). absorb sound and increase temperature insulation


f). UV-stable and chemical resistant


g). do not damage waterproofing membranes


h). allow for positive drainage & ventilation


i). compensate ground slope





j). easy and fast installation

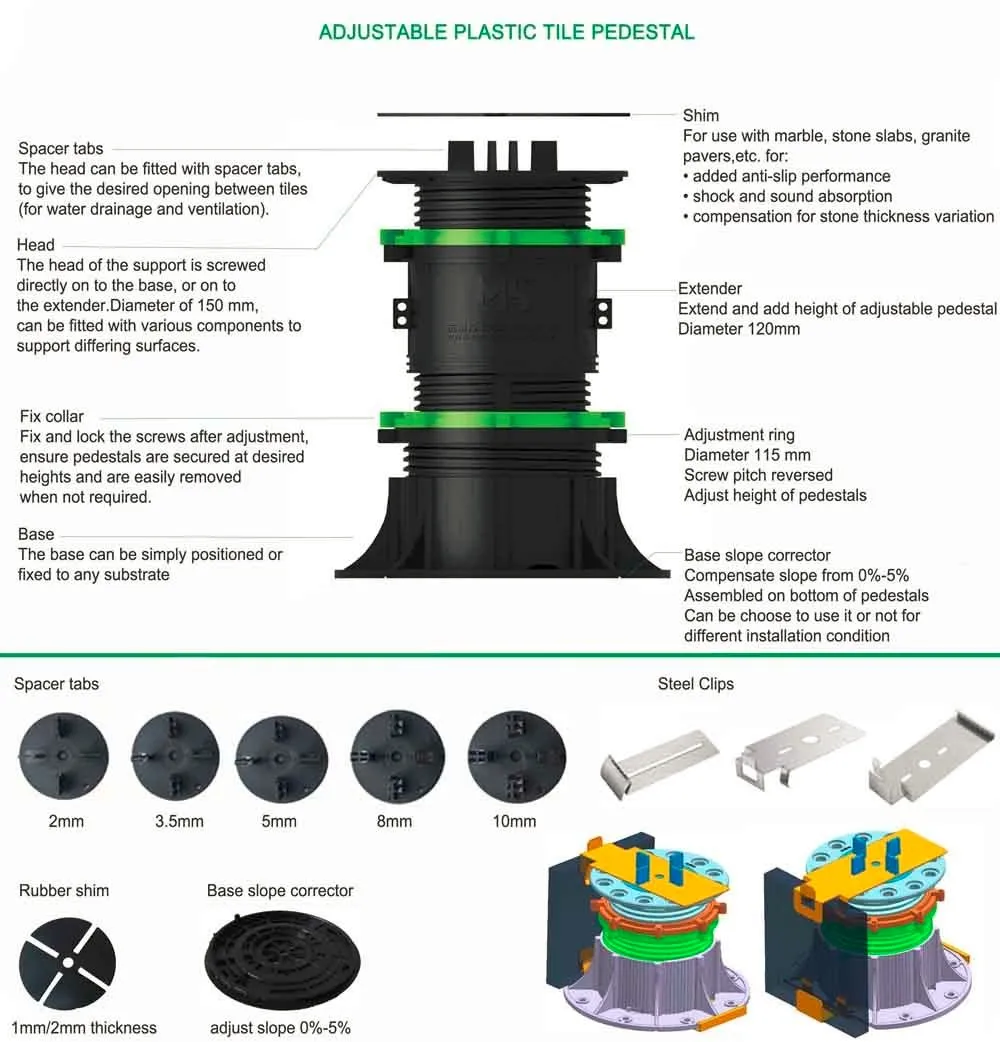

1 ). MB-T series for paving tiles


adjustable plastic pedestal (7).jpg





adjustable plastic pedestal (8).jpg

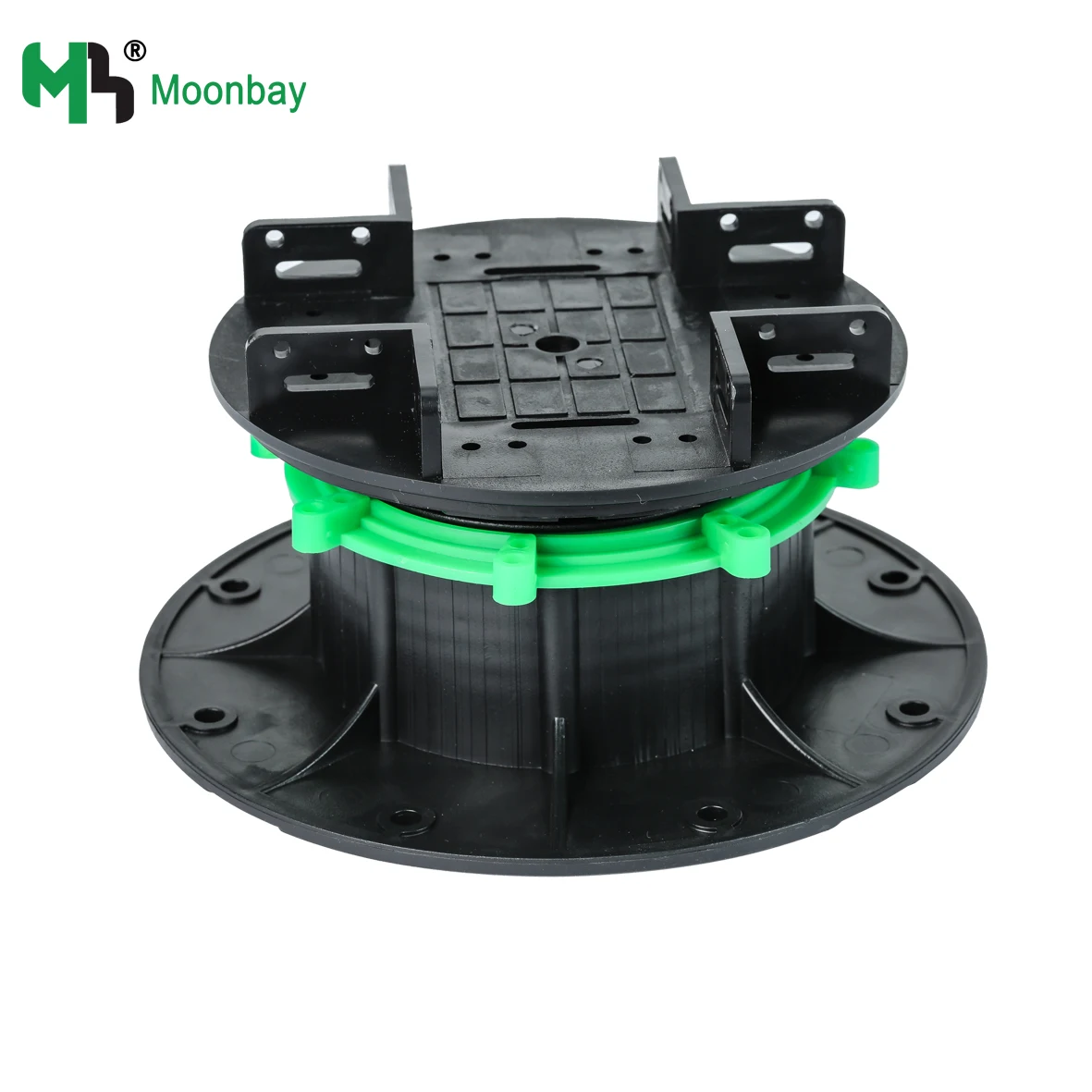

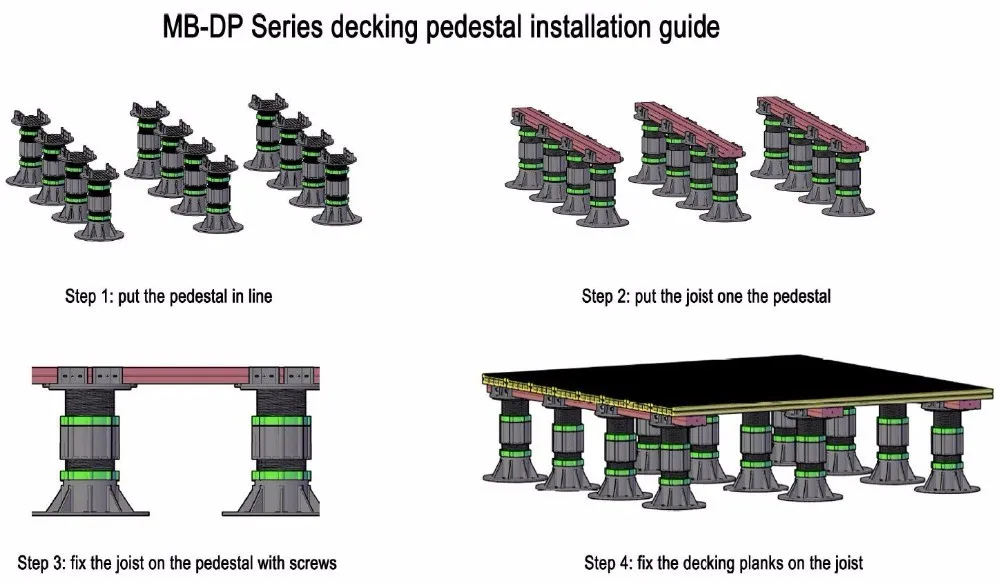

2). MB-DPT series for decking boards (beam/joist)


adjustable plastic pedestal (2).jpgadjustable plastic pedestal (4).jpg

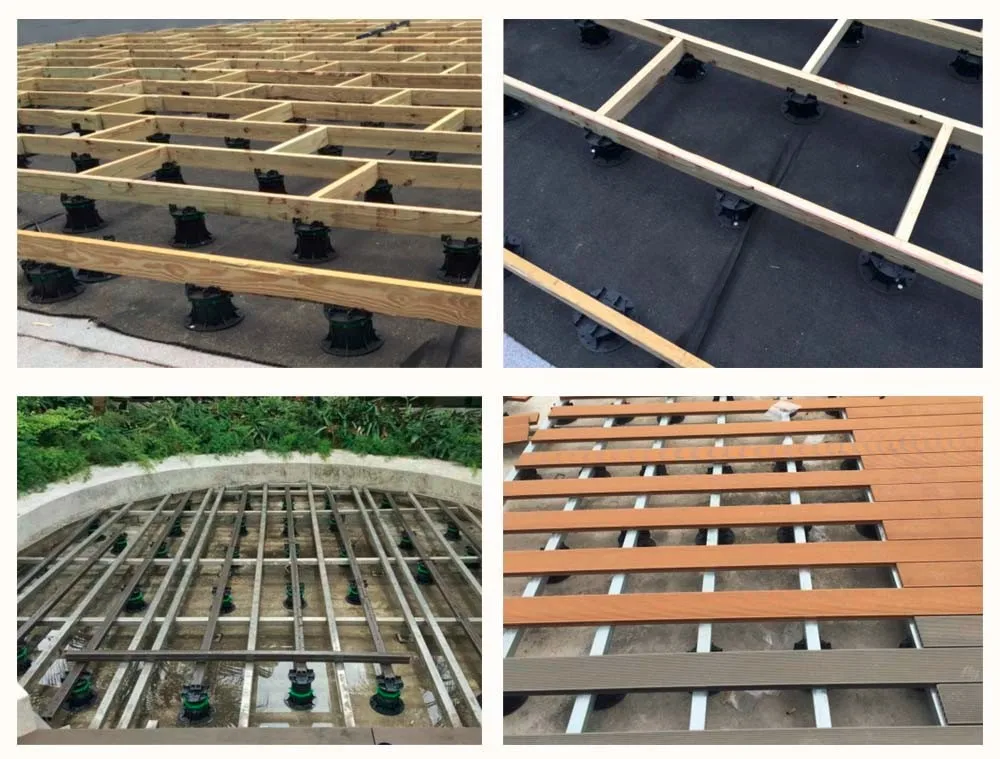

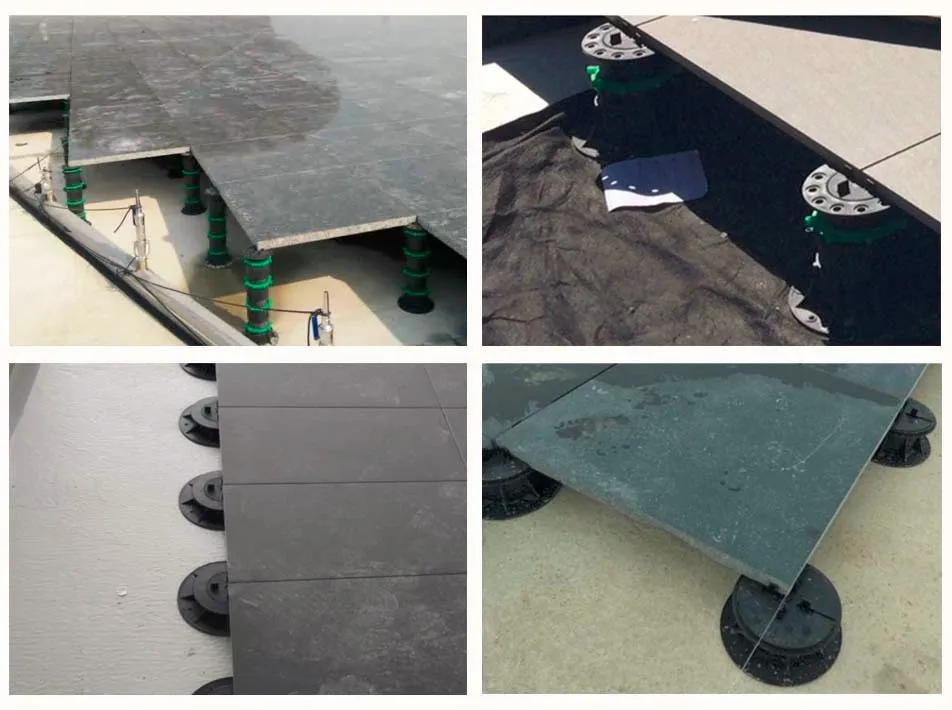

Moonbay Projects


adjustable plastic pedestal (11).jpgadjustable plastic pedestal (13).jpg





Our Services


adjustable plastic pedestal (12).jpg

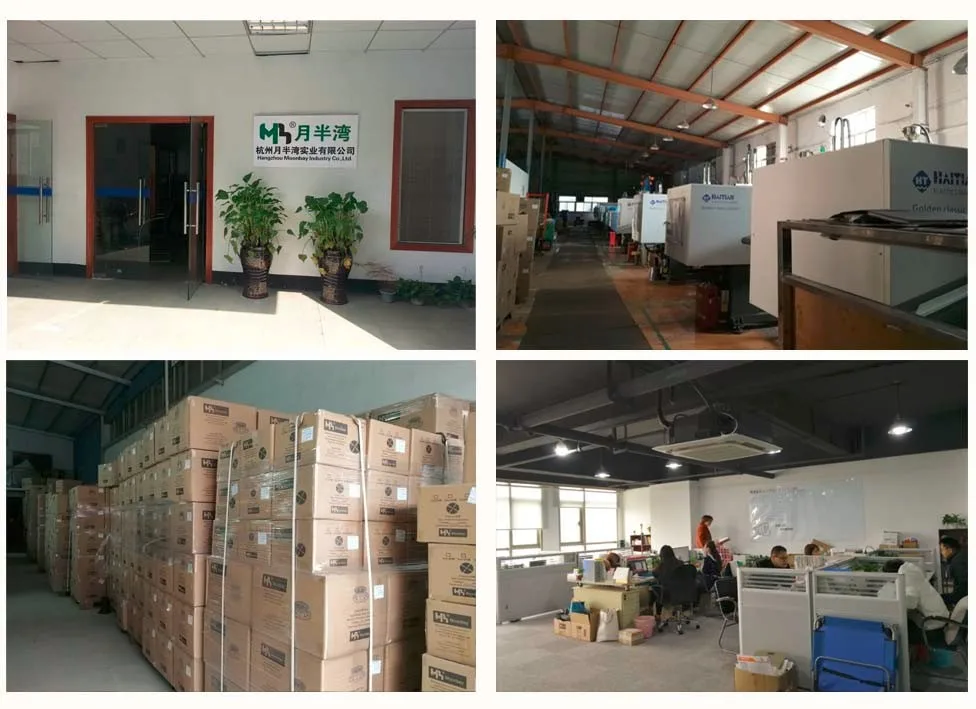

Company Information


Hangzhou Moonbay Industrial Co., Ltd is a professional enterprise, located in Hangzhou city, China.


We’re specializing in manufacturing adjustable plastic pedestals, water drainage channel, tile leveling system.


We have established our sales channel in New York, Melbourne, Sydney, Dubai, Shenzhen to offer better on site service for our clients.


Moonbay always pass international quality tests, such as SGS, ASTM, and CTI. And we’ve attained many international certificates, such as CE, MSDS and ROSH etc.


With high quality, fashionable designs and best service, our products and company have already won envious reputation in many areas, especially in Australia, America, Middle East, Europe, Asia Etc.


Moreover, we always insist on people oriented and eastern and western integrated culture.


Apart from our manufacturing base, we have also established good cooperation relationship with other domestic factories.


Based on the guideline of “Profession, Honesty, Innovation”, we always help our customers to save time and cost and focus on providing the best service and product.


You are warmly welcome to cooperate with us.


adjustable plastic pedestal (6).jpgadjustable plastic pedestal (1).jpgadjustable plastic pedestal (3).jpg

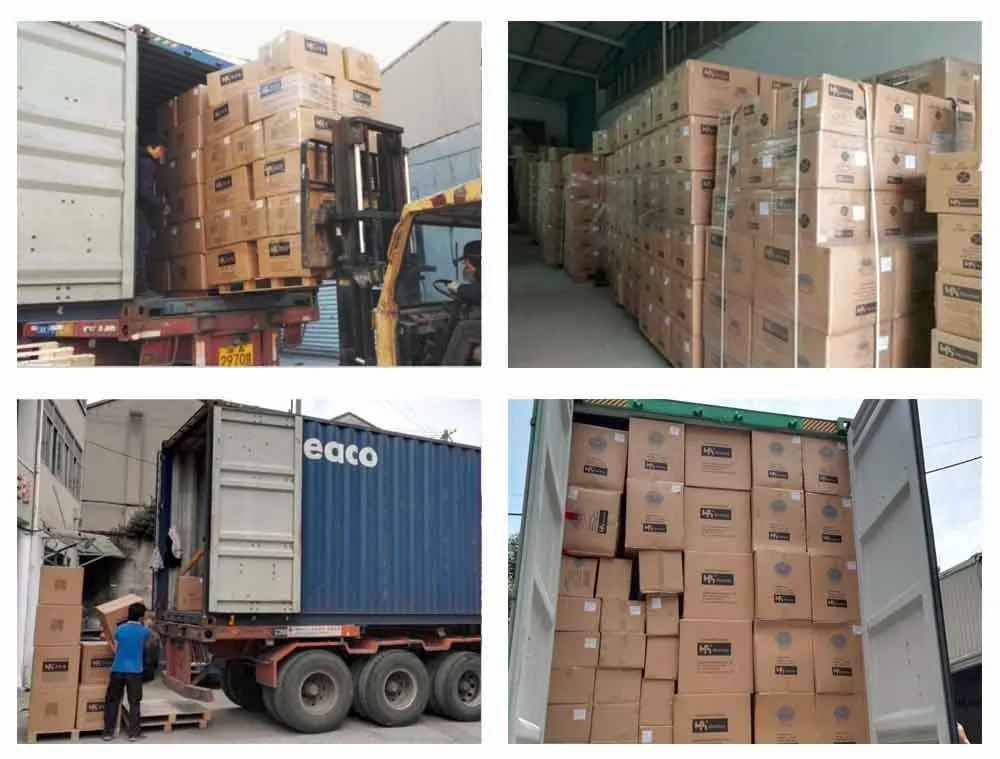

Packaging & Shipping


Package: CTN+PLTS; Could also be customized.


Shipping: 20GP container, lead time 5-7 days;





adjustable plastic pedestal (10).jpg





FAQ


1. How many pcs of pedestal do I need for each SQM?


For tiles:






















Tile Size



PCS/SQM



600 x 600 mm



2.8  PCS



500 x 500 mm



4   PCS



400 x 400 mm



6.3  PCS



For decking boards:


Each SQM needs 4-5 pcs of pedestal for standard installation.





2. Can our pedestal compensate slope on the ground?


Yes, we have slope corrector to compensate slope 0%-5%, making perfect leveling floor surface.





3. Are we factory?


Yes, we have 8,000 SQM factory, we welcome you pay our factory a visit anytime!





4. How long is the lead time for 20GP container?


For 20 GP container, our lead time is 7-10 days.





5. How can I get a sample?





Free samples are always available, delivery cost would be paid by buyer. We will return you delivery cost when you place order.
