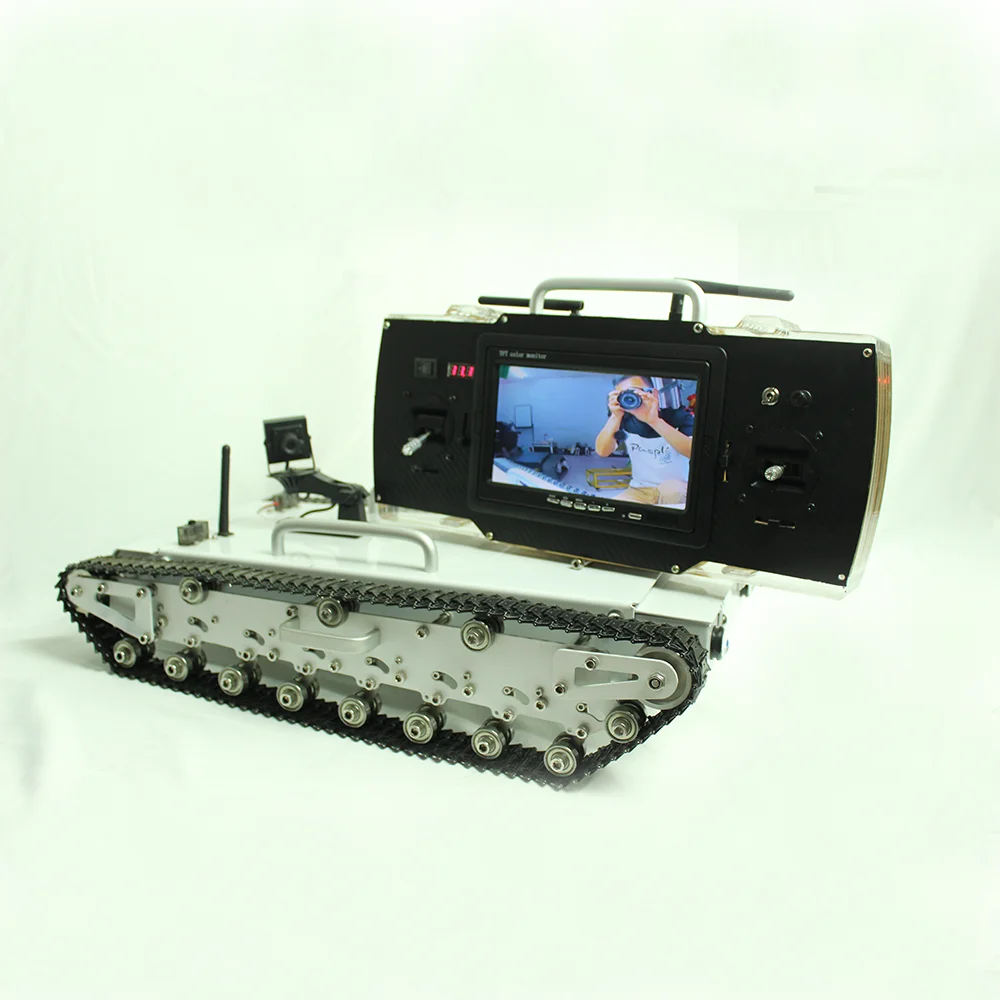

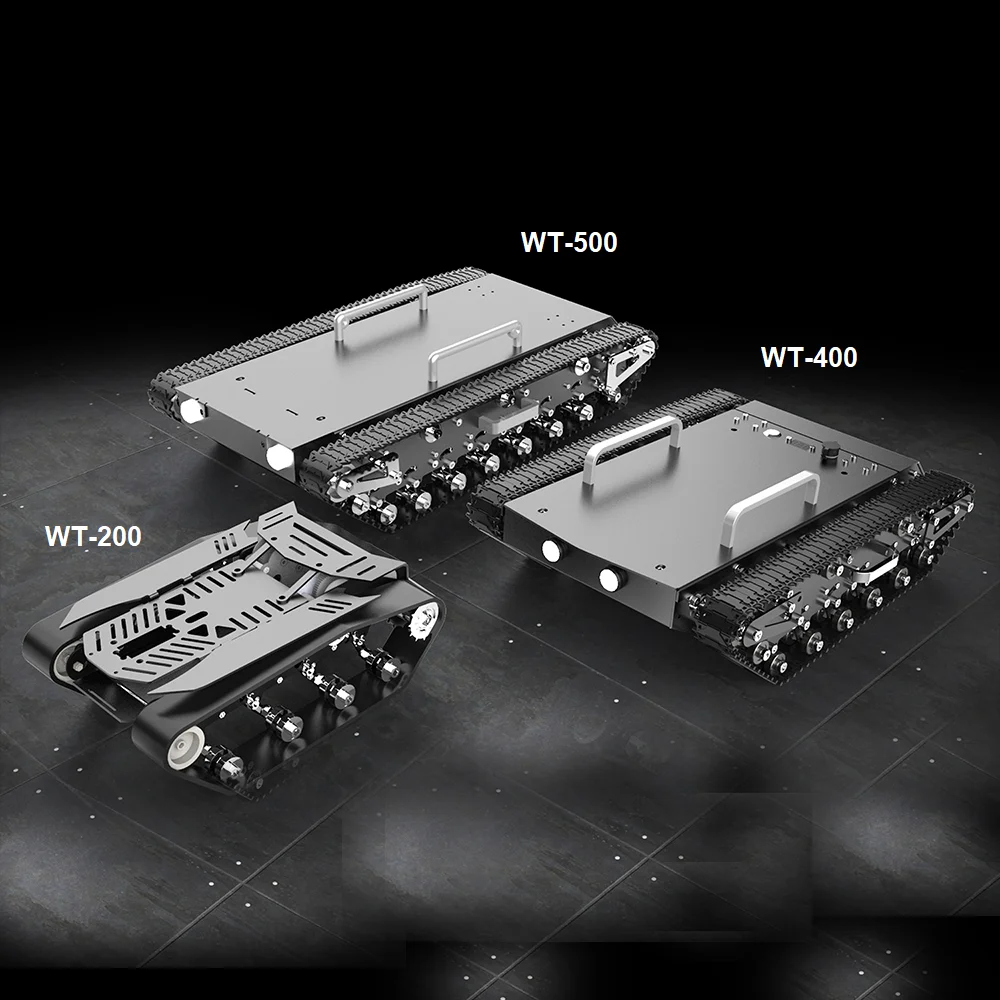

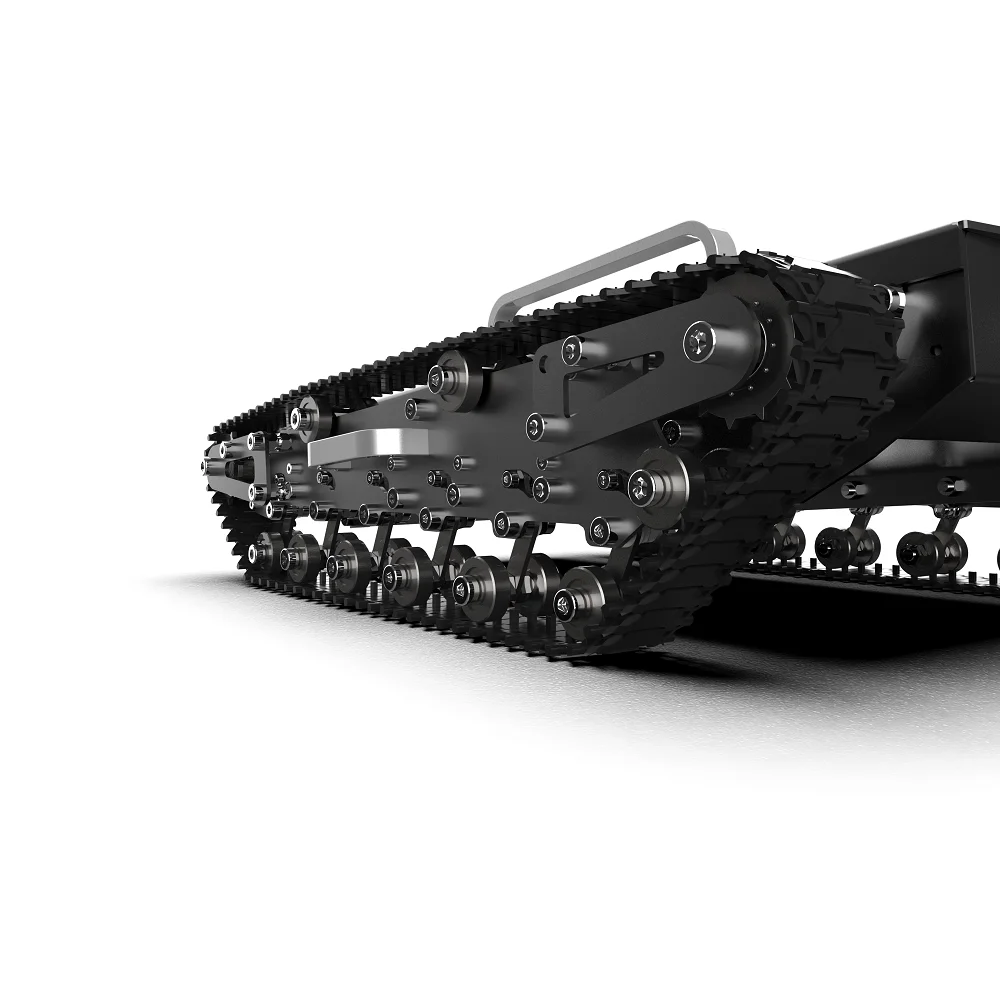

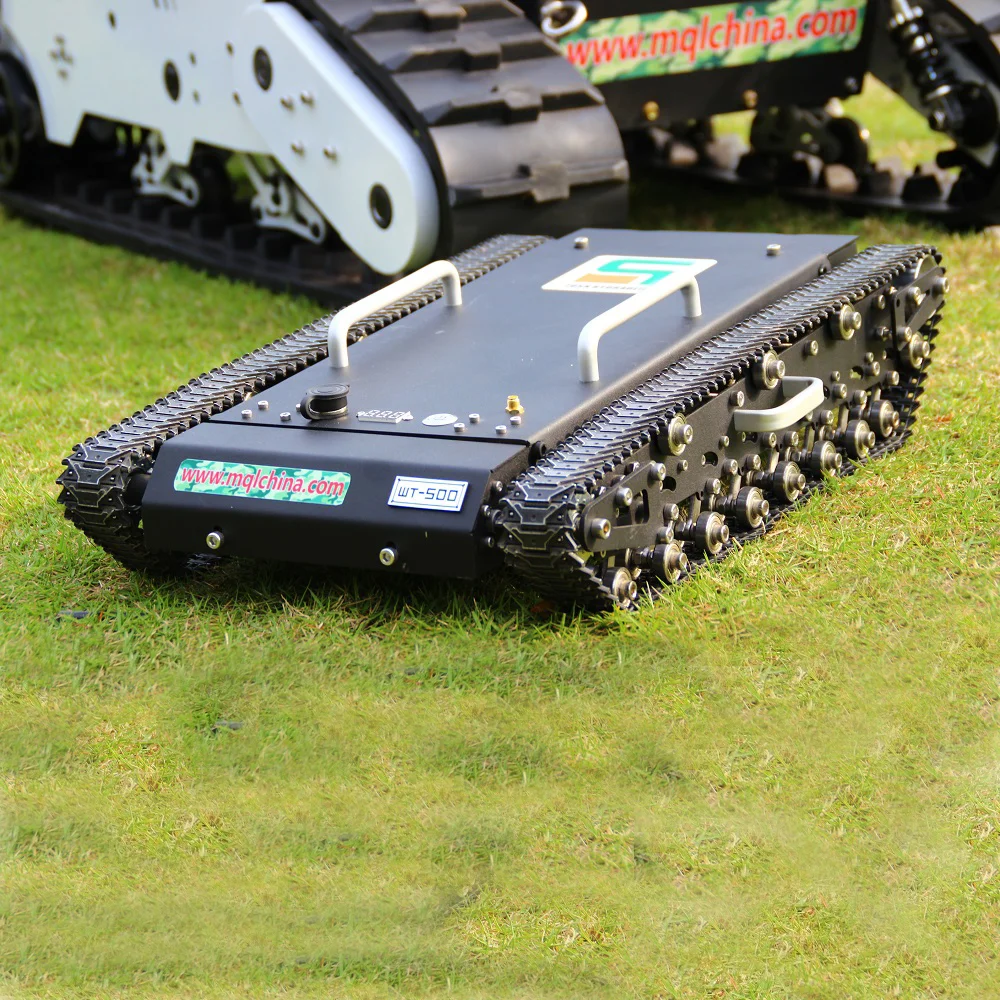

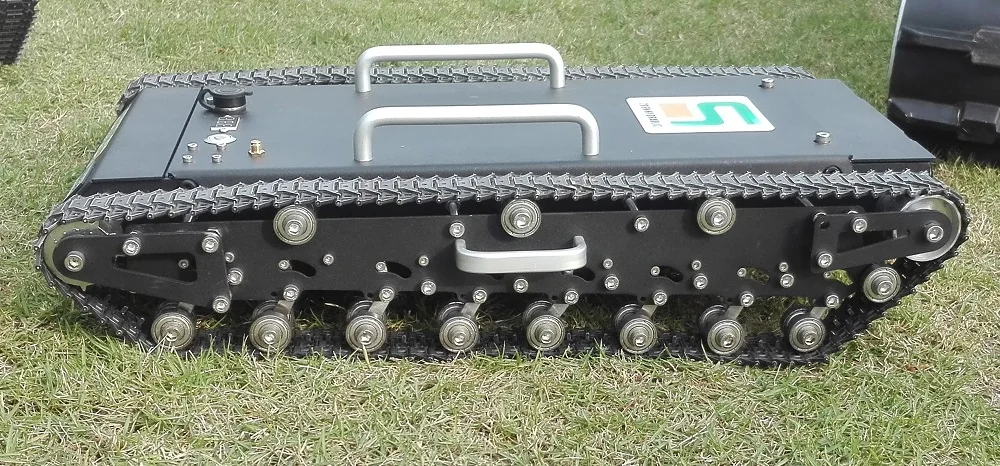

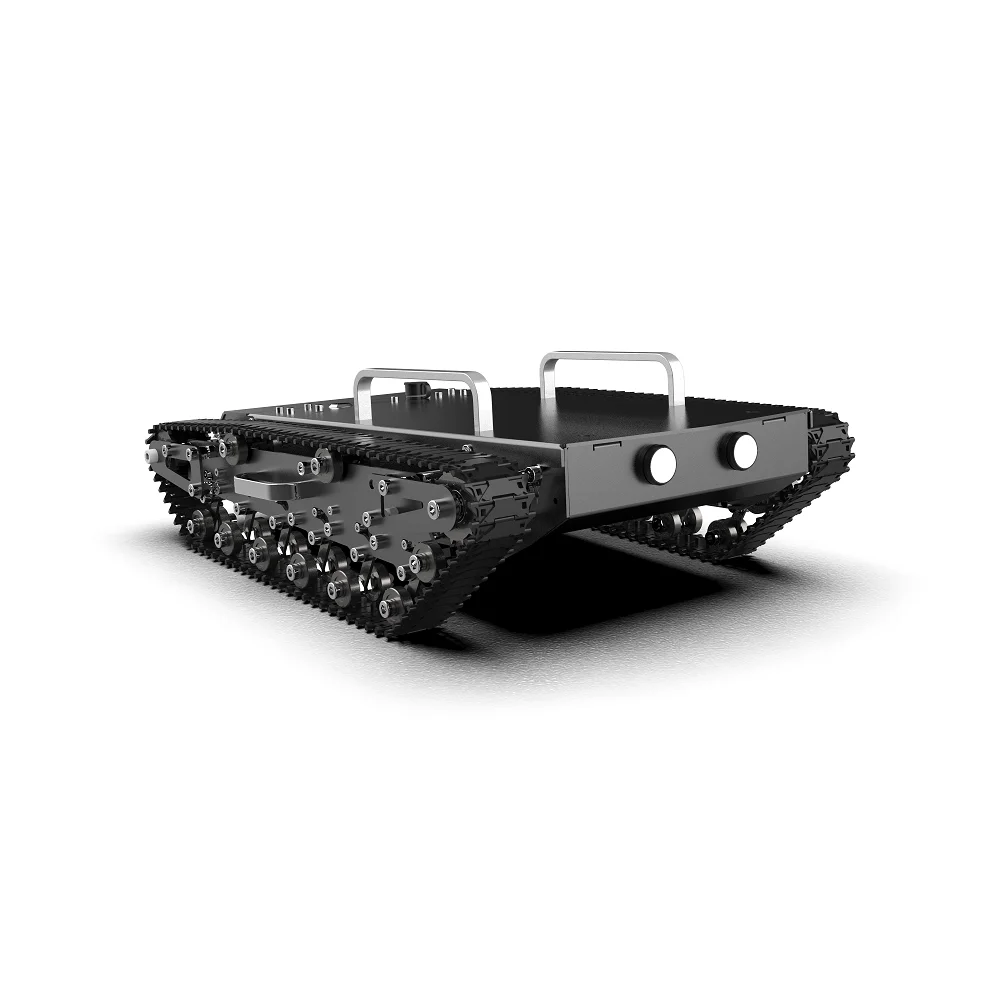

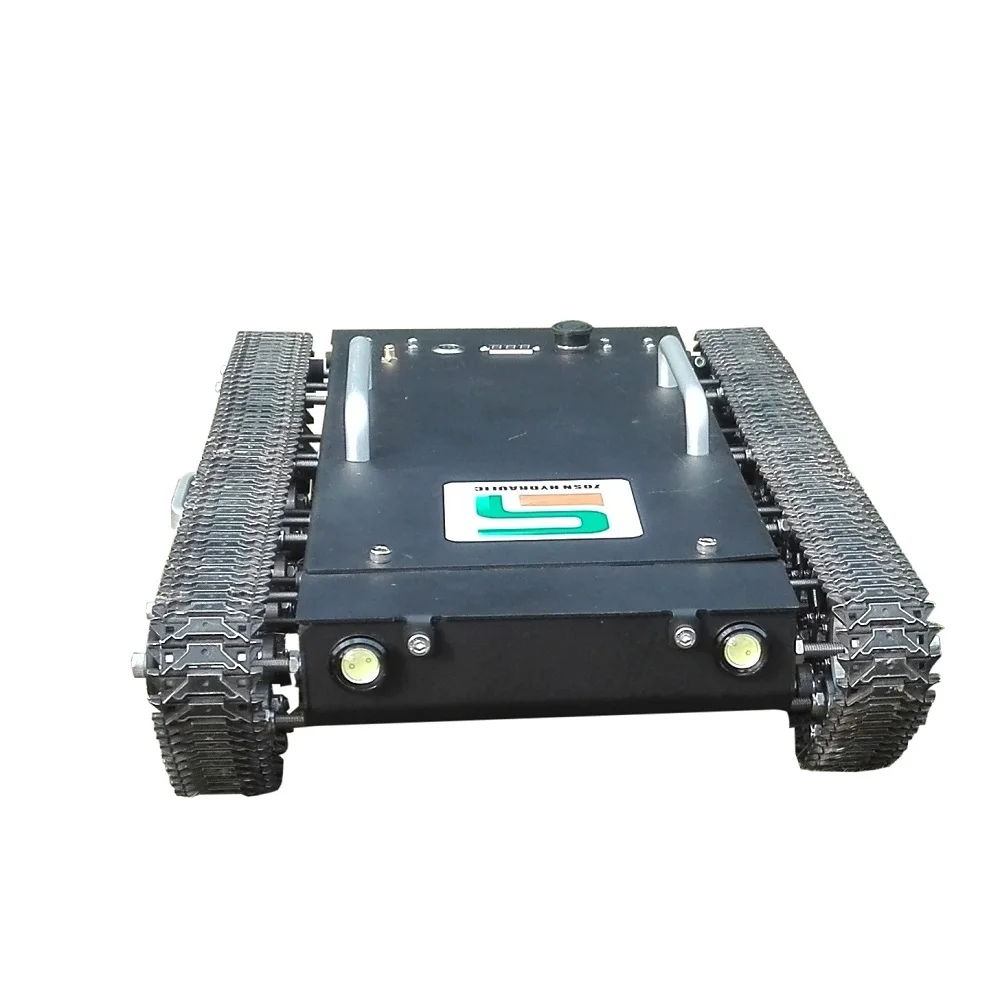

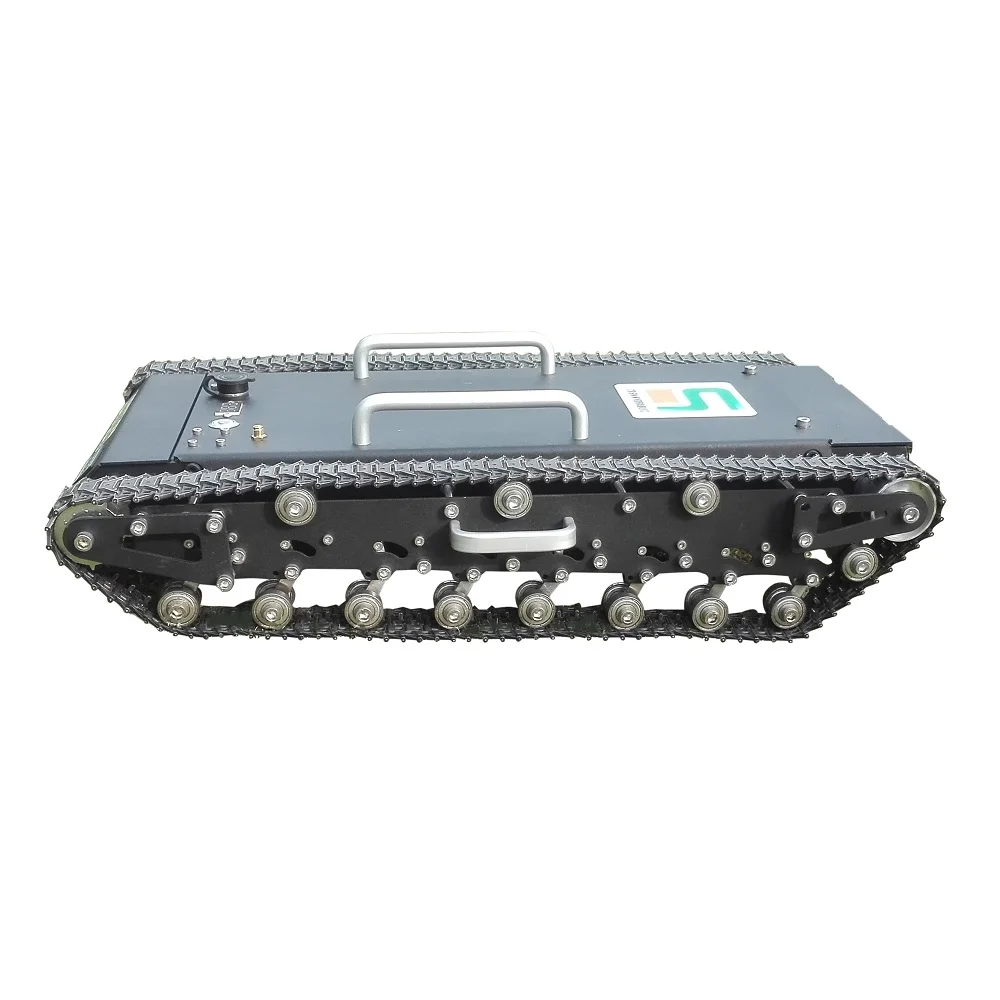

WT-500 Small-sized Rubber Track Robot Chassis
ITEM | WT-500 | ITEM | WT-500 |
Size | 500*300*115mm | Operation Speed | 0~1KM/H |
Self-weight | 20KG | SurfaceTreatment | Black Blasting |
Main Material | 304SS plate & Zink Alloy | IP Code | IP54 |
Ground Clearance | 30mm | Rated Load | 8.5KG |
Motor | 12V DC brushless | Max paylod | 10KG |
Max Over-obstacle | 30mm | Max Climbing | 30° |
Configuration List
Product | QTY | Product | QTY |
Robot chassis | 1 | RC Controller & Receiver | 1 |
Control driver | 1 | Robot Antenna | 1 |
Li-po battery | 1 | Battery Charger | 1 |
Paper Instructions | 1 | Tool box | 1 |
Customization Choice
Can customize color and height according to customers needs.
Model Choose
DC Brushless Variable-speed Motor Driver
Model | BLSD4875DC-2Q-H |
Working Pressure | 37~55 |
Working Temperature | -10~+45 |
Peak current A | 37.5~75 |
Continuous current A | 18.75~37.5 |
Hall sensor N-m | 60/120 Electrical angle |
Rated current Amps | 19.5 |
Frequency PWM kHZ | 15 |
PI Speed | Closed loop regulation |
RC Speed command speed/s | 0.1~10 |
Moment of inertia Kg·mm2 | 320 |
Speed command voltage range V | 0-5 |
PG speed pulse output mm | 24 Pulse @ 8 pole |
Features：
Under voltage over voltage protection, alarm diagnostic output, current loop speed for switchable, with switches and potentiometers for parameter setting, short circuit / over temperature protection, safety reversing, safe start, and radiator.
Note：
1) The winding wire may interfere with the Hall signal, so the Hall line should be separated from the winding wire, and the two cannot be wound together. Interference may cause the drive to work abnormally. When connections of the motor and the drive are too long (more than 500mm), the shield wire should separate the winding wire and the Hall line.
2) The user power supply should be met in the no load to 80% of the peak current load; the voltage must be within the specified range.
3) In order to ensure the normal operation of the drive, the insulation resistance of the Hall wire and the motor winding wire and the Hall wire winding wire and the chassis is greater than 100 megohm (500VDC), and can accept 600VAC / 50Hz / 1mA / 1 Second pressure does not breakdown.
2) The user power supply should be met in the no load to 80% of the peak current load; the voltage must be within the specified range.
3) In order to ensure the normal operation of the drive, the insulation resistance of the Hall wire and the motor winding wire and the Hall wire winding wire and the chassis is greater than 100 megohm (500VDC), and can accept 600VAC / 50Hz / 1mA / 1 Second pressure does not breakdown.
Typical wiring diagram
1）Control port
F / R-positive and negative control, high or no wiring for forward, low or ground reverse;
EN-enable interface, high or no wiring is disabled, low or ground is enabled, generally connected to GND;
SV-0~5V Speed command voltage (input resistance 112K)；
PG- Speed pulse output（OC);
* LED Light instructions
SC- Light on short circuit, not working properly；
P/A- The light has been powered on and blinks for the drive alarm；
SHAFT- Turn on the motor and turn it off；
F / R-positive and negative control, high or no wiring for forward, low or ground reverse;
EN-enable interface, high or no wiring is disabled, low or ground is enabled, generally connected to GND;
SV-0~5V Speed command voltage (input resistance 112K)；
PG- Speed pulse output（OC);
* LED Light instructions
SC- Light on short circuit, not working properly；
P/A- The light has been powered on and blinks for the drive alarm；
SHAFT- Turn on the motor and turn it off；
Alarm
a, Hall signal is not correct; b, under voltage or overvoltage;
c, short circuit or overheating (80 degrees Celsius); d, continuous overload over 5 ~ 6s;
e, the alarm status can be reset by power off once or not once to clear the normal return to normal;
Drive settings
R-SV potentiometer for the SV ratio set, R-LG potentiometer for the loop gain settings; R-PC potentiometer peak current ratio set;
R-RT potentiometer for the speed command voltage rise time setting.
c, short circuit or overheating (80 degrees Celsius); d, continuous overload over 5 ~ 6s;
e, the alarm status can be reset by power off once or not once to clear the normal return to normal;
Drive settings
R-SV potentiometer for the SV ratio set, R-LG potentiometer for the loop gain settings; R-PC potentiometer peak current ratio set;
R-RT potentiometer for the speed command voltage rise time setting.
Why Choose Us
Reliable
Our office located in Shanghai China, welcome to visit us and do on site inspection any time. During Covid-19 period, we support on line factory visit and video meeting.
Professional
We have 2 production center and a 24-person engineer team with more than 2000 sucessful projects experience. We establish service teams for all of our customers to make sure each project's efficiency.
Best servise
We believe high quality and good servise makes good products. So we established a perfect pre-sale, sale and after-sale service mechanism. For all products we provide on-line or on-site pre-sale training and 1 year free warranty, lifetime maintenance to eliminate all customer concerns.
FAQ
1. Are you factory or only company?
We have factory to produce all kinds of chassis and complete solutions, such as firefighting robot, inspection robot, boat cleaning robot, etc. And attracted by our sufficient customer servise experience, we also authorised as general agency for some other brands.
2. Can you provide samples?
Due to the high cost and large volume for each model, we are sorry for not provide samples. But we support on site and the 3rd party inspection before delivery. Thanks for understanding.
3. How about the price and quality?
All of our products and accessories experience strict quality control process. We make sure all products we provide are newest model not eliminated stock ones.And we aims to provide the lowest price but with the best quality and service.
4. What payment term and how long the payment period?
T/T, 30%-50 deposit, balance before shipment after receiving our OQC report. We ask for 100% payment before shipment for new customers, for our A level customers we offer special payment period to help ease financial pressure.
5. How about the shipment?
Our packing meets international shipment standard.
We can quote the price base on FOB, CIF & CNF with sea shipping or air as you like, you can choose our forwarder or yours accordingly.
If Certificate of Country of Origion were needed, please let us know in advance.
We can quote the price base on FOB, CIF & CNF with sea shipping or air as you like, you can choose our forwarder or yours accordingly.
If Certificate of Country of Origion were needed, please let us know in advance.
