JBT40 mobile concrete mixer pump factory price (1600356248271)

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description

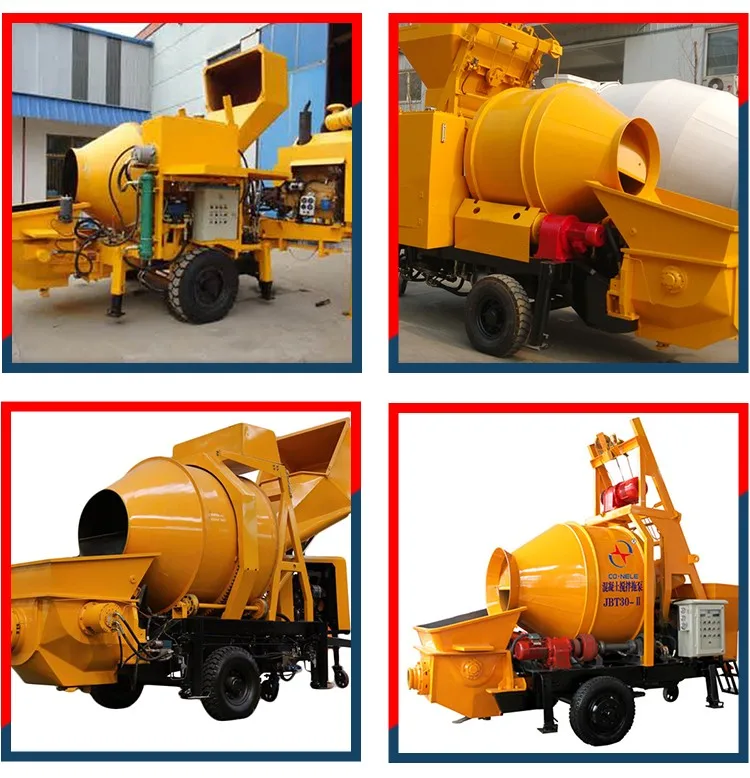

JBT40 mobile concrete mixer pump factory price









Product Description
















































































































Item



Unit



DJBT40



Max. theoretic concrete mixing capacity



m3/h



20



Max. theoretic concrete pumping capacity



m3/h



40



Concrete conveying pressure



MPa



11



Delivering cylinder specs×Stroke



mm



Φ180×700



Main oil concrete cylinder specs×Stroke



mm



Φ100×700



Power of diesel engine



KW



56



Model of diesel engine







1004-4LOVOL



Rated speed



r/min



2200



Idling speed



r/min



800



Diameter of discharge hole



mm



150



Hopper capacity×Loading height



L×mm



600×1070



Capacity of oil tank



L



250



Max. allowable aggregate grain size



mm



Grait:50 Crushed stone:40



Form of hydraulic oil circuit



mm



Full hydraulic control


reversing open circuit



Form of distribution valve







S pipe valve



Overall dimension



mm



5000*2050*2600



Total mass



Kg



5200



Delivery distance



m



Horizontal :250m Vertical:100m

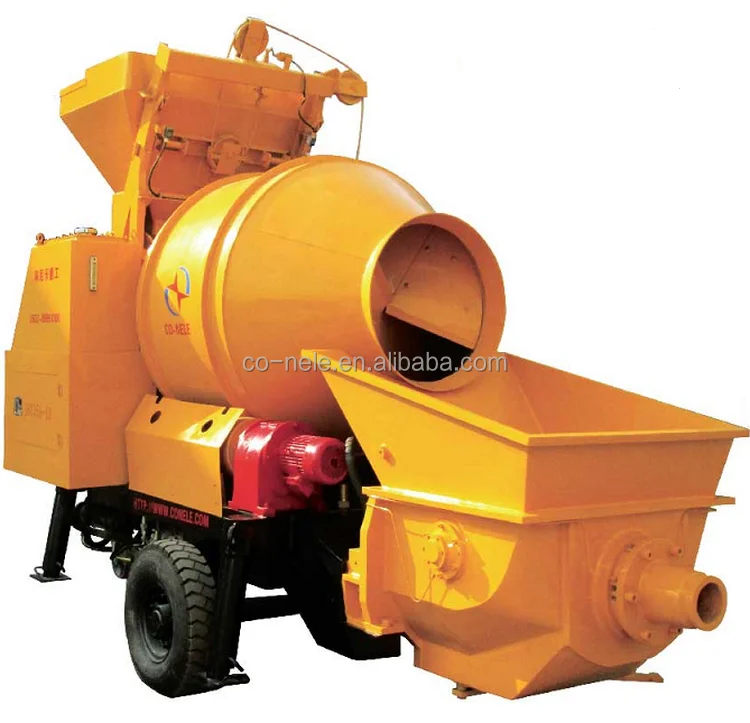

 Concrete Pump with Mixer.png

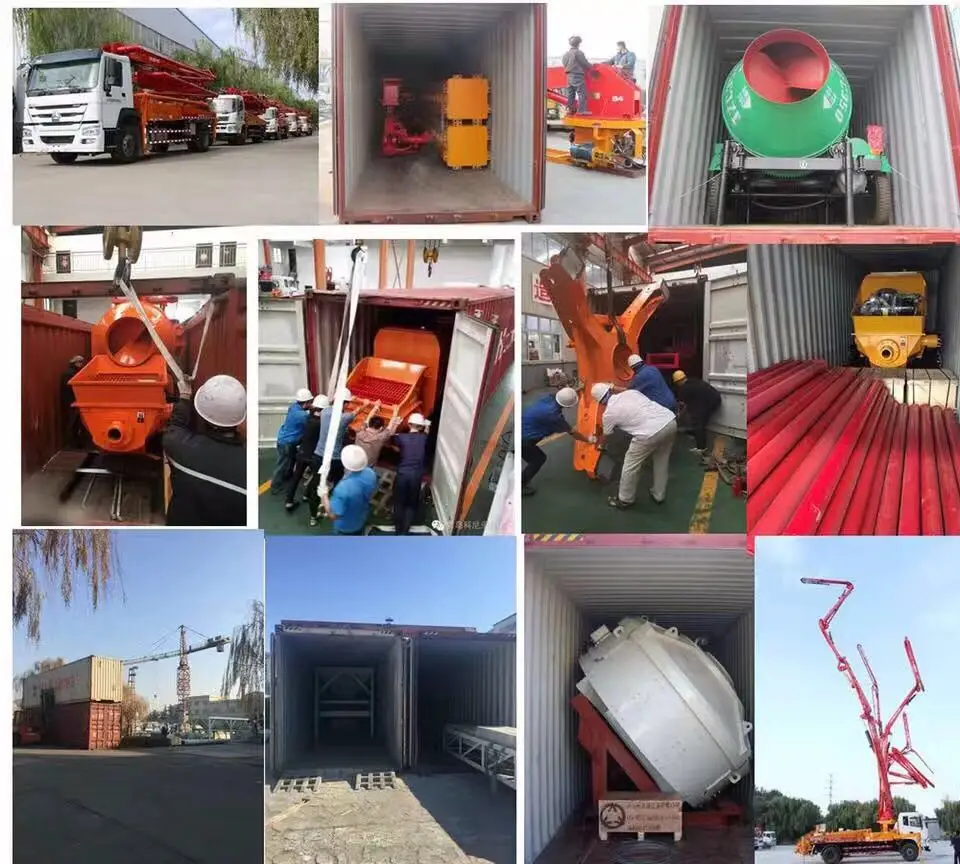

Packaging & Shipping
