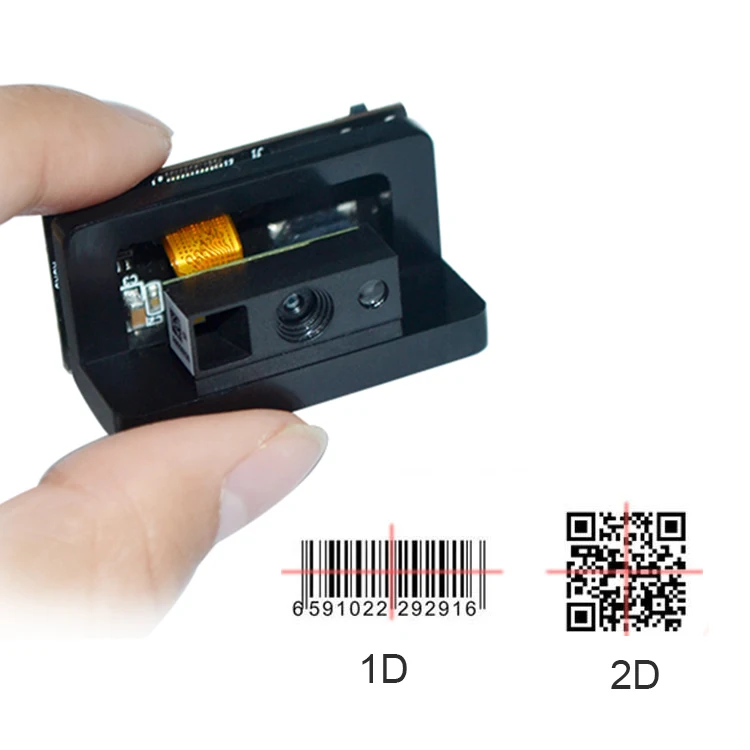

Longrange Decoding TTL reader QR 2d Embedded scan engine fixed momunt barcode scanner for manufacturing

Share on:


Price:36,90 $ - 39,90 $
Price in USD:Details

Quantity:


Product Overview

Description







Excellent 1D/2D Barcode Reading Capability
Adopt the self-developed core decoding technology, can fastly read large amount of various filmed on-screen 1D/2D barcode.





Scenario
It’s widely used in PDA, Tablet, AFC, toll gate, access control, express delivery cabinet, ticket verification device, customer service center, and other self-service terminals (kiosks)








Multiple Interfaces
To provide USB or TTL-232 or RS-232 (need customization) interface, to meet different interface requests.

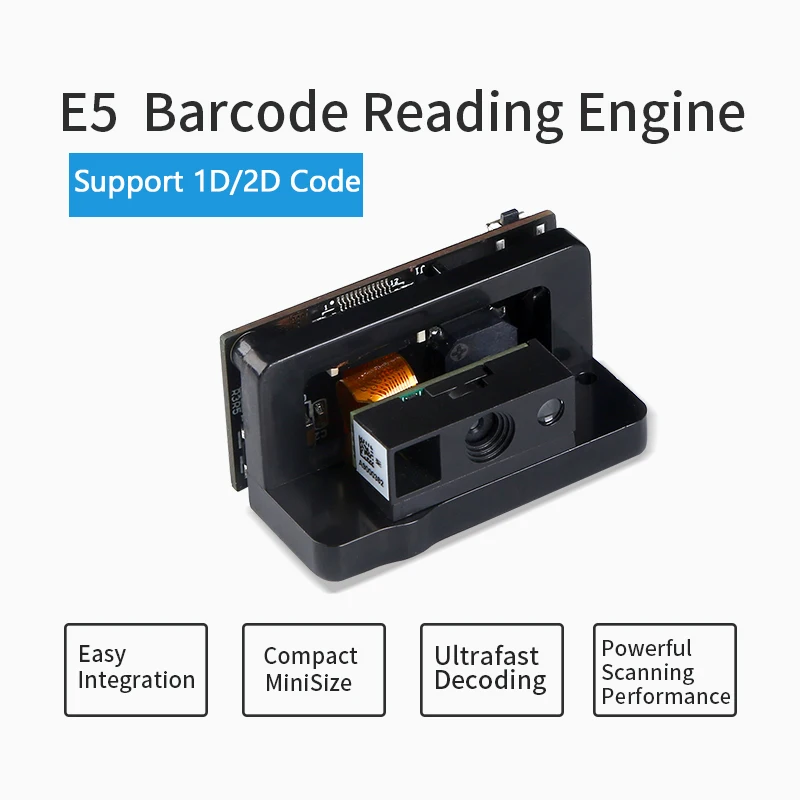

E5 Barcode Scan Engine




Function
Image Sensor
640*480 CMOS
Illumination
White Light LED
Aiming
Red Light 625nm
Symbologies
2D
PDF417, QR Code, Micro QR, Data Matrix
1D
Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5
Precision*
≥3mil
Depth of Field
EAN13 (13mil)
65-350mm(Typical)
PDF417 (6.7mil)
50-125mm
Code39 (5mil)
40-150mm
Data Matrix (10mil)
45-120mm
QR Code (15mil)
30-170mm
Symbol Contrast
≥25%
Sensitivity**
Tilt±60°,Skew±60°,Rotate 360°
Field Angle
Horizontal 42°,Vertical 31.5°


Mechanical
Interface
USB,TTL-232/RS232(Optional)
Size(mm)
38.5(W)×23.5(D)×19.6(H)(Max Value)
Weight
1.2g


Electric
Voltage
3.3 VDC±5%
Consumption
452mW(Typical Value)
Currenct 3.3 VDC
Operation Currency
138mA(Typical Value)
Idle Currency
11.8mA


Environmental
Operation Temperature
-20℃~+55℃
Storage Temperature
-40℃~+70℃
Operation Humidity
5%~95%(Non-condensing)
Environmental Lighting
0~100,000LUX
Certification
FCC Part15 Class B,EMC Class B, RoHS2.0, IEC62471






Company Profile


SHENZHEN EDOO-IOT TECHNOLOGY CO., LTD





1D/2D QR Barcode Scanners and PDA Export
OEM and ODM orders accepted | Experienced export specialist and logistics experts
A Professional and Experienced Barcode Scanner and PDA Provider
Edoo-IoT Technology is an IoT exporter and manufacturer located in Shenzhen. We can provide 1D & 2D laser/image barcode scanners, handheld barcode scanners, wireless barcode scanners, barcode scanning engines/modules, fixed/embedded scanners, desktop scanners, PDA smartphones or computers, barcode scanning platforms, and other scanning devices and technical services.
Barcode scanning solution terminator for 6 years, amount of stock, ready to ship,QR code scanner, OCR/MRZ scanner


Office Area 1
Office Area 2


Our Advantages




Production Workshop


Production Equipment
Clean Room of Workshop


Workshop
Warehouse


Packing & Delivery




FAQ


Q1. What is the advantage about your company?
A1. Our company has professional team and professional production line.

Q2. Why should I choose your products?
A2. Our products are high quality and low price.

Q3. Any other good service your company can provide?
A3. Yes,we can provide good after-sale and fast delivery.
