Factory Hot Sale Tibia Intramedullary Nail locking screw II For Tibia

Share on:


Price:$5.85 - $6.50
Price in USD:Details

Quantity:


Product Overview

Description





Products Description




Product name
Model
Matrial
Specification
Code

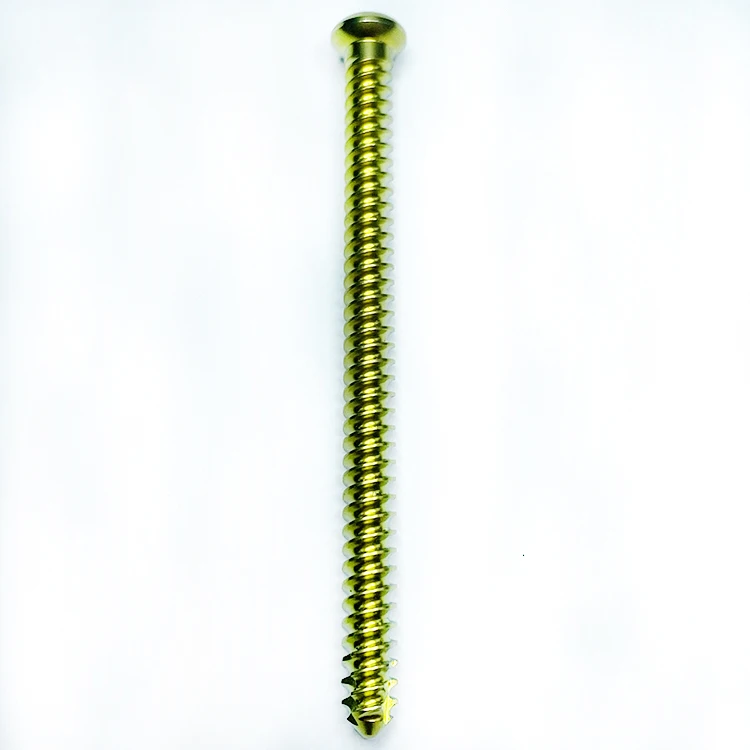

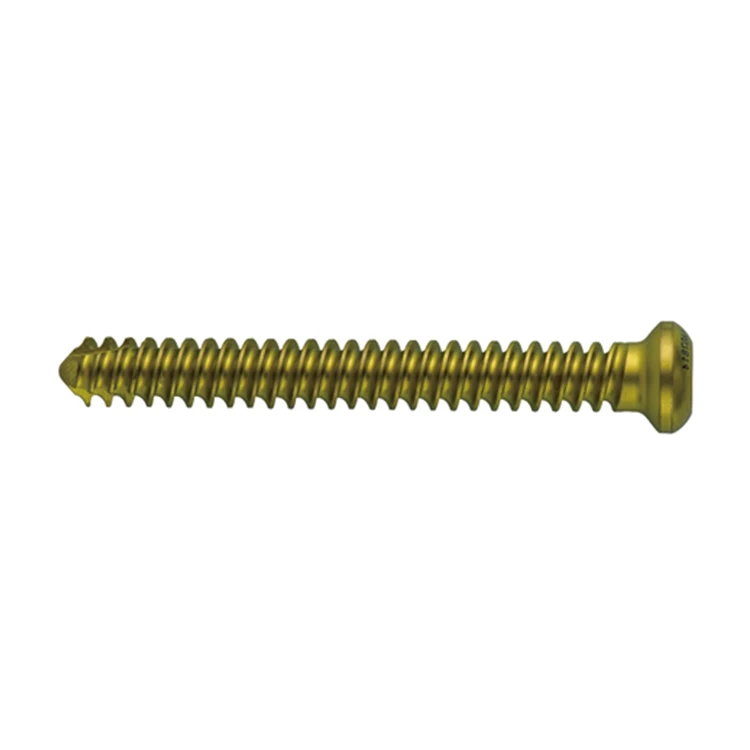

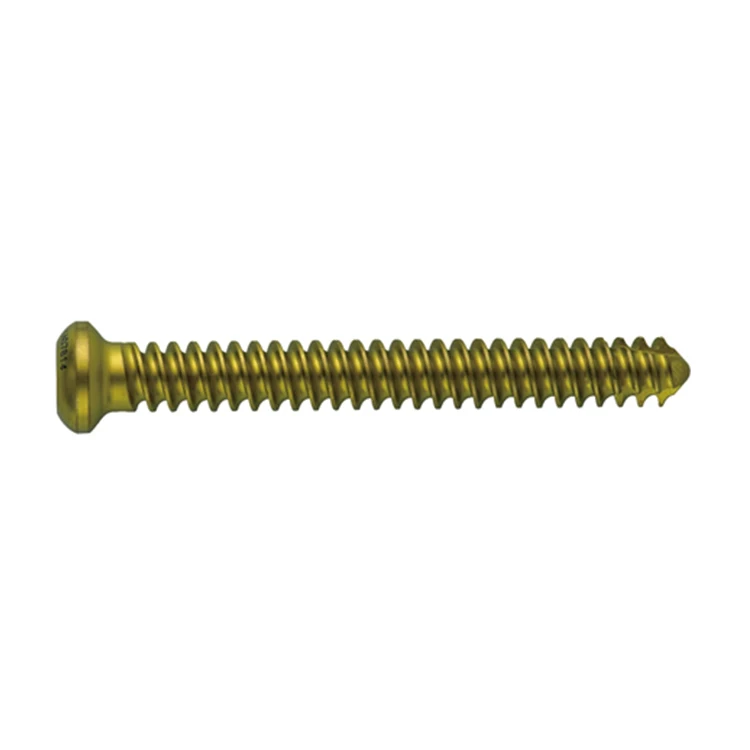

Tibia nail locking screw II

 SJG-IK

Titanium Alloy

5

15065130


Intramedullary nail All kindds of high quality intramedullary nails. Easy to insert and take out;Titanium alloy material;Reduce the risk of outer wall impact and main nail inward movement; The diameter is suitable for all applications;Simple operation and minimally invasive implantation。


Product name
Model
Specification
Matrial
Code
Proximal Femoral Nail Antirotation Intramedullary Nail
SGM-IIK
9.0×170×130°
Titanium Alloy
15649170
Proximal Femoral Nail Antirotation Intramedullary Nail
SGM-IIK
9.0×200×130°
Titanium Alloy
15649200
Proximal Femoral Nail Antirotation Intramedullary Nail
SGM-IIK
9.0×240×130°
Titanium Alloy
15649240
Proximal Femoral Nail Antirotation End Cap
SGM-IIK
10×15
Titanium Alloy
15601115
Proximal Femoral Nail Antirotation End Cap
SGM-IIK
10×20
Titanium Alloy
15601120
Proximal Femoral Nail Antirotation Blade
SGM-IIK
10.5×70
Titanium Alloy
15600570
Proximal Femoral Nail Antirotation Blade
SGM-IIK
10.5×80
Titanium Alloy
15600580
Proximal Femoral Nail Antirotation φ4.9 locking screw
SGM-IIK
4.9×30--72
Titanium Alloy
15604930
Femoral Nail locking screw I
SGG-IIIK
6.5×75
Titanium Alloy
15246575
Femoral Nail Intramedullary Nail
SGG-IIIK
9.0-13.0
Titanium Alloy
15249340
Humeral nail Intramedullary Nail
SHG-IK
8
Titanium Alloy
15728160


Our Advantages






1.1.0mradian radius: The length is consistent with the anatomy of the FEM ORAL medullary cavity.




2.Screw-in-screw design: To further improve the fixation strength of osteoporosis. The Blunt End Design of the locking screw reduces the risk of excessive penetration.




3.Short nail: diameter of 8. 0/ 9. 5mm, length of 160mm. Long nail: diameter of 7. 0/ 8. 5mm, length of 180-315mm (15mminterval)All nails have left and right type, titanium alloy material.The diameter is suitable for all applications.Simple operation and minimally invasive implantation


Details Images


Proximal fixation:
Multi-plane and Multi-locking screw fixation options, multiple options for operation, to achieve optimal fixation stability.Screw-in-screw design to further improve the fixation strength of osteoporosis.Blunt head of locking screw design to reduce the risk of excessive penetration.Locking screw countersinking design to reduce soft tissue irritation.


Distal fixation:
Short screw: two different plane holes for locking. Long screw: three locking holes avoid important blood vessels, located in the safe area between the median nerve and the radial nerve.
Two anterior and posterior locking holes facilitate the manual operation, minimizing the occurrence of rotation and displacement of distal fracture.


Elastic Nail:
Nail diameter should be 30-40% of the narrowest transverse diameter of medullary cavity.
Apply to 3mm/ 6-8 years old;3. 5mm/ 9-11 years old;4. 0mm/ 12-14 years old.


Compression:
Special design of compression holes. helps to increase the stability oftransverse or short oblique fractures.
Self-sustaining compression mechanism, no static screw is needed to maintain.compression during operation.


TFNA SystemTFNA:
Compared with G3 with radian radius of 1. 5m, the distal location of TFNA with radian radius of 1. 0m in the center of medullary cavity is twice as likely as that of G3.




Main Products




Company Profile






Changzhou jishuo medical device Co.,Ltd. is a leading orthopedic medical device R & D, manufacturing and operation enterprise in China. The company is located in Wujin West Taihu science and Technology Industrial Park, Changzhou City, Jiangsu Province. Focus on the development, manufacturing and sales of orthopedic trauma, spine and bone joint implants and devices. The sales network covers the whole country and has sales offices in many regions in China.
With first-class production equipment, professional R & D, technology and manufacturing team, quality management system in line with international standards and efficient marketing service strategy, jishuo has won the affirmation of many partners.
The company has a number of senior R & D technical teams with many years of experience in orthopedic medical devices, making unique achievements in the field of orthopedic medical devices. Jishuo medical has always put the talent development strategy in the first place, continuously improved and built a professional innovation team with high quality and strong R & D ability. Adhering to the development concept of technological innovation, product innovation and service innovation. Gather and integrate advantageous resources, serve the great cause of human health, work hard and move forward bravely - "gather great, healthy".








Why Choose Us




FAQ


Q1: Would you please give some information on shipping mode and charges?

A: Normally we send through courier like DHL, FEDEX, UPS, TNT etc or post upon request from clients.


Q2: Do you haveISO9001, ISO 13485, CE approvals?

A: Normally we send through courier like DHL, FEDEX, UPS, TNT etc or post upon request from clients.


Q3: What is the minimum order that we can place? Do you provide free samples?

A: We expect your minimum orders to be least at US$500. However, we understand that customers need to place smaller samples orders in the beginning in order to test market our products. We could offer the free samples, but do not pay the cost of freight.


Q4:Can I buy products not shown but similar to your catalogue?

A: Of course you can, just send us pictures or samples. But this takes a little longer time for delivery.


Q5:Do you have stock for listed products, or they are newly produced? What are your terms of payment?

A: Generally, we have stock for every listed products, which were produced monthly. But it depends on our sales condition. Better to ask our salesman for accurate inventory information. Payment<=800USD, 100% in advance. Payment>800USD, 30% T/T in advance, balance before shipment. Payment methods are via L/C, T/T, Western Union, PayPal etc.
