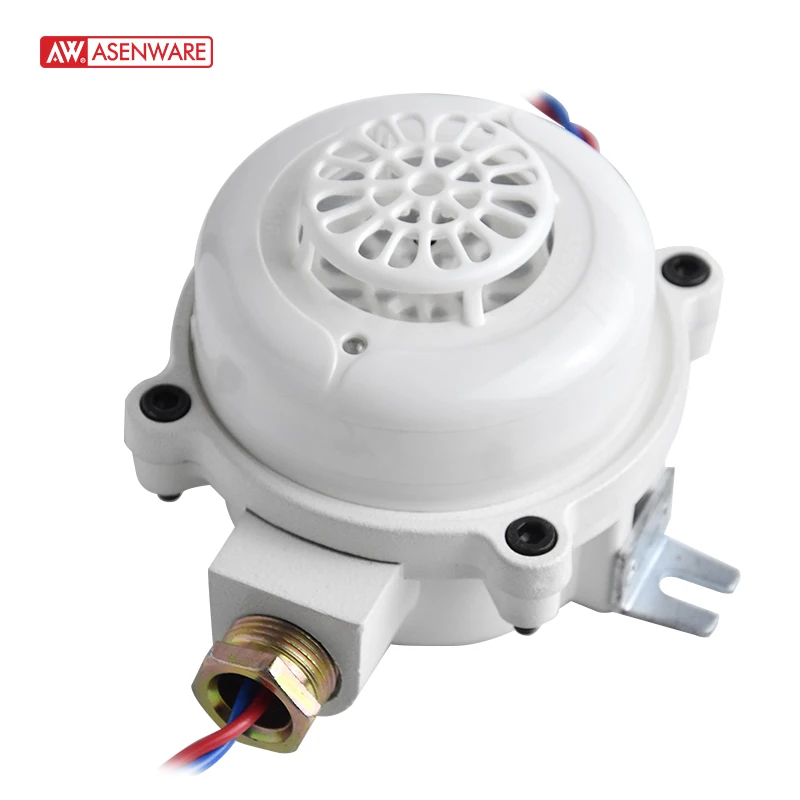

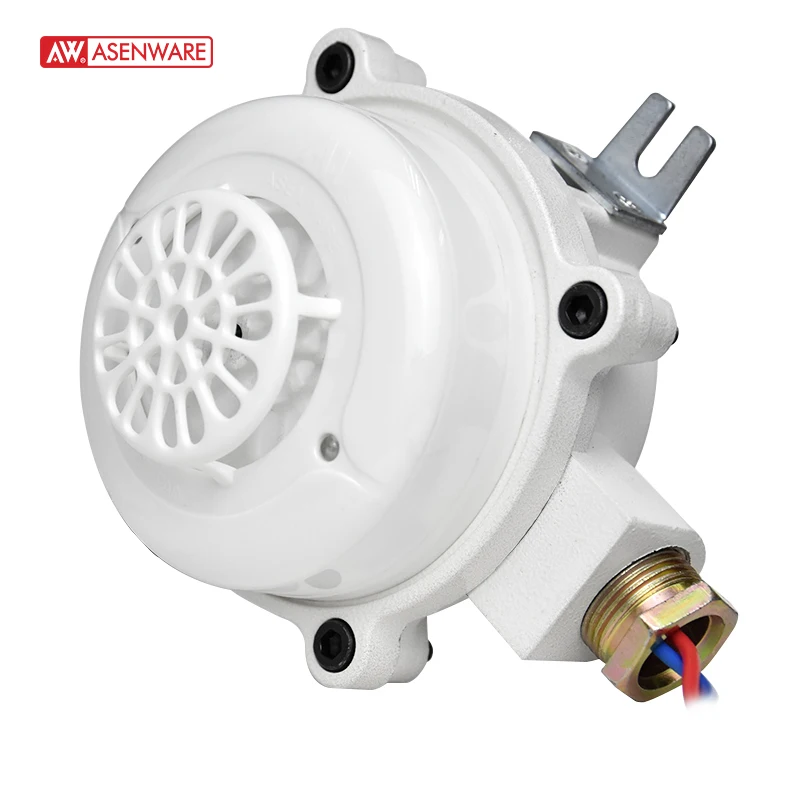

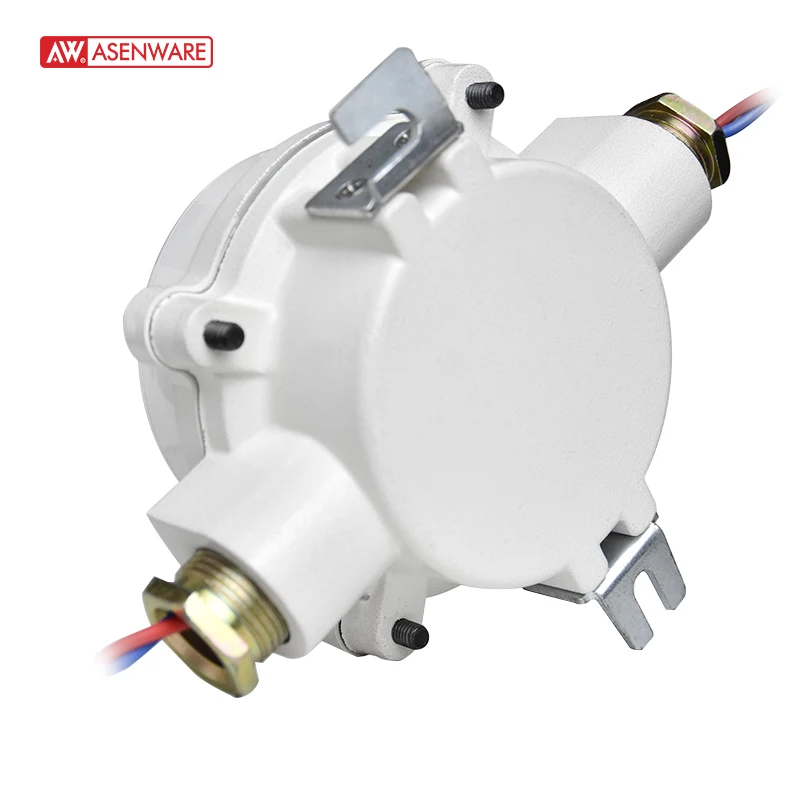

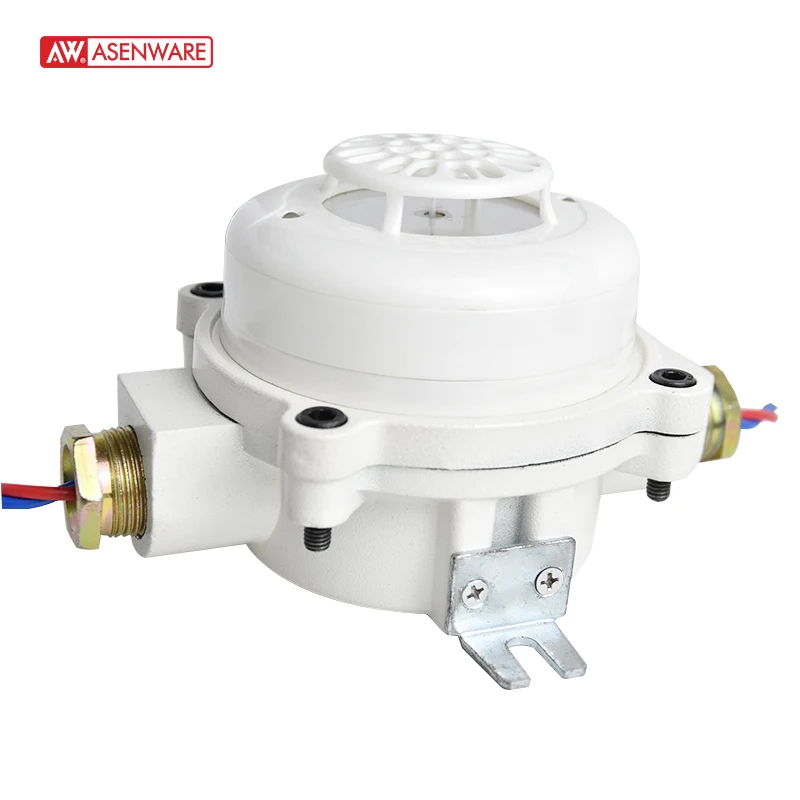

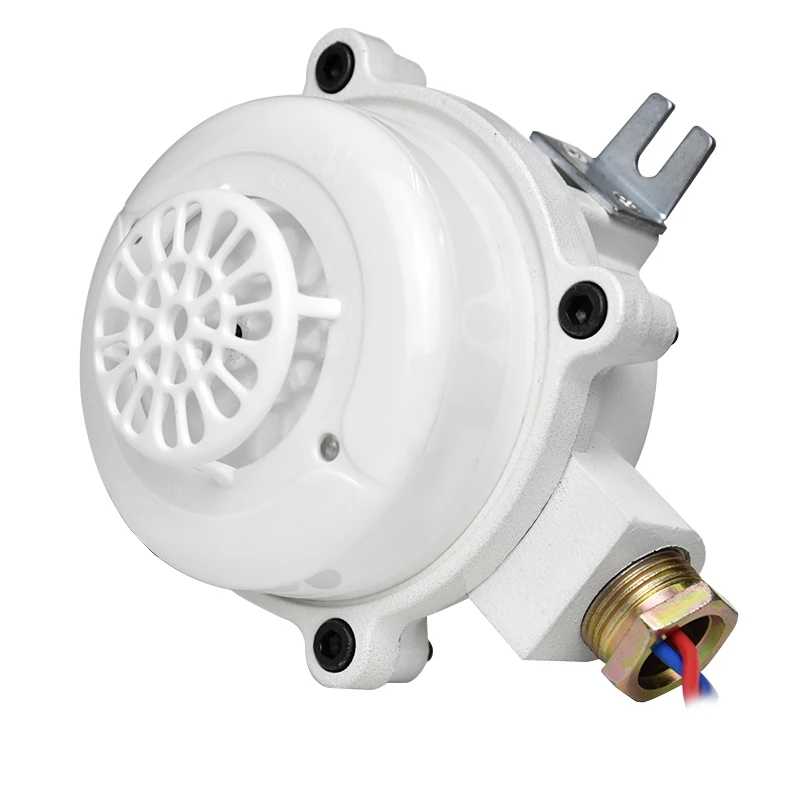

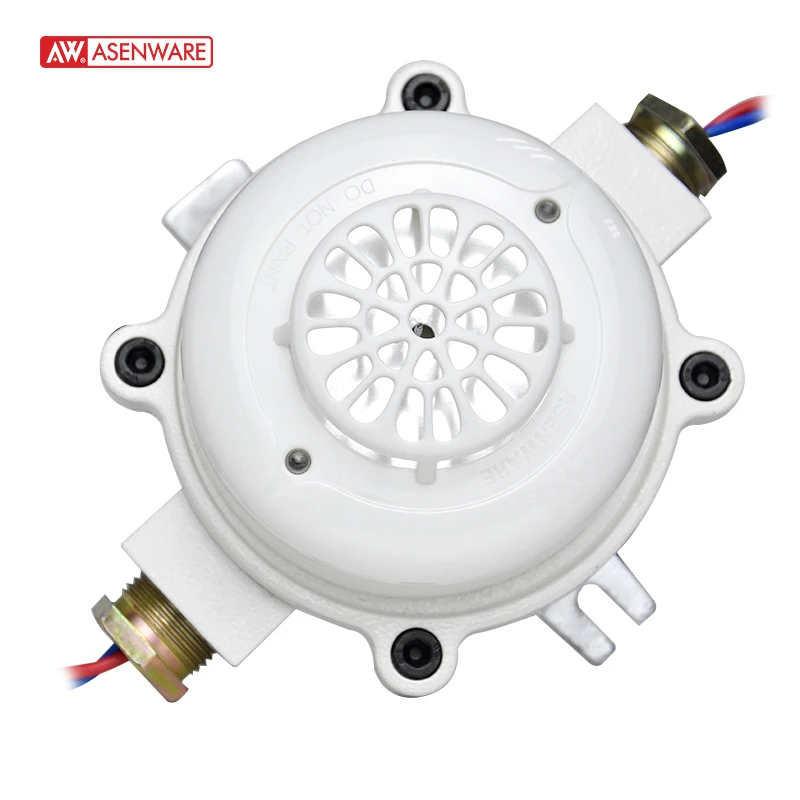

Asenware fire alarm system explosion proof heat sensor ATEX certificate designed for hazardous places chemical warehouse
- Category: Fire Alarm >>>
- Supplier: Zhongshan,Guta,Fire,Equipment,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Features:
LED indicator
Excellent explosion-proof performance
Meets all requirements of latest EN54-7:2000 and EN54-5:2000
Easy Installation
Excellent explosion-proof performance
Meets all requirements of latest EN54-7:2000 and EN54-5:2000
Easy Installation
Model | AW-CTD382EX |
Main Voltage | DC24V±3V (no polarity) |
Operating current | Monitor:150µA Alarm:≤30mA |
Alarm Relay Output | Normally Open and Closed |
Fix Temperature Alarm | 57℃ (135°F) |
Rate of Rise Alarm | 7.1℃/5S |
Ex-Atex Protection Level | Gb/ExibDtDA21IP65T85 |
Materials and colors | CAST IRON，ABS, White |
Mating Host | AW-CFP2166 fire alarm control panel |
Outlet Interface | G20 |
Environmental | Temperature range: -10 to 50°C Humidity: 5 to 95% RH, non-condensing |
Size | 150mm* 150mm* 110mm |
Weight | about 1.2kg |
Bus quiescent current | ≤400μA |
Bus quiescent current Outlet thread | 2-G3/4 |
Alarm confirmation light | red, flashing during inspection, always on when alarm |
Atmospheric pressure | 80kPa～110kPa |
