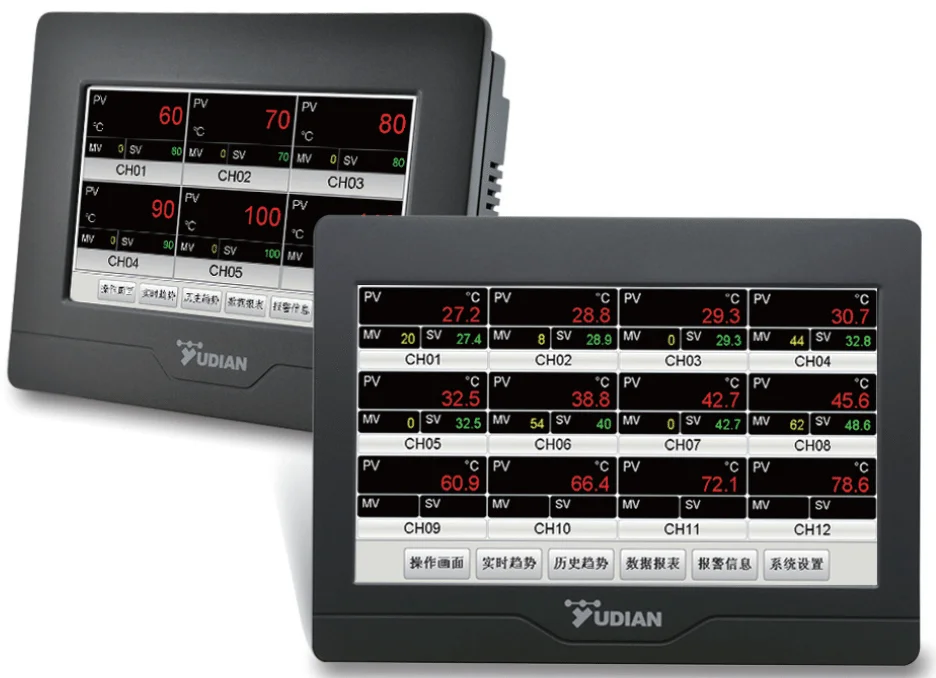

YUDIAN Multi channel paperless data logger recorder

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description


YUDIAN AI-3706M paperless data logger recorder


eva





paperless data logger recorder












paperless data logger recorder


___________________________________________________________________________





 I.Temperature  data logger Technical Specification:




























































Model

AI-3706M/3706M-W (with PC software): 7 inch





AI-3906M/3906M-W (with PC software): 9 inch


Resolution

800×480 pixels


Display ColorTFT true color
BacklightLong- lifespan LED
Memory150 MB
Communication

RS232, RS485, Ethernet interface


Power supply100~240VAC,-15%~ +10%, 50-60Hz
Power consumption≤5W
Operating AmbientTemperature:-20℃~+80℃;Humidity:≤90%RH
Storage temperature-10℃~+60℃
Net weight0.7kg
CoolingNatural
Degree of protection:Equivalent to IP65 (front panel)







___________________________________________________________________________





    II.Temperature Data Logger Installation and Dimension:



















































Screen diagonal


(mm)



Enclosure front (W×H×D)


(mm)



Mounting cutout


(mm)







a2



b2



a



b



c



x



y



3170S/3170W



7 inch



86



154



150



203



40



139



192



3190S/3190W



9 inch



112



198



170



231



38



160



221






___________________________________________________________________________

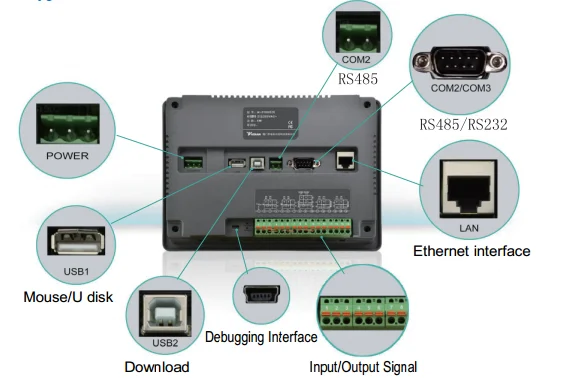

   III. Temperature data logger Back View:











___________________________________________________________________________





  IV: Screen View:






  • Meter Operation:












  • Historical Trends:












  • Data List:








___________________________________________________________________________

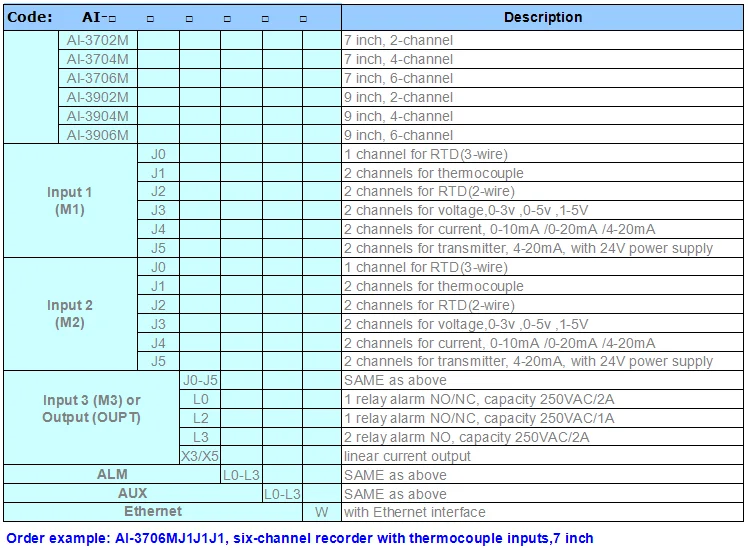

  V. Ordering code:






___________________________________________________________________________






You will get


paperless data logger recorder





Other Products


paperless data logger recorder










paperless data logger recorder


paperless data logger recorder


paperless data logger recorder



Why choose Yudian?


1)Factory with 25 years experience.


2)Quick delivery ( within 3~5 working days).


3)Retail/Wholesale/OEM/ODM available .


    We expect to cooperate with machinery manufacturers, better price for bulk order.


4)We provide after sales service and technical assistance as per the customers requirement and needs.





FAQ


1. How long will you give me the reply?
we will contact you in 2 hours as soon as possible
2. Could I get samples?
Yes,we have products in stock ,so you can get the samples quickly.
3. How about the quality of Temperature  data logger


?
We have the certification of ISO,CE and ROSH,we could send the certification test of our company to you.
4. Could I visit your factory?
Of course,if you need we will help you to visit our factory.
5. If I have paid,when will you help me to produce?
We will start producing immediately after receiving the payment.
