48V 70A Ups Discharge Equipment 48v Battery dc Load bank Unit Tester

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description



Product Description




Feature:
1.It adopts high efficiency discharge load and special steady current mode, high accuracy of constant current, fast response, environmental protection and no peculiar smell.
2.Discharge current, voltage protection lower limit, discharge time and other parameters can be set freely, the whole process constant current current discharge, no jump, when reached the voltage lower limit set value or discharge time to automatically stop discharge, can also be manually quit discharge at any time
3.Various self-protection functions: reverse connection, wrong connection, under-voltage, over-voltage, undercurrent, over-current, over-temperature, fan abnormal
4.with the "wireless battery patrol instrument" supporting the use of real-time collection of the voltage of each single battery, set the relevant parameters can achieve the automatic discharge of the whole process
5.LCD screen, real-time display of the data, intuitive and easy to use
6.Data communication interface: USB, RS485, Convenient online use and export data
7.Built-in memory automatically save discharge data, support power off save
8.The instrument is equipped with simple and practical background analysis software, which can perform data check and analysis, report printing, automatically generate curves, histogram, data tables, etc. Excel format file can be exported, which is convenient for data processing and reporting.
9.It’s small and light and can be carried by one person, easy to
use, safe and reliable.




Product Name
Battery Discharger
Model
ZC-F220/60
ZC-F110/100
ZC-F48/70
ZC-F24/100
Applicable battery type
220V
110v
48V
24V
Discharge current working range
0-60A
0-100A
0-70A
0-100A
Current setting step
0.1A
Precision of constant current
±0.5%
Voltage testing accuracy
±0.5%
Display
LCD screen
Communication interface
USB, RS485
Data storage
Built-in FLASH memory, support power off save
Working Power
Provided directly by the battery pack test, no need external power
Software
The operating system:Win2000 / XP / 7

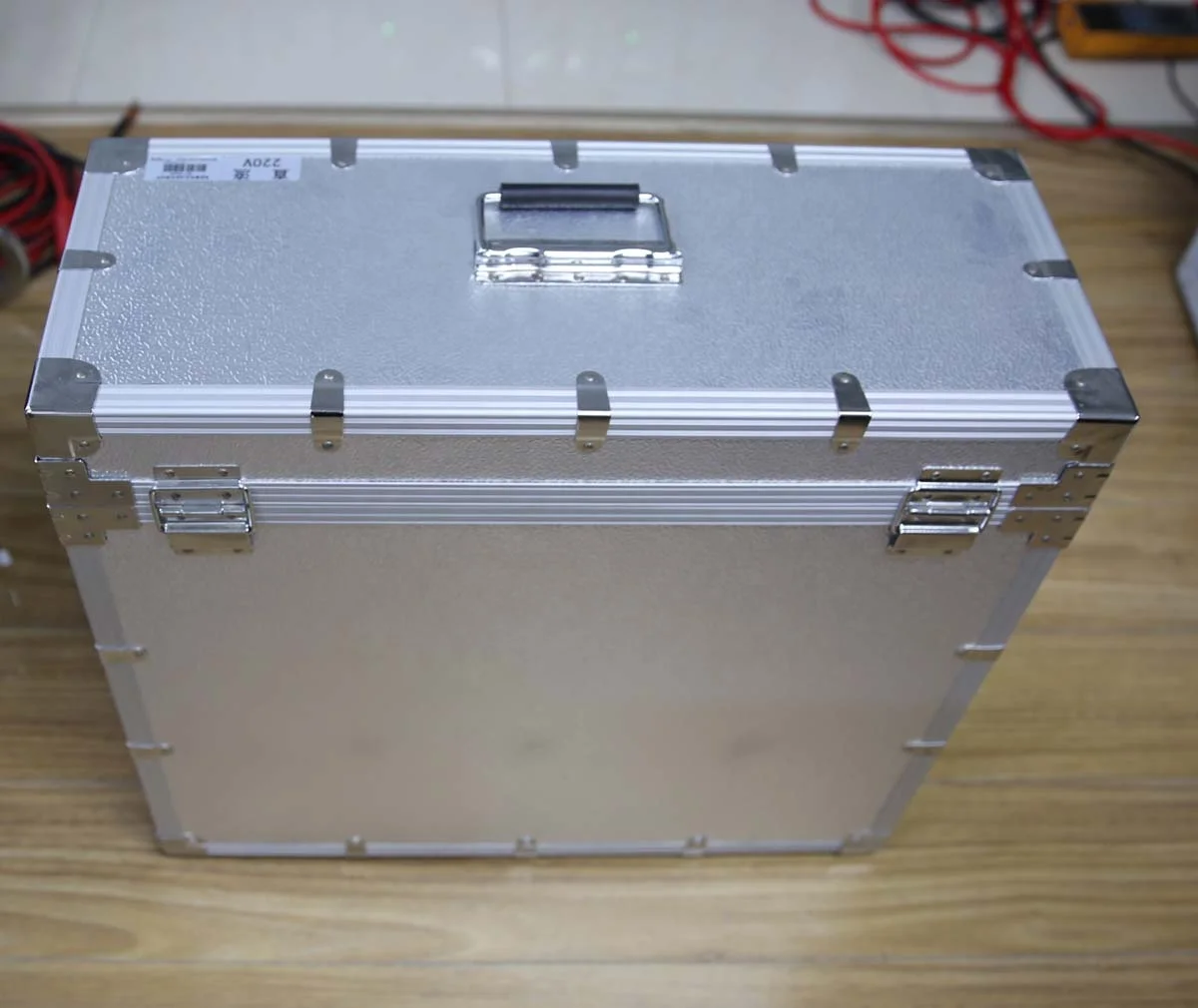

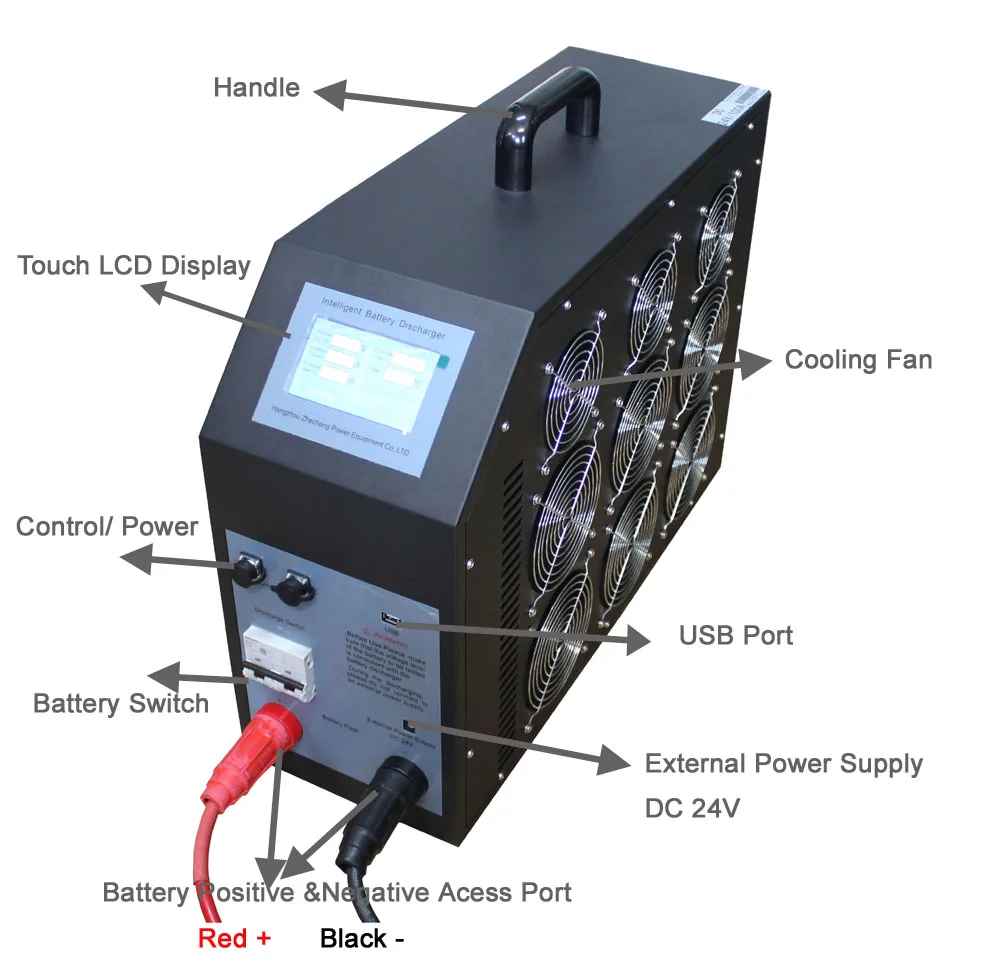

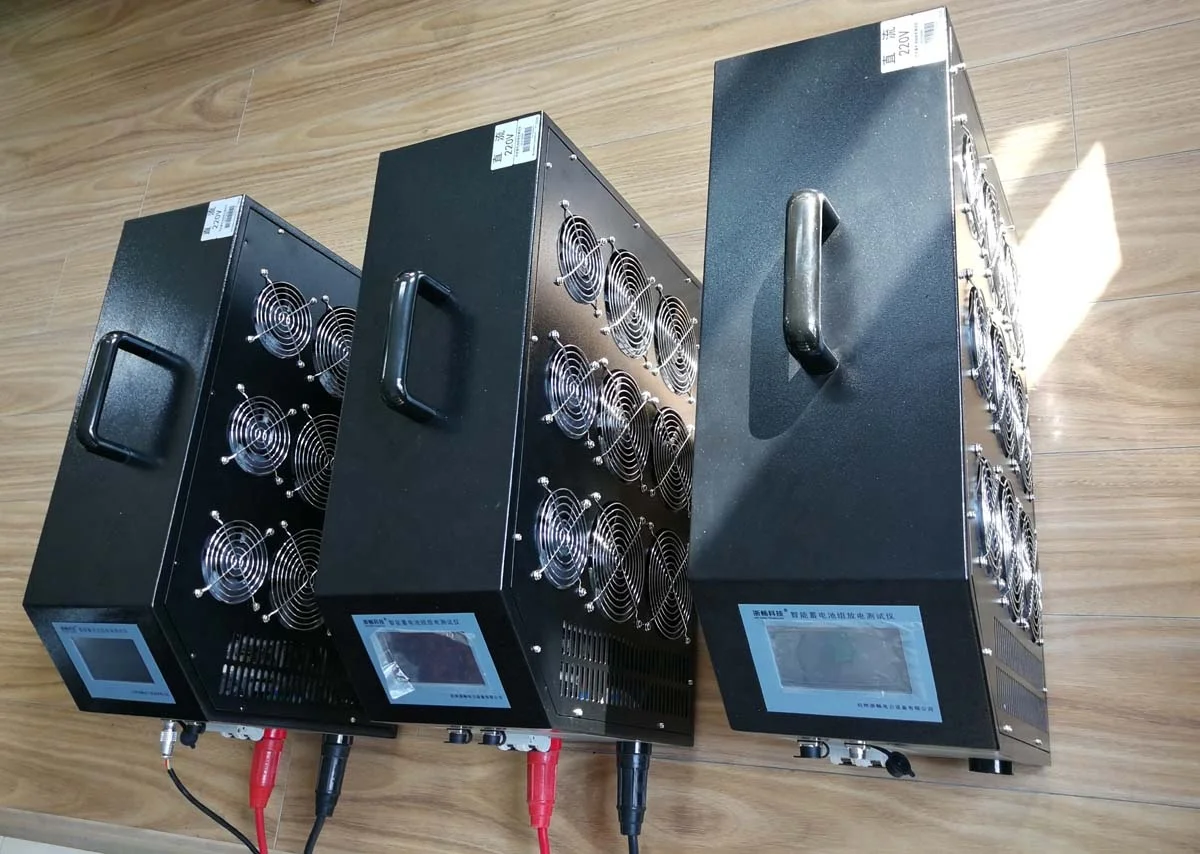

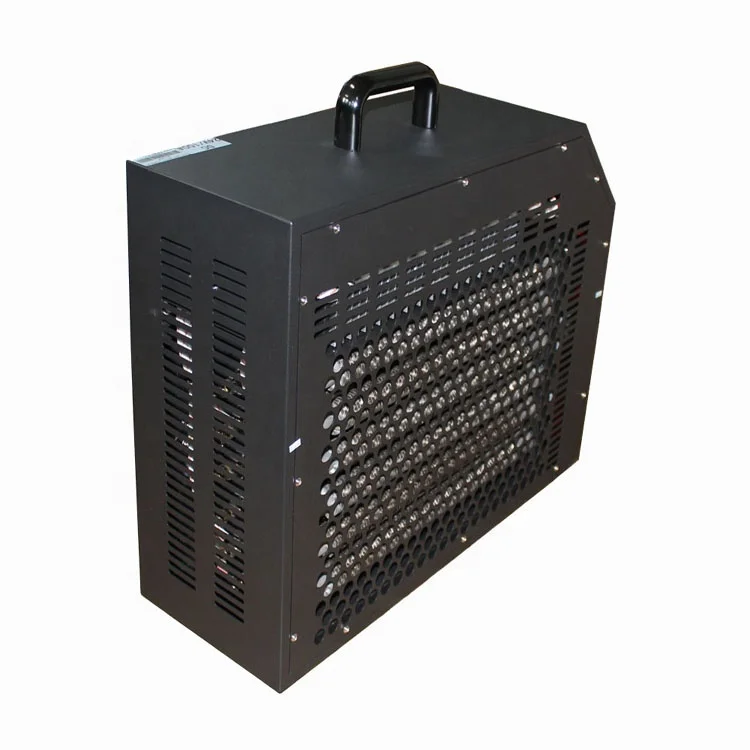

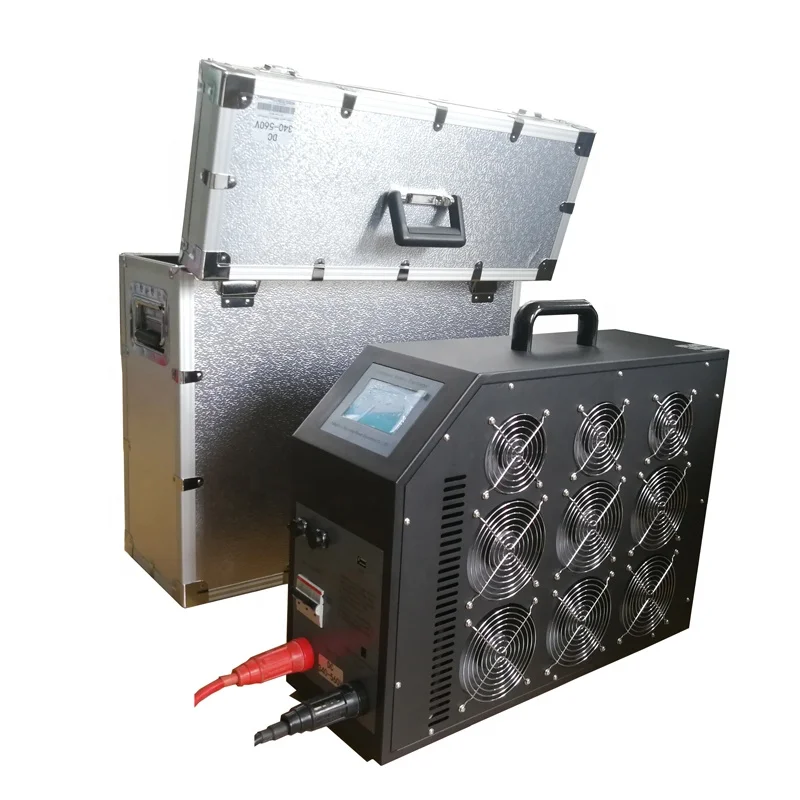

Detailed Images




Our Advantages


Schematic diagram of three-stage charging process
Stage I: Constant-current limit voltage charge.
Stage II: Constant-voltage limit current charge.
Stage III: Floating charge.

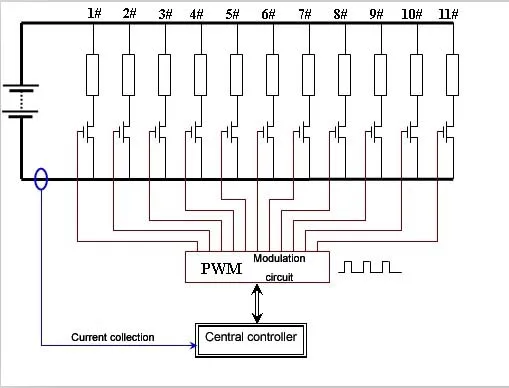

The principle of "stepped" constant discharge electricity
1.Simple principle of constant current, good effect,good expansibility, fast response speed, high steady current accuracy .
2.The current loop adopts pure resistance, stable and reliable performance, and environmental protection without peculiar smell;
3.Different resistance/power values can meet the requirements of different voltage and current ranges;




Packing&Shipping




Company Introduction


Hangzhou Zhechang Power Equipment CO.,LTD Is a research & development, production and sales of high-tech enterprises.We are professional manufacture for Battery Tester , focus on battery capacity test, repair and maintenance solution .Our Main products are Battery Monitoring System,
Intelligent battery discharger ,Intelligent Battery Maintenance Instruments and so on .












Contact info




Shirley Shi
Hangzhou Zhechang Power Equipment CO. LTD

Tel:0086-571-87561959                        Email:Sales@zhechang.net
Skype:Shirleysuuny                              Mobile&wechat&Whatapp:0086-18958106655
Website: www.zhechang.net
Add:Building 1, 1418-60, Moganshan road, Hangzhou city, Zhejiang Province, China.310011


FAQ


Q1.Why need battery discharge tester?
A:Battery discharge testing is the only way to get an accurate value on the actual capacity of the battery.
It can be used for tracking the battery’s health and actual capacity and estimate remaining life of the battery.

Q2. What about the lead time?
A:Sample needs 5-10 days, mass production or custom product need 2-4 weeks.

Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-8 days to arrive. Airline and sea shipping also optional.

Q4: Do you offer guarantee for the products?
A: Yes, we offer 12 months warranty to our products.
