carbon steel elbow forming machine

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description



Product Description

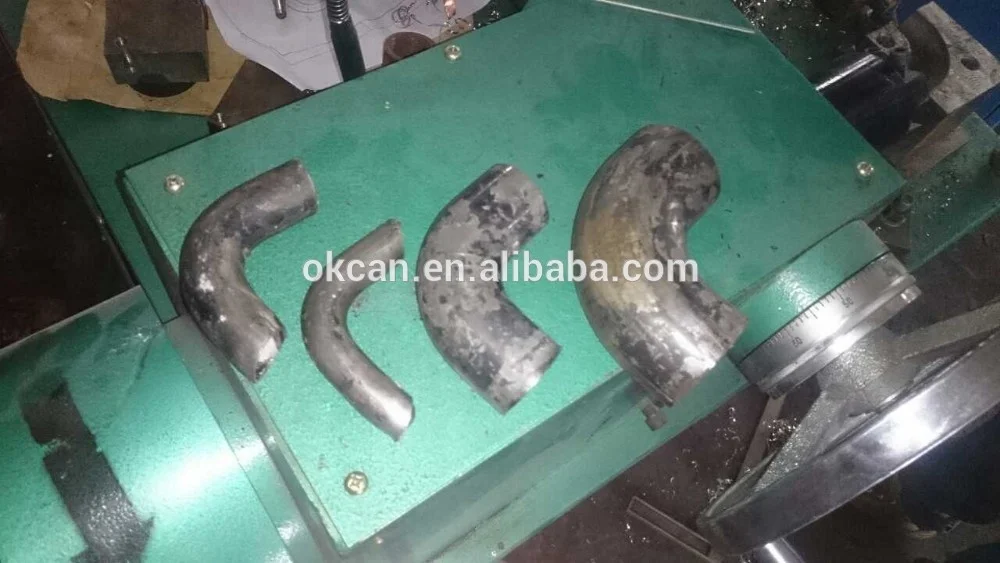

The series of   elbow machinery is mainly used for carbon steel, stainless steel ,copper,aluminum 1D, 1.5D ,3D elbow cold push molding, push mode has the steel ball and core rod pushing in two ways. Core rod forming push system equipped with a semi-automatic mechanical demolding device.

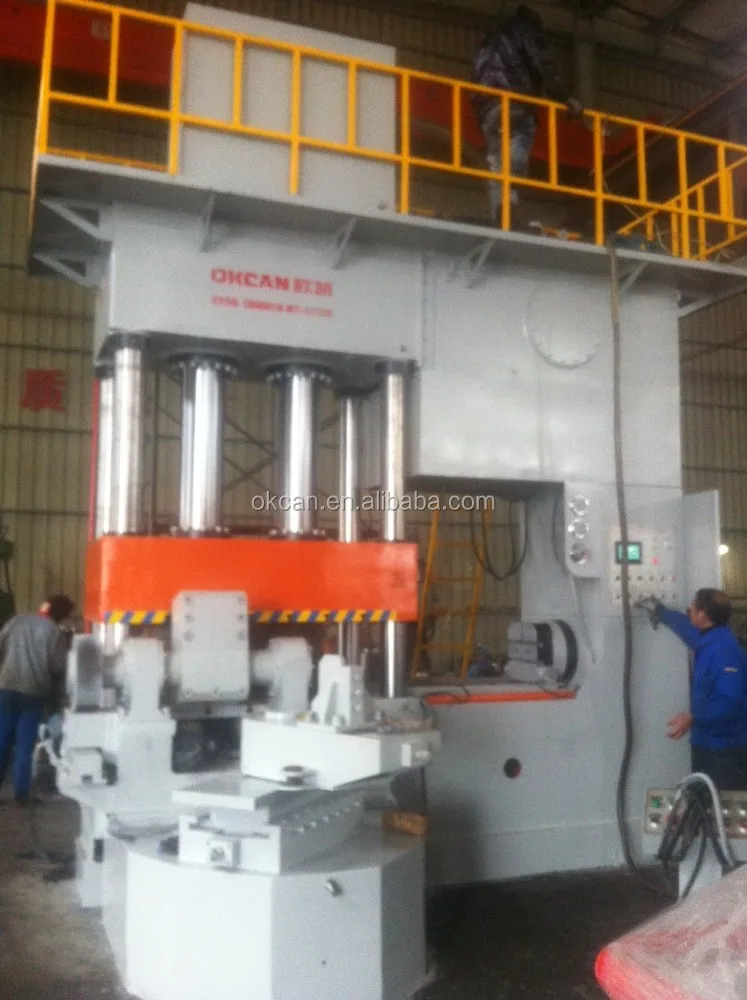

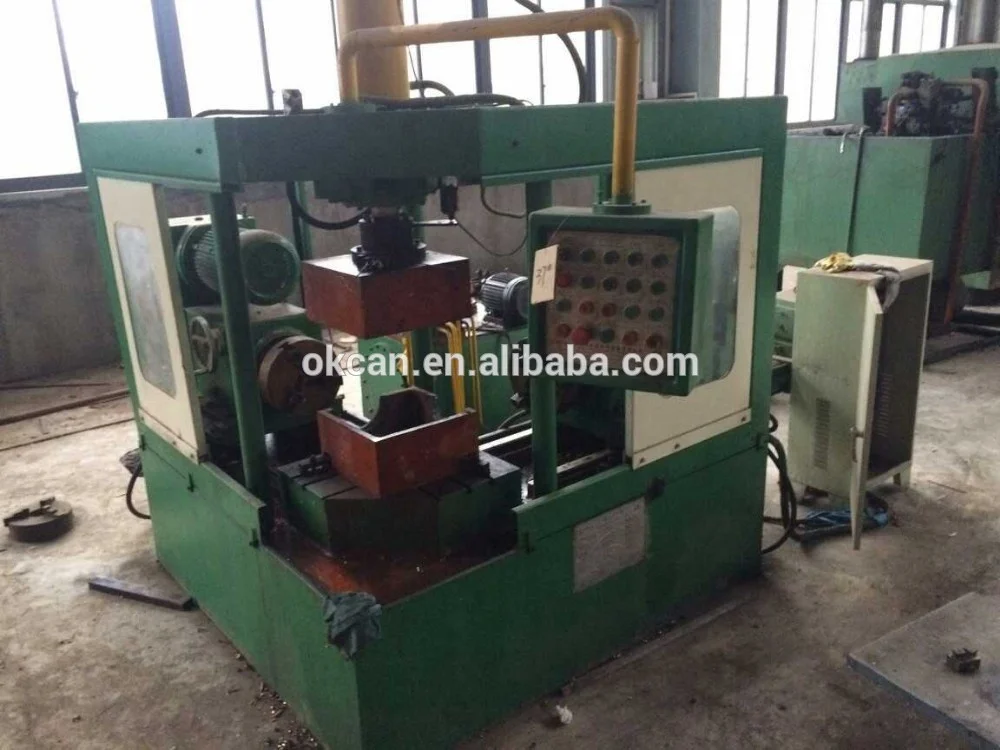

The host comprises a body(frame),die-closing cylinder ,side pushing cylinder, demolding device. A control mechanism is composed of power station,limiting device ,pipeline and electrical control box, operation box.



The forming principle:pipe blank ,in the tunnel cavity by external locking,is pushed by hydraulic top rod from the guide section into forming cavity equiped inner core bending. then demold by demolding device.the whole process is control by PLC.

   Standard export packing,woodbox loaded,airframe coverd with one layer transparent plastic film.



Pressure of main cylinder:160T

Pressure of side cylinder:100T

daylight:800mm

tablesize:700mm×650mm

Motor power:11KW

Forming ability:≤φ114×6







Pressure of main cylinder:500T

Pressure of side cylinder:300T

daylight:1400mm

Table size:1600mm×1000mm

Motor power:30KW

Forming ability:≤φ273×10










Pressure of main cylinder :1200T

Pressure of side cylinder :600T

daylight :2400mm

Table size :3000mm×2000mm

Motor powe:74KW

Forming ability :≤φ530×12









Our Services



Dear customers:
hi
First of all, thank you for choosing our products, at the same time of you choosing the products of our company, you will have the right to enjoy the good after-sales service of our company.



A. provide relevant technical advice for your company;



B. provide strong technical support for your company;



C. providerthe change or upgrade of electrical PLC program for free.



D. provide the drawings of some parts , for the user, convenient to replace the easy damaged parts after the warranty.



E. timely inform you of our products information such as the technology upgrade and improvement.



 F.Every product has 3 guarantees of one year.and provide cost  maintenance after one year.



G. if you participate in a major tender or equipment certification and need we send technical personnel to cooperate, we will actively cooperate with your work;


Company Information

our factory is located in Pingyang ,Wenzhou City.established in 2000 ,and upgraded to limited company in 2013. we have powerful research and development ability and a group of skilled workers.so ,  we have many series of  hydraulic press machine :elbow cold forming machine ,tee cold forming machine ,door skin embossing press ,four column universal press machine , metal sheet deep drawing machine ,frame type press machine ,smc hot press machine ,hot forging machine ,hot extrusion machine ,paperboard deep embossing machine ,eva luggage machine,melamine machine  and so on.
