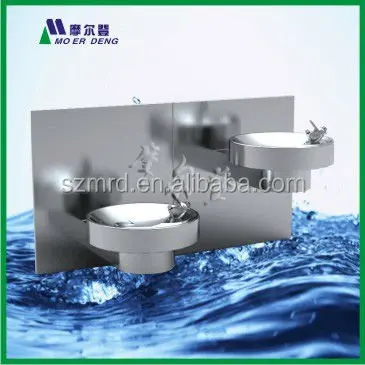

TB34-4 stainless steel wall mounted drinking water fountain

Share on:


Price:$900.00
Price in USD:Details

Quantity:


Product Overview

Description


Model TB34-4 is a "Hi-Lo" bi-level barrier free wall mounted drinking water fountain manufactured from heavey gauge SUS304# stainless steel with a satin finish for easy maintenance.



It  includes two fountains with back plate,  access panel, vandal-resistant bottom plates, 1-1/4" O.D. waste arms, polished chrome-plated brass bubbler heads, push buttons and a complete mounting system. Waste strainers have a satin finish. The receptors are one piece with rectangular bowls with rounded corners designed for durability and easy maintenance. The back panel and grille match the finish of the fountains. The slots on the grille are designed to eliminate any sharp edges, and they are small enough to prevent intrusion from fingers or objects.





unique and streamline basin design, can deliver large volume of both cold water(adjusted thermostat, output water temp. 5-10DC).




1). 2 to 4 bubbler or bottle filler optional, hot and cold water dispensing can be specified by clients.

2). Evaporator shall be high efficiency tank type and shall be encapsulated in insulation.

3). R-134a refrigeration system shall be hermetically sealed and  capillary tube controlled.

4). An adjustable thermostat having an off position shall control refrigeration system.

5). Full stainless steel body, have integral drain strainer.

6).Heavy-duty galvanized frame shall support powder-coated galvanized exterior panels (standard finish) or stainless steel panels (optional finish).


Made of type 304 stainless steel, satin finish, electric water cooler ideal for many locations.







Such kind of wall mounted drinking water fountain can match remote water chiller water cooler/ hot water/ filtration system to dispense cold / hot/ filtered water,  It's one of the mossuitable drinking water fountain for schools, hospitals, office buildings, airports, stations, stadium, messroom and other various public areas.





How to produce cold water (see below image demo)--














1. Moerdeng wall mounted drinking water fountain, to match with a water cooler system can deliver 38° F~46° F water at 68° F inlet water and 77° F ambient.




2. Remote chiller system, use R-134a refrigerant.


   Compressor: 1/3 HP, Capacity of refrigeration: 8gallons/hour, 12gallons/hour.











Main Specifications






























































































Item



 Specifications


Type  wall mounted  drinking water fountain
Installation Type Wall hanged
Finish  Stainless Steel
Vandal Resistant Bubbler Yes
Filter System Not Included
Power rating Single phase
 220-240VAC 50Hz
 100-115VAC 60Hz
Standard Current 220-240VAC H&C: 2.6A, C&C: 0.8A
 100-115VAC H&C: 6.2A, C&C: 1.2A
Power Consumption Cold 74W
Cold(a remote chiller) Compressor Single phase motor
 Refrigerant R134a
 Capacity 25L (8 gal)
Refrigerant charge 28.4g (1.0 oz)

Net Weight


 8kgs
Shipping Weight
Product Dimensions
Product boxed dimensions  515*415*280mm
Loading quantity 20'Container:400 Units
 40'Container:850 Units
