Product Overview

Description

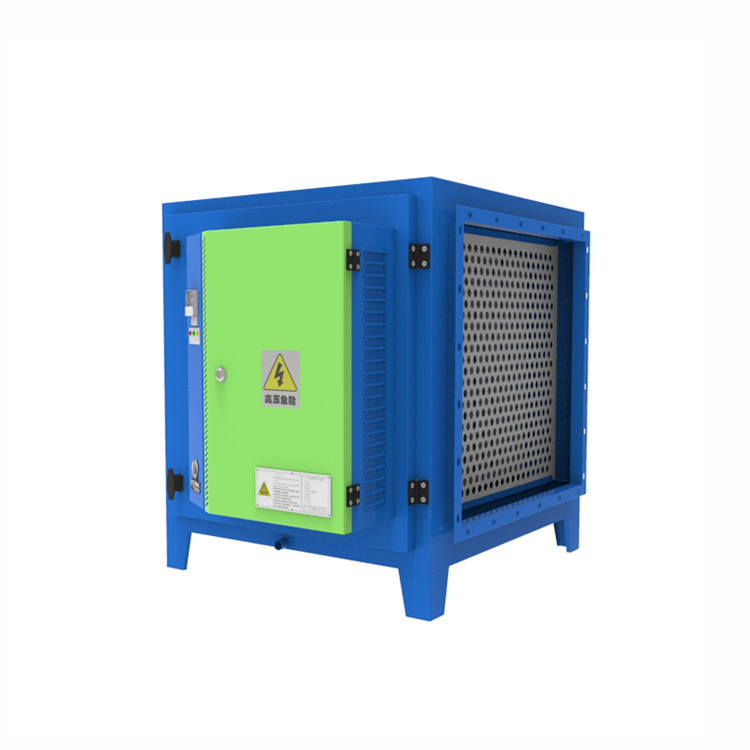

Purifier

Operating Principle:

When oil mist and dust pass through the high-voltage field, the electrified motes are separated and collected by the collecting board (anode), by this way, the dirts in the air are removed. Application Domain: The waste air from the textile printing and dying industry contains aldehyde, ketong, hydrocarbon, fatty acid, ester, lactone, heterocyclic compound, all these chemicals are harmful to the health of the plate workers and infectant to the environment. The purifier cleans the waste air, helps keep the air fresh in the workshop and eventually, protect the workers

Type

Airflow   (CMF)

Dimension      (MM)

Flange   (MM)

Weight     (KGS)

Efficiency

Input Voltage

Power    (W)

LK-20

Single Unit

2000

590*500*666

404*474

55

≥99.5%

220 V

40

LK-30

Single unit

3000

800*500*666

612*474

65

60

LK-40

Single unit

4000

1060*500*666

874*474

75

80

Vertical Combination
