Top quality 17*86*33.3mm Pillow Block Bearings Housings UCF203 for machinery

Share on:


Price:RUB 120.53 - RUB 121.29
Price in USD:Details

Quantity:


Product Overview

Description

Top quality 17*86*33.3mm Pillow Block Bearings Housings UCF203 for machinery

paste-pic-dp_uuid_c5ohu

Product details

 1.Description of pillow block bearing:

1. The pillow block bearing units are the combination of one Y-bearing(insert bearing, which is a single row deep groove ball bearing with convex sphered outside) and a plummer block housing(which has a correspondingly sphered but concave bore).

 2. This bearing units are available in various different designs as standard. The main three types of materials for the housing include: composite material, grey cast iron, sheet steel.

 3. The plummber block units are secured on the shaft via the bearing inner ring by: (1). grub screws(UCP/UCLP Series); (2). eccentric locking collar with grub screw(NAP/NALP Series); (3). adapter sleeve (UKP/UKLP Series)

 4. Also we can provide many types of seals for the units: standard seals, standard seals with plain flinger and the standard seals with rubberised flinger for arduous operating conditions and so on.



2.Drawing of pillow block bearing UCF203:




3.the detailed technical data sheets of pillow block bearing:



SIZE DIMENSION
  D B S L J H H1 H2 A N N1
UCWP201 40 27.4 11.5 125 96 30.2 57 14 36 13 19
UCWP202 40 27.4 11.5 125 96 30.2 57 14 36 13 19
UCWP203 40 27.4 11.5 125 96 30.2 57 14 36 13 19
UCP204 47 31 12.7 127 95 33.3 65 14 38 13 19
UCP205 52 34.1 14.3 140 105 36.5 71 15 38 13 19
UCP206 62 38.1 15.9 165 121 42.9 83 17 48 17 23
UCP207 72 42.9 17.5 167 127 47.6 93 18 48 17 23
UCP208 80 49.2 19 184 137 49.2 100 18 54 17 23
UCP209 85 49.2 19 190 146 54 106 20 54 17 23
UCP210 90 51.6 19 206 159 57.2 114 21 60 20 26
UCP211 100 55.6 22.2 219 171 63.5 126 23 60 20 26
UCP212 110 65.1 25.4 241 184 69.8 138 25 70 20 26
UCP213 120 65.1 25.4 265 203 76.2 151 27 70 25 31
UCP214 125 74.6 30.2 266 210 79.4 157 27 72 25 31
UCP215 130 77.8 33.3 275 217 82.6 163 28 74 25 31
UCP216 140 82.6 33.3 292 232 88.9 175 30 78 25 31
UCP217 150 85.7 34.1 310 247 95.2 187 32 83 25 31
UCP218 160 96 39.7 327 262 101.6 200 33 88 27 33
UCP220 180 108 42 380 308 115 225 40 95 30 38

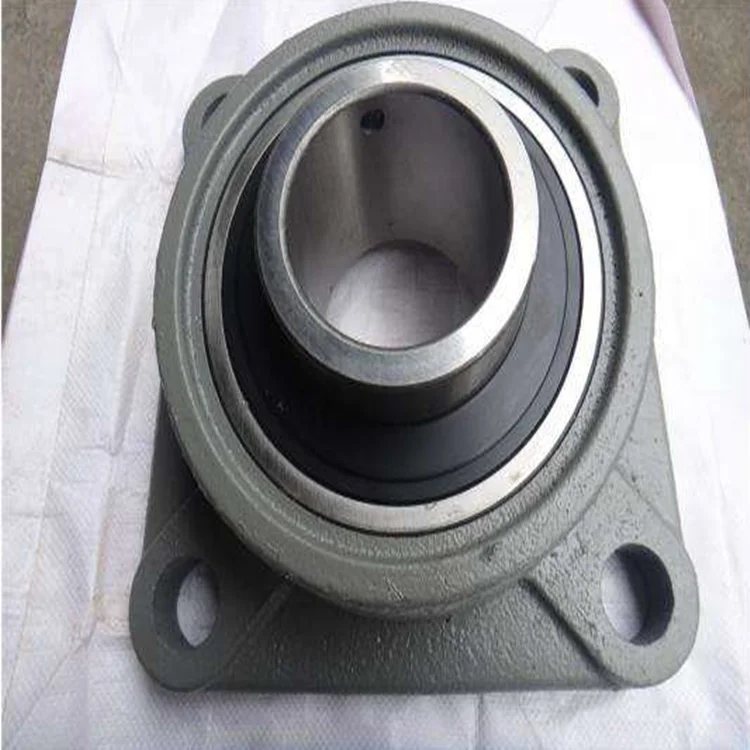

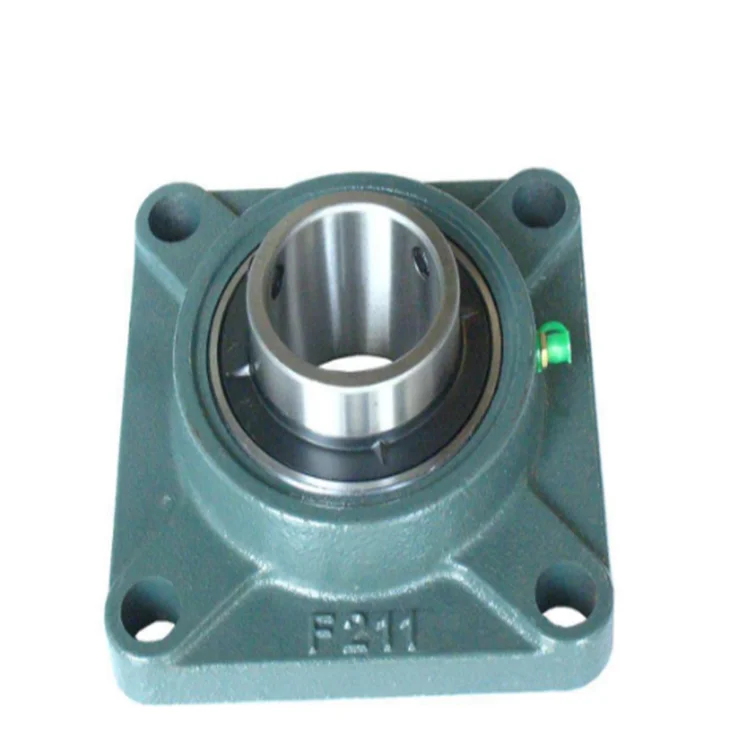

4.Photos of pillow block bearing:


pillow block bearing 11.jpg



Packaging & Shipping

Packaging :

1.barreled package+outer carton+pallets
2.single box+outer carton+pallets
3.tube package+middle box+outer carton+pallets
4.or as per your request

   Shipping:

     1.For small order,we suggest that send the goods to you by express. Such as UPS,DHL,FEDEX,TNT OR             EMS.

       2.If your order is big,we will advise you use Air Freight or Sea Freight. It depends on your order quantity.          We will  calculate the charges which one is suit for you that transport these goods.

      3. In generally,we delivery the goods within 3-7days or based on your order quantity.

 456_photos of delivery __




Our Services



      1.We can supply you technical support

2.We can provide drawingto you as per your request.

3.We have strict quality control teams
4.We can accept small quantity
5.We may supply other globle brand bearings

6. We can provide OEM service
7. We can provide 24hours service

Company Information





     Tianjin Deina Bearing Sales Co.,Ltd has established in 1999. We are a professional supplier of standand and special bearings and bearing units.We have been in this line for 20 years. We are mainly export United Kingdom, United states,Australia , Mexico, Canada, India,and so on.

     Our products mainly include ball bearings, roller bearings, combined bearings, bearing units and so on. Besides, we are also one of Authorized Distributors of some World-famous Bearing Brand such as SKF, FAG, NSK, Timken and so on.

     By the way, we have professional engineer.He do this line for 30 years. He know bearing knowledge well. He can recommend some type as per your application or give you some advise that how to do use bearing.

     What’s more, we have very strict Quality Control Group. After the goods produce well, they will inspect them. When it is qualified, we will provide them to our customers. Pls be assured that the quality of our bearings. As the goal of our company is quality is the first.

Factory 1.jpgfactory 2.jpg

FAQ

1. Could you provide OEM service or as per customer’s requirements?

 Yes, it is no problem for us. We can provide bearings as per your drawing or as per your samples  or as customer's request.

2. Could you supply samples to us?

 Yes, we can provide free samples, But we do not pay for the freight charges.

3. Could you tell me how is the packaging for bearings?

        Inner by Single plastic bag,Plastic tube, Outer by Paper Carton or as per your request.

4. How is your bearings’s life time?

The life time is from 6 months to 36 months for different products.

5. Are you a factory or trader?

 We are a direct factory. Pls be assured that we have been in this line for 20 years. Our type is factory +trade

6.Could you tell me what's your payment terms of your company?

TT, Western union, Credit Card and so on





Certificate




Why choose us?

1.Before-sale service

We have professional technical engineer who can provide customers with necessary drawing or technical service.

2. Strong Suppling Capacity

We are direct factory in China for 20 years that produce Several hundreds of bearing types. Our common goal is that 5billion sets items as produced year and the output value more than 5 billion US dollars in the past year.

We can complete excellently all the items about orders with some advanced equipments in China.



3. Know the market very well

Cooperating with the customers all over the world and knowing the markets very well

4.Strict Quality Control System

We have very strict quality control systems and testing equipments and experienced engineers

We have professional QC worker to inspect the goods one by one before the goods leave the factory. We make sure each products that is qualified before leaving our factory.

5.After-Services

After-sale workers are online for more than 12hours a day, 7 days a week offering you different bearing solutions for you.

Any problems and feedbacks will be answered in a short of time.

Contact information

business card.jpg
