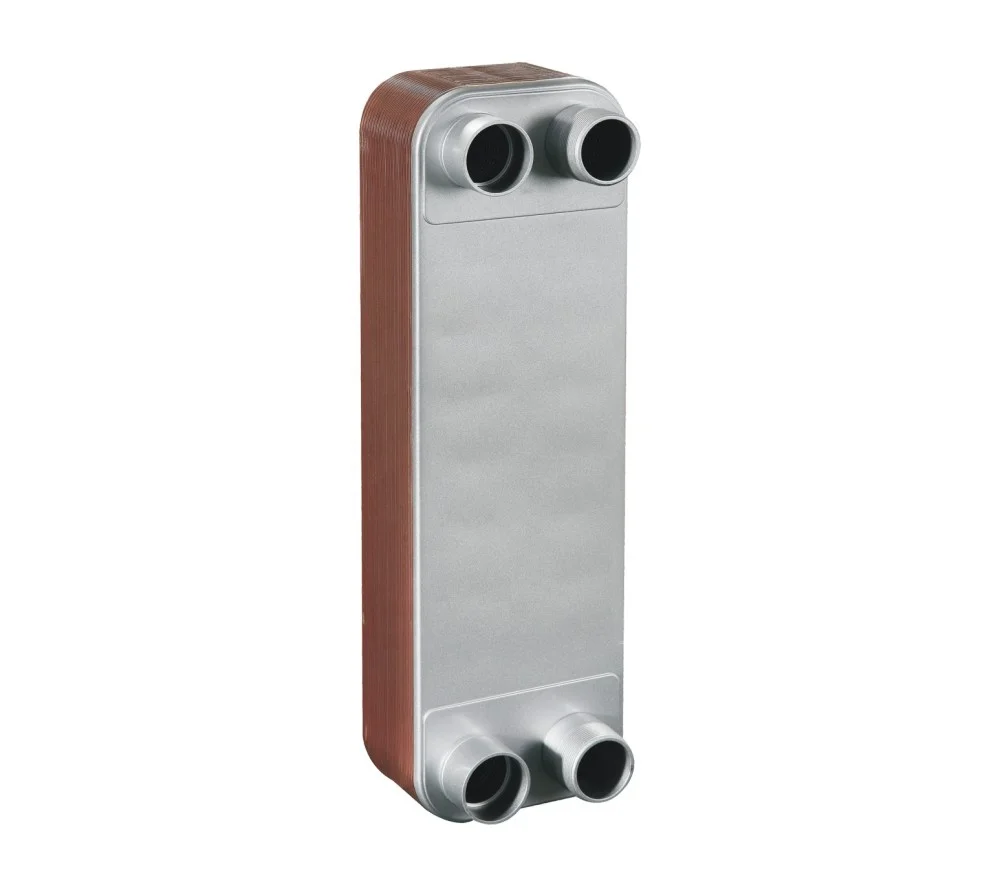

Fhc095 Cb76 Ac120eq Heat Manufacturing Plate Heat Exchanger Industrial

Technical Specifications

Heat load up to 30~200 KW

Size 617*190 mm

Thickness of plate0.4mm

Heat exchanger area of each plate 0.095

Volume 0.210L/Channel

Quantity of max plates : 250

Design pressure  3.0/4.5MPa

Testing pressure 4.5/6.7MPa

Design temperature : - 196~ +200

Model of flow course plate: H & L & M

The max size of threaded connector : 2"

The max size of welded connector : 2"1/8
