Flange AWWA Gate Valve

Share on:


Price:RUB 1,137.27 - RUB 15,163.60
Price in USD:Details

Quantity:

  • add to wishlist

Product Overview

Description

Product Description



Flange AWWA gate valves



  • Standards: AWWA C509,C515
  • Connection type: flanged type
  • working pressure:200PSI,250PSI
  • Flange:ASME B16.47
  • Face to face:ANSI B16.10
  • Test standard:AWWA C110
  • working Temperature:0-80℃



 Material:

  a) Body : Ductile Iron GGG500-7

  b) Wedge : D/I , core fully vulcanized with NBR or EPDM rubber

  c) Wedge Nut : Brass

  d) Stem : Stainless steel , BS970 431S29 or DIN17440x20Cr13

  e) Gasket : NBR

  f) Bonnet : GGG500-7

  g) O ring : NBR

  h) Washer : Carbon steel or Stainless steel .



  i)Coating:Fusion-bonded epoxy 200-250 microns inside and out side



FM UL NSF AWWA C509 AWWA C515 non rising Stem resilient seat Gate valve

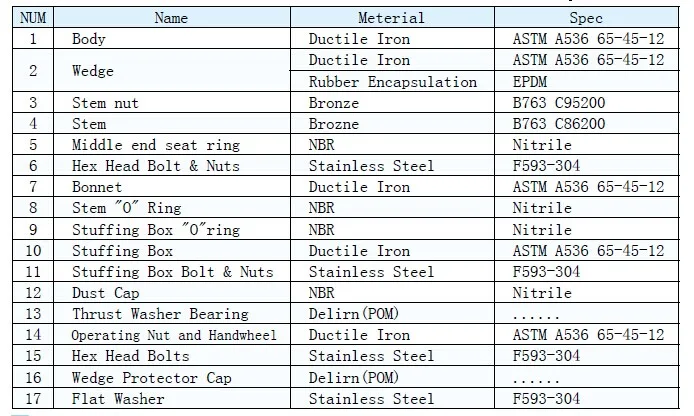

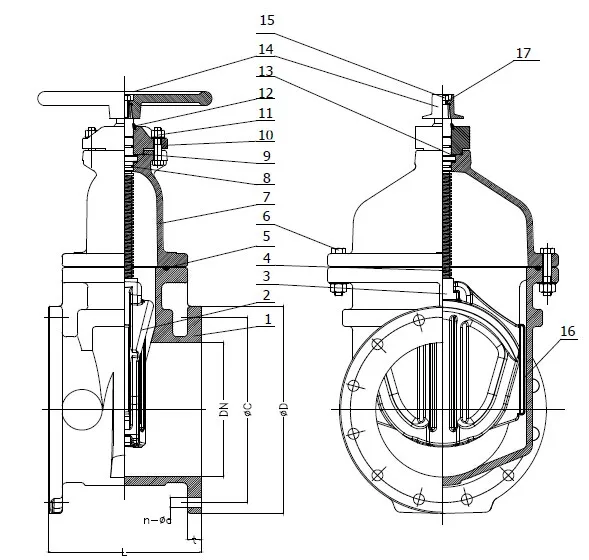

FM UL NSF AWWA C509 AWWA C515 non rising Stem resilient seat Gate valve Components

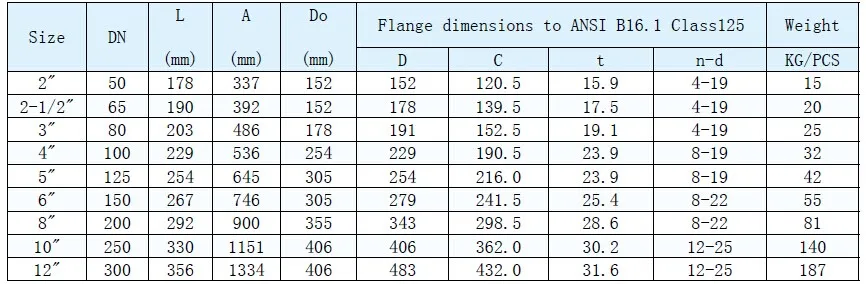

FM UL NSF approved and AWWA C509 C515 Rising Stem Gate Valve Dimension

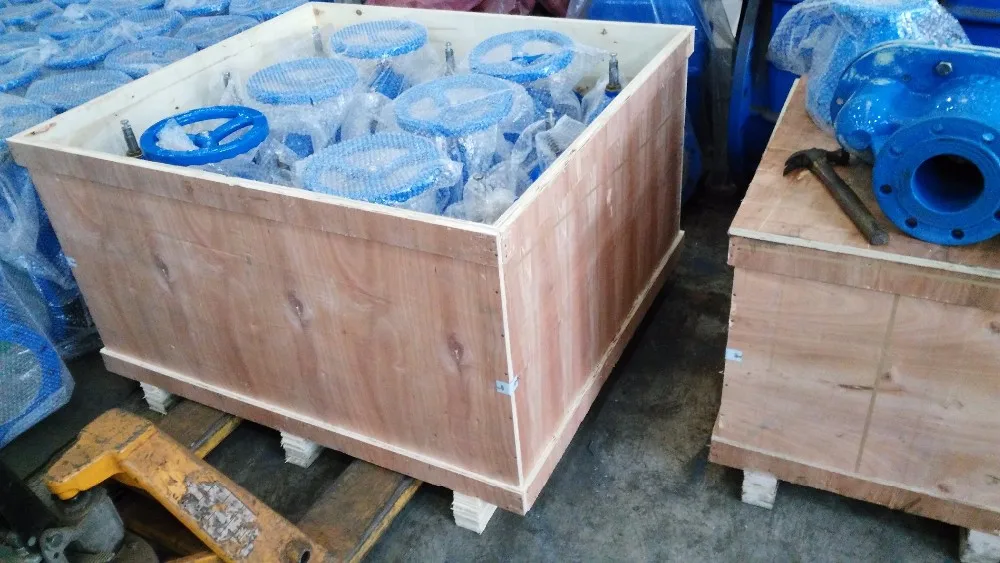

Packaging & Shipping

 Packing 1



QQ20170314171052





Our Services

 Our service



Company Information

 Valves1Valve



FAQ



Q: Are you a manufacturer or a trading company?

A:We are a factory,an original manufacturer,a professional manufacturer of ductile iron valves for water supply and drainage pipeline system.Our factory is located in Luncang Town,Nan'an City,Quanzhou,Fujian province,China,welcome to visit our factory.

Q: Do you have WRAS certificate?

A: We have WRAS certificate for raw materials NBR/EPDM and Epoxy powder

Q: Do you ISO certificate?

A: We have ISO 9001:2015,we also have Certificate of Compliance issued by ECM,and Inspection and verification certificate issued by BV,Inspection certificate issued by SGS.

Q: Could you engrave our Logo/Brand on valve body?

A:We can accept engraving customers' Logo/Brand on valve body,If quantity is big enough; For small quantity,it needs to pay extra cost for engraving logo and brand on valve body.If you require must engrave logo and brand on valve body.



Q: Do you test every finished valve? Or just pick some samples and test it?

A: We test every finished valve before delivering to our customers and users,hydraulic test includes sealing test and body strength test.Sealing test:Working pressureX1.1(e.g. PN10:1.0 MpaX1.1=1.1Mpa,PN16:1.6Mpa X1.1=1.76Mpa), Body strength test:Working Pressure X1.5 (e.g. PN10:1.0 MpaX1.5=1.5Mpa,PN16:1.6Mpa X1.5=2.4Mpa



Q:Could I ask for sample to check quality before place order?

A:We can offer sample,contact us for detailed information after confirm the product,size and quantity.



Q:How long is your valve quality warranty?

A:Our Warranty is 12 months.

Q:What is the delivery lead time?

A:Normally,if order quantity is not more than 5 containers,we can finish the production in 30days for gate valves;It takes longer for Y strainer and Air valve,it takes about 40days.



Q:where is your shipment seaport?

A:Xiamen Seaport,it is about 100km from our factory.



Q:What is the payment terms we can accept?

A:T/T,L/C,D/A,D/P,CAD etc.or are acceptable.
