Product Overview

Description


Principle of vacuum belt drying


      The vacuum belt drying technologyis a kind of low temperature drying method,through which the raw liquid materials are continously spread onto the conveyor belt under the vacuum condition,and are dried after passing through the heating zone with the movement of the conveyor belt,and then are cooled and made crispy.During the whole drying process,the extracts are in the vacuum closed environment with gentle drying process(work temperature 40-145°c),so that their natures can be maintained to the maximum extent and high quality final products can be obtained.As the materials are gradually dried within a period of time after the directly enter the vacuum condition,the granules obtained after being dried have the crystallization effect to a certain degree,Viewed from the micor structure,there are micropores inside.After they are crushed into the diameter required,the granules can be used for direct table pressing or capsule filling with good flowability and good instant solubility.


        The vacuum belt drying technology has a wide application range.It is suitable for most ectracts,and is especially suitable for materials of high viscosity,materials that are easy to agglomerate,and thermoplastic and heat senditive materials.The use of vacuum belt drying can conquer the defects of too fine and dense pary drying powder with too high temperature.In addition,the conveyor belt running speed,material thickness,temperatire,enviroument vacuum degree and other parameters can be adjusted to meet different technological requirements of products,which are far more superior to the spary drying machine.

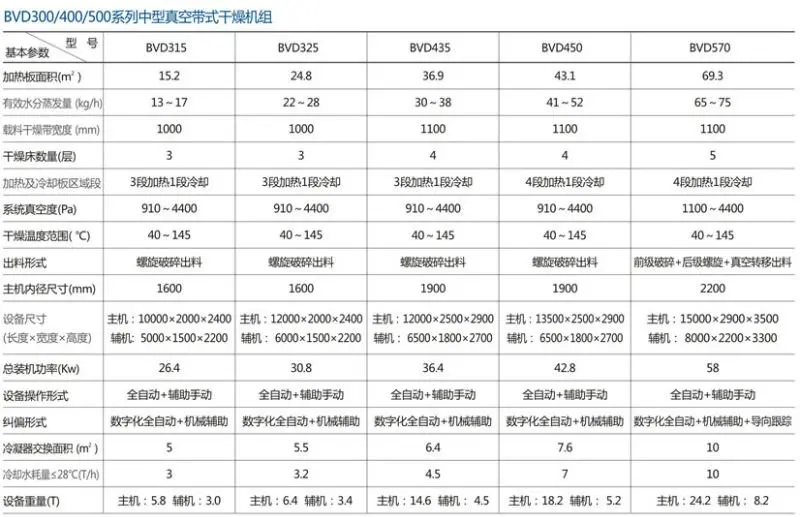

 Summary to BVD series vacuum belt drying unit
        The BVD series vacuum belt drying unit is a modern pharmaceutical device successfully researched and developed by Wenzhou Jinbang Light Industry Machinery Co., Ltd. in recent years. It has been put into scale production in many domestically famous pharmaceutical, food and biological enterprises. The equipment can operate stably with prominent energy saving and emission reduction effects. After evaluation by the expert panel from Zhejiang Provincial Science and Technology Department, the BVD series vacuum belt drying unit passed the technical appraisal of scientific results of Zhejiang province in 2008 (appraisal certificate No. Z.J.X.J.Zi [2008] No. 186). Its design and manufacturing technologies are at the leading level in the country.


         The BVD series vacuum belt drying unit has been successively included into the "11th Five-year Plan" National Pillar Programs for Science & Technology, Key Technological Breakthrough Projects in Zhejiang Provincial Science and Technology Department and "Key Scientific Special (Priority Subject) Social Development Projects" in Zhejiang province. There are totally 4 scientific papers that have been published, 6 patent applications have been accepted, with 4 patents of invention, 1 patent licensing and 2 patents of utility model.


Core technologies and features of the BVD series vacuum belt drying unit.


       1.The digital integrated manufacturing technology is adopted to realize automatic detection and control during the dynamic drying process.


       2.The digital combination type deviation correction technology has conquered the diffculty of the material belt's running off the center during the vacuum drying process.The material belt conveying system is provided with automatic online correction function to ensure long-time contimuous operation of the equipment.


       3.The new modle overheating water heating technology is adopted,and online adjustment can be freely made within the temperature range of 40-145°c.As the fully-closed liquid circulated heating medium is adopted,the stability of heating temperature and energy consumption utilization rate are all superior to those of the traditional steam heating technology.


       4.The actomatic online adjustment and control technology for the dynamic vacuum degree is adopted to carry out optimized combination of main parameters such as temperature,vacuum degree.speed and etc.in the drying process,so as to make the working utilization rate of the equipment achieve and ideal economic benefit.


        5.The CIP automatic cleaning system is adopted with diverse cleaning modes to carry out all-round cleaning of the equipment.With thorough and rapid cleaning effect,it conforms to GMPrequirements. 6.The dispensing system,feeding and discharging systems can be subjected to optimized design and combination according to different material features,so as to meet technological requirments of users.
