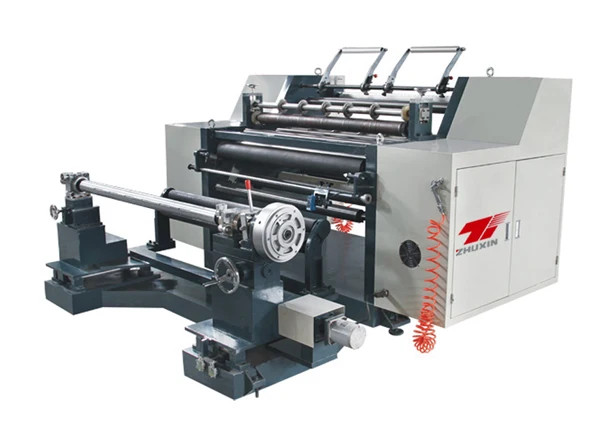

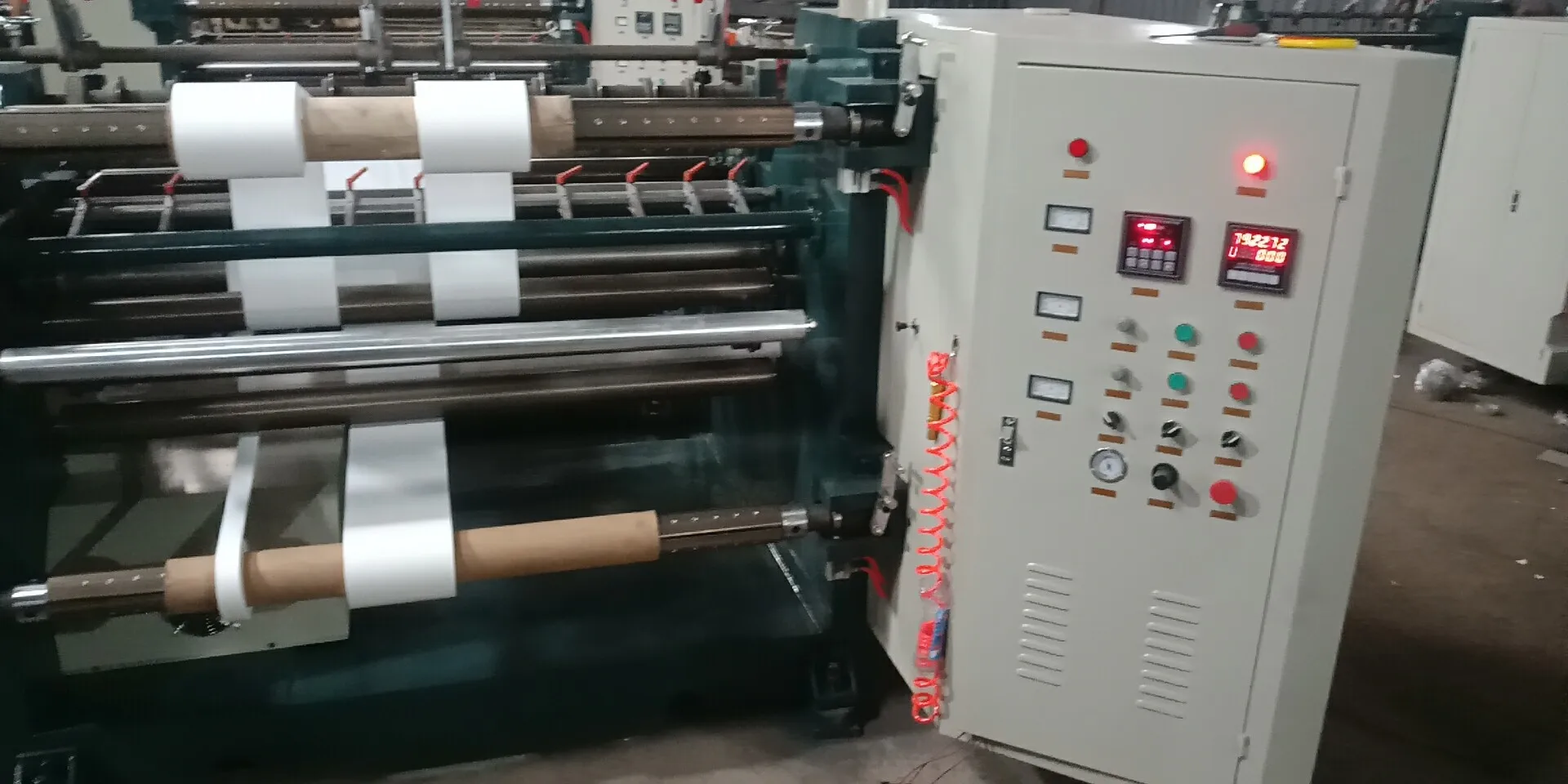

WFQ1100-1300 Horizontal Type High-speed Automatic Slitting machine

Share on:


Price:$11,000.00
Price in USD:Details

Quantity:


Product Overview

Description





SLITTING MACHINE



Home  >  PRODUCT  >  Slitting Machine








We are High Speed Automatic Slitting Machine Horizontal type suppliers/manufacturers from china factory . We also can produce the

High Speed Automatic Slitting Machine Horizontal type


 according to the client’s requirement. We are always try our best to become the good High Speed Automatic Slitting Machine Horizontal type, slitting machine, paper slitte, film slitting machine, slitter rewinder manufacturers/suppliers and welcome the customer from all over the world to contact with us.





Performance and Characteristics:


Use:This machine is suitable for separating and cutting such various roll mateiale as BOPP,PET,CPP,CPE,PVC, aluminium foil and paper,etc, and can cut edge, separate and cut materiel according to different requirements during production..


 The control system interface is in front and back of the machine, easy operating.


Adopting three-phase asynchronous motor , frequency control can be achieved.


The tension of membrane can be automatically adjusted (discharge using automatic tension control system).


Traction roller with horizontal push cylinder pressure roller, the film does not slip.


Correcting system with a synchronous motor, high precision ball screw, Gabriel photoelectric eyes. Use of linear bearing rails, mobile travel 130mm, automatically correcting the formation of more precise cut.


6. Using flat knife and round knife cutting .


7 Waste materials automatic processing device.


8. Winding automatic processing device.


9. Coiling axis horizontal axis rotary winding design, Single operation is ok.


10. With automatic countingr device, operations can be automatically calculated in meters.


11. Machine all the guide roll can be adjusted to eliminate vertical and horizontal deviation of raw materials.





















Main Teachnical Variables:



Model: WFQ1100
Max.width of separating and cutting roll material: 1100mm
Max.diameter of separating and cutting roll material: f600mm
Width of roll material cutting: 30-1100mm
Speed: 5-160m/min
Power: 3kw
Outline dimension: 2200X2200X1100mm
Weight: 1500kg








Model: WFQ1300
Max.width of separating and cutting roll material: 1300mm
Max.diameter of separating and cutting roll material: f600mm
Width of roll material cutting: 30-1300mm
Speed: 5-160m/min
Power: 3kw
Outline dimension: 2200X2400X1100mm
Weight: 1800kg
