24 Channel RGB DMX512 LED Decoder with Indicator light control single or RGB lamps for adversting module

Share on:


Price:RUB 2,735.24
Price in USD:Details

Quantity:


Product Overview

Description

Welcome to use the 24CH constant decoder, which take advantage of advanced microelectronic control technology. This technology changes the international fashion DMX512/1990 standard digital control signals into analog control signals. There are 1 ~ 24 output channels; each channel can achieve 256 control levels. This constant decoder is used when DMX512 control equipment control general LED lighting.

Basic functions:

There are 24 output channels, can connect with single or RGB lamps;
0-100% dimming output, each channel 256 gray levels;
International standard DMX512 input protocol, address code set by DIP switches;
Wide voltage DC input DC9V ~ DC24V;
Each occupied by 24 DMX address;
The decoder comes with 16 kinds of test patterns, 16 levels for rate of change.

Products Performance:

Input Power: DC9V~DC24V
Maximum load current: 48A=2A/CH×24
Maximum power load: 576W (12V) 1152W (24V)
Standard RGB
Input Signal: DMX512/1990
Output signal: 24 channels Constant PWM
Output gray level: 256
Output DMX : 24 channels
Connection Mode: Common Anode
Control mode: DMX512 signal mode, Automat mode.
Size: L172*W96*H23
Gross Weight: 300g

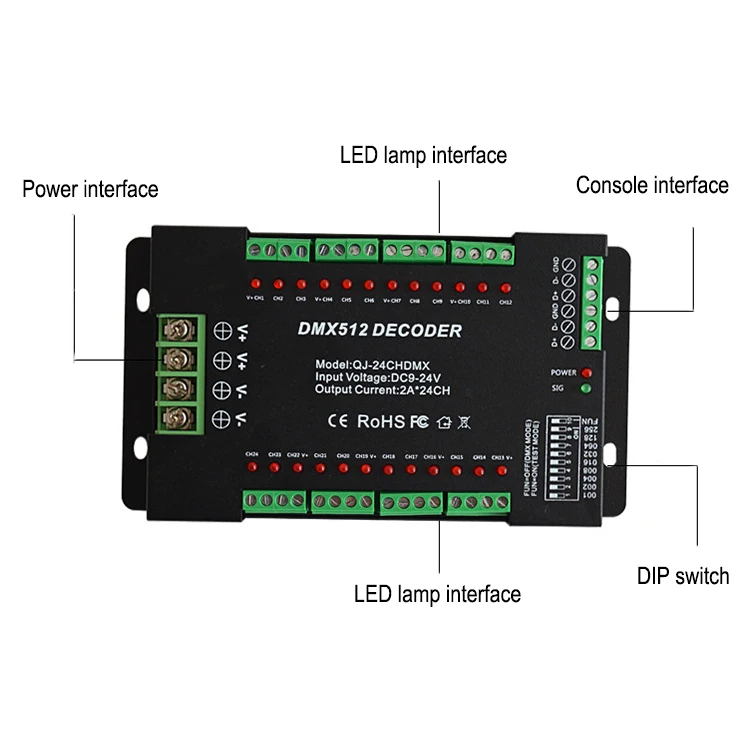

Detailed Images
How to use the 24CH DMX512 LED Decoder
DMX512 Function
The item have DMX512 function, can be used in serval online.
There are DMX512 signal mode and Automatic mode.

1.DMX MODE
In this mode, you can control the LED decoder with DMX512 console or PC DMX512 console.
Note: FUN=OFF (the tenth code switch up) means to accept DMX512 signal mode.
The first DMX address setting:

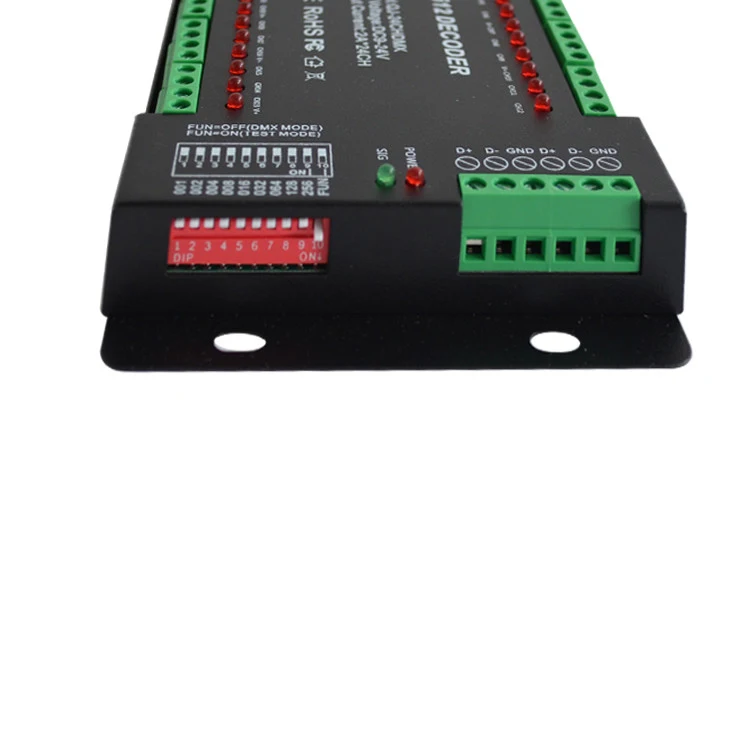

The decoder set the address bit by coding switch, of which 1-9 is for setting the start address of the Binary numeric code switch of DMX512, the first one is the lowest position, the ninth one is the highest.
Bit of address code can be set to 512.
DMX512 start address code is the sum of switch 1-9, at the same time turn downside of the code switch (ON set to"1" ), then the value of the bit can be gotten; coding switch up (set to "0" ), the value of the bit is 0.
Example 1:
As the following schematic 1, DMX512 start address is set to 38, encoding the No.2,3,6 position on switch dial to "1", others set to "0", then the sum of the switch 1-9 code value is 32+4+2, that is the DMX512 start address 38.
Example 2:
As the schematic 2, DMX512 start address is set to 388, encoding the no.3,8,9 switch dial to "1", others set to "0", then the sum of the switch 1-9 code value is 4+128+256=388.
2. AUTOMATIC MODE
In this mode, the LED decoder will run automatically.
Note: It will be automatic operation mode when the No.10 is turned down.
Effect choice (code switch No.1 to No.4):
No.
Dial code
Effect
No.
Dial code
Effect
1
No.1
Automat cycling
2
No.2
Seven-color cycle gradient
3
No.1&2
RGB fade in and out
4
No.3
Seven-color jump
5
No.1&3
RGB jump
6
No.2&3
Red
7
No.1&2&3
Green
8
No.4
Blue
9
No.1&4
Yellow
10
No.2&4
Purple
11
No.1&2&4
Cyan
12
No.3&4
White
13
No.1&3&4
Seven-color cycle gradient and jump
14
No.2&3&4
RGB cycle gradient and jump
15
No.1&2&3&4
Seven-color jump and RGB jump

Speed choice (DIP switch No.5 to No.8):
No.
Dial code
Speed
No.
Dial code
Speed
1
No.5
0.5 second
2
No.6
1 second
3
No.7
1.5 second
4
No.8
2 second

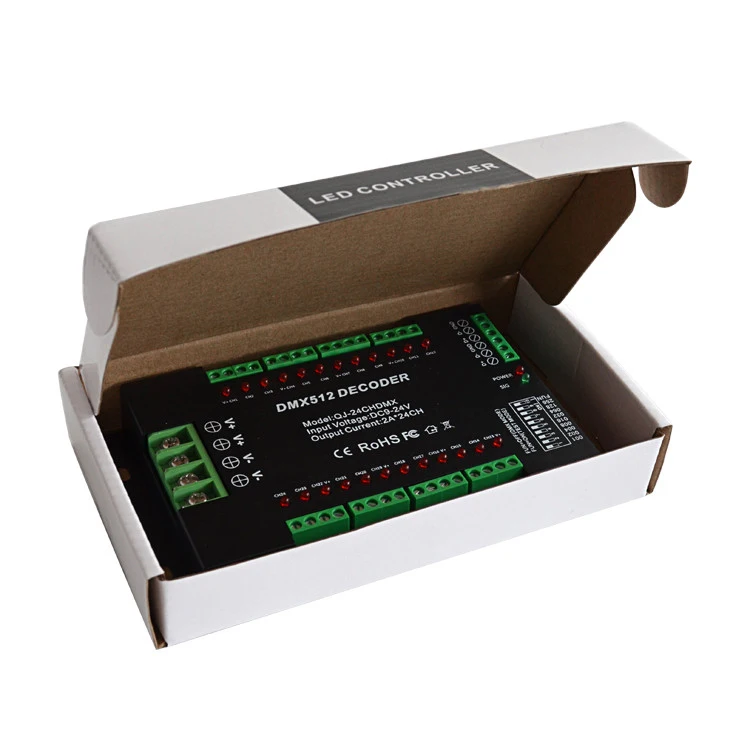

Packing & Delivery
FAQ

Q1. Can i have a sample order for LED light decoder?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time is determined by the order quantity.

Q3. Do you have any MOQ limit for led light decoder?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5~6 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?
A: You can place an order directly by clicking "Start Order" on the product page.
or
Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.

Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
