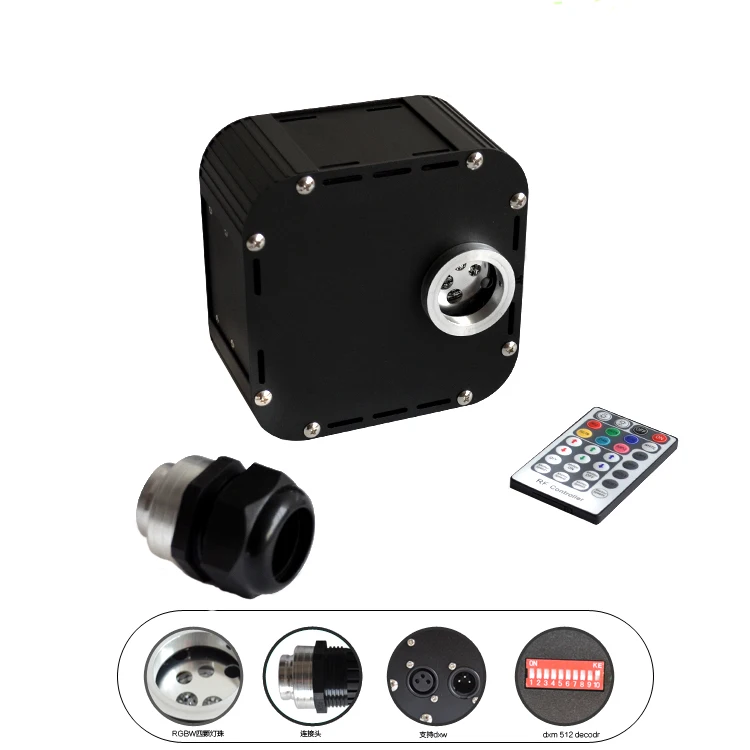

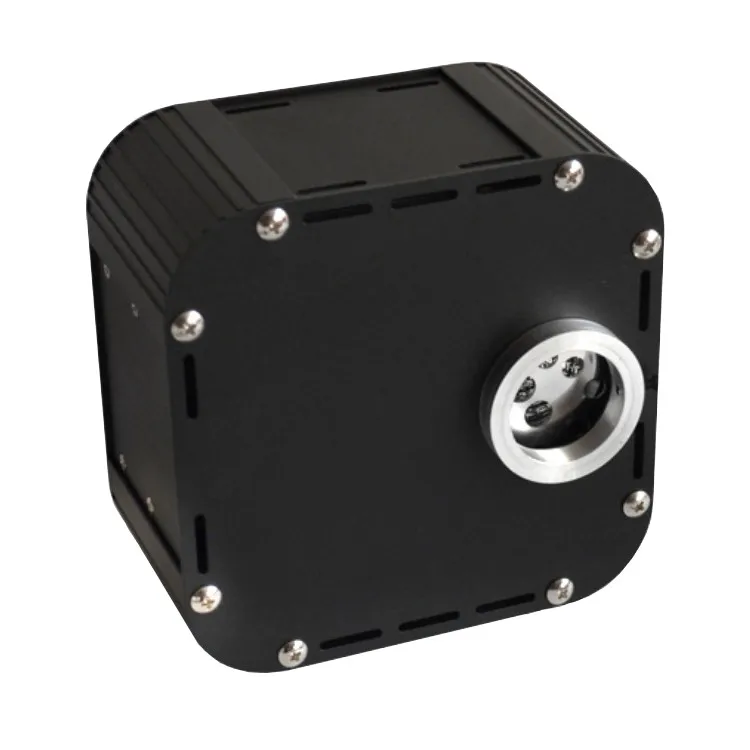

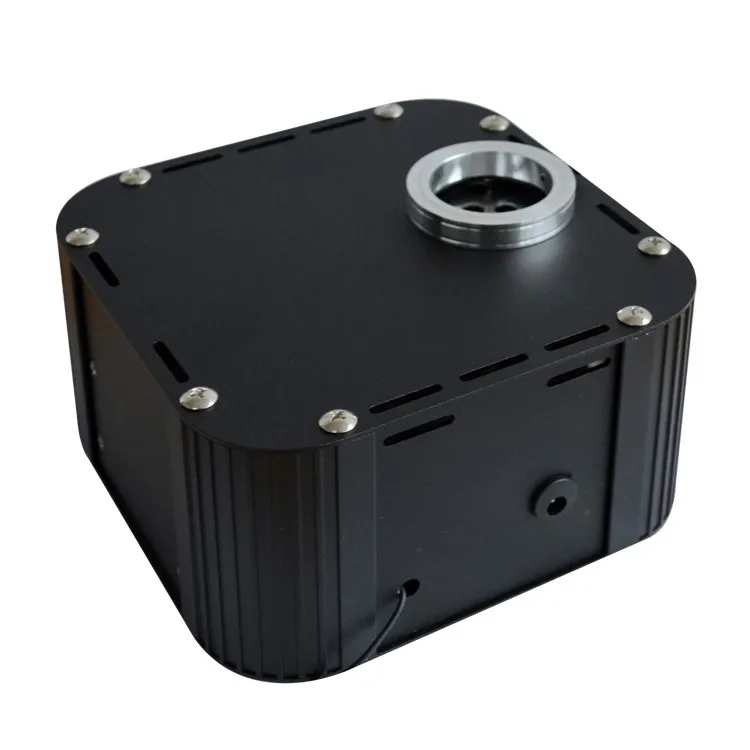

50W RGBW Twinkle Fiber Optic LED Light Engine with DMX512 Function

Share on:


Price:RUB 6,141.49 - RUB 10,594.07
Price in USD:Details

Quantity:


Product Overview

Description

Product Description

50W Twinkle RGBW Fiber Optic LED Light Engine can be online with DMX512 Bar Shining Light Effect

Specification
Input Voltage
DC24V, AC86-265V
Power
50W
Power Source
LED
LED Color
RGBW
Fiber Connector Diameter
30mm, Can hold up to 1250pcs 0.75mm fiber.
Lifetime
50000  Hours
Key Features
1.Built-in Motor, twinkle effect.     2.DMX512, can be used online.
Warranty
2 years.

Basic Features:

1.Speed and brightness adjustable.
2.Built-in Motor, twinkle effect.
3. Multiple modes. Includes static color modes and dynamic modes.
4.Four LED lamp beads RGBW that emit both pure white and mixed white light.

5. DMX512 function, can be used online.
6. Aluminum shell for better protection.

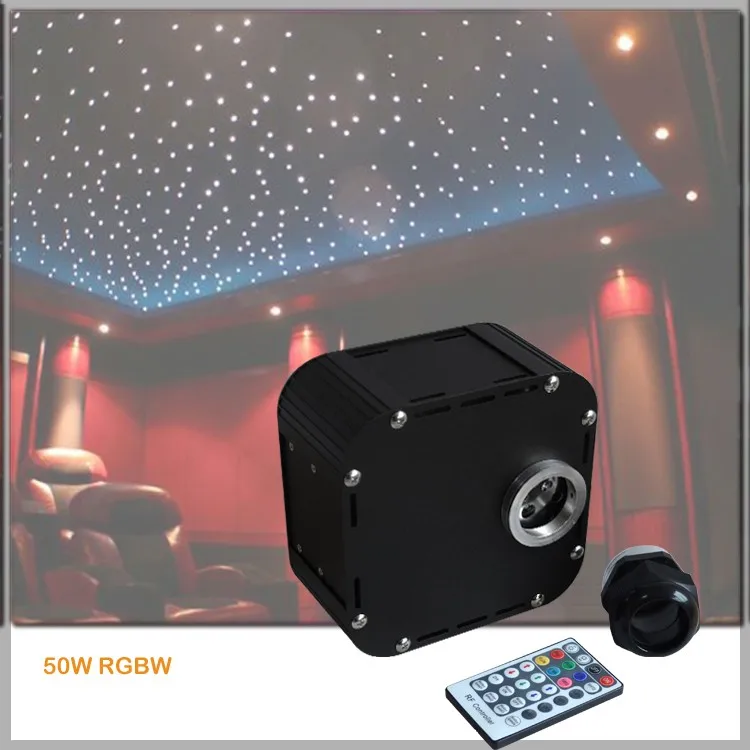

7. Applications: living room, bedroom, balcony, children's room, private film and television, hotal , KTV, bar, etc. where is want to create a romantic atmosphere full of stars

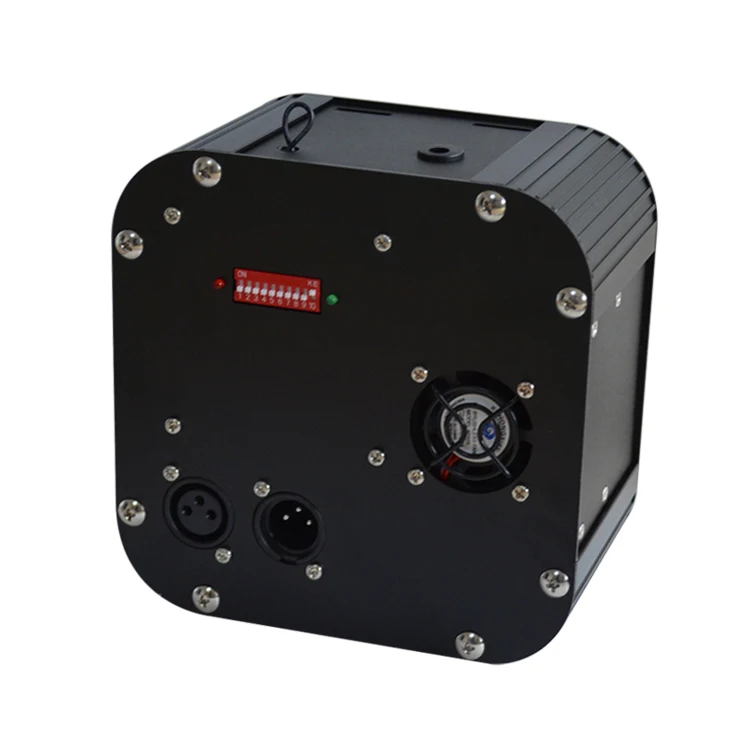

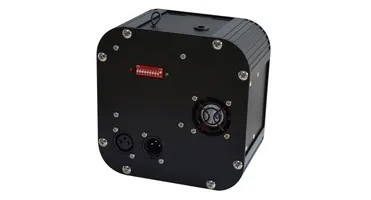

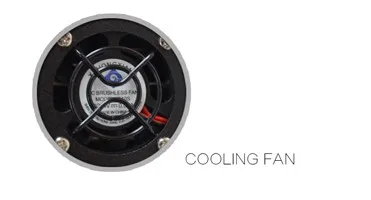

Detailed Image




Product Instruction

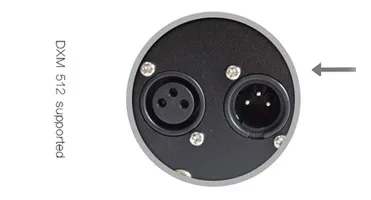

DMX512 Function
The item have DMX512 function, can be used in serval online.
There are DMX mode, RF mode and Automatic mode.

1. DMX MODE
In this mode, you can control the fiber optic light engine with DMX512 console or PC DMX512 console.

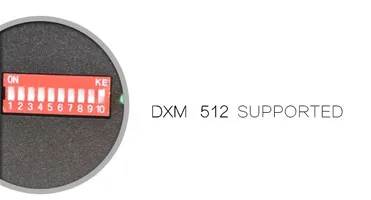

Note: FUN=OFF (the tenth code switch up) means to accept DMX512 signal mode.
The first DMX address setting:

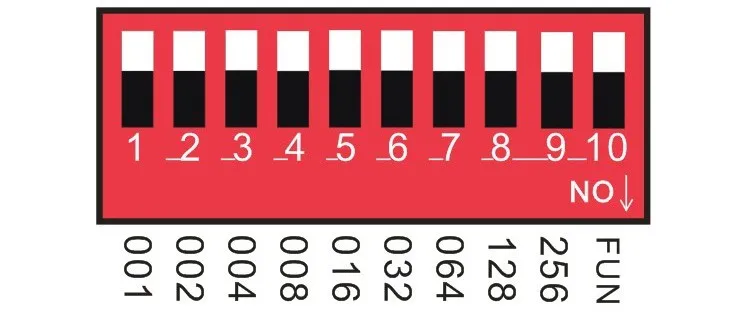

The decoder set the address bit by coding switch, of which 1-9 is for setting the start address of the Binary numeric code switch of DMX512, the first one is the lowest position, the ninth one is the highest.
Bit of address code can be set to 512.
DMX512 start address code is the sum of switches 1-9, at the same time turn downside of the code switch (ON set to "1"), then the value of the bit can be gotten; coding switch up (set to "0"), the value of the bit is 0.

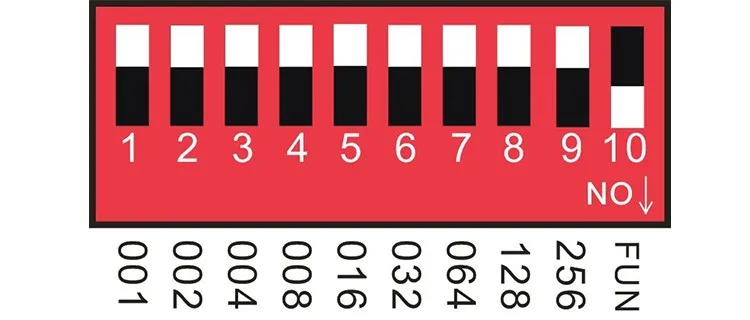

Example1:

As the following Schematic 1, DMX512 start address is set to 38, encoding the No. 6,3,2 position on switch dial to "1", others set to "0", then the sum of the switch 1-9 code value is 32 + 4 + 2, that is the DMX512 start address 38.

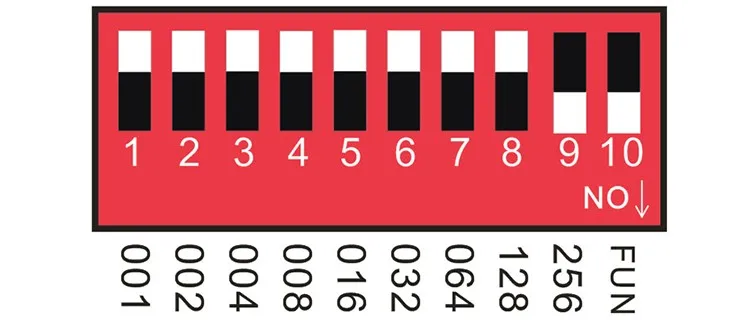

Example 2:

As the schematic 2, DMX512 start address is set to 388,
encoding the no. 2,3,6,8 switch dial to "1", others set to "0", then the sum of the switch 1-8 code value is 4 + 128 + 256 = 388, that is the DMX512 start address 388.

2. RF MODE

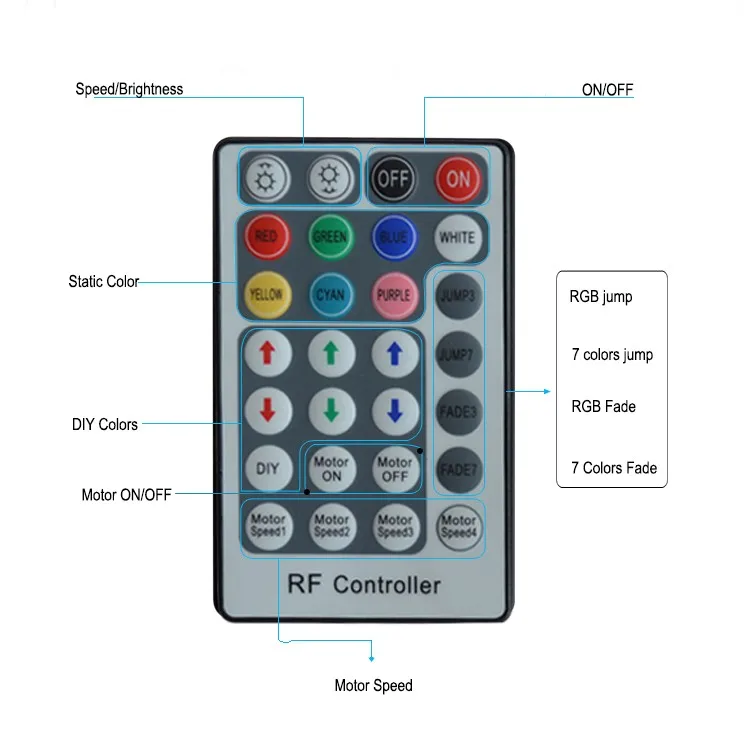

In this mode, you can control the fiber optic light engines with RF remote controller.

Note: It will be RF mode when the No.10 switch is turned down.


3. AUTOMATIC MODE
In this mode, the fiber optic light engine will run automatically.

Note: It will be automatic mode when the No.9 and No.10 switch is turned down.


Effect choice (DIP switch No.1 to No.4):

No.
Dial code
Effect

No.
Dial code
Effect
1
No.1
Seven-color cycle gradient
2
No.2
Seven-color cycle jump
3
No.3
Six-color cycle jump
4
No.4
Static Yellow
5
No.1&3
Static Red
6
No.1&4
Static Purple
7
No.2&3
Static Green
8
No.2&4
Static Cyan
9
No.3&4
Six-color cycle gradient
10
No.1&2&3
Static Blue
11
No.2&3&4
Static Green
12
No.1&2&3&4
Seven-color cycle gradient

Speed Choices (DIP switch No.5 to No. 7):

No.
Dial code
Effect
No.
Dial code
Effect
1
No.5
0.5 second
2
No.6
1 second
3
No.7
2 second
4
No.5&6
1.5 second
5
No.5&7
1.5 second
6
No.6&7
2 second
7
No.5&6&7
2 second
8
Related Products

50W Twinkle DMX Light Engine

16W Twinkle LED Light Engine


16W Wifi APP LED Light Engine

                 Item
Power
Color
 Remote
    Moter
                Mode
50W Twinkle DMX Light Engine
50W
RGBW
RF 28 keys
    Yes
Music, Static, Jump, Fade
16W Twinkle LED Light Engine
16W
RGBW
RF 28 keys
    Yes
Music, Static, Jump, Fade
16W Wifi APP LED Light Engine
16W
RGBW
Wifi App
     No
Static, Jump, Fade
Packing & Delivery


What is in box?

1. 50W LED RGBW light engine.

2. Fiber Connector.

3. 28 keys remote controller.

4. Power adapter.

5. DMX cable.

6. 1000pcs*0.75mm*3m fiber optic.

7. Instruction manual.

FAQ

Q1. Can i have a sample order for 50W LED DMX light engine?
A: Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time according to the order quantity.

Q3. Do you have any MOQ limit for 50W LED DMX light engine?
A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-6 days to arrive.

Q5. How to proceed an order for product?
A: You can place an order directly by clicking "Start Order" on the product page.
or
Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.

Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
