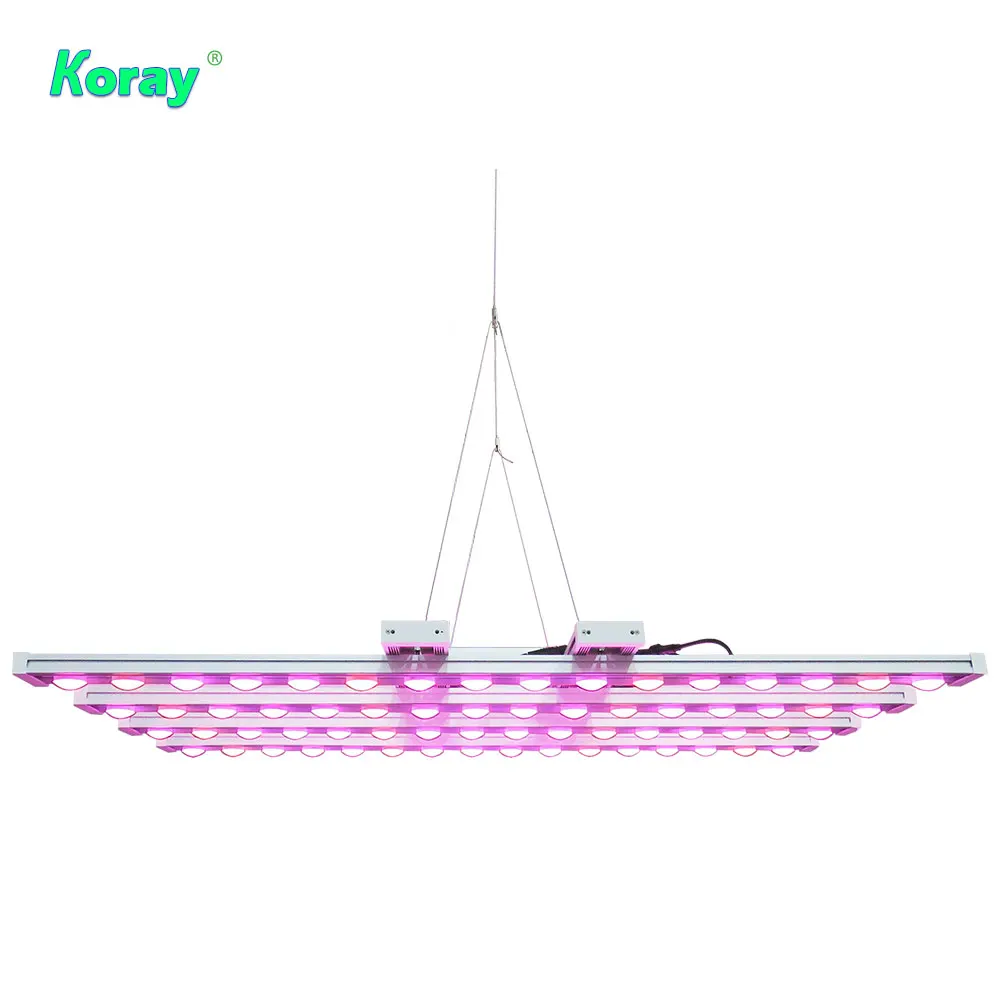

Полный спектр 480 Вт 600 Вт 1000 Вт 1200 Вт 3000 Вт 30000 Вт двойной садоводческий светодиодный светильник для выращивания цветов/гидропоники

Share on:


Price:387,50 $ - 798,70 $
Price in USD:Details

Quantity:


Product Overview

Description


Full spectrum 480w 600w 1000w 1200w 3000w 30000w dual horticulture led grow light for flower/hydroponic1.jpg





RX-GW78-120Z Toplighting medicinal plant growth module array lamp, Koray LED Grow Lights, New patent design product with unique lens, Different LED chips in one lens, Concentrating Light efficiently and More uniform spectral radiation, directional light ,higher light utilization efficiency, more efficient comparing with common grow lights.Specially designed for medicinal planting, high PAR output, optimal plant-specific spectrum, from UV to Far red, to meet the light requirements of medicinal plants, fully stimulate medicinal ingredients. It is especially used for indoor planting of medicinal plants, planting planting tents, and scientifically experimenting planting.





Technical Parameters:

ModelDimension
LxWxH
Spectral WavelengthPhoton PPFD
µmol/m²/s
Luminous flux
Radiation Power
Power InputComment
RX-GW78-120Z-A1213x900x110mmD6705µmol @0.5m 21536LxFlux 31000Lm962µmol/s480WRecommended Grow Medicinal plants
640µmol @0.7m 20066Lx
486µmol @1m 14671Lx
RX-GW78-120Z-DM1213x900x110mmD6670µmol @0.5m 20000LxFlux 29000Lm
894µmol/s
440W3 in 1 dimming function Recommended Grow Medicinal plants
600µmol @0.7m 18800Lx
450µmol @1m 13800Lx
Surface temperature rise Tc 32°K , Operating temperature: -30°C ~ 40°C , Lifespan: 50,000 hrs (Note: Ta ≤ 25°C)
Tolerance range for optical and electrical data: ±10 %. Light emitting angle: 60 °
Recommended irradiation distance 0.5 ~ 3m; 0.5 ~ 1m for medicinal planting, 0.5 ~ 3m for vegetable cultivation, 1 ~ 3m for greenhouse fill light.




Recommended Products:

RX-TP6350.pngRX-GW6350

Led Interlighting Moodule




RX-TP5025T-120Z
Medical Plant Growth Module Lamp

RX-GW45-120-4H_.pngRX-GW45-120

Vertical Farming Plant Grow Lights

RX-TP10058T.pngRX-TP10058T

High Power  Led Plant Toplighting


            Different LED chips in one lens, Spectral radiation uniform, Lens + Reflector cup, Concentrating radiation, D6 Spectrum - Dedicated to                      medicinal and medical plant growth Indoor planting of medicinal plants, planting planting tents, and scientifically experimenting planting.
Indoor planting of medicinal plants, planting planting tents, and scientifically experimenting planting

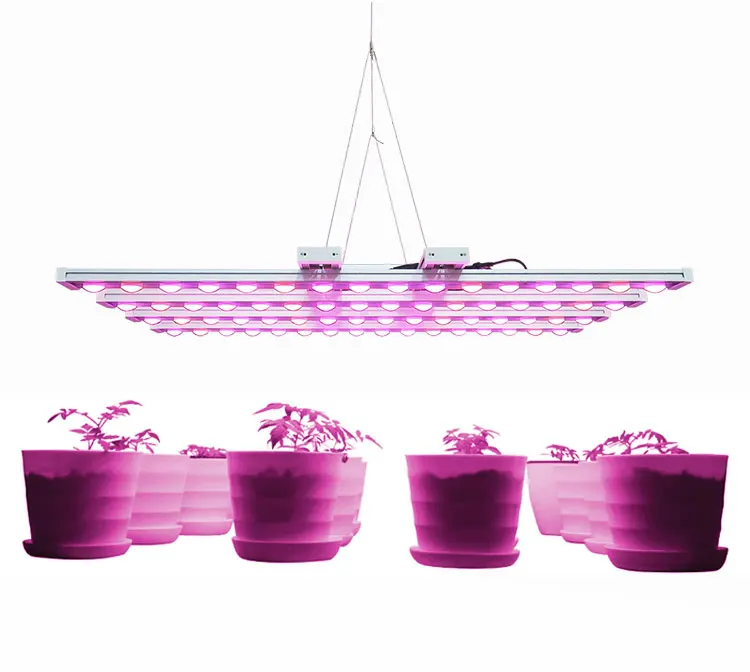

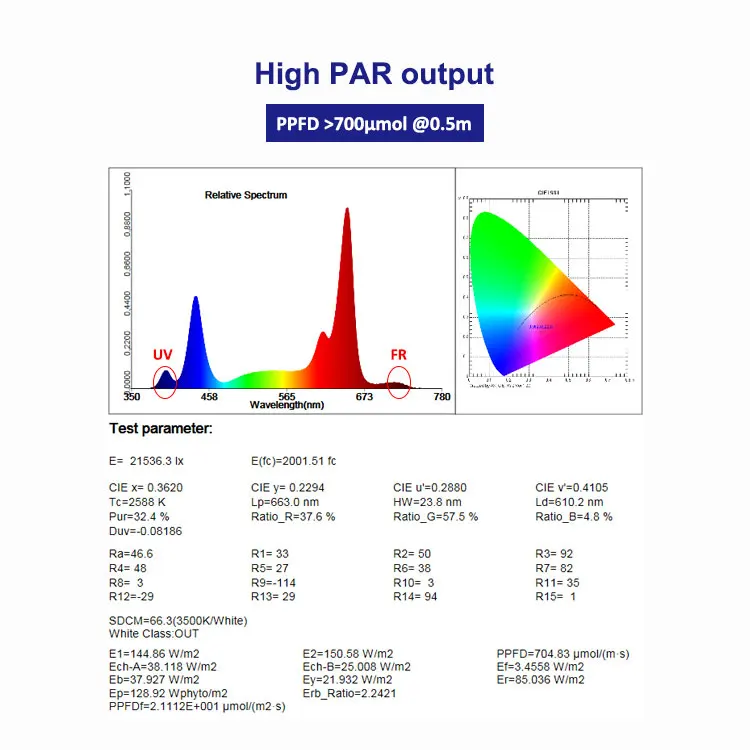

4.jpgHigh PAR Output, PPFD >700µmol @0.5m

German brand horticultural LED(Deep Blue,Far Red, Hyper Red), high efficiency and high reliability
Meanwell power supply, dimmable, waterproof,
high reliability, 3 in 1 dimming function (0~10VDC,
PWM signal, or resistance) Input 100 ~305VAC

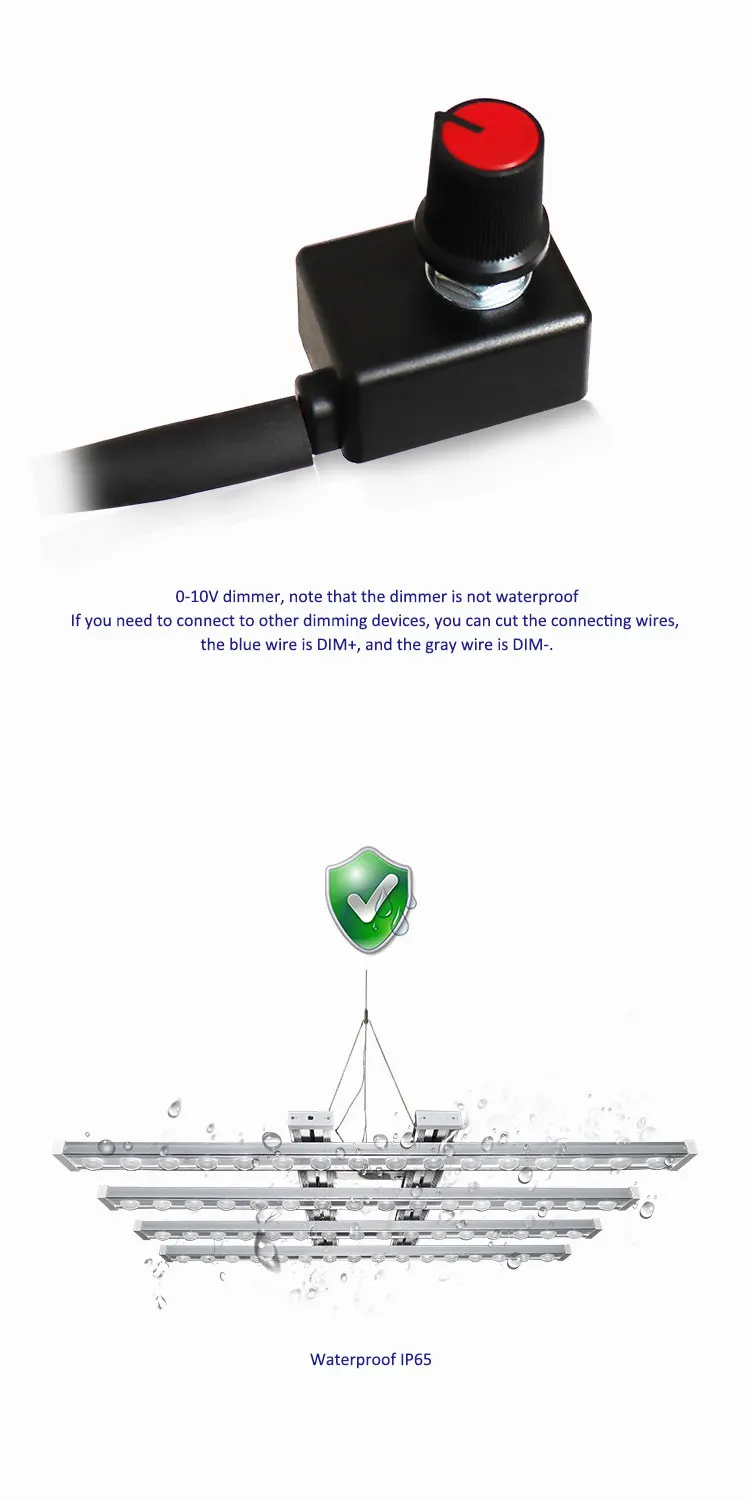

Free dimmers  &  Waterproof IP65
 Click here >>>Contact Supplier To Get Factory Price & Catalog
Package includes the following items  & Installation tools and accessories

Package includes the following items
Installation tools and accessories
About LED strips

Waterproof LED grow Bar 4pcs

Including LED grow bar fixing bolts



Mounting wrench tool

L-type hex wrench - suspension bolts

Aluminum mounting bracket 2pcs

Includes power supply bolts and cable suspension bolts

 M6 L Socket Wrench - LED grow bar fixing bolts

Suspension Kit Steel

Side Exit Grippers

Double hole wire rope lock (Optional: Cable Looping Gripper)

Cross Cable Grippers

1.5m Steel cable

1m Steel cable

M4 L Socket Wrench - power supply bolts

Power supply Kit 1set



Meanwell power supply 2pcs

Y type Waterproof plug cable 2pcs

T Screw fix Waterproof connector 2pcs

L20 Screw fix Waterproof connector 2pcs

L16 Screw fix Waterproof connector 1pcs



Self-Locking Nylon Plastic Wire Cable



Plastic Wire Cable - Cable finishing and fixing

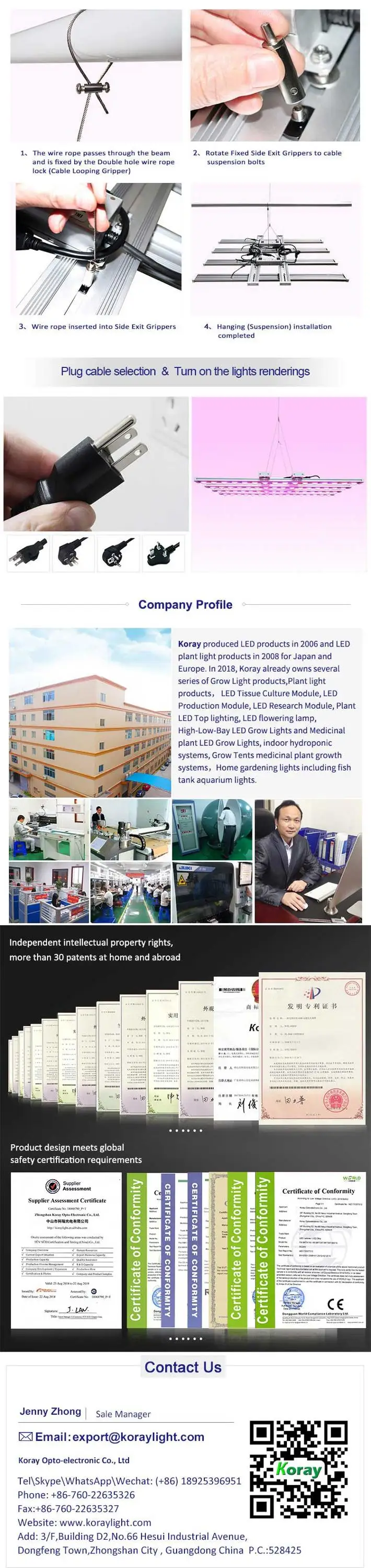

 Grow Lights Installation steps  &  Suspension installation



Grow Lights Installation steps
Suspension installation
1.Take out 4pcs waterproof LED grow bar, you can use a soft cloth pad to avoid damage
1.The wire rope passes through the beam and is fixed by
the Double hole wire rope lock (Cable Looping Gripper)
2. The aluminum mounting bracket is placed on the back of the LED grow bar
3.The power supply is placed on the fixing bolts, the spacing is adjusted,
and the mounting bracket and power supply are slightly fixed
2. Rotate Fixed Side Exit Grippers to cable suspension bolts

4. Make sure the installation is correct, lock the power bolts and screws,

and lock the LED strip fixing bolts.

5. Connect the power output plug cable to the LED grow bar input plug cable
3. Wire rope inserted into Side Exit Grippers
6. Installation is complete, plug in the power to light the plant grow light
4. Hanging (Suspension) installation completed
