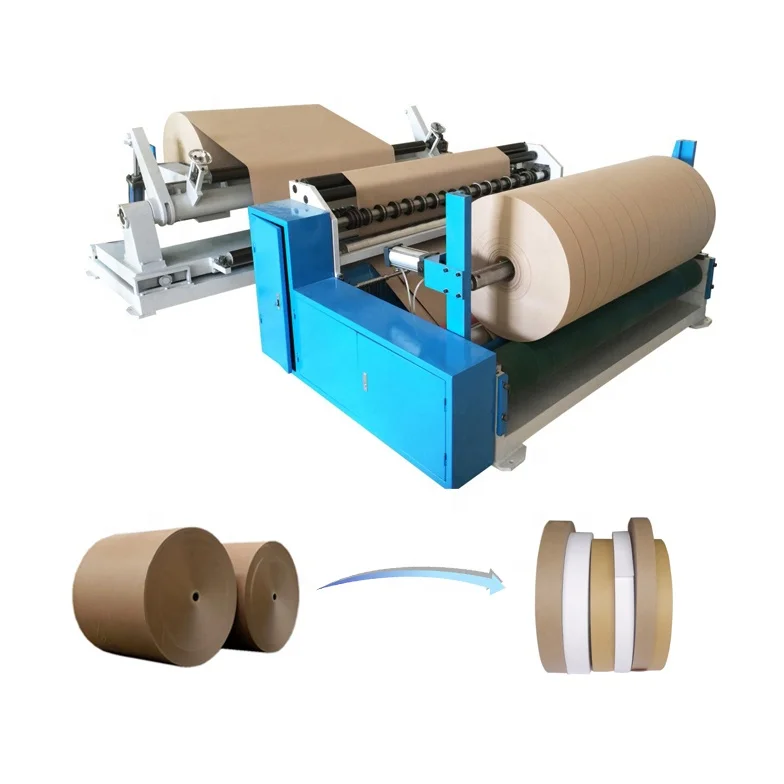

Jumbo Paper Reel Slitter Rewinder Machine Automatic High Speed

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description






Product Description


Usage: CFFQ-200 Jumbo Paper Slitting Rewinding Machine is suitable for Kraft paper; Tea paperboard; Bobbin paper; Art paper etc.


Features:


1. Double blades (upper blades and down blades) slitting. Cutting edges are more smooth and neat.


2. Adopt shaftless material loading device which can bear 2000kgs weight.


3. Pneumatic loading and unloading system; material paper roll loading and finished rolls unloading to be automatically.






Technical Parameters

































































































































Technical Parameter



                  Control System



Material Paper



40-600gsm



Main Motor



15kw Wannan



Unwind Width



600-1600mm



Inverter



18.5KW Delta



Unwind Diameter



1400mm (standard)



Lifting Motor



1.1kw



Rewind Diamter



1400mm (standard)



Clamping Motor



1.5kw



Minimum Slitting Width



35mm



Execute Components



CHNT



Working Speed



1-180 meters/min



Signal Components



Hugong



Speed regulation



By Inverter



Pneumatic Components



Jingwei



Material Loading Device



Shaftless Device



Electric Components



CHNT



Loading Type



Automatically by Pneumatic (hydraulic can be customized)



Bearing



Haerbin



Rewinding Type



Air Inflation Shaft



Configuration



Unloading Type



Automatically by Pneumatic



Material Paper Fixing Cone



2 Pieces (76mm ID)



Power Supply



380V/3Phase/50Hz


(can be customized)



Lifting Air Cylinder



2 Pieces



Discharging Air Cylinder



2 Pieces



Size



Material Shafts Braking Device



2 Sets



Mainframe (two parts)



3000*1700*1100mm (Unwinding side)



Blades



20 Sets (standard)



3300*1200*1200mm


(Rewinding side)



Operating Box



1 Set



Curved Roll



Have



Weight



3200kgs



Meter Counter



Optional



Enclosed Spare Parts



Automatic Correcting Unit



Optional



Useful Tool



1 Set














Pictures

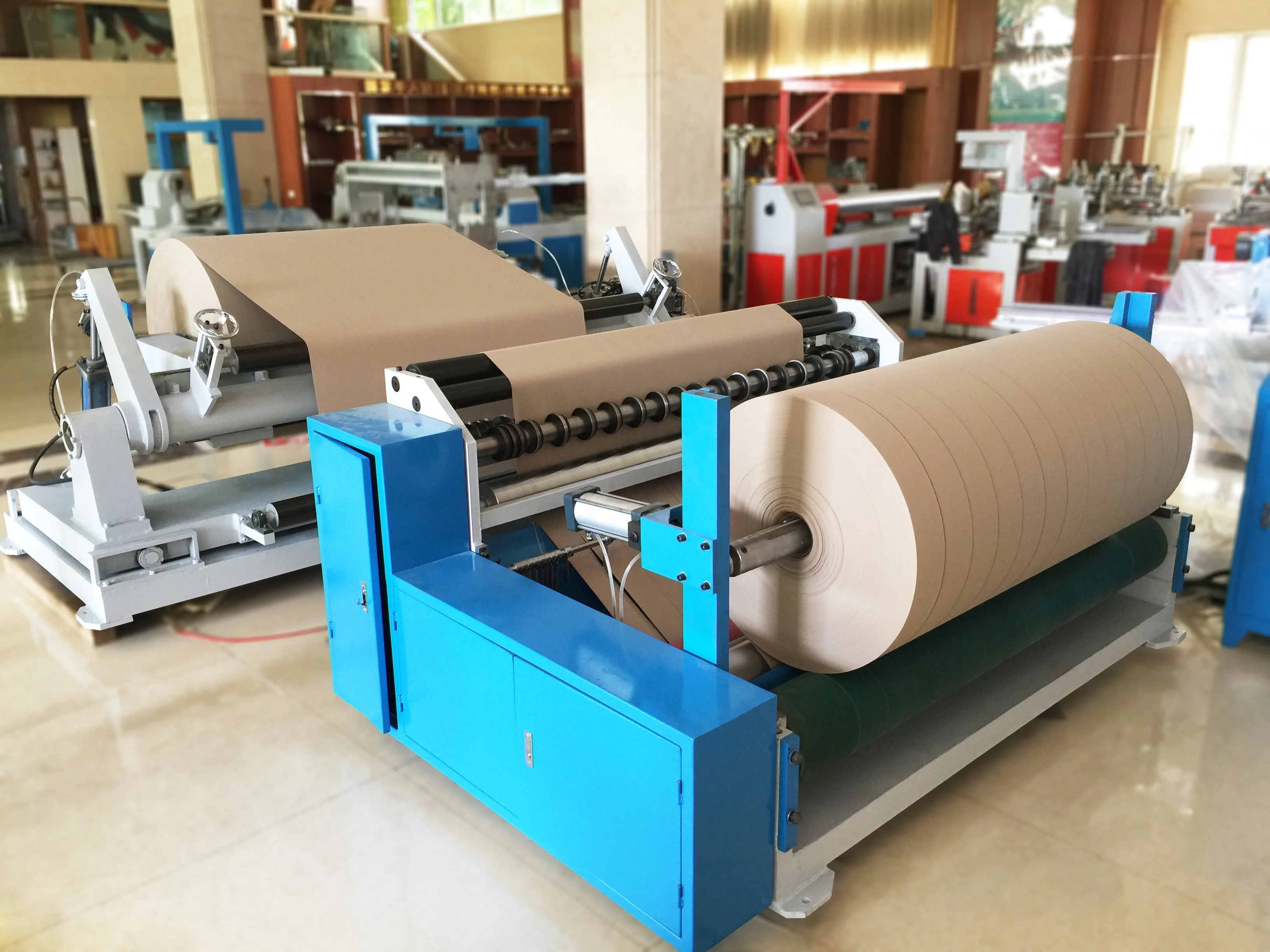

  • Shaftless Unloading System; Hydraulic Lifting System


_2021012315094732

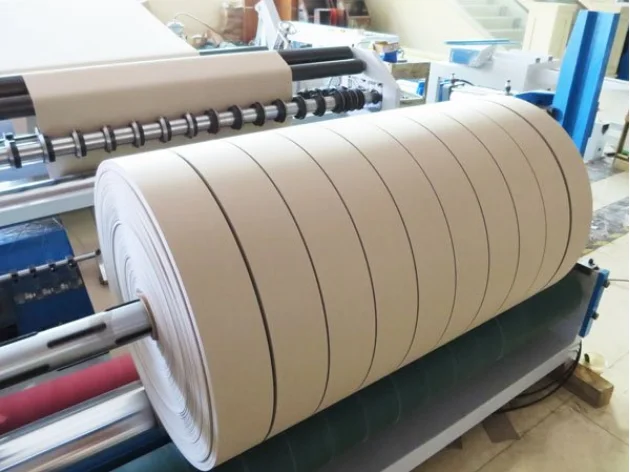

  • Slitting& Rewinding Side.


a. Multi Blades Slitting -- minimum slitting length is 35mm.


b.Rewinding part adopted with air inflatable shaft; finished rolls can be removed more easier.


_202101231509471

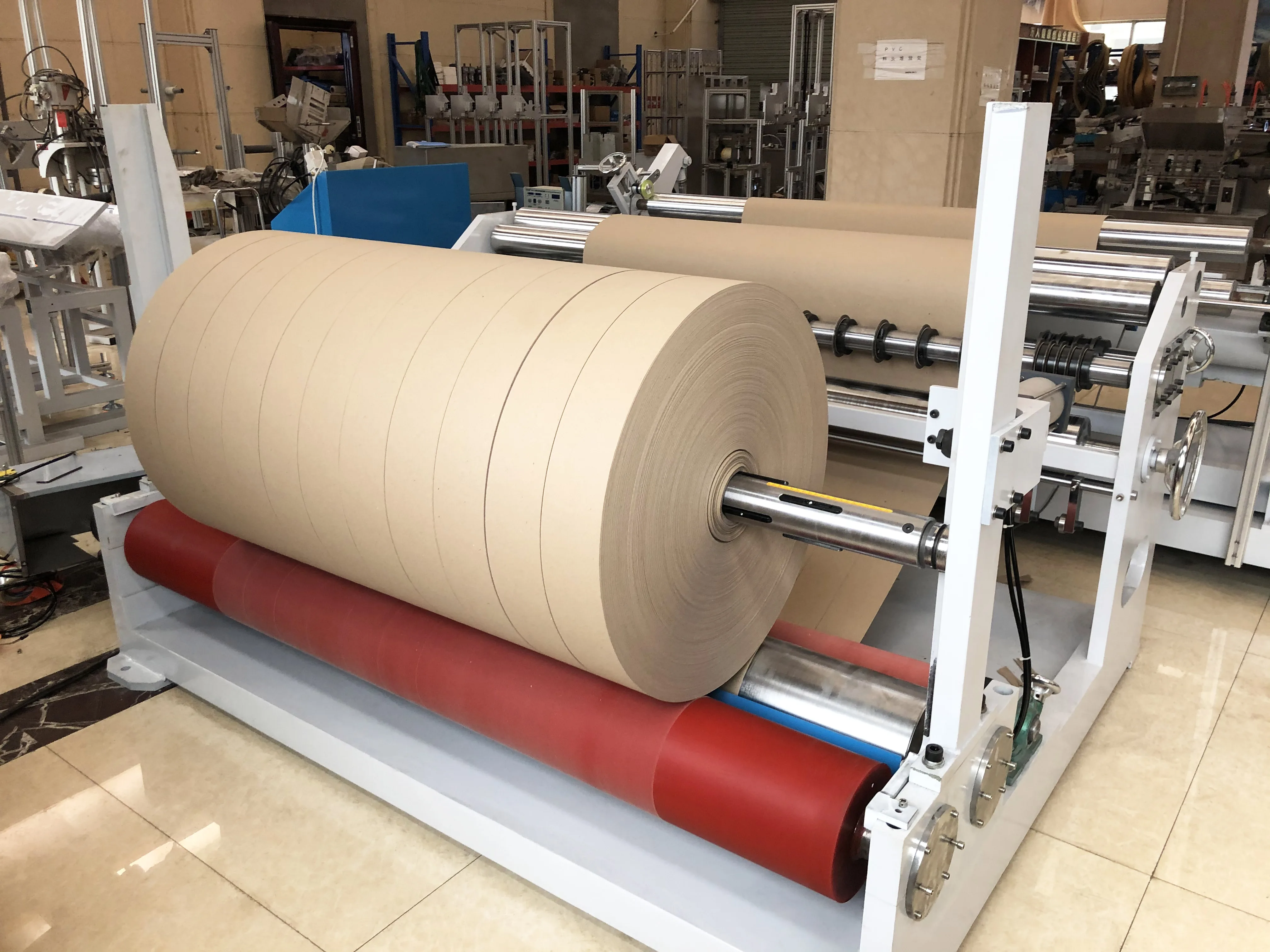

  • Rewinding side has curved roller and finished rolls can be seperated automatically

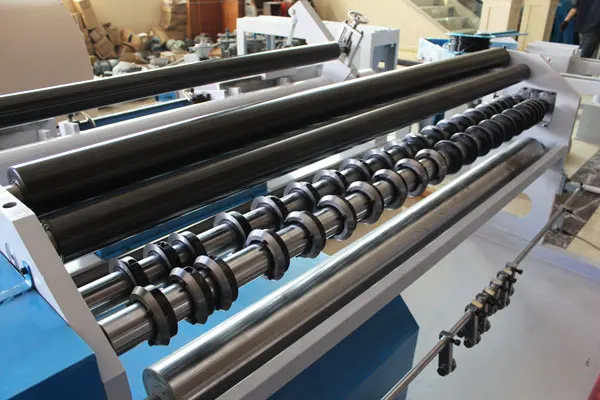

  • Top and bottom slitting knives working together makes it more efficient.


IMG_9493-1





_202101231458071

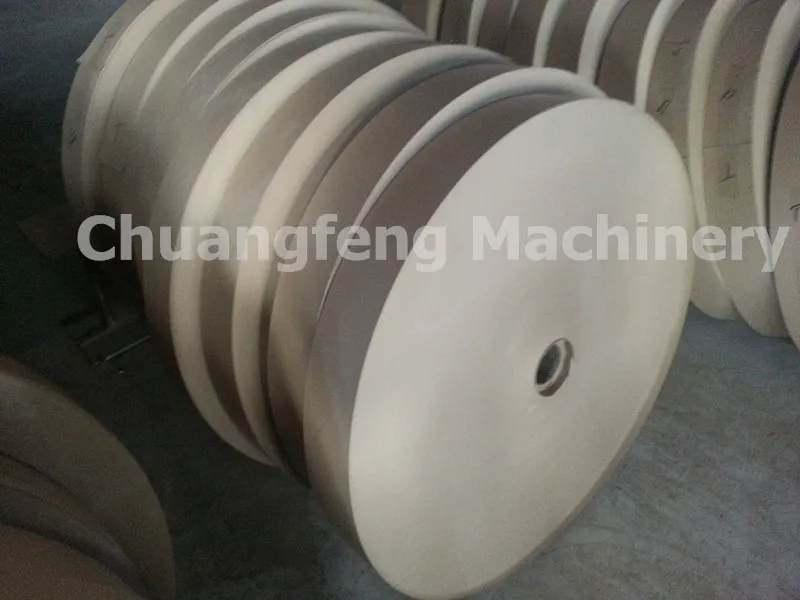

Finished Products
