Product Overview

Description



Product Description

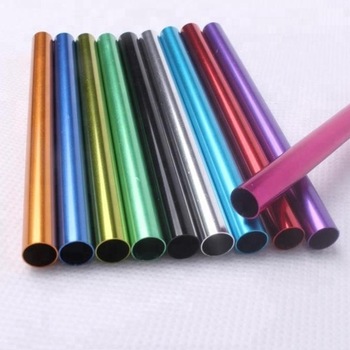

  Product name : SC/MALRound Aluminum Pneumatic Cylinder tube ISO15552




















  Bore size :  16/20/25/32/40/50/63/80/100/125/160/200/250/320mm



  Material:  6063# Aluminum



. Alloy temper:   6063-T5


 Surface smooth, no scratch,no chip, no drawing stamp, no under cut

 Surface Anodization,  Oxidation film thickness less than  15±  5um

 Surface hardness  HV400 ;   The Substrate hardness more than 60

 Bending resistance less than  0.05mm/300mm  ;  Max is 0.05mm

 Tortuosity  less than  1/6° / 300°   Max is less than

 Depth of Parallelism is less then   0.08/300mm   Max is less than 0.8mm

 Ensured Pressure Resistance more than 1.5MPa.

 Other morpheme tolerence  grade C

 Bore size  H9








How to order ?







Packaging & Shipping



1 pcs pneumatic cylinder  tube with logo or without logo into box ,



then into export carton box  or Wooden box



Delivery by  Fedex,  ups, TNT, EMS,  SF, DHL,



and by air or by ship for bulk quantity  order





Our Services

Sample is available for your testing



we can design cylinder or pneuamtic system as per your special requirement



drawing is available for your reference.



after-sales service is available, if there is any problem on our product, We will try our best to fix it.
