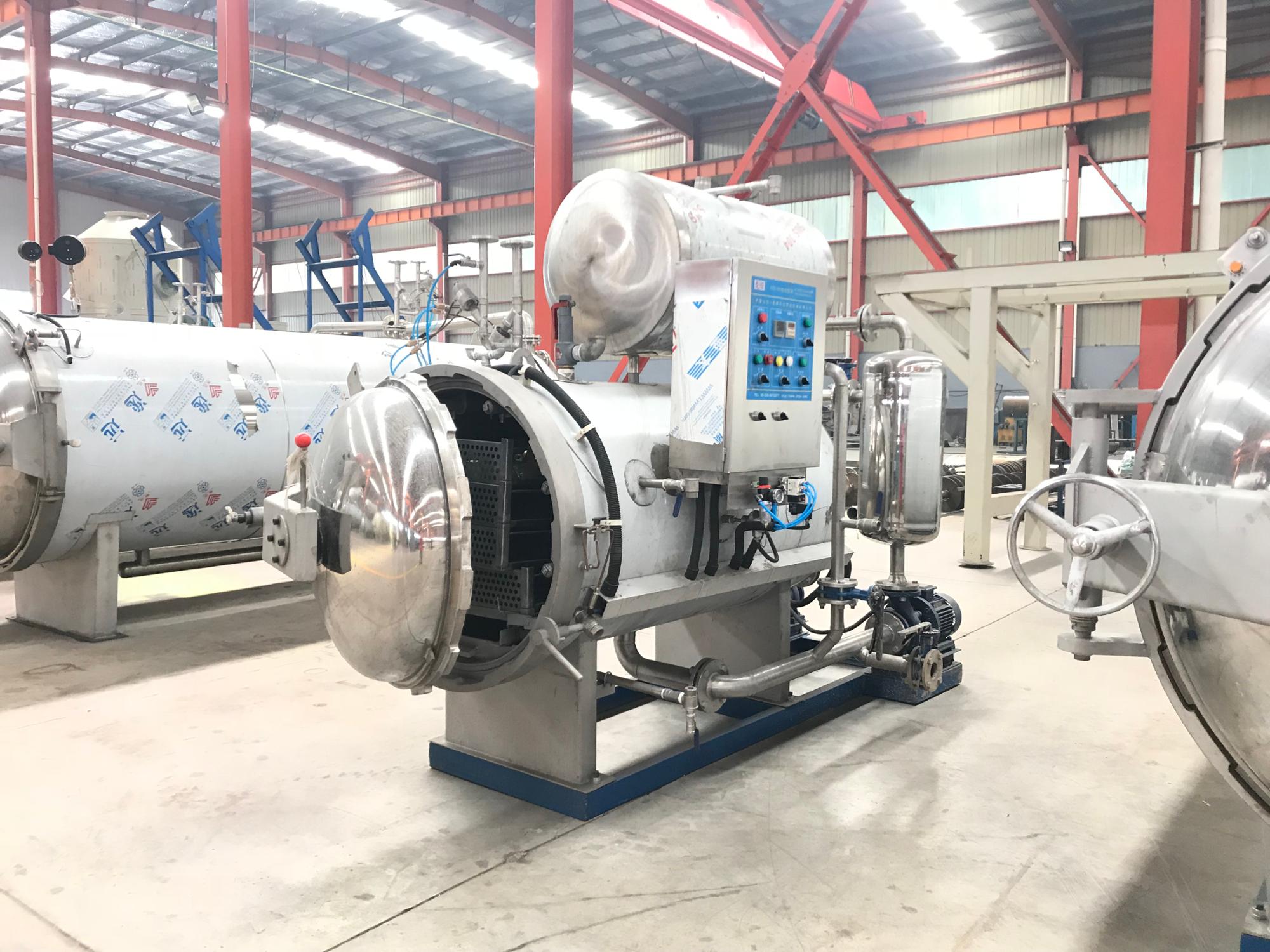

High pressure juice processing retort machine for glass bottle

Share on:


Price:RUB 398,415.50 - RUB 3,984,155.00
Price in USD:Details

Quantity:

Add to Cart
  • add to wishlist

Product Overview

Description







Product Description

High pressure juice processing retort machine for glass bottle

Equipment features



strategically located nozzles and high efficient heat exchanger

•  This
  retort sterilizer machine works by spraying water mist to the treated food surface from some strategically located nozzles .it features prompt delivery of temperature of autoclaving process .

•   techonology is adopted in this mahcine to guarantee a constant room pressure and temperature, tolerance as precise as 0.01MPA and 0.3°C respectively in the autoclave sterilization.

•    Spray regulator is introduced in this machine to detect the process to insure a evenly temperature distribution

•     this  retort sterilizer machine is equippted with PLC automatic control  to go through the whole sterilizing process.

•   Muti-step heating and cooling technics is used in the autoclave to produce a penetrating temperature. Configurated parameters for explicit sterilization is saved in the computer for easy operation.

•     Temperature distribution test is conducted  though all our products to insure a temperature tolerance of 0.3°C will be met with this high pressure autoclave.

•     Cooling &heating water take different channle to avoid a contamination in the whole sterilizing process
applicaton scope: glass autoclave, autoclavable pouch, glass jar, retort food pouch, soft can, laminated film bag, PP bottles







Technical parameter



Model

RT-600

RT-700

RT-800

RT-900

Diameter(mm)

1000

1200

1500

1800

Material

SUS304/Q235B

Design temperature

147°C

Experiment pressure

0.44Mpa

Design pressure

0.35 Mpa

                                                    Retort

Length ( mm )

Capacity ( m*m )

Pressure ( Mpa )

Temperature ( °C )

                                               RTB-700

1200

0.46

0.35

147

                                                RTB-900

1800

1.14

0.35

147

                                             RTB-1000

2200

1.73

0.35

147



                                             RTB-1200

3000

3.39

0.35

147

3600

4.06

0.35

147

Ritong fully automatic with PLC




Company Information

 Zhucheng City Ritong Machinery Co., Ltd. possesses manufacture qualification of pressure vessels with certification number of TS2237125-2014 and has attained ISO9000:2000 quality management system and European CE certifications. We have independent import and export rights and are mainly engaged in food sterilizing equipment and braising and cooking equipment. Our company is the leading supplier of sterilizing equipment in food processing industry in domestic and overseas markets.



Packaging & Shipping

  High pressure juice processing retort machine for glass bottle
HT1RnH_FFBbXXagOFbXd.jpgload on container _.jpgwhlu5420922 (19)_.jpg
