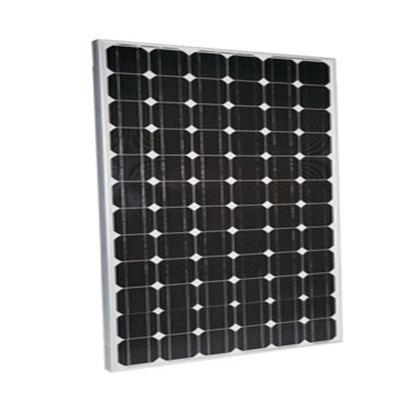

YAOCHUANG ENERGY 325W 335W 340W PERC mono solar panel half cell module
- Category: Solar Panels >>>
- Supplier: Yunnan,Yaochuang,Energy,Development,Co.,Ltd.
Share on:
Product Overview
Description
YAOCHUANG ENERGY 325W 335W 340W PERC mono solar panel half cell module
Electrical Characteristics at Standard Test Conditions (STC)
|
Model |
YC325M(60)H |
YC335M(60)H |
YC340M(60)H |
YC350M(60)H |
YC360M(60)H |
YC370M(60)H |
YC380M(60)H |
|
Max. power (W) |
325 |
335 |
340 |
350 |
360 |
370 |
380 |
|
Voc (V) |
40.56 |
41.12 |
41.36 |
40.1 |
40.5 |
40.9 |
41.3 |
|
Isc (A) |
10.23 |
10.38 |
10.46 |
11.15 |
11.35 |
11.52 |
11.69 |
|
Vmp (V) |
33.87 |
34.36 |
34.63 |
33.8 |
34 |
34.4 |
34.8 |
|
Imp (A) |
9.6 |
9.75 |
9.82 |
10.35 |
10.59 |
10.76 |
10.92 |
STC: Irradiance 1000W/m2, cell temperature 25°C, spectra at AM1.5
Electrical Characteristics at Nominal Operating Cell Temperature (NOCT)
|
Model |
YC325M(60)H |
YC335M(60)H |
YC340M(60)H |
YC350M(60)H |
YC360M(60)H |
YC370M(60)H |
YC380M(60)H |
|
Max. power (W) |
241 |
248 |
252 |
261 |
269 |
276 |
284 |
|
Voc (V) |
37.38 |
37.93 |
38.18 |
37.6 |
38 |
38.3 |
38.7 |
|
Isc (A) |
7.17 |
7.27 |
7.32 |
9.02 |
9.17 |
9.32 |
9.45 |
|
Vmp (V) |
33.54 |
34.1 |
34.38 |
31.3 |
31.7 |
32 |
32.4 |
|
Imp (A) |
8.2 |
8.3 |
8.36 |
8.35 |
8.49 |
8.63 |
8.76 |
NOCT: Irradiance 800W/m2, ambient temperature 20°C, spectra at AM1.5, wind at 1m/s
|
Mechanical Parameters |
|
Cell orientation: 120 (6*20) |
|
Junction box: IP68, three diodes |
|
Output cable: 4mm2, 300mm in length |
|
Glass:Single glass |
|
3.2mm coated tempered glass |
|
Frame: Anodized aluminum alloy frame |
|
Weight: 18.7KG |
|
Dimensions: 1755*1038*35mm |
|
Packaging: 360pcs/20GP |
|
845pcs/40HQ |
|
Operating Parameters |
|
Operating temperature: -40°C~+85°C |
|
Power output tolerance: 0~+5W |
|
Maximum system voltage: DC1000/15000V |
|
Maximum series fuse rating: 20/25A |
|
Nominal operating cell temperture: 45±2°C |
Half cut cell and conventional comparison
Half cell design ensures an improved shading response, resulting in higer yields when the module is partially shaded. Shading loss experienced by half cell modules is much better than conventional modules in certain shading conditions.
