Паяльный аппарат dip, размер паяльника около 60 кг: 450*300*70 мм, производитель духовой волновой пайки

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description


Product Description

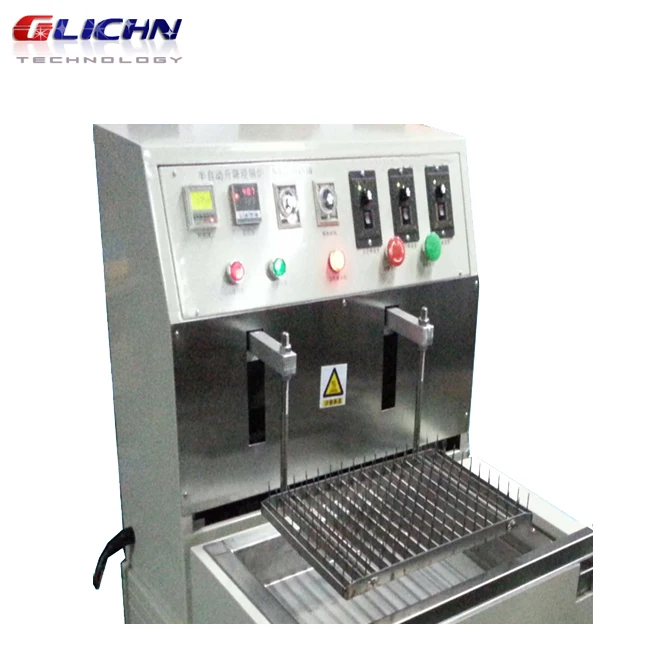

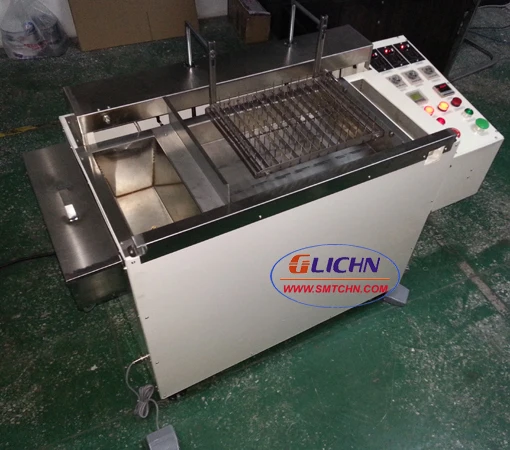

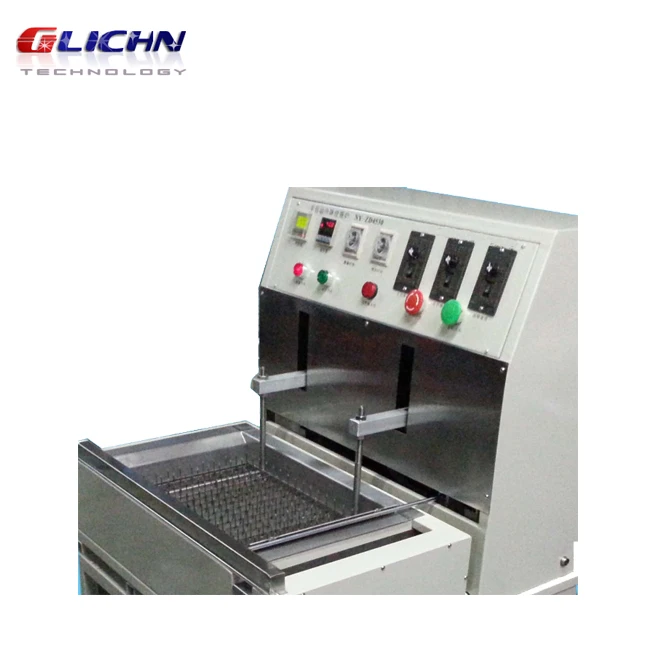

Semi-auto pcb dip soldering machine BDS4530

Leaching method:

Put the flux soldering board on the needle frame,start the footswitch on. The machine can welding difference pcb board at one time,Microcomputer control all the steps,Completely simulation manual leaching welding principle, researchers from training, anyone could dip welding homework, do not need to dab at, welding stable quality, and enhance the production efficiency.

Application:

1.large quantity and lots of specification  PCBA board manufacturers

2.Intrustment and equipment manufacturer,lots  PCB,but less quantity,manual leaching welding need the skillfull operater ,wave soldering high cost ,it's much economical choose automatic leaching soldering pot.

3.For some big board in hkbu tin process will deformation, our company specially produced for fixture, make in soaking in the process of PCB tin deformation.

Function:

1.Meet the circuit board and the common solder products use (with the suitbale fixture)

2.Improve the welding quality, imitate manual welding

3.Improve production rate,awelding batch products at the same time , compared with about four times as much manual welding.

Features:

1.Up and down movement adopting step-motor drive the ball screw, stepping motor accuracy of 0.1 mm, solder depth accurate

2.Circuit board drift in face of zion Baptist tin, and not be impact solder

3.The lifting speed adjustable leaching products, and circuit board leaching tin Angle adjustable, reducing the surface tension, meet the technological requirements.

4.With each cycle of automatic shave their surface oxide to tin slag slot, improve the welding quality.

5.Can undertake circuit board and flux of the surface preheating, improve activity and welding quality.

6.Soldering time, its range from 1 second-10 seconds can beadjust

7.The high temperature ceramic fever board, after insulation treatment, long service life, temperature control adopted PID control in accuracy ± 2 °, tin stove the furnace pipe is made of pure titanium industry TA2, ground temperature using K thermocouple type.

8.has a variety of solder fixture with the product, can be arbitrarily choose and buy, also accept custom

9.Range of 450 °C temperature setting.

Technical parameters



1.Power supply:AC220V/50HZ

2.Power :4.5KW

3.Machine dimension:685mm*685mm*590mm

4.pot size :450*300*70mm

5. Support frame size: 350*250mm (Need size can be customized)

6. Solder Pot Capacity: about 60kg solder

7.Model :BDS4530

8.Temp :0-450°C

9. Weight :60KG

10. Packing is about 97kg; Dimensions :800*800*800mm

Dip soldering machine.jpgAutomatic pick and place machine IC mounter.jpg

Dip soldering machines.jpg

Packaging & Shipping

Packing method:
1)Standard box package for light and small item;
2)Strong wood package for heavy and large equipment;
SMT machine packaging 33.jpg
Shipping way:
1)By air ,for sample and small package ,wordwide express like DHL,UPS,FedFX,EMS....
2)By sea, for large package and quantity;
3)By car or other ways as customer requested;

SMT transportation.jpg



Company introduction

GLICHN found in 2010,Specializing in SMT equipment manufacturing services and sales of peripheral products. Factory is located in shunyi district of Beijing and shenzhen baoan district
SMT class:pick and place machine,small and middle size reflow oven, manual and semi-automatic solder paste printer,PCB loader and unloader,PCB magazine rack,SMD component counter,solder paste and chip production line etc.
THT Class:wave soldering machine, Spray tin stove,cut foot and forming machine,Plug-in production line etc
Others :Spin coater,Dispensing machine,nozzles,feeder,belt ,driver, motor,cylinder,High temperature tape,valve,etc

smt pcb assembly.jpg

Our Service

1. We’ll have a good check and a test before shipping out.
2. We provide you the friendly English User manual or the operating videos for free;
3. 24 hours technical support by email or Skype or Trade Manager or Calling.
4. 1 year machine parts free warranty;
5.Engineers available to service machinery overseas.
