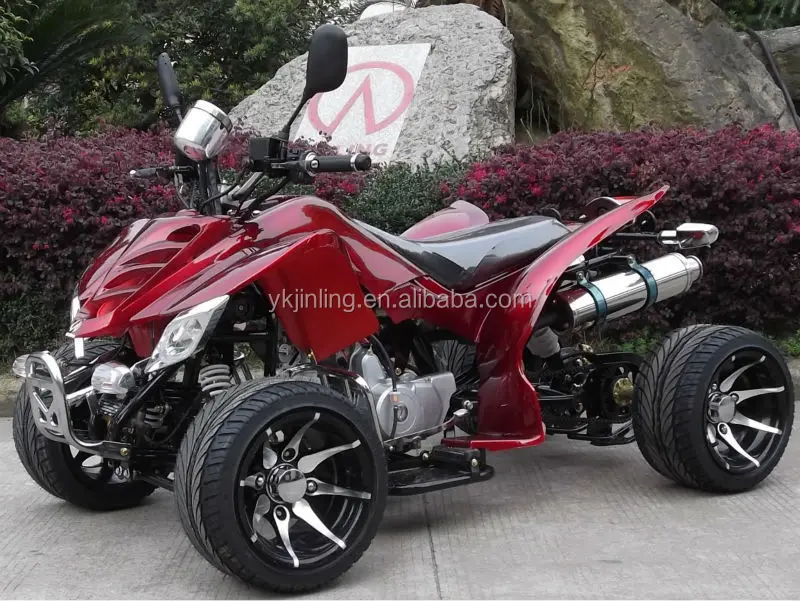

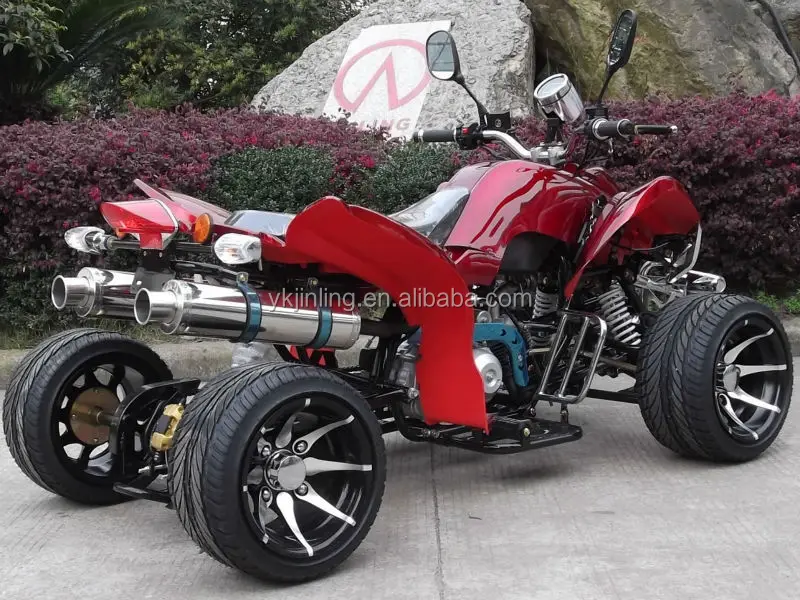

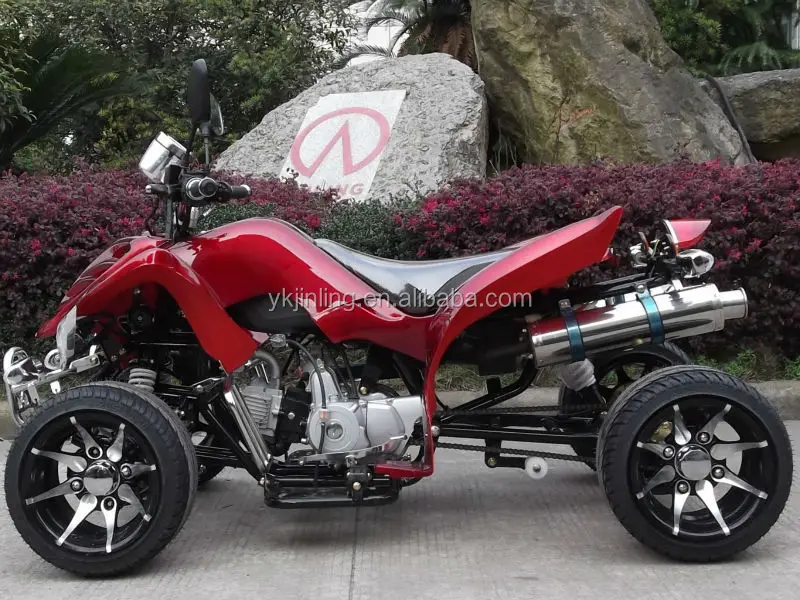

Звенящими Лидер продаж, партиями по 4 колеса ATV

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description


atv,buggy,quad bike



Detailed Images
















































---description---







































































































































































































1.Model No.JLA-11A-08-12L-125
2.Warrantyone year for engine, 6months for other parts
3.ApprovalCE
ENGINE
4.CylinderSingle
5.Cooled SystemAir
6.Engine Stroke4 Stroke
7.Bore*Stroke(mm)55.5×49.5mm
8.Displacement(ml)125cc
9.Max.power(kw/rpm)6.8kw/8000rpm
10.Max.torque(n.m/rpm)8.6N.m/6000rpm
11.Ignition TypeCDI
TRANSMISSION
12.Transmission Typesemi-automatic   F:1 R:1
13.Primary Drive(Rear Wheel)Chain    4x2
14.ReverseYes
15.Max Speed(km/h)≥60
WHEEL
16.Front  wheel235/30-12   alloy rim
17.Rear  wheel235/30-12   alloy rim
SUSPENSION
18.Front SuspensionDouble  A-Swing Arm
19.Rear SuspensionSwing Arm
BRAKE SYSTEM
20.Front brakeDisc
21.Rear brakeDisc
22.Braking distance8m(30km/h)
TECHINCAL SPECIFICATIONS
23.Product Dimensions(mm)1950x1020x910mm
24.Ground Clearance(mm)100
25.Wheelbase(mm)1230
26.Mini Turning Radius(mm)2800mm
27.gross weight(kgs)151
28.net weight(kgs)130
29.Fuel Capacity(L)4.5
30.Fuel consumption3.5L/100KM
SEAT
31.Seat Height(mm)600
32.Number of Seats1
COLOR
33.Standard ColorRed/Yellow/Blue/Green/Black/White
34.Optional ColorGreen camo,Yellow camo,Snow Camo,Metallic,Carbon
LOADING
35.Packing Size(mm)1800*810*730   (Steel frame inside,carton outside)
36.Quantity20FT:18PCS,   40HQ:42PCS
PRICE
37.MOQ1X20FT
38.Price(FOB Ningbo)$770











---production details---

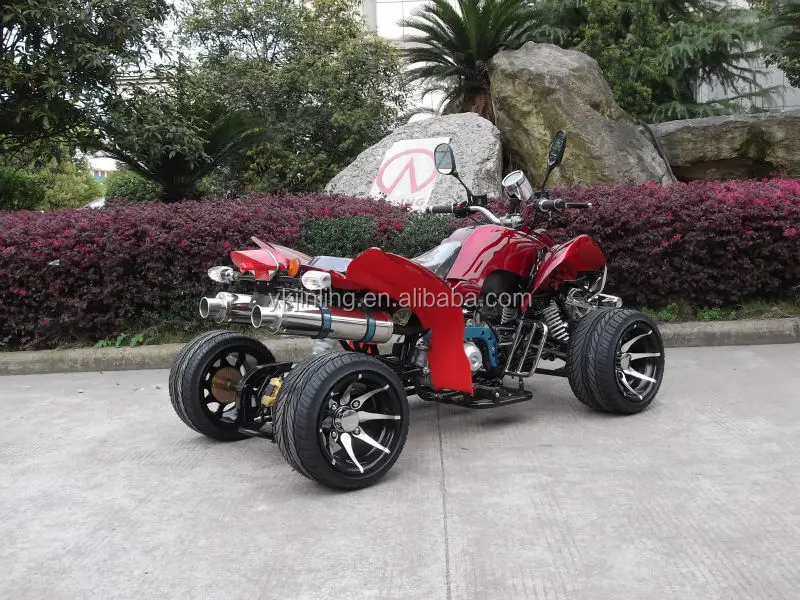

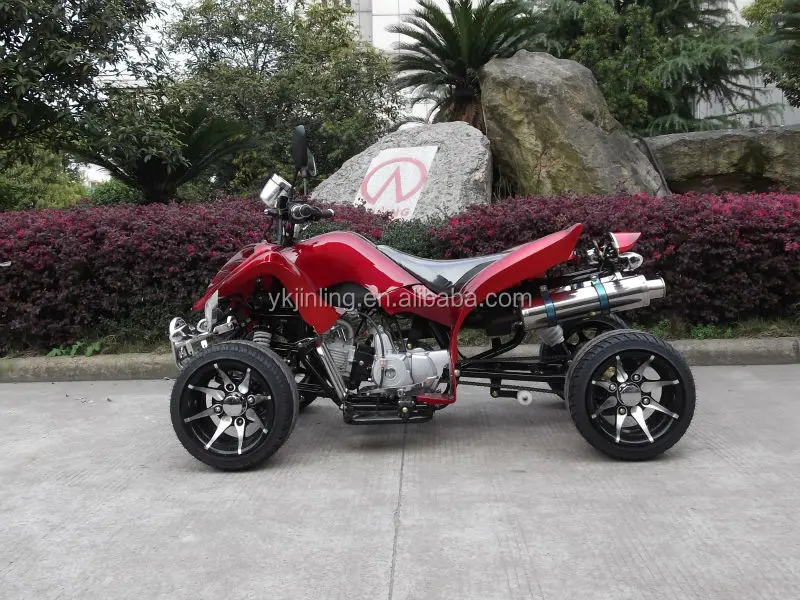

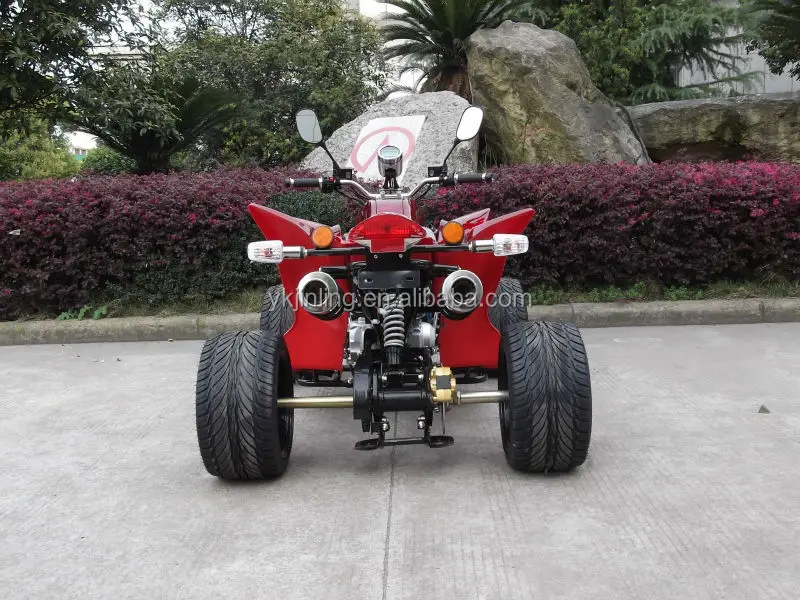

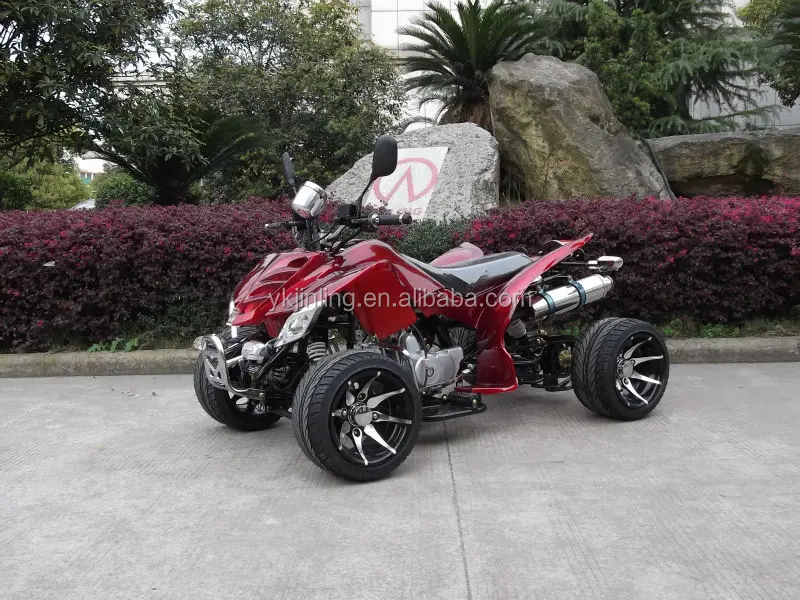

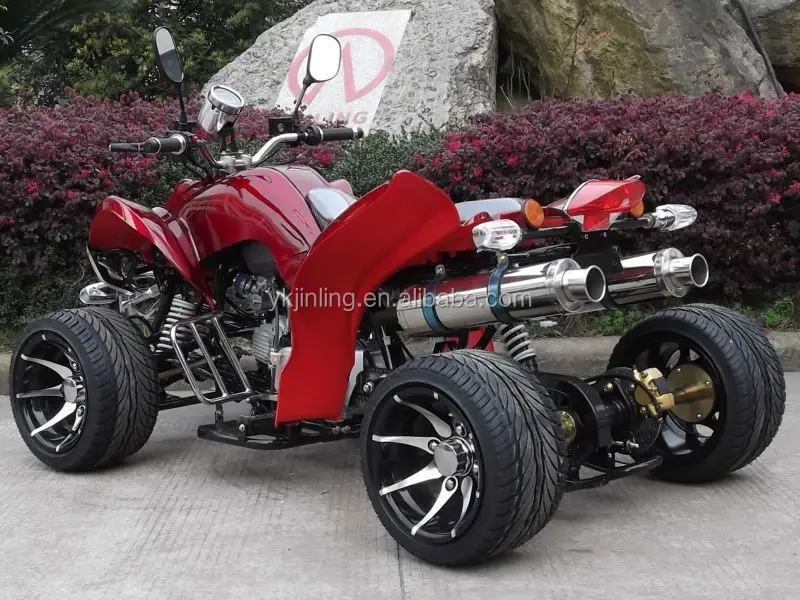

 JINLING-ATV-JLA-11A-08-12L-7JINLING-ATV-JLA-11A-08-12L-6JINLING-ATV-JLA-11A-08-12L-1JINLING-ATV-JLA-11A-08-12L-2JINLING-ATV-JLA-11A-08-12L-16




 packing









---our market---

 20120529164651882









---certification---

 certificate









---FAQ---




















































































askWhat is the minimum order quantity??
answerThe minimum order quantity is 1x20FT.
askWhat is the production and delivery time??
answerThe production and delivery time is 20-30 days.
askCan I order a sample ???
answerYes,You will pay 200 USD as sample fee to cover the extra costs.
askCan we use our own shipping agent ??
answerYes ,its ok.
askCan we mix the 20ft container ???
answerYes, you can mix it , you can mix less than 4 models in a 20ft container and you can mix 6 model in a 40FT or 40HQ container.?
askCan we use our own logo or design for sticker ???
answerYes, you can. We welcome OEM..
askHow often do you develop new models???
answerWe regularly develop 1 new model per 3 months.
askDo your factory have Certificate???
answerWe have CE for all of our ATV products and EEC for mostly of ATV products.?
ask?If I want to visit your factory, which is the nearest international airport and domestic airport ???
answerHangZhou is the nearest international airport. Yiwu is the nearest domestic air port.?
askDo you have address if buyer welcome to our factory?
answerYes. Welcome to our factory.from yiwu airport china give address Chinese word to taxi:
The cost is RMB350(FROM YIWU)
