Vertical inflow Mobile clean room modules with ESD air curtain

Share on:


Price:RUB 133,579.20 - RUB 1,021,488.00
Price in USD:Details

Quantity:

Add to Cart

Product Overview

Description

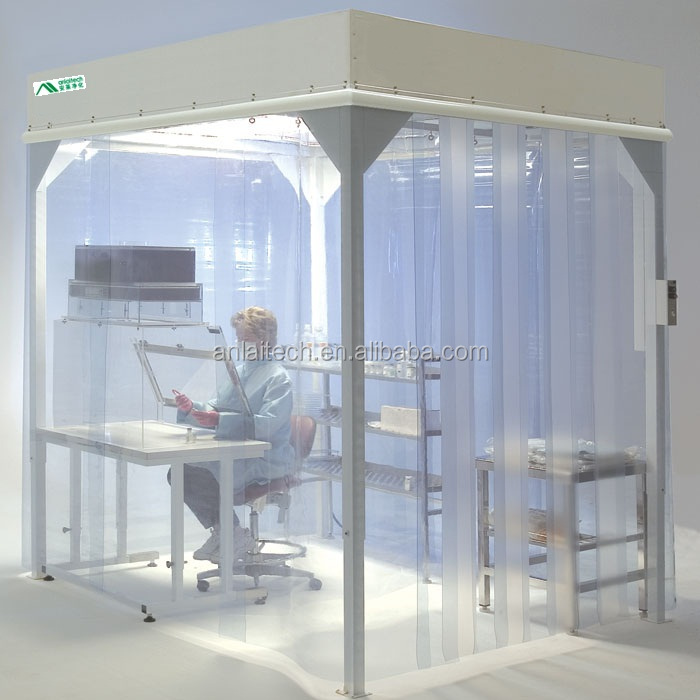

Anlaitech Brand Laminar flow Clean Shed



Standard 2' x 4' (0.6 x 1.2m) cleanroom ceiling grid enables flexible placement of fan filter units. Non particulate shedding phenolic resin panels are provided to cover empty bays.

Cleanroom-grade construction utilizing full welded, reinforced, steel tubular sections. Structure is finished with an abrasion resistant oven-baked powder coat.

Built-in warm white, electronically ballasted, 5000k lighting provides excellent illumination of the cleanroom and reduces operator fatigue. The reliable lighting system is zero-flicker and instant start. Tear-drop design does not interfere with the laminar flow in the cleanroom.

Isostat vinyl curtains isolate the cleanroom from the ambient environment, while allowing for easy passage of materials and personnel in and out of the clean area. Vinyl curtains terminate at a specific distance above the floor to allow for exhaust of clean air out of the cleanroom.

Stainless steel swivel casters feature nonshedding polyurethane wheels. (Capacity: 300 lbs each).

Centrally mounted control panel enables rapid startup of fan filter units and lighting.

Anlaitech Airstream Fan Filter Units incorporate German made ebm-papst permanently lubricated, direct drive, centrifugal blowers with external rotor designs, and Swedish Camfil-Farr HEPA/ ULPA filters.

The energy efficient external rotor motor design reduces operating costs and has extremely low noise and vibration levels, improving the working conditions in the cleanroom.

High quality HEPA filters utilizing an improved mini-pleated separation technique to maximize surface area improves efficiency and extends the filter life. Filters operate at a typical efficiency of >99.99% at 0.1 to 0.3 micron sizes.

An additional disposable pre-filter traps large particles in the inflow air prior to reaching the main filter, protecting against damage and prolonging life.

Built-in solid-state variable speed controller is superior to conventional "step" controllers and offers infinite adjustment.

The Soft Capsule Cleanroom is shipped unassembled with tools and parts for on-site assembly, turning an existing air-conditioned space into a cleanroom in a matter of hours.



Configuration:



Parameter

Softwall Clean Booth

Hardwall Clean Booth

Cleanliness

From Class 100 to Class 10,000

External Dimension

As per requirement

FFU

Dimension

2'X4'

Cabinet Material

Stainless Steel

Power source

110V/60hz/av/dc, 220V/60HZ/AV/DC

HEPA Filter

H14 Hepa filter

Frame Material

Stainless Steel

Wall Material

Anti-static soft PVC wall 106~109Ω

Anti-static acrylic 106~109Ω

Lighting

Lamps

Available in LED and T5

Air condition

As per requirement

Available in constant temperature air conditioner/constant temperature and humidity conditioner



Besides above configuration, we can customized as required.



Technical Paremeters:

Class Level

Model

Inner dimension

Number of

Air volume(m3/h)

W * D * H (mm)

FFU

Class100

ALCS6 * 8

2000 * 3000 * 2200

6

6600

ALCS 8 * 12

2440 * 3660 * 2200

12

13200

ALCS 8 * 16

2450 * 4880 * 2200

16

17600

ALCS 8 * 20

2440 * 6100 * 2200

20

22000

Class 1000

ALCS6 * 8

2000 * 3000 * 2200

2

2200

ALCS 8 * 16

2440 * 4880 * 2200

4

4400

ALCS 12 * 16

3660 * 4880 * 2200

6

6600

ALCS 20 * 24

6100 * 7300 * 2200

12

13200

Class 10000

ALCS6 * 8

2000 * 3000 * 2200

1

1100

ALCS 8 * 16

2440 * 4880 * 2200

2

2200

ALCS 12 * 16

3660 * 4880 * 2200

4

4400

ALCS 20 * 24

6100 * 7300 * 2200

8

8800

Please contact with us for your best clean room solutions.



Design into production:

 001#Design modular clean room.png002#Design modular clean room.png003#Design modular clean room.png



Strong Framework(Actual Photo taken):


IMG_0108 (1).JPG



Air Filtration System









20140616221102 Class100 to 10000 Vertical Flow Modular Softwall Cleanrooms.jpg



Features:



(1) Assembly structure designed, easy installation and easily moved

(2) Directional wheels can be installed, suitable for small building and high cleanliness area;

(3) Modular design: clean booth can be as small as several square meters and can be as large as hundreds of square meters

(4) It has large useful and effective area; while compared with traditional clean room, it has such features like low investment, high return and stable.



Following options are available



1. Pass box

 2. Air shower

 3. ULPA filter

4. Sticky mats

5. Barometer

6. Gowning area

7. Pressure different control device

8. Transparent/grid PVC curtain

9. Thermo-static and humid-static air conditioning system.






Packaging & Shipping

 Packing and shipping.jpg



Advantages

Own factory with competitive price

Automatic production line.

Nearly 20 years experience in cleanroom industry.

We are an expert in providing customized solutions.

Timely delivery with perfect quality.

Fortune 500 companies’ choice.

Have passed ISO9001.2008 certification.
