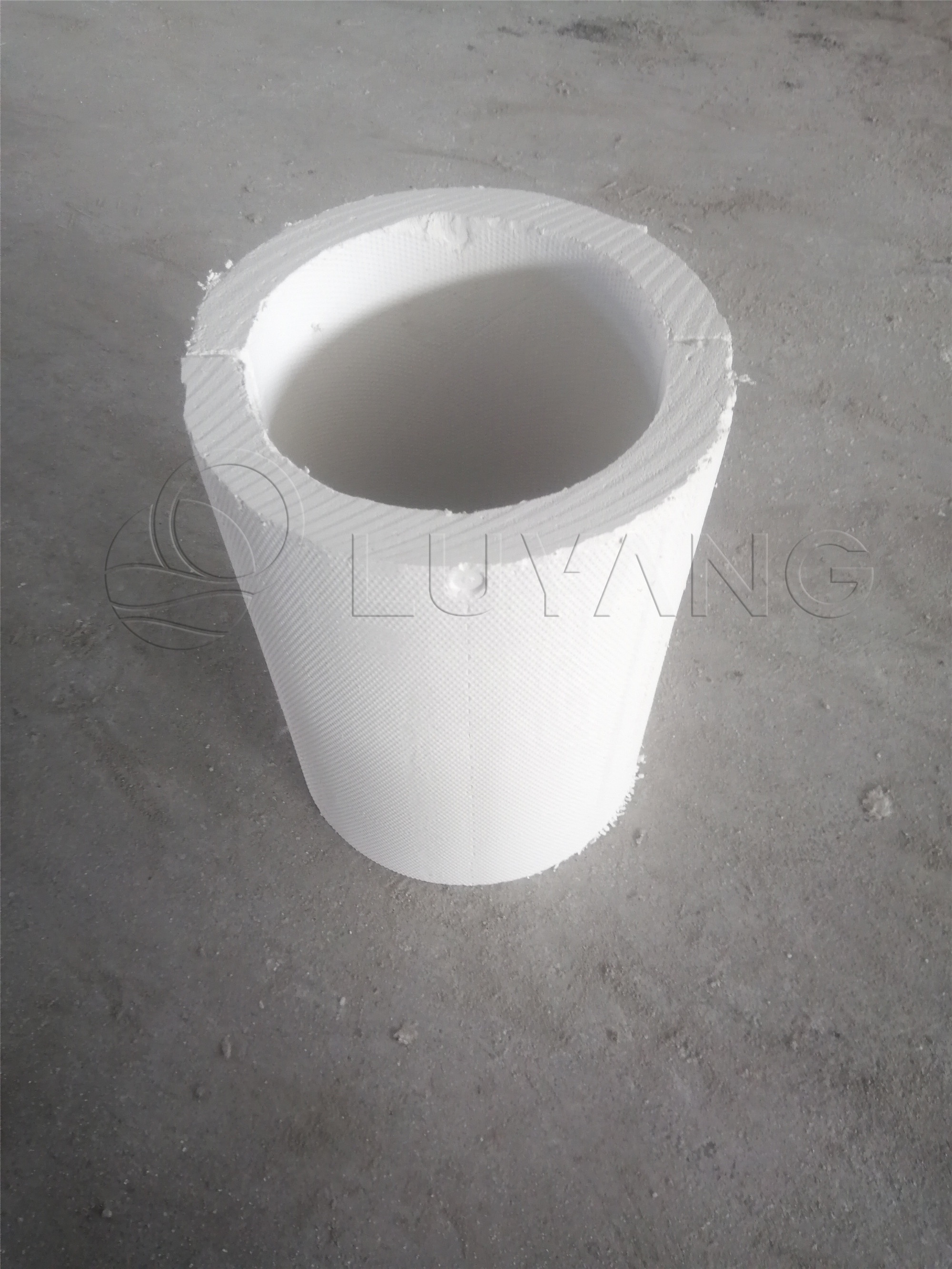

50mm thickness calcium silicate pipe for wall insulation

Share on:


Price:RUB 62.96 - RUB 1,007.23
Price in USD:Details

Quantity:

Add to Cart
  • add to wishlist

Product Overview

Description

50mm thickness calcium silicate pipe for wall insulation

Product Description

1 Feature

Good durability

Low thermal conductivity

Light weight ,high specific strength

High usability in construction

Safe and healthy

Waterproof

2 Application

Applied in the thermal equipment and insulation of pipes and external wall of the industries of electric power, petrochemical, metallurgy, ect and also used as backing insulation material of all kinds of stove firebricks

80A377486B8DA99EF307FE0D67C38252__

50mm thickness calcium silicate pipe for wall insulation


3.Dimension :





 length width  / inside diameter

 thickness

length

plate

               600*300mm

               600*400mm

               600*500mm

≥30mm

≥40mm

≥50mm



curved sheet

            196-3560mm

25-75mm

600mm

pipe cover

            34-171mm

25-75mm

600mm





 4.Technoical data

Item

thermal insulation and free asbestos  calcium silicate pipe

40-100mm price

Type

Common Calcium Silicate (650°C)

Standard Calcium Silicate (1000°C)

Characteristics

light weight, low thermal conductivity, high rupture and, compressive strengths, calcium silicate won’t distort even in contact with water, with other features like long service life, sawing-worthiness, easy processing, non-toxics, non-corrosiveness to piping and equipment, etc..

 Typical Use

Mainly used as insulation for thermal equipment and piping in the power, chemical, metallurgy, petrochemical, textile and light industries, as well as insulation for building, ship and train.

Working Temp

 650 °C, 1000 °C

Bulk density(max)

135 kg/m3.     170 kg/m3.      220 kg/m3.        300kg/m3

Flexural strength(min)

0.2Mpa            0.3Mpa           0.35Mpa             0.4Mpa

Linear shrinkage(max)

2%

Thermal conductivity(max)

0.049W/m.k   0.058 W/m.k   0.062 W/m.k       0.07 W/m.k

Service

 The size, density, chemical composition can be customized.

MOQ

 25 cubic meters

Payment terms

 L/C  &  T/T with 50% prepaid

Delivery

 Within 15 days after received the deposit

Packing

 By carton or pallet



5 Producation line

Asbestos-free pipe Calcium Silicate   , also known as the porous calcium silicate pipe, is a fiber-reinforced calcium silicatepipe, made through mixing, heating, gelling, molding, autoclaving and drying processes. Calcium silicate pipe is a new type of rigid insulation material.

Packaging & Shipping

HTB1G6k7HpXXXXbWXVXXq6xXFXXXo

Our Services

1 Samples

Free/Can produce according to your samples/The color according to your require

2 Product

Competitive shipment service/Complete after sales service

3 Our advantage

Professional manufacturer/Advanced equipment/Good quality& flexible/Competitive price/High quality team

Ceratification

initpintu__



FAQ

1 how about the delivery time ?

Lead time since receipe of 50% T/T deposit payment : as 3-7 work days usual(also depending on customer’s order)



Samples prepared with in 3days

2 what’s the MOQ and payment chaochen support ?

If by ship then as usual the MOQ : 20ft container or 40ft container

Sure if you have small require for MOQ then I can advise by Air to ship to you then the MOQ no limit

T/T:50% deposit and the balance by the Copy of B/L

L/C also accept

3Do you charge for samples ?

According to our company policy , we just send free samples to customer while thecustomer bear the freight fees



4 Can you produce according to customer’s design?

Sure we are profession manufacturer. OEM are welcome, but if up the manchine’s Max then we couldn’t do it

5 Can you tell me your main customer ?

That’s our customer privacy, we should protect their information at the same time, please rest assured that your information is also safe here

Thanks for your interesting for your products, I am looking forwarding to your CONTACTING Sally
