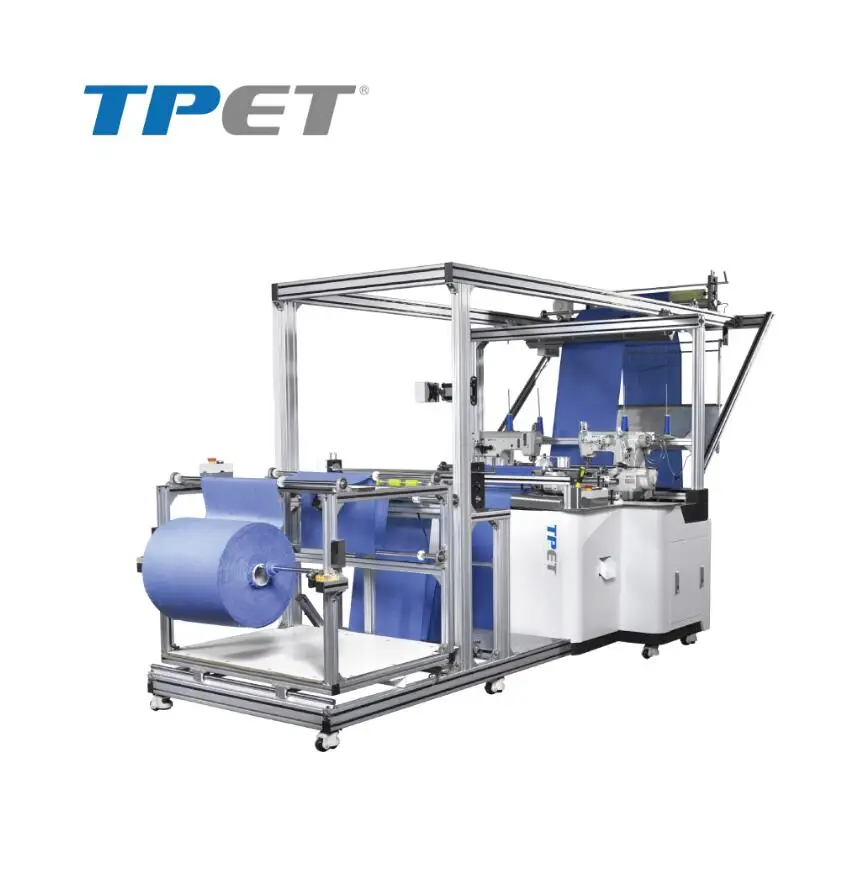

TPET full auto napkin machine ET-5830

Share on:


Price:RUB 6,822,983.29
Price in USD:Details

Quantity:


Product Overview

Description

Product Description



Fully-automated dishwash towel machine ET-5830



Application: Surgery operation towels, napkins



Description:

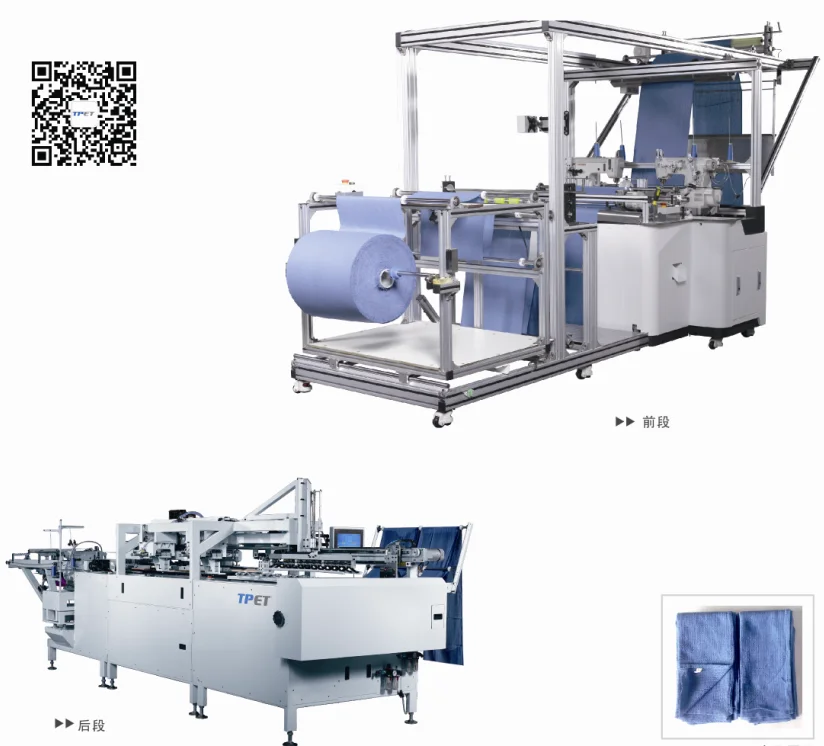

Front part: mainly for length sewing of whole cotton towel, with functions of edge trimming, fabric receiving.

Rear part: high versatile, high-speed, with wide range for adjusting, easy to operate, Including cutting, edge folding,  label sewing, thread end trimming and stacking.



Fearures:

Get everything done at one time, including cutting,sewing label, ultrasonic thread hot-cutting,which saves the time of transport.





 TECHNICAL PARAMETERS

name

weight

dimensions

feeding frame size

power

voltage

air pressure

components

hour capacity

overlock speed

Label size

Towel size range

vertical sewing
(front part)

1200kg

4500*1800*1200mm

1000*1800*1200mm

2.0kw

220v

/

trimming device, folder, synchronous chain sewing machine,fabric holder

800m/h

4000r/min

/

240-800mm

cross sewing
(rear part )

1800kg

3400*2000*1900mm

/

5.5kw

220v

>0.6Mpa

3 direct-drive overlock machines including 1 lefthand and 2 righthand, electronic speed synchronous tug

500pcs/h

300-3500r/min

20-40mm wide, 30-100mm long. keep straight or fold by half

18-50cm wide,50-90cm long. edgefold 8-20mm wide

application

suitable for cross hemming home use towels and  kerchief in regular size.
