Hot Sale Oil Pump Steel Pipe Tubing Anchor

Share on:


Price:RUB 2,229.82 - RUB 59,461.68
Price in USD:Details

Quantity:


Product Overview

Description



Hot sale API standard oil pump steel pipe tubing anchor





Basic information

Place of Origin Tianjin, China (Mainland)
Brand Name China Petroleum Equipment
Model Number 2-3/8" to 4-1/2"
Type Tubing anchor
Machine Type Oil production
Certification API 5CT
Material alloy steel, stainless steel
Processing Type Forging
Use Oil production





Tubing anchor is a downhole, packer-like device run in a string of tubing that clamps against the wall of the casing. The tubing anchor prevents the "breathing" of the tubing, the cyclic up and down movement of the lower section of tubing as the well is pumped by a rod pump.



1. Characteristics: (1)effectively anchoring the tubing string on the wall of well during the PC pump operation.

                            (2)When the anchoring is no need it is easy release the anchoring condition.
2. Specification: API 5CT 2-3/8” to 4-1/2”
3.Connecting thread type: EUE, NUE









Specification of the tubing anchor



Specification Max OD (mm) Drift diameter (mm) Slip free OD(mm) Slip open max OD (mm) Working pressure(Mpa) Pulling tension (KN) Setting pressure (Mpa) Release force (KN) Lift Load (KN) Suitable casing diameter (mm)
Tubing Anchor 114 62 112 132 35 ≤60 8~10 90~100 ≤400 121.4~124.3



Feature:

1. Safely and firmly set in all type of casing, including premium grades.

2. Bi-directional slip anchoring, which improved the ability of pressure difference resistance between upper and lower pressure

3. Hydrostatic setting, straight pull releasing, suitable for all kinds wells (vertical Wells, deviated well and horizontal well)

4. Bore diameter could satisfy the requirements of different kind wells.

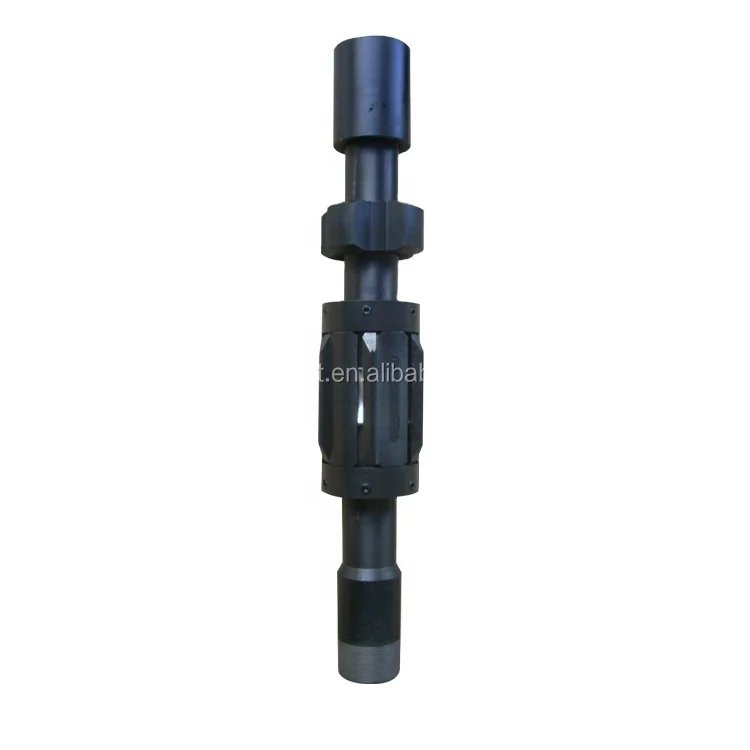

Photos of tubing anchor

36

IMG_4965













Our working procedure

1. Demonstrated company product on Alibaba web

2. Received the inquiry from potential customer

3. Provided the quotation and product techincal information to customer

4. Negotiated with customer about the price, payment terms, delivery terms etc.

5. Signed the product procurement contracts

6. Customer remitted the advance payment

7. Received the prepayment and arranged the production

8. Finished the production and inspection, chartered ship and booked space

9. Customer payed the follow-up payment for goods

10. Timely delivered the products to carrier and done customs clearance

11. Sent out the files to customer which including bill of lading, invoice, packing list, certificate of origin, product test report, certificate of quality etc.















Tianjin Soright Technology & Development Co.,Ltd (hereafter called Soright Tech) is one of exporting windows of China Petroleum Machinery. It is an integrity combined with R&D, machinery and processing, technical services on petroleum machinery products and services.



 1



The company keeps on the Quality is the first. All of products are designed and processed meeting API Specifications. Quality Management System has been set up to ensure the whole process being properly controlled.





Our main products are as follows: subsurface sucker rod pump, sucker rod, tubing crossover, tubing/casing couplings, stuffing box, thread protector, packings, float shoe and float collar etc.
